Summary of Contents for Sungil Telecom SXP-2280

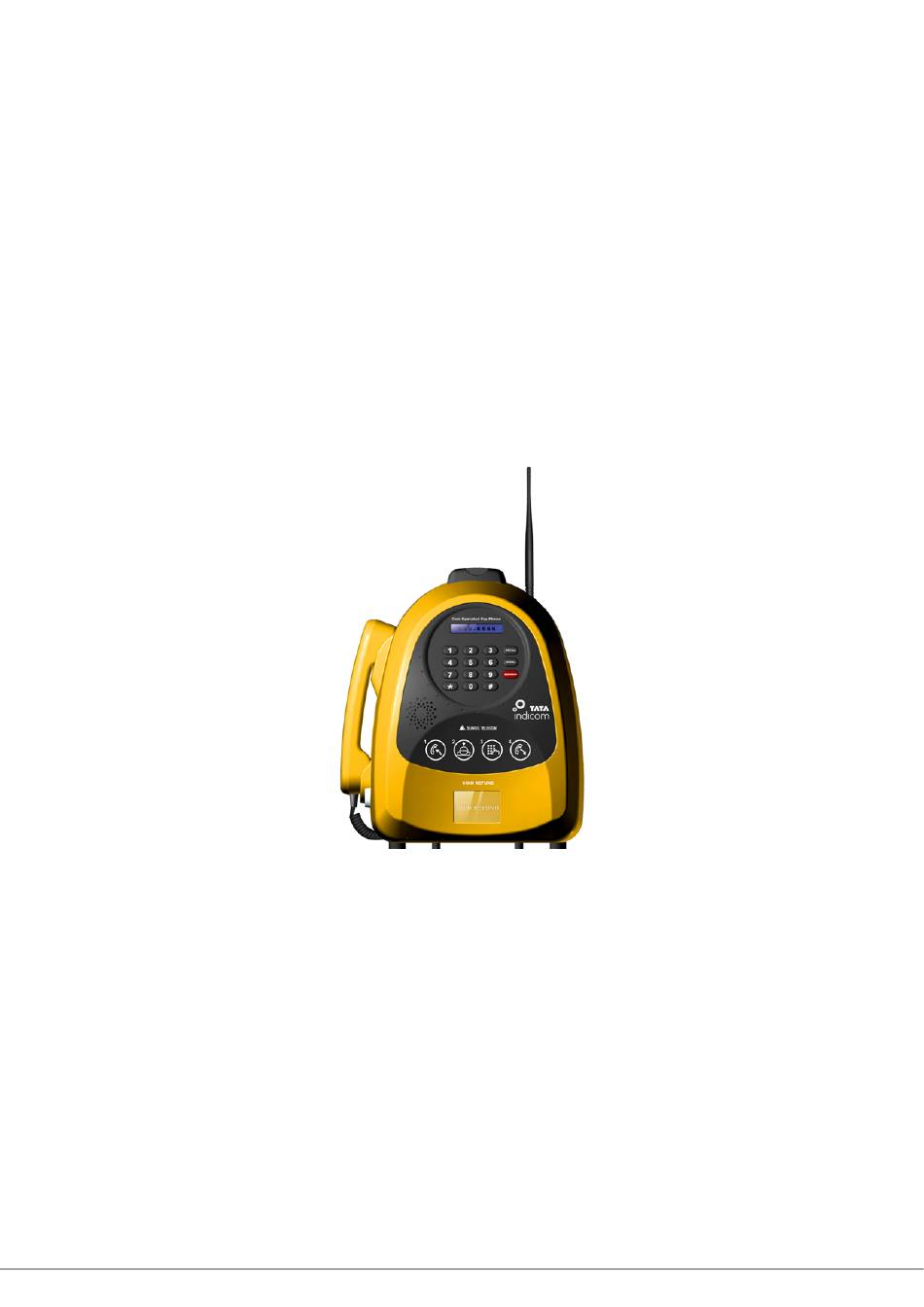

- Page 1 SXP-2280 CDMA 1XRTT FIXED WIRELESS PHONE 800 MHz CDMA ECHNICAL ANUAL Copyright@2007 SungilTelecom Co.,Ltd...
-
Page 2: Important Notices
Before installing your SXP-2280, carefully remove the contents from the shipping carton and check for evidence of shipping damage. If damage is found, contact your Authorized Sungil Distributor or shipping agent immediately. SAFE OPERATION INSTRUCTIONS IMPORTANT! Before installing or operating this product, read the SAFETY AND GENERAL INFORMATION section of this guide. - Page 3 1.1 ICCB Construction 1.2 Button Layout ICCB has 15 keys which are numeric keys(0-9), *, # , Recall , Redial and ICC key. Each key is used to make call but under specific menu internally, *, #, Redial, Recall and ICC key could be used as function key.
- Page 4 Redial: The down key for item selection on the menu. ICC: ICC stands for Indian Calling Card and this key has specific number for each region. This key is able to work only under “Insert Coin” status on LCD and don’t work at other status. 1.3 Coin Selector The below picture is shown coin selector structure.
- Page 5 initialize coin counter, a operator should go “Programming Mode” menu and make counter zero. 2. Menu Construction 2.1 Menu Tree Root Menu Sub Menu Description To enter to the programming mode (ICCB Mode) 1) Open the ICCB. 2) To enter to this menu, Please follow below instructions. On-Hook handset ->...
- Page 6 8:S/W Version 9:Password Tariff Password To enter to the CDMA mode 1) Press the short keys follows “624709247*2690” 2) The message on LCD will be displayed “Enter Code ****”. 3) Enter your password “0000” ( It can be changed ) 4) First menu, “1.Setting”...
- Page 7 07. SLOT CYCLE INDEX 08. RC (Radio Configuration) For CDG2 Testing 09. SPC CHANG 10. SPC VALUE 01. Current NAM You can selection the NAM1 or NAM2 02. Setup NAM 02. NAM 1 03. NAM 2 01. MCC (Mobile Country Code) * 3 digit 02.
- Page 8 2.2 Short Key List Key Items Action Keys Description A-Key *75259#147*359# To enter A-Key. CDMA Mode Menu 624709247*2690 To enter to CDMA Menu. NAM Mode Menu 47*869#*75259# To enter to NAM Mode Menu. Set ICCB Password Program mode Whenever Shop keeper would forget ICCB Password, he can use it to make a password to default value.
- Page 9 2.3 ICCB User Mode Display ICCB User Mode (Normal Call) 1 Handset On-Hook TATA Indicom MM/DD/YY hh:mm According to Display Menu in CDMA Menu, you can change display type like the upper. Default is logo as “TATA Indicom”. INSERT COIN 2 Handset Off-Hook - This screen request for insertion coin to make call.
- Page 10 this time, whenever every 10 is remained, Alarm will be made one time and after then after 2 secs until call ends, Alarm will be made. - During alarm sound, If you would insert coin, Alarm sound will disappeared no more. - In case of local call, After current 60 secs would be used up, just inserted coin will be dropped to the box and new 60 secs will be displayed and you can keep talking without stoping..
- Page 11 12 Redial - in case of only IDLE state, Pressing Redial key can dialed last numbre which was made successfully. - In case of no history, nothing is happened. 2.4 ICCB User Mode Display for Emergency Call and Toll Free ICCB User Mode (Emergency Call) 1 Emergency button If you press Emergency button, “Please Dial…”...
- Page 12 2.5 ICCB Menu ( Programming Mode) To enter to the ICCB Programming Mode 1) Open the Coin Box 2) To enter to this menu, Please follow below instructions. On-Hook handset -> Press Programming mode button on the board -> Off-Hook handset. 3) The message on LCD will be displayed “Enter Code ****”.
- Page 13 3:Cumu. Reset Press ‘3’, You can erase cumulative coin counter Press ‘#’ Del Cumu.Coins? Press ‘*’, Go back to the root menu. Press ‘#’,resetting the current coin counter. 4: Current Reset Press ‘4’, You can erase current coin counter. Press ‘#’ Del Cur.Coins? Press ‘*’, Go back to the root menu.
- Page 14 Enter PWD XXXX Input No XXXXXXX Press ‘#’ Input sec XXX Press ‘*’ or ’#’ 2:View Tariff You can show Tariff Press ‘#’ 01:91 Press ‘Recall’, ‘Redial’ Press ‘*’ or ’#’ 5:ICC Number press free call number 1: Show Option Press ‘1’.
- Page 15 Press ‘*’ or ‘#’ Press ‘#’, Updated the volume level. 2: Ringer Vol. Press ‘2’, Entering the volume of ringer menu Press ‘#’ Press ‘Recall’, Volume Up RingerVol. >>>> Press ‘Redial’. Volume Down Press ‘Recall’, ‘Redial’ Press ‘*’, Go back to the root menu. Press ‘*’...
- Page 16 2.5 CDMA Mode Menu To enter to the CDMA mode 1) Press the short keys as follows “624709247*2690” 2) The message on LCD will be displayed “Enter Code ****”. 3) Enter your password “0000” ( It can be changed ) 4) First menu, “1.Setting”...
- Page 17 2: H/W Version Press ‘2’, Entering the H/W Version menu. Press ‘#’ Press ‘*’, Go back to the root menu. H/W:XXXXXXXXXX Press ‘*’ 3: PRL ID Press ‘3’, Entering the PRL ID menu. Press ‘#’ Press ‘*’, Go back to the root menu. PRL ID:XXXXXXXX Press ‘*’...
-
Page 18: General Information And Safety
If you’re using the battery, the unit must be connected to AC power for at least 3 hours to fully charge the battery before it will provide back-up power to your SXP-2280. Verify that the battery has been charged for at least 3 hours and that the power source and its corresponding circuit breaker are functioning properly. - Page 19 Storage Temperature: From -25°C to +75°C; Up to 95% relative humidity (non-condensing). Antenna Care and Replacement Do not use the SXP-2280 with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Have your antenna replaced by a qualified technician immediately.
- Page 20 Blasting Areas Construction crews often use remote control RF devices to activate off explosives. Therefore, to avoid interfering with blasting operations, turn your SXP-2280 OFF when in a "blasting area" or in areas posted: "Turn off two-way radio." FCC WARNING This equipment may generate or use radio frequency energy.
