Summary of Contents for Advance Appliances ETS 160
-
Page 1: User Guide

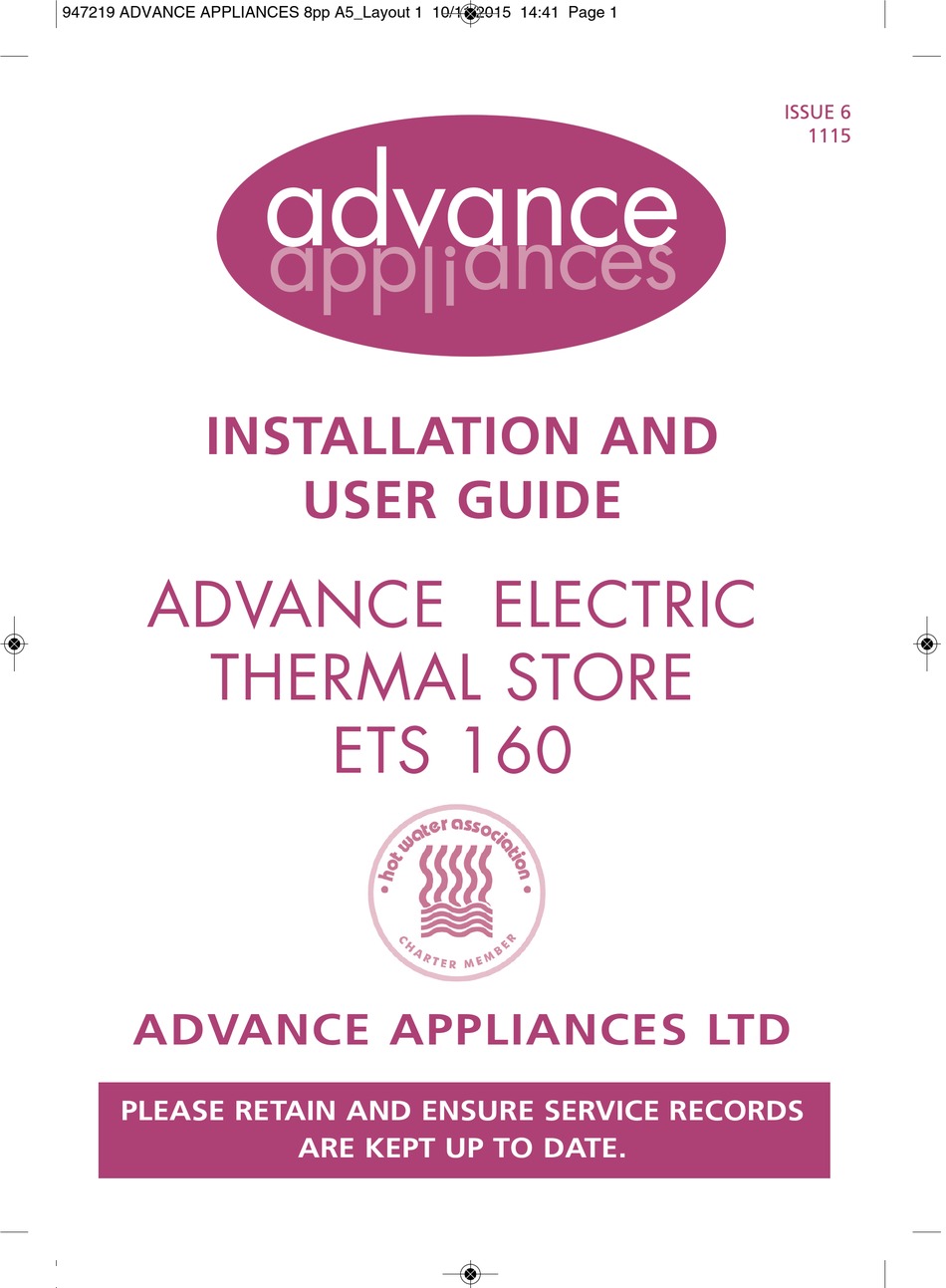

947219 ADVANCE APPLIANCES 8pp A5_Layout 1 10/11/2015 14:41 Page 1 ISSUE 6 ISSUE 4 1115 0214 advance ances INSTALLATION AND USER GUIDE ADVANCE ELECTRIC THERMAL STORE ETS 160 ADVANCE APPLIANCES LTD PLEASE RETAIN AND ENSURE SERVICE RECORDS ARE KEPT UP TO DATE. - Page 2 947219 ADVANCE APPLIANCES 8pp A5_Layout 1 10/11/2015 14:41 Page 2 SCHEMATIC Overflow if fitted Cold Section Vent and Water Level Indicator Isolation Valve Blending Valve Temperature Gauge Hot Water Coil 2 L Expansion Vessel Service Valve 3kw Immersion Heater Cold...
- Page 3 947219 ADVANCE APPLIANCES 8pp A5_Layout 1 10/11/2015 14:41 Page 3 INTRODUCTION Advance Electric Thermal Store Systems are perfect for installations where oil or gas is not available or preferred such as rural dwellings or modern apartments. No flues are required and the unit is quiet in operation.
- Page 4 947219 ADVANCE APPLIANCES 8pp A5_Layout 1 10/11/2015 14:41 Page 4 INST ALLATION The unit must be installed to meet current best practice by a person competent to do so. Incoming mains of 22mm with a pressure of 2 bar or above is recommended for best performance.
- Page 5 947219 ADVANCE APPLIANCES 8pp A5_Layout 1 10/11/2015 14:41 Page 5 COMMISSIONING ALL JOINTS MUST BE TESTED AS THEY CAN LOOSEN IN TRANSIT. The blending valve is set to maximum. See manufacturer’s leaflet if adjustment is required. The immersion heaters are rated at 3kW each, and should be set at 75 There is a thermal cut out on the thermostat.
- Page 6 947219 ADVANCE APPLIANCES 8pp A5_Layout 1 10/11/2015 14:41 Page 6 WARRANTY Warranty is for ten years on the tank against failure due to manufacturing fault, and two years on components supplied and fitted to the heating manifold and thermal store.
- Page 7 947219 ADVANCE APPLIANCES 8pp A5_Layout 1 10/11/2015 14:41 Page 7...
- Page 8 947219 ADVANCE APPLIANCES 8pp A5_Layout 1 10/11/2015 14:41 Page 8 HOT WATER ASSOCIATION CHARTER MEMBER Hot Water Association (HWA) Members undertake to offer their customers the following: • To supply t for purpose products clearly and honestly described • To supply products that meet or exceed appropriate standards and building and water regulations •...
Need help?
Do you have a question about the ETS 160 and is the answer not in the manual?
Questions and answers

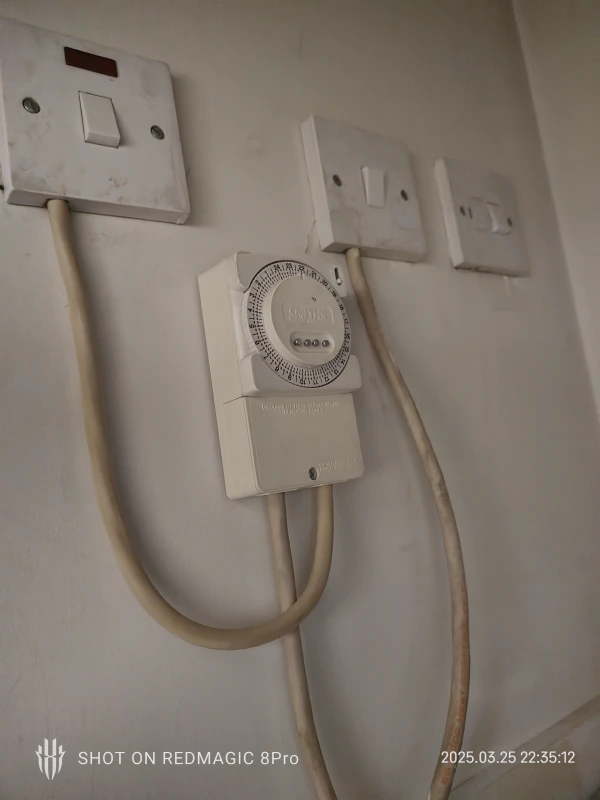

My ETS 160 boiler has three switches on the wall however none of them are labelled and thus I do not know which switch controls peak/off peak and boost also which one of those switches affects the timer?
