Snapper TP 100-400 Operator's Manual
Snapper TP 100-400 Operator's Manual

Snapper TP 100-400 Operator's Manual

Wide body dust collector

Advertisement

Quick Links

Form I 708219
USA
OPERATOR'S
CART COLLECTOR
Dual Wheel Cart For Use With
MANUAL
Turbo Collection System
SOVEREIGN/900 SERIES CART
LANDLORD/1700 SERIES CART
MFG. NO. 1691526
MFG. NO. 1692085

Advertisement

loading
Need help?

Need help?

Do you have a question about the TP 100-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Snapper TP 100-400

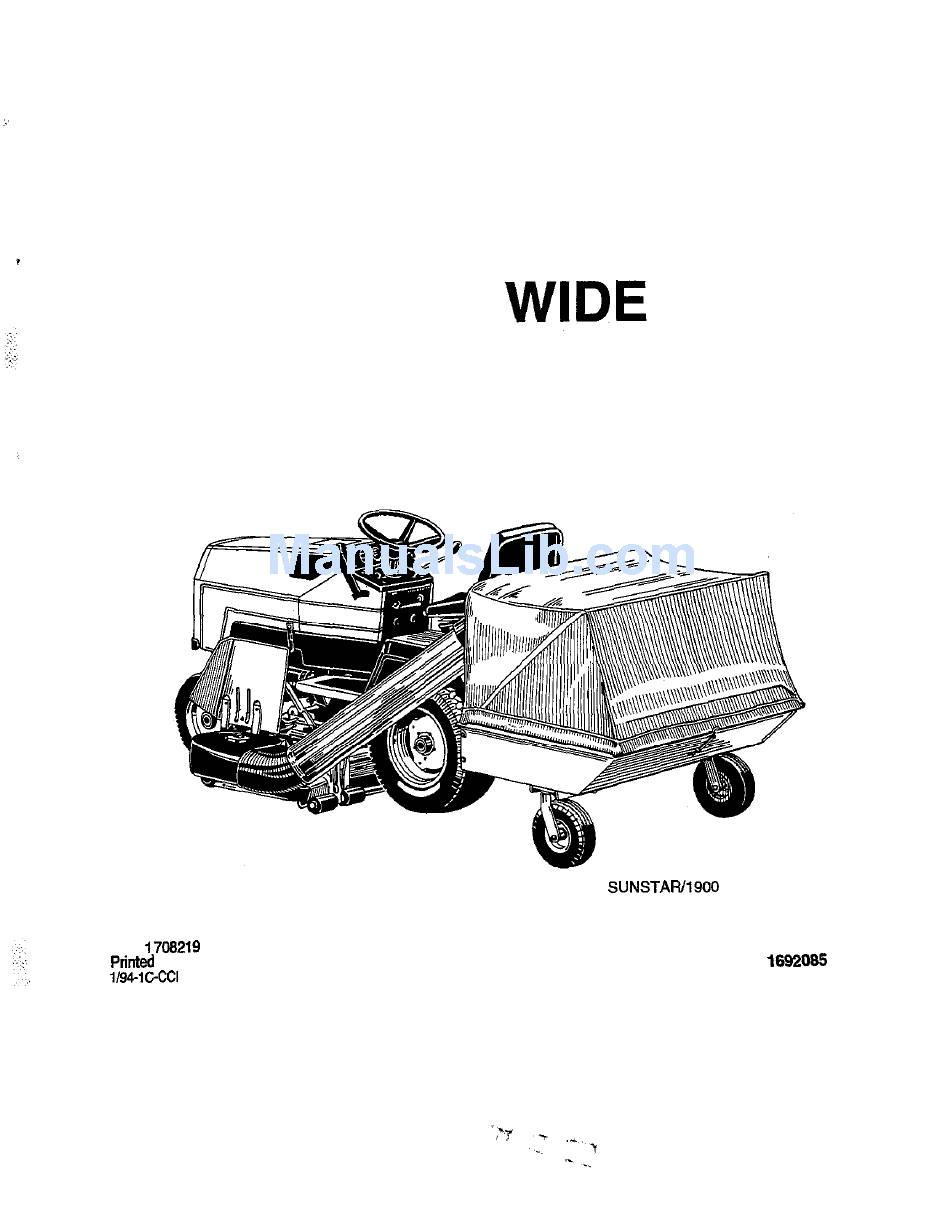

  • Page 1 :.’ Form I 708219 printed in l/94-1GCCI OPERATOR’S WIDE BODY CART COLLECTOR Dual Wheel Cart For Use With Turbo Collection System MANUAL SUNSTAR/ SERIES CART SOVEREIGN/900 SERIES CART MFG. NO. 1691526 LANDLORD/1700 SERIES CART MFG. NO. 1692085...
  • Page 2 :L..~ ~~: ,.~.~~ ‘in. . : :: :.,.: .:.. ‘:, .,.: : : .
  • Page 3 Standard Fastener Identification Chart..inside Front Cover Decals ... 1 Specifications ... 1 Decals ... 1 Illustrations and Parts Lists ... Cart and Cover Assembly ... 2 Hitch and Tube Assembly - SunStar/ Series ... 3 Hitch and Tube Assembly - Landlord0700 Series..3 Hitch Assembly - Sovereign/900 Safety Rules ...
  • Page 4 6. Hitch and Tube Assembly - SunStar Series Tube Assy. (Incl. Ref. No. 38) Nut, Hex Full, Lock, #lo-32 Washer, Plain, #l 0 Screw. Phillips, Truss Head, #10-32x l/2 Hose Clamp, 6” Decal, Cleaning Inst. Capscrew, Hex Hd., 7/16-14X l-1/2 Lo&washer, 7/16 Nut, Hex, Full, 7/16 Nut, Hex, Full, l/2-13...
  • Page 5: Cart Assembly

    Cart Assembly NOTE: Sort out the hardware and arrange by size and type. Refer to figure 1. 1. Install the wheel assemblies (A, figure 2) to the frame (B). Place the head of the swivel wheel on the end of the frame. Align the holes and place four 3/8- 16 x 1 hex bolts up through the frame and head of the swivel.
  • Page 6 6. Install the sleeve clamp (C, figure 11) to the connect- ing sleeve (A) with l/4-20 x l/Z slotted truss head screw (D) and nyloc nut (E). Install the connecting sleeve inside the collar of the cover and position sleeve clamp (C) over the support tube (B). Figure 11 D.
  • Page 7 Discharge Tube Installation Landlord/1700 Series (Mfg. No. 1692095) 1. Install the spring clip (D, figure 18) with two 10-32 x i/2 truss head screws (E), four flat washers (F), and two locknuts (G). 2. Install l/4-20 x 5/8 carriage bolt (H) through hole in turbo housing.
  • Page 8: Maintenance

    Maintenance The cart cover IS subject to wear and detenora- tion. Check the cover frequently. Use an Cover The cover can be rinsed with a hose when dirty. A dirty cover will inhibit the fast flow of grass clippings into the cover.
