Summary of Contents for Arkon HP4290

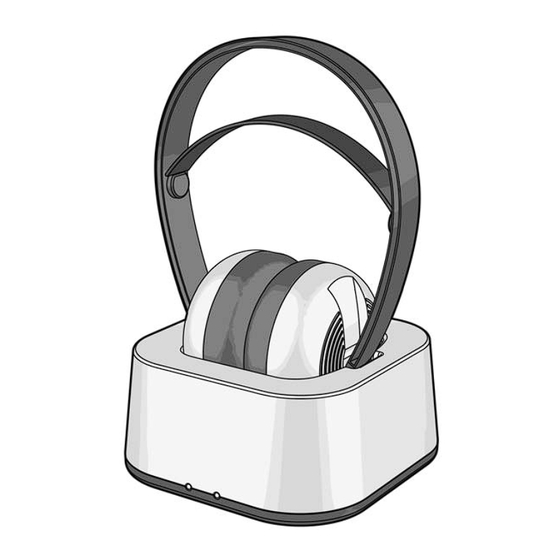

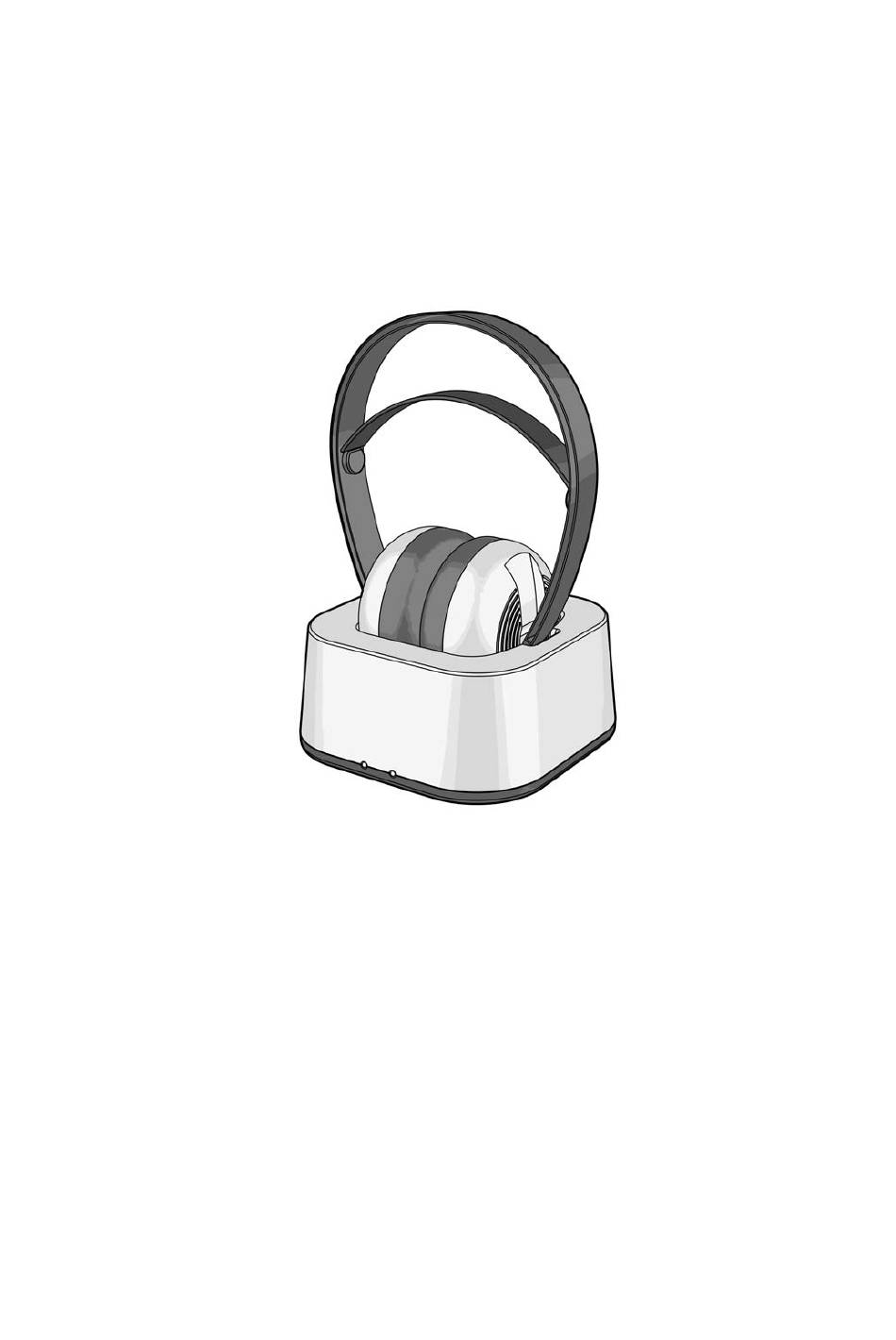

- Page 1 HP4290 Cordless and Corded Stereo 900MHz Headphone System User's Manual...
- Page 2 INTRODUCTION This 900MHz cordless and corded stereo headphones takes advantage of the very latest advances in wireless transmission technology so that you can listen to stereo sound from your audio components upto 50 meters. All you have to do is connect the transmitter to any audio source: DVD player, CD player, MP3, TV set, VCR, Hi-Fi system or radio.
-
Page 3: Component Identification
COMPONENT IDENTIFICATION... - Page 4 COMPONENT IDENTIFICATION RF receiver headphones Power indicator light Power On/Off switch Charge contacts AUTO SCAN button Volume control knob (VOL) Line-in Jack for connection with cable to use as normal corded headset Charge contacts RF transmitter Operating indicator light Charge indicator light Audio connection cable with 3.5 mm jack plug Channel selector (CHANNEL 3 2 1) DC IN connector...
-
Page 5: Installation
INSTALLATION TRANSMITTER Connect the mains adapter provided to an electrical outlet. Connect the mains adapter cable to the DC IN input connector located on the transmitter rear panel. An audio cable is provided from the transmitter rear panel that can be connected to the audio outputs (Left and Right) present on a TV set, Hi-Fi system, VCR or radio-cassette player. -
Page 6: Operation
OPERATION Switch on the sound source (TV set or audio component) that the transmitter is connected to. Place the headphones On/Off switch in the On position. Place the headphones on your head and adjust the volume to obtain the desired sound level. If you cannot find the best reception frequency, press the "Auto Scan"... -
Page 7: Charging The Batteries
CHARGING THE BATTERIES 1. Place the On/Off switch on the receiver headphones in the Off position. 2. To recharge the headphone batteries, place the headphones on the transmitter, taking care to ensure that the charge contacts touch the transmitter's charge prongs and the green charging indicator is ON. 3. - Page 8 WARNING: Never attempt to recharge conventional dry cells. Never use another type of battery or non-rechargeable batteries to replace the rechargeable (LR03/AAA) batteries supplied. When the headphones are not in use, move the switch to the OFF position to avoid damaging the batteries.
- Page 9 REPLACING BATTERIES Rechargeable batteries have a long service life. If it is however necessary to replace them, proceed as described below: Carefully pull out the right-side (R) earpad holder from the receiver headphones. Install the 2 new rechargeable batteries in their housings as illustrated.
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Transmission mode : UHF stereo Carrier frequency : 900MHz Operating voltage : Transmitter – 12 V 200 mA Receiver – 2.4 V (two rechargeable batteries, LR03/AAA size) Frequency response : 30 Hz – 11 KHz Distortion : 1.5 – 3 % Signal-to-noise ratio : 50 dB Channel separation... - Page 11 TROUBLESHOOTING NO SOUND Ensure that the mains adapter is pushed fully into the power outlet and that its cable is properly connected to the DC IN 12V connector on the transmitter. Ensure that the headphones On/Off switch is switched to the The headphones battery charge level may be too low.
- Page 12 Use the channel selector to change the transmitter's transmission frequency. Then you will need to adjust the tuning control by press the “Auto Scan” button on the headphones. The headphones battery charge level may be too low. Recharge the batteries or replace them with fully charged batteries. Ensure that the volume knob setting is correct.
