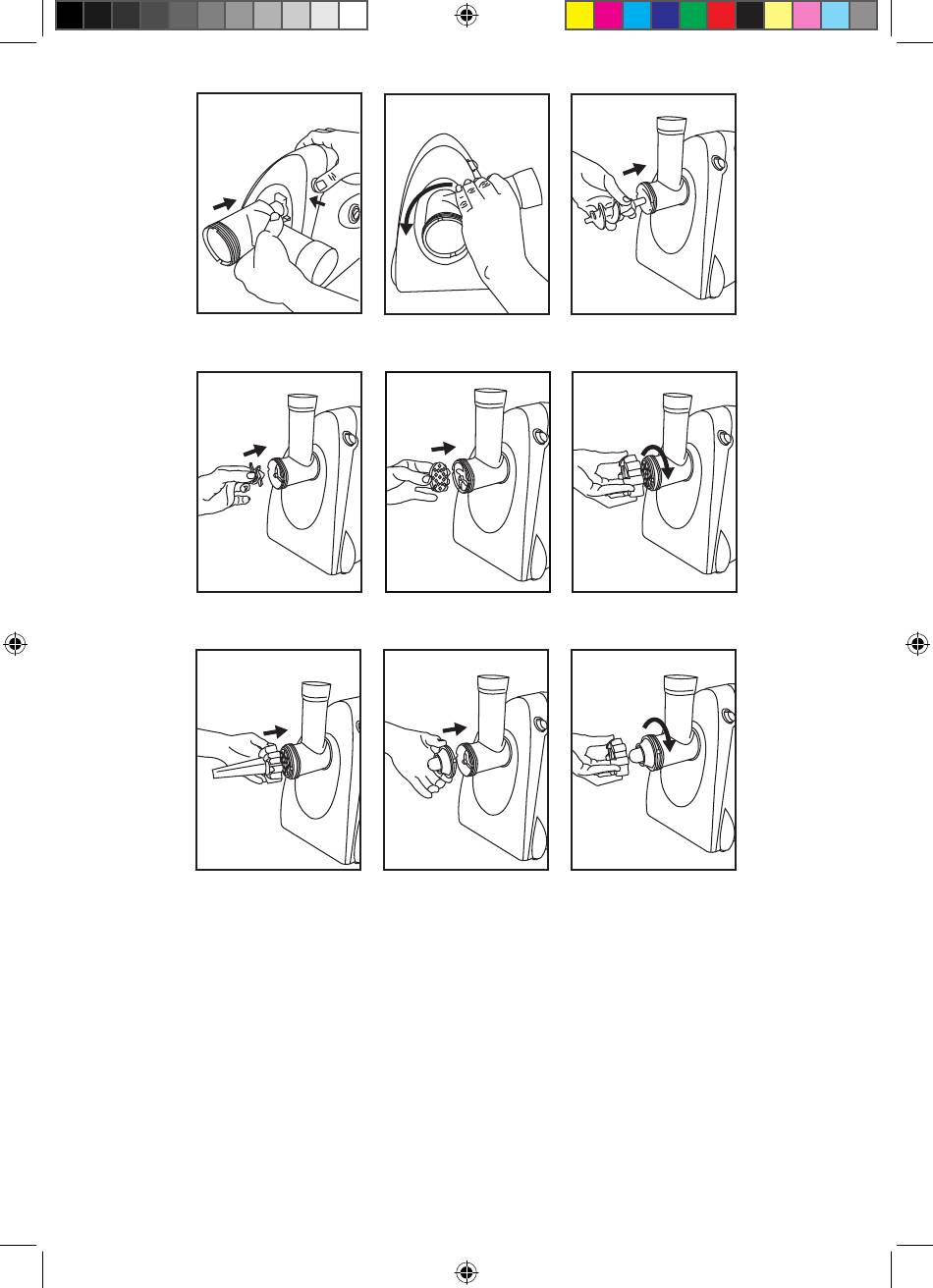

- Insert the endless screw through the outlet mouth
of the mincing head (fig. 3).
- Position the cutting blades on the endless screw
with the cutting edge pointing towards the endless
screw (fig. 4).
- Insert the required cutting plate onto the endless
screw, fitting the bulges on the cutting plate in the
notches of the outlet mouth edge of the mincing
head (fig. 5).
- Screw the lock rim tightly onto the outlet mouth of
the mincing head turning clock-wise to secure the
endless screw, cutting blades and the cutting plate
(fig. 6).
- Position the tray at the top of the mincing head.
26602 IM.indd 4
Fig. 2
Fig. 5
Fig. 8
Sausage accessory (L)
- Press & hold the lock button while inserting
the mincing head (fig. 1). Then turn the
mincing head anti-clockwise until the chute is
vertical. Release the lock button to secure the
mincing head in position (fig. 2).
- Insert the endless screw through the outlet
mouth of the mincing head (fig. 3).
- Position the cutting blade on the endless screw
with the cutting edge pointing towards the
endless screw (fig. 4).
- Insert the cutting plate with the largest holes
onto the endless screw, fitting the bulges on
the cutting plate in the notches of the outlet mouth
Fig. 3
Fig. 6
Fig. 9
