Icare I3300 User Manual

Kid’s mobile phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
I–Care
Kid's Mobile Phone
User Manual
Model: I3300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I3300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Icare I3300

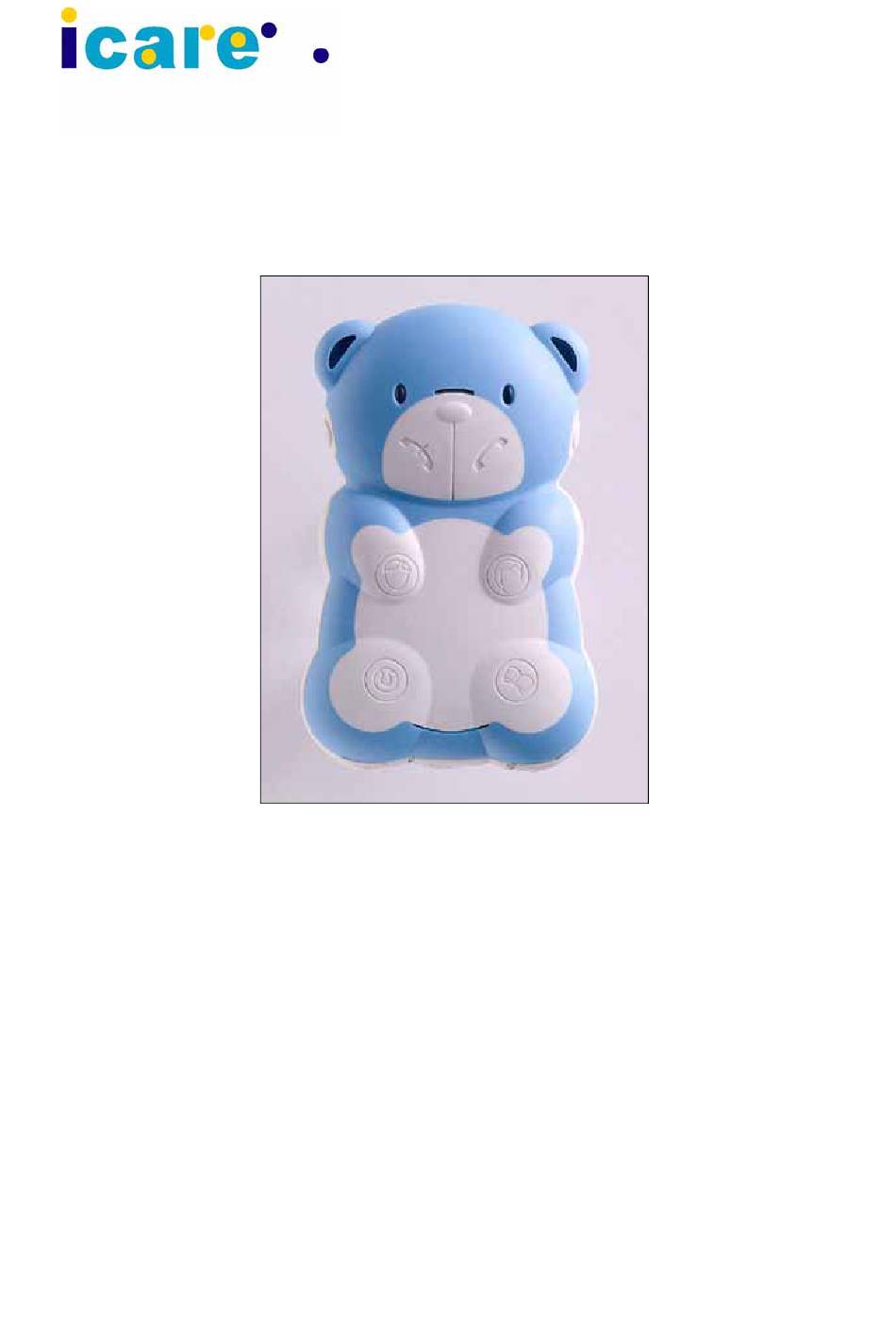

  • Page 1 I–Care Kid’s Mobile Phone User Manual Model: I3300...
  • Page 2 Important User Guide Before you begin any setup, please note the following: 1. Must insert a SIM card before you begin any setup 2. You will need to use parent’s mobile phone which has LED display in order to set up the i-care kid’s mobile phone 3.
  • Page 3 Quick Phone Setup Guide Setting Formula *password*function code*phone number Change of Password (4 digits numbers only) *old password*00*new password# Speed Dial 1 setup *password*11*phone number# Speed Dial 2 setup *password*12*phone number# Speed Dial 3 setup *password*13*phone number# Speed Dial 4 setup *password*14*phone number# Group Dial 1 setup *password*15*phone number#...

  • Page 4: Table Of Contents

    Table of Content Chapter 1 What is i-care kid’s mobile phone..............5 1-1 Key components of kid’s mobile phone ............5 1-2 Accessories 1-3 User Instruction ....................7 1-3-1 Group dial setup ................7 1-3-2 SMS setup ..................7 1-3-3 SMS delay ..................7 1-3-4 Password....................7 1-3-4-1 Original password ................7 1-3-4-1 Password change................7 1-3-5 Maintenance ..................7...
  • Page 5 4-3-3 Change message text ................17 4-4 SOS Group informing.................17 4-4-1 SOS message receivers setup ..............18 4-4-2 SOS message setup..................19 4-5 Earphone.....................19 4-6 Speaker Volume ..................19 4-7 Vibrate/ring mode switch................20 4-8 Change Rign Volume ..................20 4-9 Setup confirmation ..................20 4-10 One way confirmation ................21 4-11 Password ....................22 4-11-1 Change password...................22 4-11-2 Forget password..................22...
  • Page 6 Chapter 1: Introduction to your kid’s Mobile Phone 1-1 Product Identification Speaker LED light SOS Button SOS Button Power On/Off Receiving/Dialing Button End Call Speed dial 1 Speed dial 2 Speed dial 3 Speed dial 4 Microphone Power Charge Earphone Jack...

  • Page 7: Accessories

    1-2 Accessories Object Diagram Charger（diagram 4） The charger is designed with indicator light to show the status of battery (see chap5) Battery（diagram 5） 3.7V/600mA Li-ion battery. 1-3 User Instructions 1-3-1 Group dial setup Please understand that the setup method of i-care kid’s mobile phone is very different from other mobile phones.

  • Page 8: Maintenance

    1-3-5 Maintenance Do not use any other accessories than i-care originals. Failure to do so may result in loss of performance and will void the warranty. 1-3-5-1 Battery Do not expose battery in extreme temperatures which might shorten the battery usage life. Do not store battery with metal objects that could damage the battery pack or cause fire or burns.

  • Page 9: General

    Chap 2 Function Introduction 2-1 General I-care kid’s mobile phone provides GSM900/GSM1800 dual band service to receive and make calls. 2-2 Text Message Four speed dial keypads are able to send pre-programmed message (see sec 4-3-2). 2-3 Speed Dial Keypads I-care kid’s mobile phone provides four speed dial keypads.

  • Page 10: Install Battery

    Chap 3 Getting Start 3-1 Install Battery Place the battery in the direction of the arrow as shown in the picture to ensure the safety of I-care kid’s mobile phone. When battery is installed, LED light will be flashing and the phone is turned on.

  • Page 11: Led Indicator

    3-3 LED indicator In normal operating status, the LED light will be flashing in blue; if there is no network, it shows a steady blue light. When there is an incoming call, LED light will be flashing rapidly. When the battery is low, LED light will be flashing in red.

  • Page 12: Receiving/End Calls

    Chap4 Operation 4-1 Receiving / End calls When the phone rings (or vibrates): Step one: press Receiving/Dialing’’ button Step two: press “Power off / on’’ button to end a call Power Off / On Receiving/Dialing Button 4-2 Making calls Step one: press any speed dial keypad Step two: press dial out keypad within 3 seconds;...

  • Page 13: Setup Speed Dial Keypads

    4-3 Setup speed dial keypads Important Note: You must setup the First SOS dialers number (see 4-4-1) in order to receive a confirmation SMS for each setup afterwards. 4-3-1 Dial out number setup Speed dial function is available to the users. Please follow below instruction to setup the speed dial numbers: (to setup with extension number, add letter “p”...
  • Page 14 Step one: Access to “write message” function in mobile phone with display, enter “*password*12*number#”. (Original password is 0000). Step two: For example, if your password is 0000 and the dial out number is 0910123456. Enter “*0000*12*0910123456#” Step three: Send the message to I-care kid’s mobile phone. When the LED light is on, dial out number setup is completed.

  • Page 15: Setup Short Message Service

    Step one: Access to “write message” function in mobile phone with display, enter “*password*14*number#”. (Original password is 0000). Step two: For example, if your password is 0000 and the dial out number is 0913123456. Enter “*0000*14*0913123456#” Step three: Send the message to I-care kid’s mobile phone. When the LED light is on, dial out number setup is completed.
  • Page 16 *Set up SMS (2) Step one: Access to “write message” function in mobile phone with display, enter “*password*T2*number#”. (Original password is 0000). Step two: For example, if your password is 0000 and the SMS is “Mummy, I love you”. Then you enter “*0000*T2*Mummy, I love you#” Step three: Send the message to I-care kid’s mobile phone.

  • Page 17: Change Message Text

    Step one: Access to “write message” function in mobile phone with display, enter “*password*T4*number#”. (Original password is 0000). Step two: For example, if your password is 0000 and the SMS is “Teacher, I am home”. Then you enter “*0000*T4*Teacher, I am home#” Step three: Send the message to I-care kid’s mobile phone.

  • Page 18: Sos Group Informing

    4-4 SOS Group Informing Step one: In case of emergency, press SOS Button on both sides for 3 seconds Step two: Release the keypads when the phone vibrate for 0.5 seconds. The fixed SOS message is then sent to the three preprogrammed receivers. Step three: Once the SOS message is sent to the three preprogrammed receivers, I-care kid’s mobile phone will auto dial to the first receiver if the receiver answer the phone so that the receiver can monitor the life sounds surrounding i-care kid’s mobile phone.
  • Page 19 4-4-1 Setup SOS receivers Press SOS Button on both sides, text message will be sent to the preprogrammed three receivers. It is suggested that the first receiver to be the most important contact person in case of emergency. * Setup SOS receivers (1) Step one: Access to “write message”...

  • Page 20: Earphone

    Step one: Access to “write message” function in mobile phone with display, enter “*password*23*number#”. (Original password is 0000). Step two: For example, if your password is 0000 and the first receiver number is 0915111111. Then you enter “*0000*23*0917111111#” Step three: Send the message to I-care kid’s mobile phone. When the LED light is on, setup is completed.
  • Page 21 Change Ring Volume Step one: press SOS Button on both sides Step two: press speed dial key 3 to increase volume or 4 to decrease volume. Step three: When you reach the desired volume, press receiving keypad. SOS Button SOS Button Speed dial 3 Speed dial 4 I-care kid’s mobile phone set up confirmation...

  • Page 22: Password

    Step one: Access to “write message” function in mobile phone with display, enter “*password*40*number#”. (Original password is 0000). Step two: For example, if your password is 0000 and the dialing number is 0916999999, then you enter “*0000*40*0916999999#” Step three: Send the message to I-care kid’s mobile phone. When the LED light is on, setup is completed.
  • Page 23 Chap5 Battery Management 5-1 Battery Low When LED light is flashing in blue, it indicates the phone is operating in good condition. When LED shows steady red light, it indicates battery need to be charged and low battery reminding message will be sent to the preprogrammed first receiver.

  • Page 24: Chapter 5 Battery

    Chap 6 Trouble Shooting Problem Possible solution Unable to power on the phone Ensure the battery is fully charged and correctly installed Various functions are inaccessible Ensure the battery is fully charged Poor communication quality Please relocate your position to area where network is clear Call interruption Please keep the phone out the metal...
  • Page 25 Chapter 8: Important Safety Guidelines and Suggestions for Efficient Usage Please read through this manual before using I-care kid’s mobile phone • I-care kid’s mobile phone is designed for children of age 3 and above • Keep the phone in clean area •...
  • Page 26 ※Electronic Devices Mobile phone may affect the operation of some implanted cardiac pacemakers or other medically implanted equipment. Do not place the phone over the pacemaker such as in your shirt pocket near chest. When using the phone, place it at your ear opposite the pacemaker. When a minimum distance of 15 cm (16inches) is kept between the phone and the pacemaker, the risk of interference is limited.
  • Page 27 ● Do not disassemble or modify the battery ● Do not store battery in temperatures over (140℉). ● Turn off the phone first before removing the battery ● Do not place battery in mouth, or electrolyte may leak and cause personal injury. ●...
