WBOX Technologies 0E-PIRCM Installation

Ceiling Mount Passive Infrared Motion Sensor /
INSTALLATION
INSTALLATION HINTS
• Do not install where the detector is exposed to direct sunlight or directly above
strong sources of heat.
• Make sure the detection area does not have obstructions (curtains, screens,
large pieces of furniture, plants, etc.) that may block the pattern of coverage.
• Avoid locating a detector in areas that contain objects likely to produce a rapid
change in temperature, such as central heating, radiators or ducts (or heaters of
any kind), air conditioners, open flame, etc.
• The ceiling on which the PIR is to be mounted must be stable, firm and vibration-
free.
• The ceiling wiring hole should be no more than 5/16" (8mm) in diameter.
• Caution: Be certain that wires do not obstruct the detector's field of view.
• Seal all openings in the base with foam or RTV (not supplied) to prevent drafts or
insects from entering the unit.
• Mount the PIR in such a manner that the likely path of an intruder is in the
direction shown. This will ensure maximum effectiveness of the Alternate Polarity
feature
• The absolute range of all PIR units is subject to variation because of different
types of clothing, backgrounds and ambient temperature. For this reason, ensure
that the most likely intruder routes are well within the PIR's protective zones and
that walk-testing is carried out along these routes.
IMPORTANT: Avoid running alarm wiring close to heavy-duty electrical power
cables.
LED ENABLE/DISABLE
The LED should be enabled (for a walk-test) by removing the LED enable/disable
plug. When the walk-test is completed, the LED may be disabled if desired (plug in
place).
PULSE COUNT OPTION
Two-event pulse count is provided by positioning the jumper plug across the pulse
count pins. To select one-event pulse count (instant response), remove the jumper
plug. When programmed for 2-event pulse count, the detector will signal an alarm
within 3 or 4 steps, since the processing logic requires more complex motion than
just a momentary event. When the detector verifies an intrusion, the LED will light
and the alarm relay contacts will transfer, both conditions lasting for approximately 1
to 3 seconds (dependent upon signal strength).
TEST PROCEDURES
Important: Two-minute warm-up time is required after applying power. Testing
should be conducted with the protected area cleared of all people. Disarm the
protective system's control during the test procedure to prevent reporting of
unwanted alarms.
Walk-Test
1. Pulse Count in the PIR must be "OFF" (jumper plug removed) to provide instant
response. The Alarm LED must be enabled at this time (LED jumper plug
removed).
2. With the cover installed on the PIR, walk through the protective zones,
observing that the PIR's LED lights whenever motion is detected.
Note: With pulse count "OFF" (instant), the LED stays lit (and the alarm relay
contacts remain open) for approximately 1 to 3 seconds after detecting motion.
3. If pulse count is to be used in this installation, install the pulse count jumper
plug on the pulse count pins, and repeat the walk test procedure. With pulse
count "ON," the LED serves as an alarm indicator.
Détecteur De Mouvement IRP Pour Montage Plafond

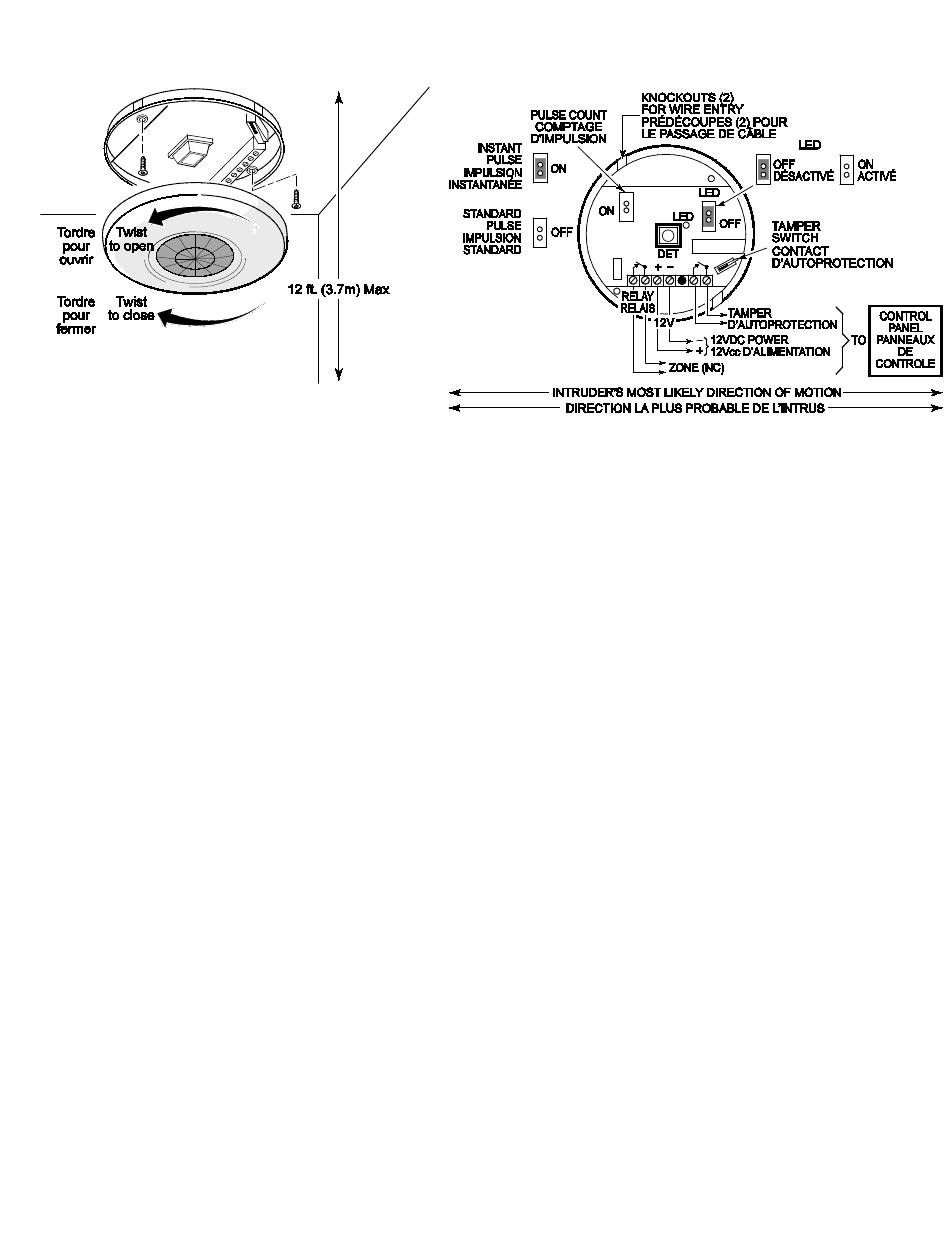

CONNECTIONS / SETTINGS
CONNEXIONS / PARAMÈTRES
MAINTAINING PROPER OPERATION
1. Power should be provided at all times. Loss of power to the unit will result in the
alarm contacts reverting to an alarm state. The unit's DC source should have
standby power available for at least 4 hours of operation during emergencies.
2. Units should never be relocated without the advice or assistance of the alarm
service company.
3. The physical surroundings of the protected area should not be changed. If
furniture or stock is moved, or air-conditioning or additional heating is installed, the
system may have to be readjusted by the alarm service company.
4. Walk-tests should be conducted frequently (at least weekly) to confirm continued
proper coverage by each detector.

TROUBLESHOOTING

INTERMITTENT ALARM (LED OPERATIVE)
A. Rapid temperature change. Check for electric or gas heaters, open flames, electric
arcs, etc.. Remedy: Locate source and reposition detector if necessary.
B. Drafts causing drapes, light fixtures, display material to move.
Remedy: Eliminate source of motion.
INTERMITTENT OR CONTINUOUS ALARM
A. DC voltage supplied to detector is inadequate, intermittent, or polarity reversed.
Remedy: Ensure that proper polarity and adequate voltage is supplied and that
wiring is intact (no opens or shorts) and connections secure.
B. Protective loop is interrupted (open).
Remedy: Determine whether interruption is in protective loop wiring or at
detector's alarm relay contacts. Disconnect protective loop at detector
relay contact terminals and check continuity across terminals. If absent
at terminals (and proper voltage is supplied to the detector), return unit
for service. If present, check protective loop wiring.
LED INOPERATIVE
A. LED enable/disable plug is installed. Remedy: Remove LED enable/disable plug.
B. LED malfunction. Check for broken/shorted leads. Remedy: Return unit for service.
NO ALARM WHEN MOTION TAKES PLACE IN THE PROTECTED AREA (LED DOES
NOT LIGHT)
A. Detection area has changed. Possibly due to repositioned furniture or equipment in
the protected area. Remedy: Caution customer about layout changes.

SPECIFICATIONS

Detection Method: Passive Infrared.
Coverage: 23-ft (7m) diameter @ 8 ft (2.4m) height,
11.5-ft (3.5m) radius.
36-ft (11m) diameter @ 12-ft (3.7m) height,
18-ft (5.5m) radius.
Pulse Count: 1- or 2-event, installer-selectable.
Detectable Walk Rate: 0.5 – 5ft/Sec (0.15 – 1.5m/Sec).
Indicator: Red LED with enable/disable feature.
Mounting Height:
12-ft (3.7m) maximum
Voltage: 12VDC nominal (voltage reversal makes PIR inoperative).
Alarm Relay: SPST, Form A, 0.5A max. contact rating @ 30VDC. Reed relay, 15
ohm protective resistor.
Current Drain: 17mA.
Standby Capability: Power source should be capable of at least
4 hours of battery standby.
Operating Temperature:
Operating Humidity: Up to 95% RH (max), non-condensing.
Dimensions: 3-1/2" (89mm) diameter x 1" (25.4mm) high.
32°F – 122°F (0°C – 50°C).
