Prizm Fiber Optic USB 1.1 Link Manual
Prizm Fiber Optic USB 1.1 Link
201000-xxx and 201030-xxx
Users' Manual
Troubleshooting Guide
February 17, 2009
Moog Components Group
Springfield Operations
750 West Sproul Road
Springfield, PA 19064
mcg@moog.com
Tel: 610-328-4000 Fax 610-605-6216
24/7 Technical Customer Support Hotline: 610-605-6101
Page 1 of 9
And
(Rev. C)
URL:
www.moog.com/components
February 17, 2009
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Moog PRIZM 201000 Series

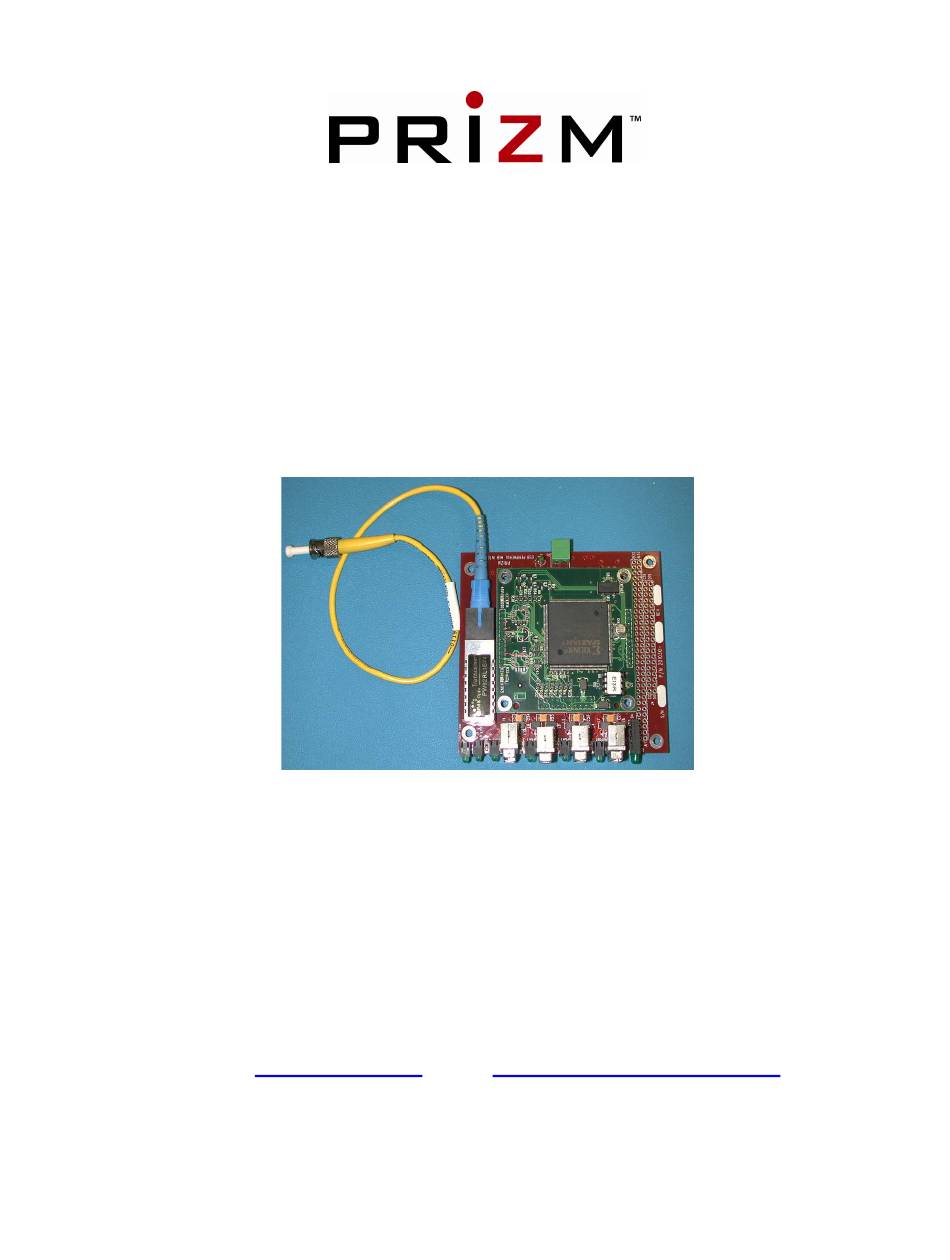

- Page 1 Moog Components Group Prizm Fiber Optic USB 1.1 Link Manual February 17, 2009 Prizm Fiber Optic USB 1.1 Link 201000-xxx and 201030-xxx Users’ Manual Troubleshooting Guide (Rev. C) February 17, 2009 Moog Components Group Springfield Operations 750 West Sproul Road...
-
Page 2: Table Of Contents
Moog Components Group Prizm Fiber Optic USB 1.1 Link Manual February 17, 2009 Prizm Fiber Optic USB 1.1 Link (P/N – 201000-xxx and 201030-xxx) Overview ............3 Manual Revision History: ........................3 Prizm Fiber Optic USB 1.1 Link Revision History: .................. 3 Prizm Fiber Optic USB 1.1 Link Dash (-) Number Definitions: ............. -
Page 3: Prizm Fiber Optic Usb 1.1 Link (P/N - 201000-Xxx And 201030-Xxx) Overview
Rev B Updated board dash numbers Rev C Updated contact information to reflect Moog Components Group. 1.2 Prizm Fiber Optic USB 1.1 Link Revision History: The Prizm Fiber Optic USB 1.1 Link (201000-xxx and 201030-xxx) has gone through the following... -
Page 4: Prizm Fiber Optic Usb 1.1 Link Dash (-) Number Definitions
Moog Components Group Prizm Fiber Optic USB 1.1 Link Manual February 17, 2009 1.3 Prizm Fiber Optic USB 1.1 Link Dash (-) Number Definitions: Both the Local Host and the Remote Hub boards have dash numbers appended to the part number. -
Page 5: Operation
Moog Components Group Prizm Fiber Optic USB 1.1 Link Manual February 17, 2009 1.5 Operation 1.5.1 Prizm Fiber Optic USB 1.1 Link Indicators, Controls and Connectors: LEDS: There are a number of LEDs on both the Local Host and the Remote Hub boards. In addition to power indicators, there are status LEDs to indicate valid data links, as well as the connection of valid USB hosts and peripherals. -
Page 6: Prizm Fiber Optic Usb 1.1 Link Adjustment And Troubleshooting
Moog Components Group Prizm Fiber Optic USB 1.1 Link Manual February 17, 2009 Remote Hub Board (201030-xxx): +5V Power Motherboard (D4) - Lit green +3.3V Power Motherboard (D5) - Lit green +5V Power Daughterboard (D7) - Lit red +3.3V Power Daughterboard (D8) -
Page 7: Optical Section Testing
Moog Components Group Prizm Fiber Optic USB 1.1 Link Manual February 17, 2009 1.6.2 OPTICAL SECTION TESTING: If either Fiber Link light fails to illuminate after power has been applied to both boards and a fiber optic tether is placed between the Local Host and Remote Hub units, there is a problem with the optical link and one or more of the following conditions may be present. -
Page 8: Appendix A: Optical Considerations
Moog Components Group Prizm Fiber Optic USB 1.1 Link Manual February 17, 2009 2 Appendix A: Optical Considerations 2.1 Prizm Fiber Optic USB 1.1 Link Singlemode, Single Fiber Operation The Prizm Fiber Optic USB 1.1 Link is configured for use with only singlemode fiber optic cable in the umbilical and with fiber optic rotary joints (i.e. -
Page 9: Appendix B. Prizm Fiber Optic Usb 1.1 Link Installation And Checkout
Moog Components Group Prizm Fiber Optic USB 1.1 Link Manual February 17, 2009 3 Appendix B. Prizm Fiber Optic USB 1.1 Link Installation and Checkout 3.1 General Prizm Fiber Optic USB 1.1 Link Installation Notes NOTE: Please read all of this section prior to starting the installation process.
