CALLY FULL/QUEEN BED
ASSEMBLY INSTRUCTIONS
BOX#1
A. HEADBOARD 1PC
BOX#2
B. FOOTBOARD 1PC
BOX#3
C. SIDERAIL 2PCS
D. LEG SUPPORT 5PCS
E. BED SLAT 5PCS
C
SCREWS(4mm x 38mm)
1
TOOL REQUIRED
PHILIPS HEAD SCREWDRIVER
(NOT PROVIDED)
A
B
D
E
HARDWARE PACKED IN BOX#3
MFI
CALLY FULL/QUEEN BED
ASSEMBLED
MODUS
FURNITURE
INTERNATIONAL
10 PCS
Page 1/4
Advertisement
Related Manuals for Modus Furniture International 9CR1L5
Summary of Contents for Modus Furniture International 9CR1L5

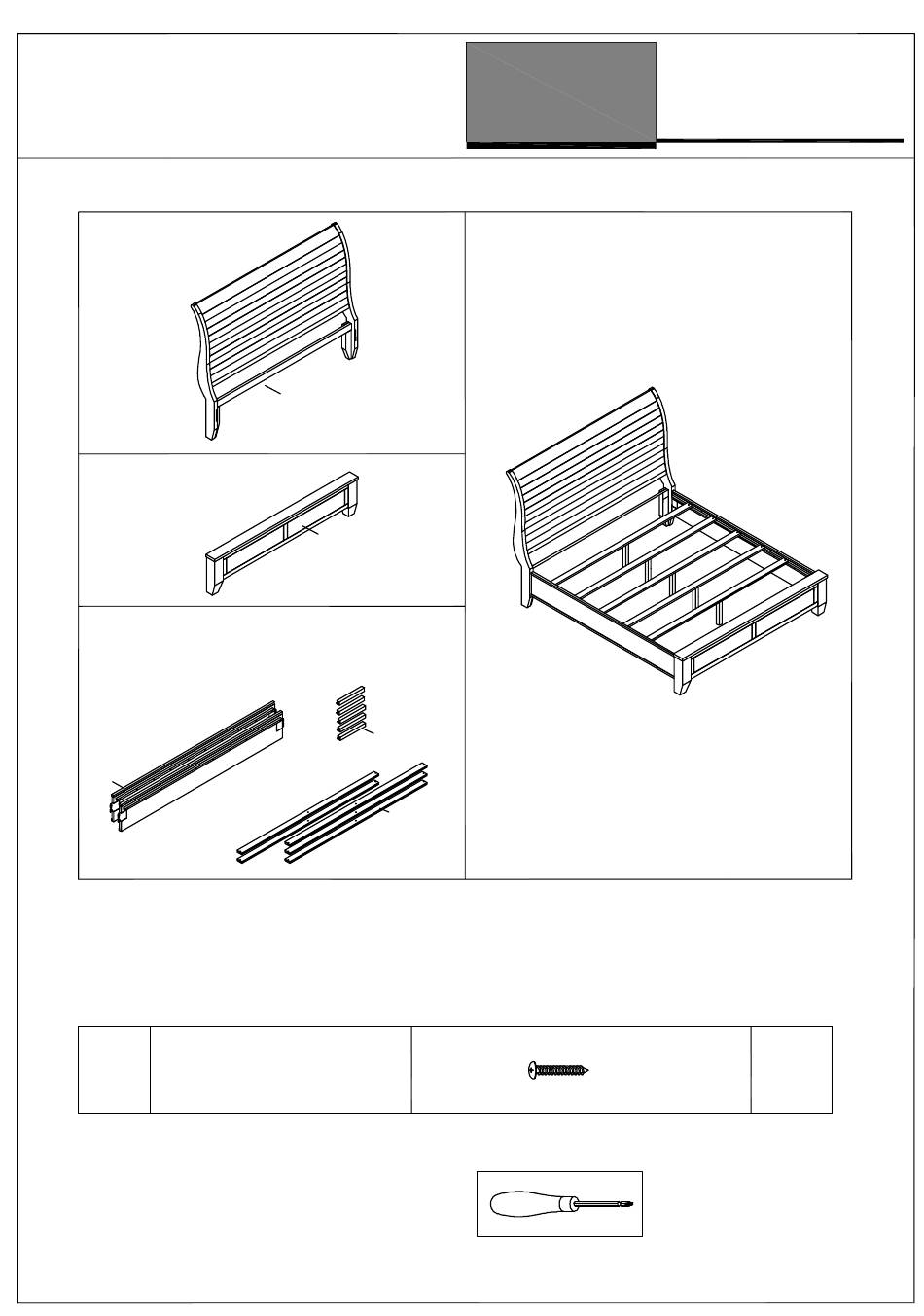

- Page 1 MODUS CALLY FULL/QUEEN BED FURNITURE ASSEMBLY INSTRUCTIONS INTERNATIONAL BOX#1 A. HEADBOARD 1PC CALLY FULL/QUEEN BED ASSEMBLED BOX#2 B. FOOTBOARD 1PC BOX#3 C. SIDERAIL 2PCS D. LEG SUPPORT 5PCS E. BED SLAT 5PCS HARDWARE PACKED IN BOX#3 10 PCS SCREWS(4mm x 38mm) TOOL REQUIRED PHILIPS HEAD SCREWDRIVER (NOT PROVIDED)
- Page 2 STEP 1: ATTACH SIDERAIL (C) TO HEADBOARD (A) PUSH DOWN TO TIGHTEN. STEP 2: ATTACH THE OTHER END OF SIDERAIL (C) TO FOOTBOARD (B) PUSH DOWN TO TIGHTEN. Page 2/4...
- Page 3 STEP 3: REPEAT STEP 1-2 FOR ASSEMBLY OF SECOND SIDERAIL. STEP 4: ATTACH LEG SUPPORTS (D) TO BED SLATS (E). Page 3/4...
- Page 4 STEP 5: ATTACH BED SLATS (E/D) TO SIDERAILS (C) BY SCREW (1) USE PHILIPS HEAD SCREWDRIVER TO TIGHTEN. STEP 6: ASSEMBLY COMPLETE. Page 4/4...
