Summary of Contents for AEE A101

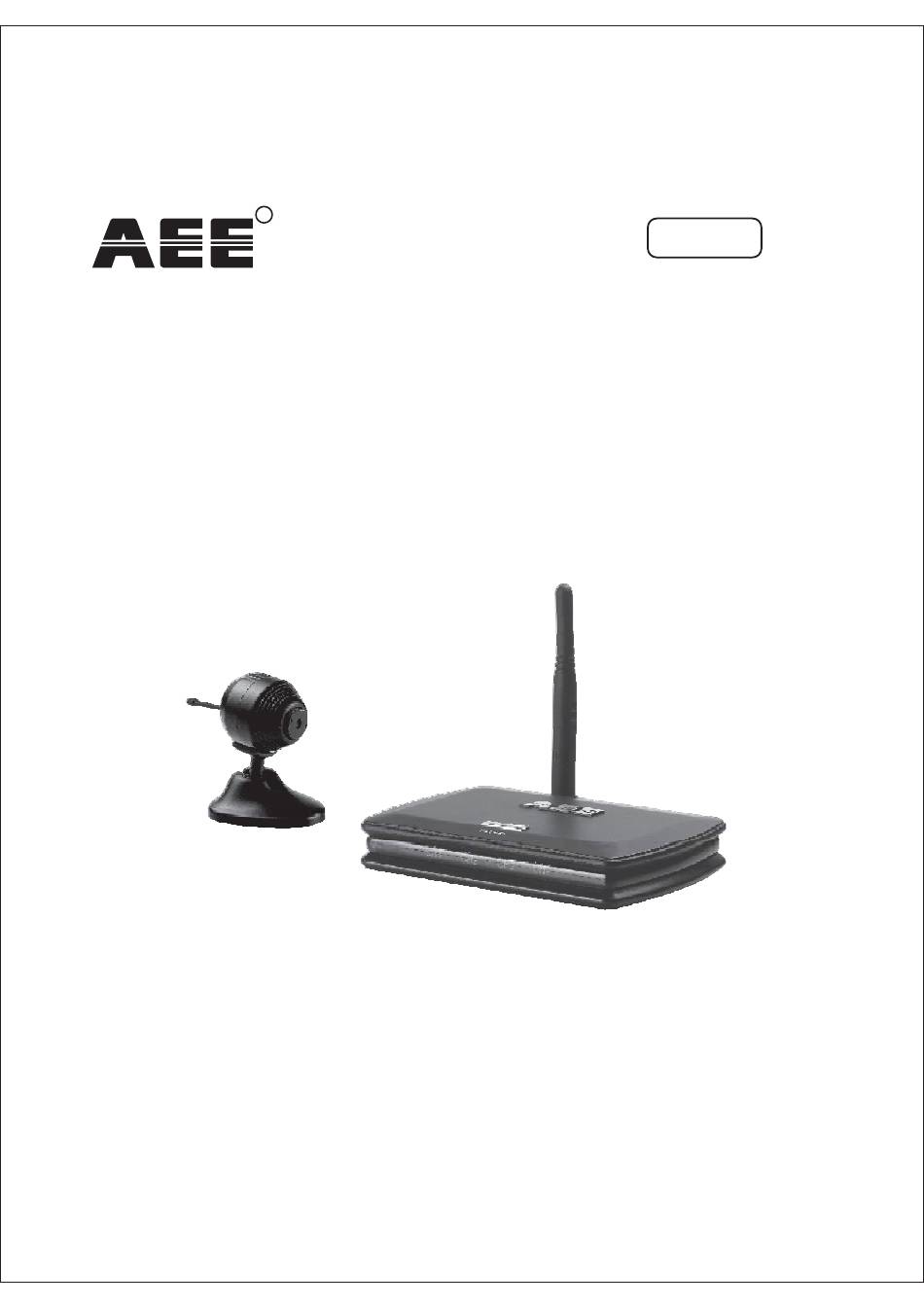

- Page 1 English User's Manual 2.4GHz Color Wireless Camera Kit MODEL: A101 Please read this manual carefully and thoroughly before any attempt to install and operate this product and retain it for your future reference.
- Page 2 EU Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Notice Approval Information ( FCC/CE Warranty Copyright Restrictions Maintenance PRODUCT Package Contents Feature Locations Adapter & Battery Clip INSTALLATION & USAGE 8~13 Installation 8~10 Fix the Camera 11~12 Locate the Receiver Camera Channel Setup Receiver Mode Setup SPECIFICATIONS TROUBLESHOOTING... -
Page 5: Introduction
INTRODUCTION Thank you for your interest and support in our product and purchasing this wireless camera kit. This product works at ISM-2.4GHz frequency band, which could be legally used worldwide without permission. We f eel confident that you will be pleased with the quality and features of this product. - Page 6 This product meets the requirements specified in Part 15 of FCC Regulation. Operation rests with the following two conditions: (1) The equipment should not cause any harmful interference; (2) The equipment must receive and process any interference, including any possible interference caused by operation mistakes.
-
Page 7: Warranty
Warranty AEE Technology warrants that this product will be free from defects in materials and workmanship for period of time specified. This limited warranty shall commence from the date of purchase. Technology product warranty is not transferable and is limited to the original purchaser. -
Page 8: Restrictions
Radio waves might potentially influence heart pacemaker and lead to respiratory disturbance; DO NOT use this product for any illegal activities. AEE Technology shall not be responsible for any consequences of illegal acts committed by the user. -
Page 9: Product
PRODUCT Package Contents This package comes with the following items. Please check whether they are all included in the packaging box, if one or some is missing, contact the retailer for replacement. Wireless camera Wireless receiver Mounting plate for camera Holder for receiver Antenna for receiver DC 7.5V power adapter for... -
Page 10: Feature Locations
Feature Locations 1. Camera MIC Hole Antenna Lens Channel Switch Universal Bracket DC Power Jack 2. Receiver Antenna AV Output DC Power Jack Mode Control Channel Indicator Channel Select/Mode Switch Button... -
Page 11: Adapter & Battery Clip
Adapter This product always conforms to the authenticated AC adapter. The adapter should be marked one of the following: UL Mark SAA Mark American power Australia power supply authentication supply authentication CE Mark PSE Mark European Union power Japan power supply authentication supply authentication GS Mark... -
Page 12: Installation & Usage
INSTALLATION & USAGE Installation 1. Connect the power jack of adapter ( DC 7.5V 30 0mA) or battery with battery clip to camera. a. Connect with adapter b. Connect with battery clip 2. Connect the antenna to the receiver. 3. Connect the receiver to the monitor/TV with AV cable. (Red socket for audio;... - Page 13 4. Connect the power jack of adapter ( DC 7.5V 300mA) to receiver. Slide Mode Control switch to position the channel indicator lights up green. OFF - M - L OFF - M - L * The receiver provides Power Off OFF ) mode, Manual mode ( ) and...
- Page 14 7. If the picture is blur. You could adjust the lens focus with lens adjuster to make the picture clear. Lens Adjuster 8. Mount the camera to a desired location. Desktop Wall Mount Ceiling Mount 9. Adjust the brightness, contrast and color setting of the monitor/TV to get the best display effect.
-
Page 15: Fix The Camera 11~12
Fix the Camera Please follow the steps below if you want to fix the camera to wall or ceiling. 1. Fix to Wall 1.1 Secure the mounting plate to wall with screw; 1.2 Hang the camera on the hooks of mounting plate; 1.3 Push downwards the camera firmly. -
Page 16: Locate The Receiver
Mounting Plate Locate the Receiver The receiver can be placed horizontally or vertically. When it is placed vertically, the supplied holder is required. Holder Horizontal Vertical Camera Channel Setup This camera has 4 selectable channels to avoid possible interference from other nearby wireless devices. Channel Frequency Default Setting CH1=2,414MHz;... -
Page 17: Receiver Mode Setup
Receiver Mode Setup The receiver can support up to 4 cameras working at the same time. It provides Power Off mode ( OFF Manual mode ( ) and Channel Scan mode ( ). Power Off mode: Slide Mode Control switch to to power the receiver off;... -
Page 18: Specifications
SPECIFICATIONS Items Value Transmission Frequency ISM 2,400 z~ 2,483MHz Antenna Type Omni Transmission Distance 100m (Without Block) Operating Temperature -10 C~+50 C /+14 ~+122 Storage Temperature -20 C~+60 C /-4 ~+140 Storage Humidity 85% RH Imaging Sensor 1/3-inch CMOS CMOS Total Pixels 628 582 (PAL)/ 510 492 (NTSC) S/N Ratio 40dB (AGC OFF) -
Page 19: Troubleshooting
TROUBLESHOOTING When you experience the operation problems, please check and try the following yourself before claiming that it is the defective product or consulting the experienced technician. Abnormal Phenomena Possible Reasons/Solutions Check whether the camera/receiver is connected to power supply and powered on. - Page 20 AEE TECHNOLOGY CO.,LTD...
