Ocean Digital WR-01C User Manual

Ocean Digital WR-01C User Manual

Internet radio adaptor
Hide thumbs
Table of Contents

Advertisement

Quick Links

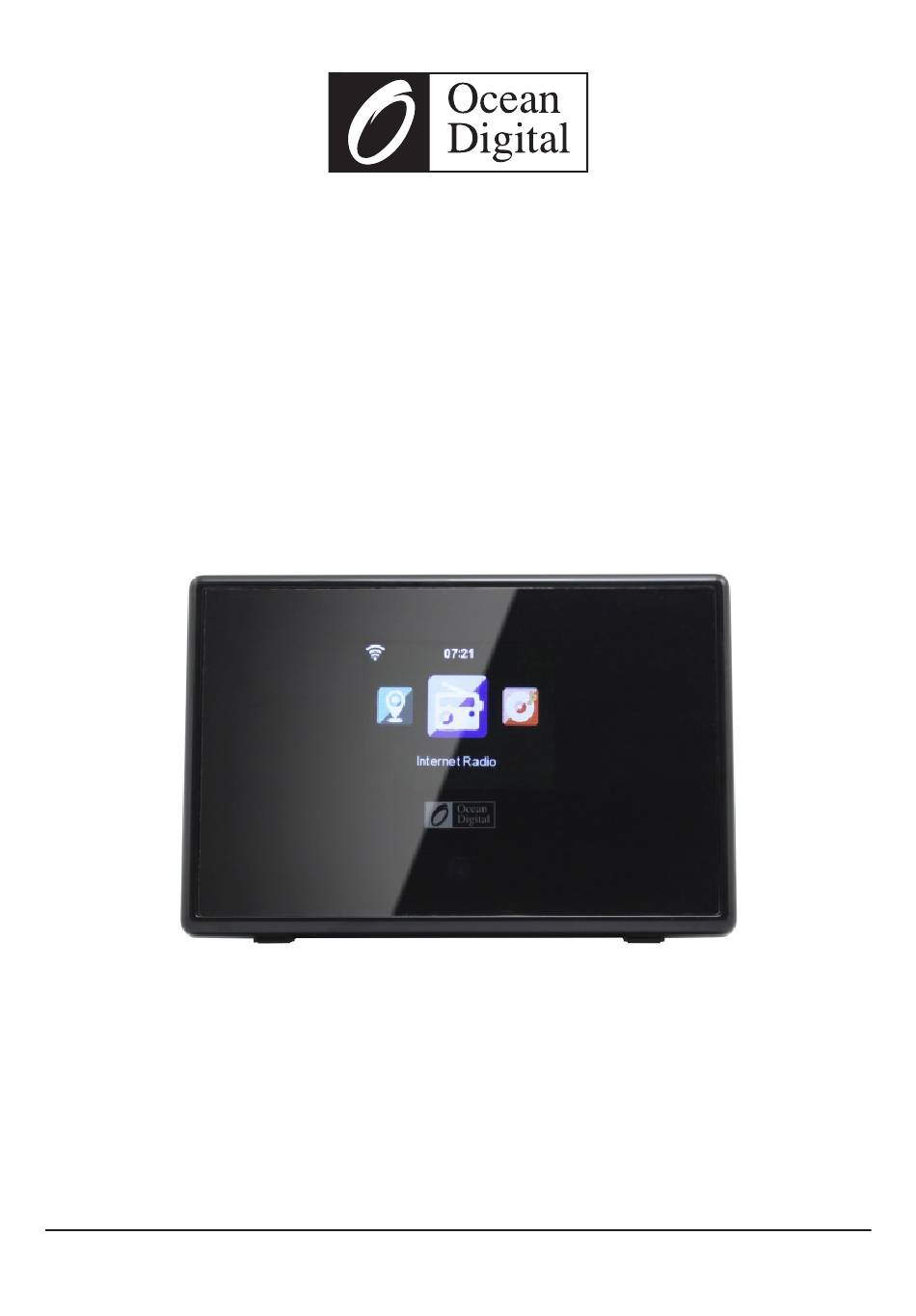

User Manual
WR-01C
(Additional powered speaker / active speaker is required to use this product)
Please read this user manual carefully before using the receiver.

Advertisement

Table of Contents
loading

Related Manuals for Ocean Digital WR-01C

Summary of Contents for Ocean Digital WR-01C

  • Page 1 User Manual Internet Radio Adaptor WR-01C (Additional powered speaker / active speaker is required to use this product) Please read this user manual carefully before using the receiver.
  • Page 2 Location of Controls LCD Display Infrared Sensor 3.5 mm Audio out socket: Connect external powered speakers with 3.5 mm plug or RCA adapter DC IN Power socket 5V: Connect the AC adaptor supplied in the package Power on/off switch...

  • Page 3: Remote Control

    Remote control : Standby button : Mute 3. 0-9: Favorite station key / input letters and numbers for WiFi Encryption code : Dim the display : Favorite button, Long press to preset station. Press it briefly to recall station. Adding station to your favorite list 6.
  • Page 4 Before you start Please ensure the following is ready: • You have a broadband internet connection. • A wireless (Wi-Fi) broadband router is connected to the internet successfully. The radio supports Wireless B, G and N connection (Wireless N router can also be used with the setting on B or G). •...
  • Page 5 Remote control character list Key“0”―― 0,'DEL’ Key“1”―― '1'->'@'->' '(space)->'！'-> “ (double quotes)->'#'->'$'->'%'- >'&'-> '(single quotes)->'('->')'->'*'->'+'->'，'->'-'->'.'->'/'->':'- >';'->'<'->'='->'>'->'?'->'['->'\'->']'->'^'->'_'->'`'->'{'->'|'->'}'->'~’ Key “2”―― 2,A,B,C,a,b,c Key“3”―― 3,D,E,F,d,e,f Key“4”―― 4,G,H,I,g,h,i Key“5”―― 5,J,K,L,j,k,l Key“6”―― 6,M,N,O,m,n,o Key“7”―― 7,P,Q,R,S,p,q,r,s Key“8”―― 8,T,U,V,t,u,v Key“9”―― 9,W,X,Y,Z,w,x,y,z Remark: press '►' to move to next character and press 'OK' button to confirm.
  • Page 6 Connecting to your WiFi Network The following screen will appear. You can choose <Yes> to proceed to search for the available WiFi network. If your router has the WPS function, you can select the <Yes (WPS)> to proceed. 01:01 Would you like to configure Network now? Yes(WPS) It will then start scanning the network.
  • Page 7 Internet Radio Choose 'Internet Radio' from the menu, you can see different functions as below: To start listen the worldwide radio stations, select “Radio Station/Music”, My Favorite This is to show the list of your Favorite stations which have been assigned to the presets.
  • Page 8 n To recall a preset station: Press the button briefly to recall the favourite list. Remark: Please note Preset 1-5 is reserved for future use and cannot be preset for radio stations. Radio Station / Music Select this option, then you can select your desired radio station by Genre or Location., etc.
  • Page 9 DLNA The Internet radio can play music stream from DLNA compatible device, provided that the Internet radio and other DLNA devices are under the same Wi-Fi network. The radio will appear as “AirMusic” when you try to search it on other devices.
  • Page 10 2.1.3 Your PC will now prompt you that a device has attempted to connect to your UPnP server. In order to allow the radio to have access to the media files, you will need to click the 'Library' tab from Windows Media Player 11 and select the <Media Sharing> item to open the 'Media Sharing' window.
  • Page 11 2.2 Windows 7 / Windows Media Player 12 2.2.1 If you are using WMP 12, simply go to <File> and choose <Open> to retrieve the music files you would like to add to library. 2.2.2 Windows 7 or above requires the PC to be set as Home network and also with the Homegroup enabled to allow evices to access/ play the media files on your Windows Media Player.
  • Page 12 iv) Choose Home network...
  • Page 13 v) Create a homegroup, then choose the kind of media file to be accessed, such as music..etc. vi) Launch the Windows Media Player, select <Stream> and choose <Automatically allow devices to play my media> from the drop down list. vii) You can now enjoy the music streaming from the windows media player.
  • Page 14 2. Switch the mode to Bluetooth on the Internet Radio Adaptor. 3. Your mobile device will start discovering the internet radio adaptor, look up the list with the name called “WR-01C”, then select to connect the device. 4. You can then start streaming your music from your mobile device to the Internet radio adaptor.
  • Page 15 Manage my mediaU You can tailor made your own favourite station list by operating on PC. Firstly you need to register an account on MediaU. On your computer, go to http://www.mediayou.net/web/index.php , this is the radio portal playing on your radio. Register as member by selecting “Join now”.
  • Page 16 Whenever you have added new URL, you need to refresh the list on the radio by <Disable> the My Media U and <Enable> it again under Configuration. It allows maximum 5 users to register with the same radio and you can switch to listen the favorite list under one user at a time 03:36 Time Display...
  • Page 17 3. Alarm Volume: You can set the alarm sound level. Remark：The NAP Alarm will only with beeping sound. 4. Alarm Sounds setting：Beep/Melody/Internet Radio 5. When the Alarm comes on, press any key except “Power” button, you can enter the “Snooze” mode. You can press “Power” button to cancel the alarm sounds again 5 minutes later.
  • Page 18 Buffer You can select your preferred buffering time. Weather You can set the display of weather forecast on the standby mode and the temperature units. - You can select Weather Display On/Off and Location. - Temperature units：1) Celsius ( °C) 2) Fahrenheit ( °F) Local Radio Setup The radio will detect your local area stations automatically and it will display under the “Internet radio”...
  • Page 19 Trouble Shooting 1. If you have trouble connecting the radio to your wireless network, these steps may help to resolve the problem: - Confirm that a Wi-Fi or Ethernet Wired connected PC can access the internet (i.e. can browse the web) using the same network. - Check that a DHCP server is available, or that you have configured a static IP address on the radio.
  • Page 20 3. When you scan for PCs under UPnP function, none can be found, or the PC you are looking for does not appear in the list: - You have not connected to the wireless Access point. On the internet radio, select 'Configuration', 'Network ', 'Wireless network connection' and then select your Wireless network.
  • Page 21 6. If the Internet Radio keeps re-buffering radio station: - The Internet Radio is streaming the data from the radio station via your broadband connection, if there is a high error rate on your broadband connection, or the connection is intermittent, then it will cause the Internet Radio to pause until the connection is re-established and it has received enough data to start playing again.

  • Page 22: Technical Specification

    This system is financed by the industry and the ensures environmentally responsible disposal and the recycling of valuable raw materials. Ocean Digital Technology Ltd Flat B, 12/F., Yeung Yiu Chung (No. 8) Ind. Bldg., 20 Wang Hoi Road, Kowloon Bay, Hong Kong Email: support@oceandigital.com.hk...
