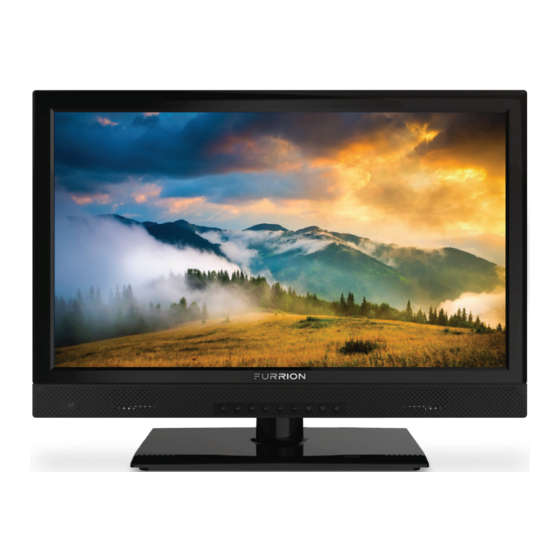

- Page 1 LED HD TV/DVD Combo 12V Instruction Manual * Product picture is for reference only. Model: FEHD24S3D...
-
Page 2: Welcome
Welcome Thank you for purchasing this Furrion LED HD TV/DVD COMBO 12V. Before operating ® your new product, please read these instructions carefully. This will ensure safe use and reduce the risk of injury. This instruction manual contains information for installation, maintenance of the product and safe use. -
Page 3: Table Of Contents
Contents Welcome ....................2 Contents ....................3 Safety Warnings .................4 Important Safety Instructions .................4 Safety Precautions ....................7 Function Overview ................9 Control Panel ......................9 Rear Panel .......................10 Remote Control .......................11 About Your LED HD TV ...............13 Features ........................13 Power Source ......................13 Before Operation ................14 What’s in the Box ....................14 Preparation of your Remote Control ...............14 Getting Started ..................15... -
Page 4: Safety Warnings
Safety Warnings 8. Do not install near any heat sources such CAUTION as radiators, heat registers, stoves or other apparatus (including amplifiers) RISK OF ELECTRIC SHOCK that produce heat. DO NOT OPEN 9. Do not defeat the safety purpose of the polarized or grounding-type plug. - Page 5 Safety Warnings 16. An outside antenna system should not be 20. When replacement parts are required, located in the vicinity of overhead power be sure the service technician uses lines or other electric light or power replacement parts specified by the circuits, or where it can fall into such manufacturer or those that have the power lines or circuits.
- Page 6 Safety Warnings ● Special formats that do not use the entire CONDENSATION screen. For example, viewing letterbox Moisture will form in the operating section style (16:9) media on a normal (4:3) of the unit if the unit is brought from cool display (black bars at top and bottom of surroundings into a warm room or if the screen);...
-
Page 7: Safety Precautions
Using cabinets or stands recommended – Furrion could void the user’s warranty. by the manufacturer of the television set. Declaration of Conformity Only using furniture that can safely –... - Page 8 LED TV for advice, and have the equipment possibly fatal injury. This would also damage professionally installed. Incomplete or the product seriously. Accordingly, Furrion improper installation may cause injury to you accepts no responsibility or liability for any and/or damage to the LED TV.
-
Page 9: Function Overview
Function Overview Control Panel Control Panel Eject DVD/ CD; Enter the channel search mode Start or pause the playback Increase the volume Decrease the volume Skip to the next channel Skip to the previous channel Enter the main menu Select the input source Switch the TV on/off * Please note that the button layout of the controls may vary from model to... -
Page 10: Rear Panel
Cable Box or other HDMI device. HDMI 1 IN CEC Consumer Electronics Control VGA IN When connected to the CEC compatible Furrion Entertainment Systems or other PC AUDIO CEC Compatible devices, the TV HDMI 3 IN links with the system to give extra functionality. -
Page 11: Remote Control
Function Overview Remote Control Button Function Switch to TV mode Select Furrion Fireplace remote FIREPLACE control functions STEREO * Please refer to your Furrion FIREPLACE Fireplace manual for more information. Turn the TV/Entertainment 9/AF System on/off - / -- 0/TA... - Page 12 Function Overview Button Function Button Function Cycle through NICAM sound Scan radio stations: Press it NICAM / modes to search through each stored AUDIO station. Press & hold it to Toggle random playback mode scan and store the 6 strongest RDM / on &...
-
Page 13: About Your Led Hd Tv
About Your LED HD TV Features Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box. Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers. Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS. -
Page 14: Before Operation
3. Close the cover of the battery compartment. NOTE: Use two “AAA” size batteries. The Thanks for purchasing this Furrion LED HD batteries may last approximately one TV. This manual will help you set up and year depending on how much the remote begin using your TV. -
Page 15: Getting Started
Getting Started The Auto Installation window appears the return to previous page or press REPEAT first time you turn on the TV. It will assist you button (green button) to skip to next page. to configure the TV. Auto Installation 1. - Page 16 Getting Started 6. Use to select the screen auto shut off time, then press OK to confirm your selection. Press MENU or DVD SETUP (red button) on the remote control to return to previous page or press REPEAT button (green button) to skip to next page. Select your desired auto power off setting, then press OK to confirm your selection and skip to the next setting.
-
Page 17: Settings
Change Settings Picture menu 1. Press MENU button to display the main menu. 2. Use to highlight Picture mode, then press or OK to enter the Picture menu settings. 3. Use to highlight the option you want to reset. 4. Press to show the list of the selected menu, then use to highlight your desired setting. -
Page 18: Sound Menu
Change Settings Sound menu 1. Press MENU button to display the main Sound menu. 2. Use to highlight Sound mode, then Standard Sound Mode press or OK to enter the Sound menu Bass Picture Treble settings. Balance Sound 3. Use to highlight the option you want Surround Channel... -
Page 19: Channel Menu
Change Settings Channel menu 1. Press MENU button to display the main menu. Channel 2. Use to highlight Channel mode, ENTER Channel Management then press or OK to enter the Channel ENTER Favorite Management Picture menu settings. Australia Country ENTER Auto Search Sound 3. -
Page 20: Feature Menu
Change Settings Channel to select Current Channel mode. Current Press OK or to enter Current Channel. Channel Display the Current Channel info. Display the current Frequency info. Frequency to select Search mode. Search Press OK or to enter Search. Press to select the ATV Manual Search, and use OK or ATV Manual... - Page 21 Change Settings Feature to turn On/Off the Lock function. This menu allows you to Press OK or to confirm your selection lock certain features of the Lock Note: When it is turned on, the functions of Parental Guidance TV program so that it can Channel and Change Pin code as below will be locked, and the functions not be used or viewed.
- Page 22 Change Settings Feature to highlight the USB drive in the list and press the red Partition button on the remote control, then highlight “OK” and press the OK Select button . When formatting completes, the USB drive will be ready for recording.
- Page 23 Change Settings Scheduled Recording using the Feature-Timer - Edit Press OK or to show the list, then use Recorder to select Off or On. Press the EPG button on the remote control, navigate to the program you Press OK or to show the list, then use Type to select DTV or Radio.
-
Page 24: Setup Menu
Change Settings Feature - HDMI Link Setup to highlight Enable to adjust the amount of Enable HDMI HDMI Link, press MENU or to set OSD Timer time the On Screen Menu stays on the Link as Off or On. Press OK or key to screen before disappearing. -
Page 25: Usb Operation
USB Operation Media Operation drive. Press to enter the file list, OK or and press to return to the previous menu. Press EXIT at any time to return to Make sure a flash drive is inserted into the main USB menu. the USB port before entering the USB mode. - Page 26 USB Operation drive, and press OK to enter the file Photo list. Press to return to the previous Play/Pause the photo playing· menu. Press EXIT at any time to return to the main USB menu. Stop and exit the full screen program. Play the previous file directly.
- Page 27 USB Operation Movie Movie 1. Use to select Movie. Press OK to Play the movie in slow mode. enter. Play the movie in step mode. 2. Use to navigate the files or folders Set the A-B repeat playing mode. saved in the flash drive, press OK to enter. NOTE: When a file is selected, the file Play the previous file directly.
- Page 28 USB Operation e-Book 1. Use to select e-Book, and press OK to enter. 2. Use to navigate the files or folders saved in the flash drive, press OK to enter. NOTE: When a file is selected, the file information will appear on the right. 3.
-
Page 29: Dvd Operation
DVD Operation DVD Player Setup 1. During disc playback, press SETUP to go to Preference Page. 2. Use to switch among General Page, Audio Setup - - General Setup Page - - Page and Preference Page. TV Display Wide OSD Lang 3. -
Page 30: Dvd Player Controls
DVD Operation DVD Player Controls Button Function Eject DVD/CD Select the previous track/chapter FIREPLACE STEREO during playback HOLD Start, pause or restart the playback 9/AF Play the previous file directly STEP - / -- 0/TA REVEAL Play the next file directly DVD SETUP REPEAT ZOOM... -
Page 31: Loading A Disc
DVD Operation Loading a Disc ● Press to play the next file directly SIZE ● Press A-B to start the A-B repeat function. Press once for the desired start Before loading a disc into the disc point and press again for the end point. compartment: ●... - Page 32 DVD Operation 00:00 00:00 001/ 001 Disc Movie Video files Select Exit Menu Move 00:08 03:55 004/ 018 Disc Album\ Artist \ Artist - Track 1 Artist - Track 2 Artist - Track 3 Artist - Track 4 Artist - Track 5 Artist - Track 6 MP3 playback screen Select...
-
Page 33: Troubleshooting
Troubleshooting Problem Solution/Issue Make sure the power cord is plugged in. ● Try another AC outlet. TV does not ● Power is off, check fuse or circuit breaker. operate ● Unplug unit for an hour, then plug it back in. ●... -
Page 34: Specifications
TV Model Max Resolution (L*H*W) (L*H*W) 221/4” x 145/16” x 23/16” 221/4” x 157/8” x 53/4” 1366 x 768 @ 60Hz HD FEHD24S3D (565 x 363 x 55mm) (565 x 403 x 146mm) INPUT & OUTPUT CONNECTIONS Audio Coaxial HDMI... -
Page 35: Warranty
Warranty Furrion warrants for a period of 1 year from date of retail purchase by the original end-use purchaser, that this product, when delivered to you in new condition, in original packaging, from a Furrion authorized reseller and used in normal conditions, is free from any defects in manufacturing, materials, and workmanship. - Page 36 ● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-888-354-5792 ● Email: support@furrion.com ©2007-2019 Furrion Ltd. Furrion and the Furrion logo are trademarks licensed for use by ® Furrion Ltd. and registered in the U.S. and other countries. IM-FAV00052 V1.0...
