RoutingJigs Adjustable Lock Jig Instruction Leaflet

Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Adjustable Lock Jig
Adjustable Lock Jig
Contains four templates to control the width of the lock and face plate :-
Face plate widths are 25.4mm and 22.5mm; lock widths are 16mm and 19mm.
The length of the lock jig aperture can be adjusted from 0 to 208mm.
Quick and easy to set up.
The jig has engraved markings to aid setting up.
Other Equipment required:-
12.7mm diameter straight cutter.
16mm diameter guide bush.
At least two clamps to secure jig to door.
Philips screwdriver.

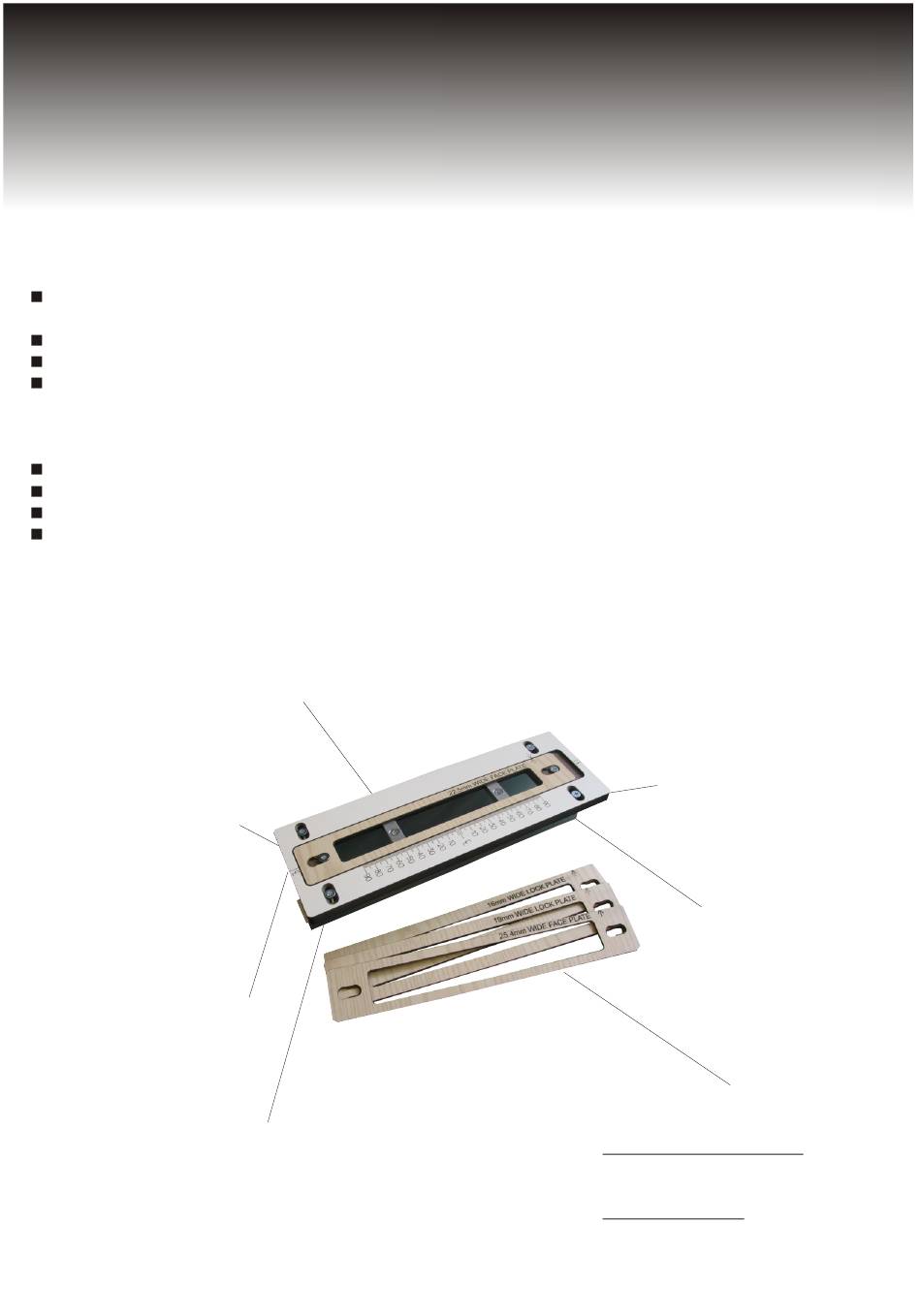

Adjustable
Length Plates.
Key hole slots for
quick and easy
template changing
Centre Line markings
to centre the jig to
the door.
Jig centring adjustment.
Instruction Leaflet
Instruction Leaflet
Length adjustment
engraving.
Use a set of clamps on
the fixing plates to secure
the jig to the door.
4 interchangeable templates
to control the width of the aperture.
Face plates templates:-
A = 25.4mm
B = 22.5mm
Lock templates:-
1 = 16mm
2 = 19mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the Adjustable Lock Jig and is the answer not in the manual?

Questions and answers

Summary of Contents for RoutingJigs Adjustable Lock Jig

  • Page 1 Adjustable Lock Jig Adjustable Lock Jig Instruction Leaflet Instruction Leaflet Contains four templates to control the width of the lock and face plate :- Face plate widths are 25.4mm and 22.5mm; lock widths are 16mm and 19mm. The length of the lock jig aperture can be adjusted from 0 to 208mm.
  • Page 2 Adjustable Lock Jig 1. Positioning the Lock Jig 1. Positioning the Lock Jig Mark where you want the centre of the lock to be on the height of the door. Use the engraved centre line to position the lock jig.
  • Page 3 Adjustable Lock Jig Positioning the Lock Jig cont... Positioning the Lock Jig cont... Loosen the two screws securing the lock jig to the fixing plates. Centre Line Align the centre line engraving on the jig (CL) to Engraving the centre line markings which were made on the door.
  • Page 4 Adjustable Lock Jig Setting up the Lock Face Plate cont... Setting up the Lock Face Plate cont... This diagram explains the offset between the cutter and the bush. 12.7mm (1/2”) cutter 16mm Dia bush Adjustment Plate Adjustment Plate Actual Face Plate Size 1.65mm...
  • Page 5 Adjustable Lock Jig 3. Setting up the Lock Aperture 3. Setting up the Lock Aperture Do not release the clamps or the screws holding Adjustment the fixing plates. Plates Loosen the screws which secure the template in place. Remove the template.
