Artimi ADP-RDK Reference Design

Wireless usb adaptor reference design sample kit.
Hide thumbs

Advertisement

Table of Contents

Wireless USB Adaptor
Reference Design Kit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADP-RDK and is the answer not in the manual?

Questions and answers

Summary of Contents for Artimi ADP-RDK

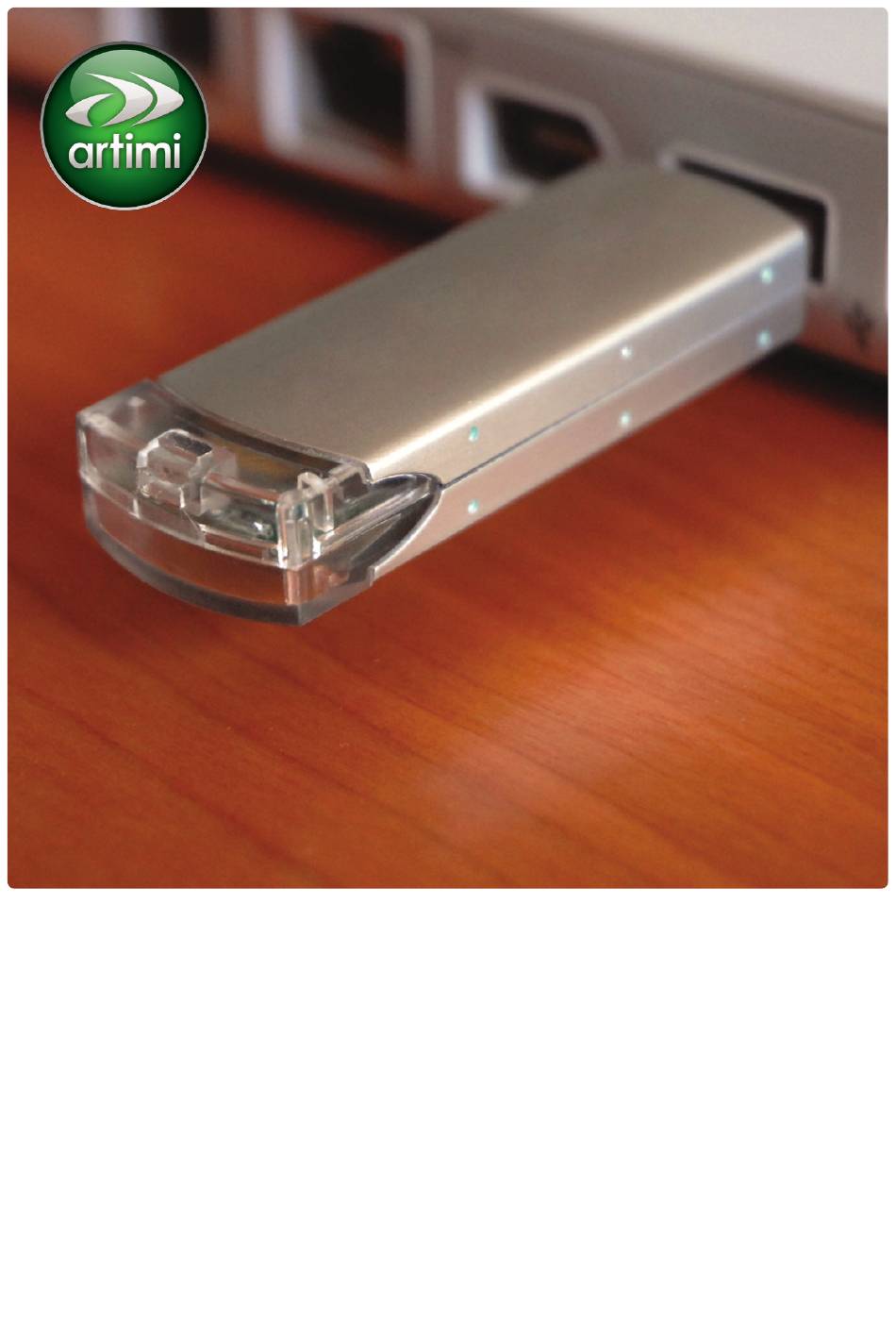

  • Page 1 Wireless USB Adaptor Reference Design Kit...
  • Page 2 Thank you for purchasing the Artimi Wireless USB Adaptor Reference Design (ADP-RDK) sample kit. The ADP-RDK allows you to quickly and easily enable many of today’s common USB devices with Wireless USB based on Certified Wireless USB from the USB-IF. It allows you to experience for yourself how these devices would operate when wirelessly enabled with Artimi’s production...
  • Page 3 Equipment List Before continuing, please check that all of the following items are included with your ADP-RDK sample kit. If any items are missing, please contact Artimi through the ArtimiCustomer support portal (details of how to access the portal should be included with your ADP-RDK package) with a description of the missing item(s).
  • Page 4 Device Overview Device Side Wireless Adaptor USB Mini B port for cabled association Wireless USB Connection Status & Host Selection LEDs Host selected and connected Host selected but not connected Host not selected Wired USB Connection Status Valid USB device connected Validating USB device No USB device connected Host Association Status...
  • Page 5 USB. The ADP-RDK sample kit is designed to use the Wireless USB protocol to replicate the operation of a USB cable. If this is the first time the USB device has been connected to the PC the normal operating system mass storage installation messages should appear.
  • Page 6 Usage with Certified Wireless USB PCs The adaptors come shipped as ‘pre-associated.’ This means they have already been made aware of each other, know they can communicate together and have exchanged security information. In addition to this, the device side wireless adaptor can be associated with up to two additional Certified Wireless USB hosts using the standards defined ‘cable association’...
  • Page 7 Host select but not connected Host not selected The ADP-RDK can store up to three associated hosts. When a fourth one is added, the first one associated is overwritten (the association of the two adaptors in the sample kit is permanent and cannot be overwritten).

  • Page 8: Troubleshooting

    Artimi through the ArtimiCustomer support portal. Additional Notes Device Compatibility The ADP-RDK sample kit has been tested with a number of USB hard disk drives and other USB mass storage devices. Adaptor Orientation The ADP-RDK sample kit is intended to produce the best performance with the antenna in a vertical orientation.
