INSTALLATION INSTRUCTION
WIRELESS REMOTE CONTROL DAMPING SYSTEM
READ INSTRUCTION THOROUGHLY FROM START TO FINISH BEFORE BEGINNING INSTALLATION
P/N
Description
96111
Tire Wrap Kit
Black Tie Wrap
96364
Shock Adapter Kit
96303
Push-to-connect 90° Adapter
O-ring
Gasket
96381
Hardware Kit
96301
Push-To-Connect Tee
96385
Female Bullet Connector
96386
Push-To-Connect male Adapter
15 Amp Fuse
Allen Wrench
10-24 x 1.25 HHSTS

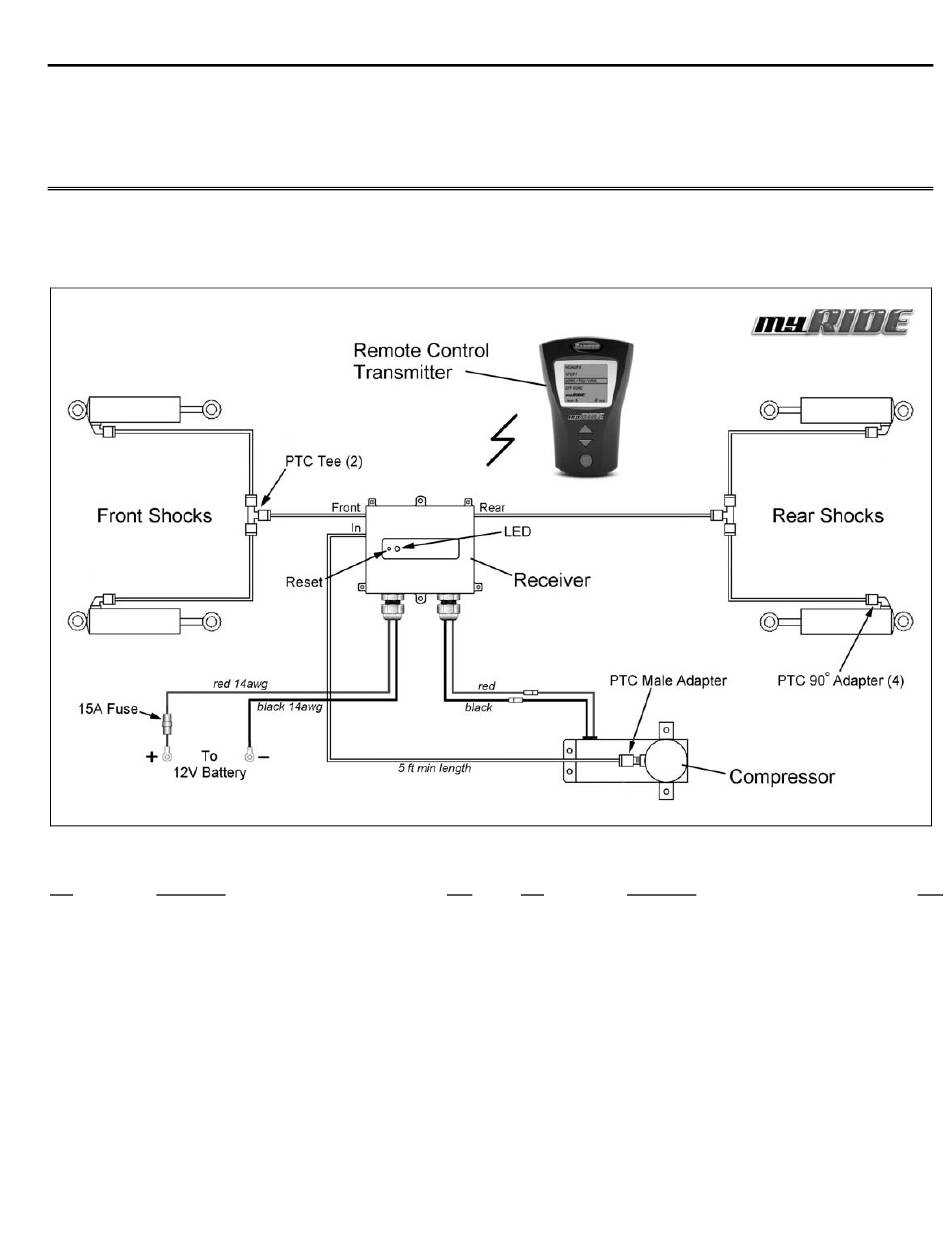

RS999705 Assembly Diagram
Parts List
Qty.
1
30
1
4
4
4
1
2
1
1
1
1
8
P/N
Description
96382
Compressor Kit
96351
Compressor Assembly
DNX18003
Tubing Cutter
96383
Air Line Tubing, 70 ft.
96390
Receiver/Transmitter Kit
96387
Receiver
96388
Remote Control Transmitter
96389
AAA Batteries, 3 Pack
96399
Instructions
96399-1
Quick Reference Guide
96399
Rev A
Qty.
1
1
1
1
1
1
1
1
1
1
