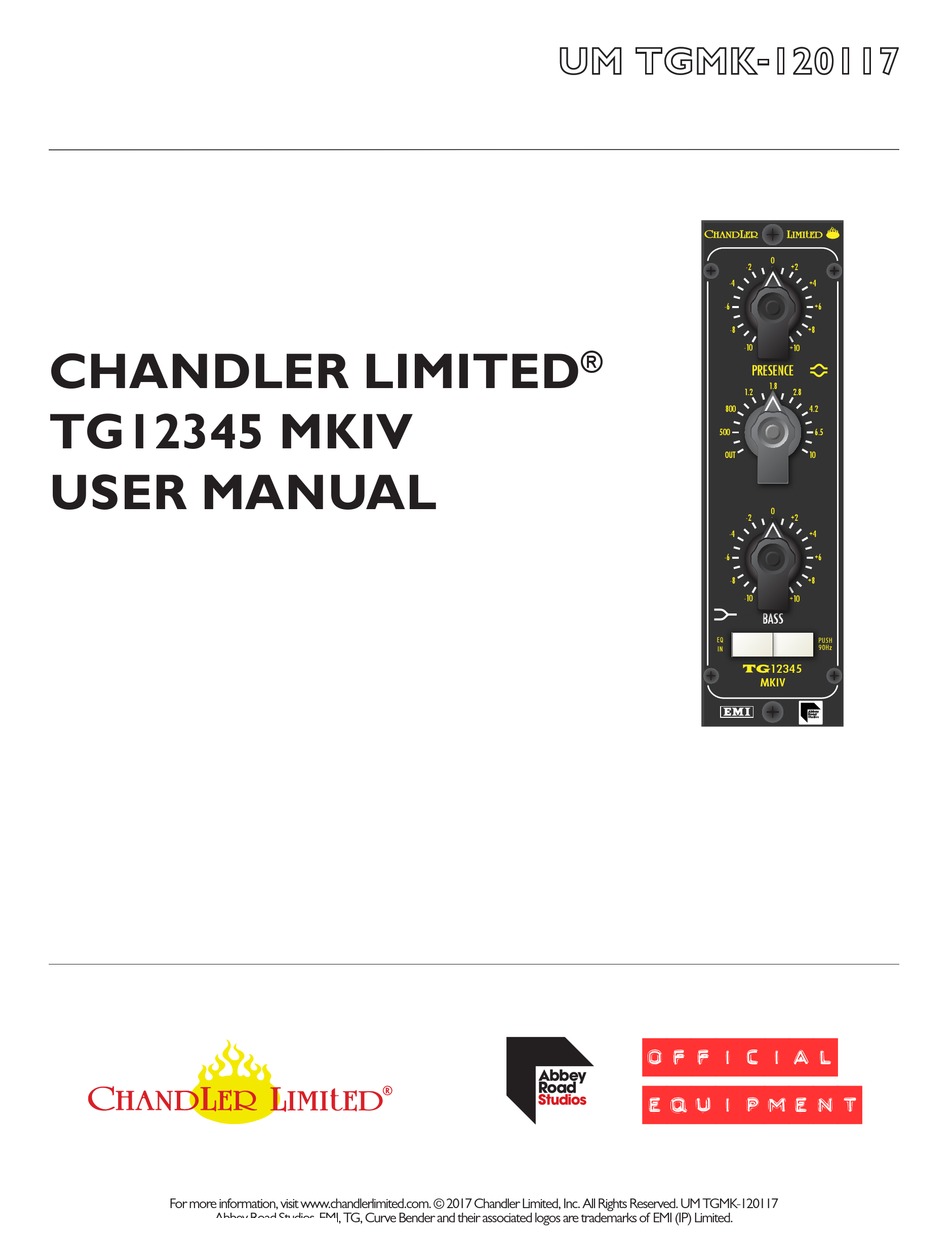

- Page 1 USER MANUAL BASS PUSH 90Hz 12345 MKIV OFFICIAL EQUIPMENT For more information, visit www.chandlerlimited.com. © 2017 Chandler Limited, Inc. All Rights Reserved. UM TGMK-120117 Abbey Road Studios, EMI, TG, Curve Bender and their associated logos are trademarks of EMI (IP) Limited.
-
Page 2: Table Of Contents
PRODUCT LIMITED WARRANTY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - For more information, visit www.chandlerlimited.com. © 2017 Chandler Limited, Inc. All Rights Reserved. UM TGMK-120117... -
Page 3: Introduction
Studios official equipment. time ever, a compressor/limiter on every microphone and group cassette channel. The TG12345 MKIV, inherits from Chandler Limited’s TG Mi- crophone Cassette and flagship TG12345 Curve Bender EQ, The EMI TG12345 desk helped shape the sound of the Bea- and draws its heritage from the equalizers found in the his- tles’... -
Page 4: Shipment And Storage
SHIPMENT AND STORAGE Packaging This packaging has been designed specifically for Chandler Limited equipment. The cardboard carton and foam provide pro- tection for shipment and storage. Please retain the container and associated materials for future use. SHEET OF FOAM CUTOUT FOAM... -
Page 5: Installation
Power The TG12345 MKIV is powered by means of a 500 Series INSTALLATION format rack enclosure, purchased separately. The TG12345 ® MKIV module design adheres to the API 500 Series format current draw specification (+130/-130 mA), and is as fol-... -
Page 6: Operating Instructions
The Treble control was a peaking bell type, fixed at 10 kHz, while Bass was shelving at 50 Hz. PRESENCE Utility Cluster At the bottom of the TG12345 MKIV faceplate exists two utility push-button switches labeled as follows: EQ IN and PUSH 90 Hz. BASS... -
Page 7: Service
SERVICE CE CERTIFICATION Chandler Limited declares under its sole responsibility that all United States products manufactured by them are in compliance with Elec- tromagnetic Compatibility (EMC) Directive 2014/30/EU; Prior to sending in equipment for repair, please contact our Standards: EN55103-1:2009+A1:2012; EN55103-2:2009;... -
Page 8: Product Limited Warranty
