Summary of Contents for Ningbo DK-Em4PS
- Page 1 Ningbo Putian Communication Technology Co., Ltd DK-Em4PS Instruction for DK-Em4PS Auto-dial testing Device - 1 -...
-
Page 2: Table Of Contents
2.2. OPERATION MODE FOR COMMUNICATION .............. 4 3、PERFORMANCE INDICATORS FOR ALL KINDS OF CHANNEL ........5 4、PERFORMANCE INDICATORS FOR DEVICE..............6 5、DESCRIPTION FOR DK-EM4PS INSTALLATION ............. 7 5.1. ANTENNA INSTALLATION ..................... 7 5.2. POWER CONNECTION ....................7 5.3. USB CABLE CONNECTION................... 8 5.4. -
Page 3: 1、Overview
Ningbo Putian Communication Technology Co., Ltd 1、Overview D K - E m 4 P S Auto-dial testing Device is a Wireless Test Product based on Mobile communication network platform, this product is tested up to 4 channels embedded 。 Test channel can be configured according to test requirements. -
Page 4: 2、Performance And Characteristics For Products
Ningbo Putian Communication Technology Co., Ltd 2、Performance and Characteristics for products 2.1. Basic functions and features 2.1.1. Extend up to 4 test channels, reality a multi-channel for voice, data, wireless transmission function between different Signal System mobiles。 2.1.2. Testing Communication & test channel for 4 channels can be configured according to any requirement。... -
Page 5: 3、Performance Indicators For All Kinds Of Channel
Ningbo Putian Communication Technology Co., Ltd 3、Performance Indicators for all kinds of channel Performance Indicators for GSM channel Module Basic remark Description characteristics Default Signal System Configuration Frequency band 850/900/1800/1900MHz Class 4 (+33dBm ± 2dB) for EGSM850 Class 4 (+33dBm ± 2dB) for EGSM900 Class 1 (+30dBm ±... -
Page 6: 4、Performance Indicators For Device
Ningbo Putian Communication Technology Co., Ltd 4、Performance Indicators for device Type DK-Em4PS Power Supply of Module (10～30)V DC Power Supply (85～264)V AC 50/60Hz (Adapter) Grounding earthing of casing <20W System power 290mm*190mm*45mm Case Size Vibration、Drop resistance 、Waterproof Case design Specifications ≥10000 hours... -
Page 7: 5、Description For Dk-Em4Ps Installation

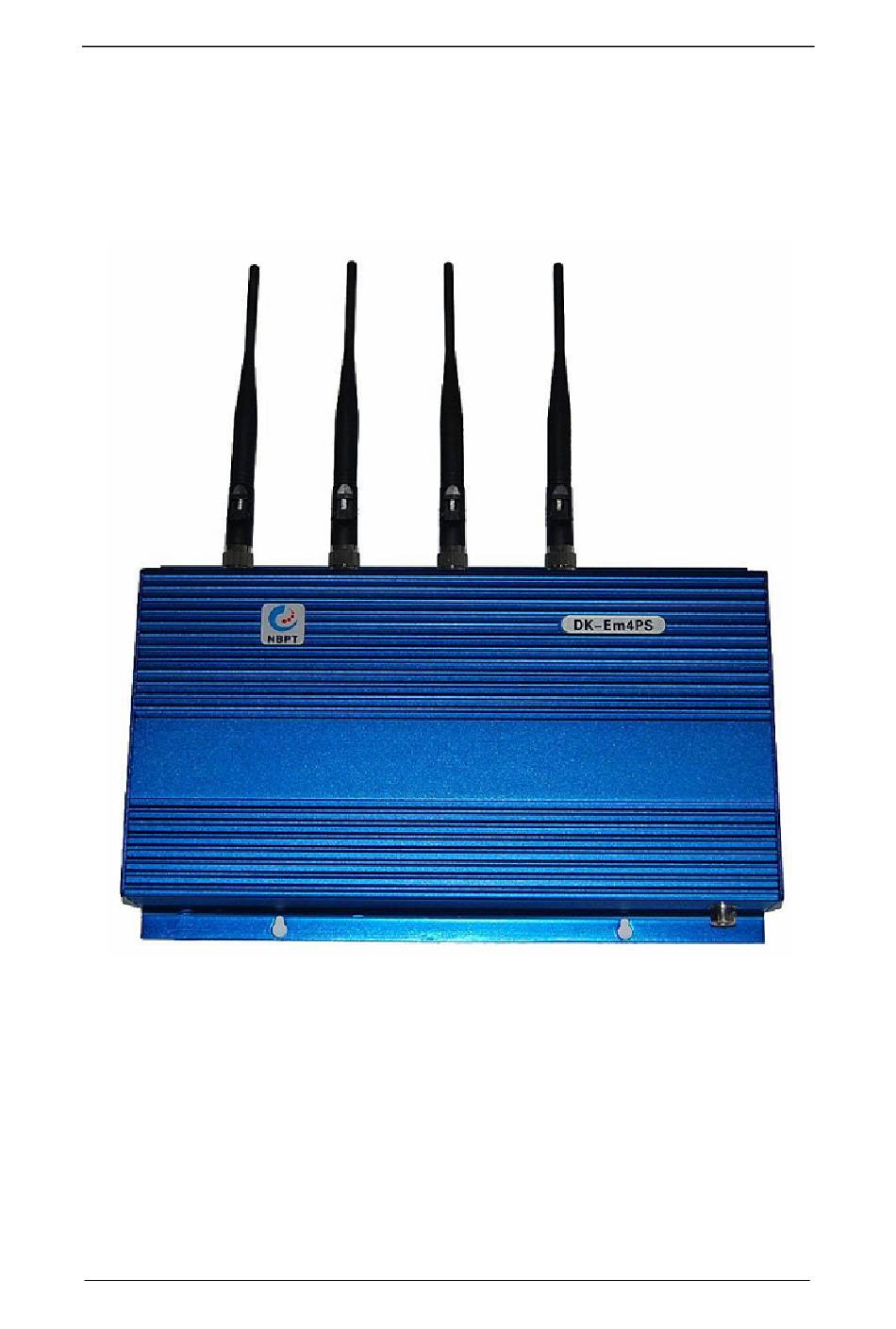

Ningbo Putian Communication Technology Co., Ltd 5、Description for DK-Em4PS Installation 5.1. Antenna Installation There are 4 SMA ports at the top of a device; users install Antenna with different Module Configurations according to channels and 1-4 Numerical order on it。As shown in Figure 5-1-1：... -
Page 8: Usb Cable Connection
One end of the USB cable is inserted into the device USB interface, the other end connected to a network。It is used for Data transmission and control of DK-Em4PS Device。USB port is shown in Figure 5-3-1： Figure 5-3-1 Port - 8 -... -
Page 9: Networking
The RJ45 plug of one end of network cables is inserted into the network interface and the other end connected to the network switch。 It is used for the Remote Control of DK-Em4PS device。An Interface is shown in Figure 5-3-1：... -
Page 10: 6、Instruction For Dk-Em4Ps Device
6.1. Description for SIM card Installation Use Triangular screwdriver to open the six triangular screws at the right baffle of DK-Em4PS device。Move off the right baffle of it, the corresponding relationship, between SIM card slot and module channels is shown in Figure 6-1-1：... - Page 11 Ningbo Putian Communication Technology Co., Ltd Figure 6-2-1 Device list before the driver is not installed A device connects with a PC at the first time; the system will be prompted to install a module driver。Will appear a tip to install a module driver in Figure 6-2-2 interface。...
- Page 12 Ningbo Putian Communication Technology Co., Ltd Figure 6-2-2 a tip to install a module driver Select "Installation from a list or a specific location", click next。Browse and select the directory where a installation files is in, click "OK" button Figure 6-2-3...
- Page 13 Ningbo Putian Communication Technology Co., Ltd When performing as shown in Figure 6-2-3, click on "Next" to start a drive installation。 Figure 6-2-4 You will be suggested that drivers did not pass Windows test (Figure 6-2-4) during the installation process。Select "continue", in the following process to install drivers, if encounter same suggestion, always select "continue"。...
-
Page 14: Description For Application Program Installation
Figure 6-2-6 interface after driver installation is succeed 6.2. Description for Application program Installation Note: DK-Em4PS software needs to run Microsoft. NET Framework 2.0 or later, can not run properly in the version Windows 7 operating system now。 The best platform to run for this software is the PC installed a Microsoft. NET Framework 2.0 of Window XP system。... - Page 15 Ningbo Putian Communication Technology Co., Ltd Note: originally installed this software before, if need to update a newer version, you will uninstall the software at first in the Add-Remove Programs and delete a directory at C: \ Program Files \ nbpt, and then install the software again。...
- Page 16 Ningbo Putian Communication Technology Co., Ltd Software installation is successful, enter the interface as shown in Figure 3-4, click "Close" to complete a installation。 Software installation is completed later; a shortcut called "DK-Em4PS"will be created on the desktop。 Figure 6-3-2...
- Page 17 Ningbo Putian Communication Technology Co., Ltd Figure 6-3-3 Figure 6-3-4 - 17 -...
-
Page 18: Description For Application Program's Use
Ningbo Putian Communication Technology Co., Ltd 6.4. Description for Application program's use Double-click an icon called "DK-Em4PS" on the desktop to run the program。 Program interface is shown in Figure 6-4-1: Figure 6-4-1 Click a drop-down menu of "Channels", you can choose the device... - Page 19 Ningbo Putian Communication Technology Co., Ltd Choose the first channel, and press "Connect" button to start a dial-up of the GSM network at the first channel。Will appear a dial-up interface as shown in Figure 4-4-3。 Figure 4-4-3 Dial-up is successful, will appear the interface as shown in Figure 6-4-4, will also appear networking connected in the right column of a system。...
-
Page 20: Notes
Ningbo Putian Communication Technology Co., Ltd To disconnect the network connection, simply click the "Disconnect" button on the Lower right of software, you can disconnect。 6.5. Notes 6.5.1. put SIM card into the SIM card slot firstly, and put it into modem based on the correspond slot number。... -
Page 21: 7、Fcc Statement
Ningbo Putian Communication Technology Co., Ltd 7、FCC Statement NOTE 1: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 22 Ningbo Putian Communication Technology Co., Ltd Ningbo Putian Communication Technology Co., Ltd Fax: 0574-28888989 Email：nbpt123@126.com Phone No for Technical Support: 0574－88051015 - 22 -...
