User's manual of HSK-200Z
1. Introduction

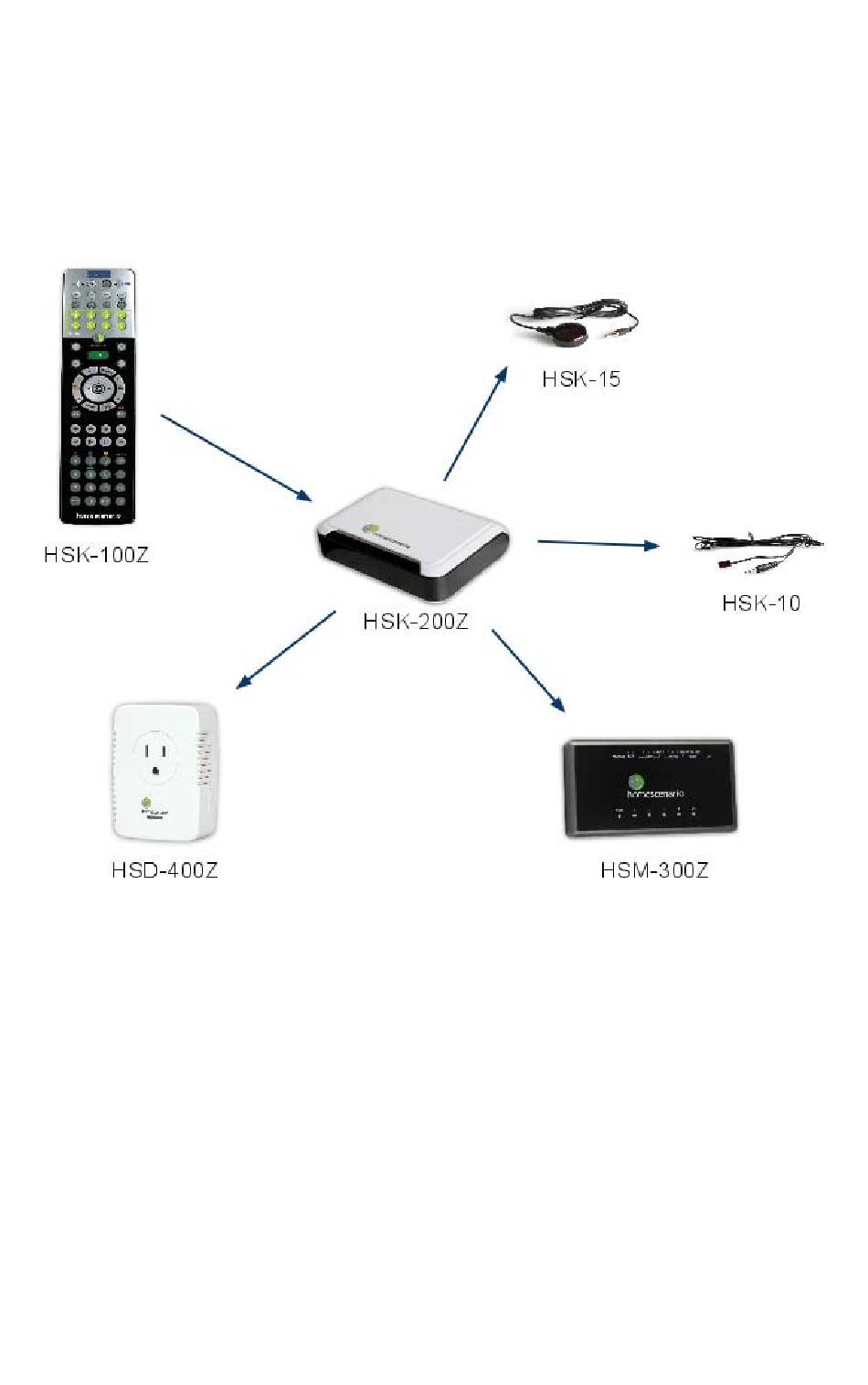

The HSK-200Z often work with the HSD-400Z, HSM-300Z and HSK-100Z as the above
picture.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSK-200Z and is the answer not in the manual?

Questions and answers

Summary of Contents for HomeScenario HSK-200Z

  • Page 1 User's manual of HSK-200Z 1. Introduction The HSK-200Z often work with the HSD-400Z, HSM-300Z and HSK-100Z as the above picture.

  • Page 2: Specifications

    The HSK-200Z is the bridge lights through HSC-50Z as the above picture. These devices provides functionalities required by a typical home theater or meeting room integration. In this starter kit, we include One HSK-200Z scenario hub Two HSD-400Z power meter One HSK-100Z Universal IR remote controller with Z_Wave repeater.
  • Page 3 3. Supported command class...

  • Page 4: Basic Command Class

    The HSK-200Z is AV controller which supports the following command classes BASIC Simple AV Control Version Manufacturer Specific Association Configuration 3.1. BASIC command class The basic command class is mapped to the scene activation command classes. The value ofit is the scene ID. If the value is higher than 3, it will be mapped into 3.

  • Page 5: Installation

    Press and release the program button in the bottom of the device by using a needle. Thedevice will broadcast node information and enter learning mode. The HSK-100Z will add the HSK-200Z from the network and show dolid OK LED. If there is any error, the Error LED will be turn on instead.
  • Page 7 4.3. Install the IR cable Put the HSK-10 or HSK-15 to plug in the socket of HSK-200Z.

  • Page 8: Power Meter

    The LED in front will blink when emit the IR keys successfully. 4.4. Power meter Add power meter The HSK200Z support up to three power meter to control three AV devices. They areassociated to the following IR codes. Projector Power (key xxx) AV power (key xxx) AVR power (key xxx) W e can use the ASSOC key of HSK-500Z to include a power meter.

  • Page 9: Device Calibration

    When the HSK-200Z starts, it will query the associated power meter to get the currentsetup. Auto scene activator This function enable us to start the scenario when the power meter detect that the associated device is turned on. Usually, the power meter notify the HSK-200Z for its status only.

  • Page 10: Projector Screen

    However, light defined in the above procedure can be activated from the HSK-100Z only. If you want to use other devices, such as HSK-50 or any scene controller, you need to add a HSC-50Z light scenario controller by using HSK-100Z so that the HSK-200Z can relay the scene activation commands to the HSC-50Z.
