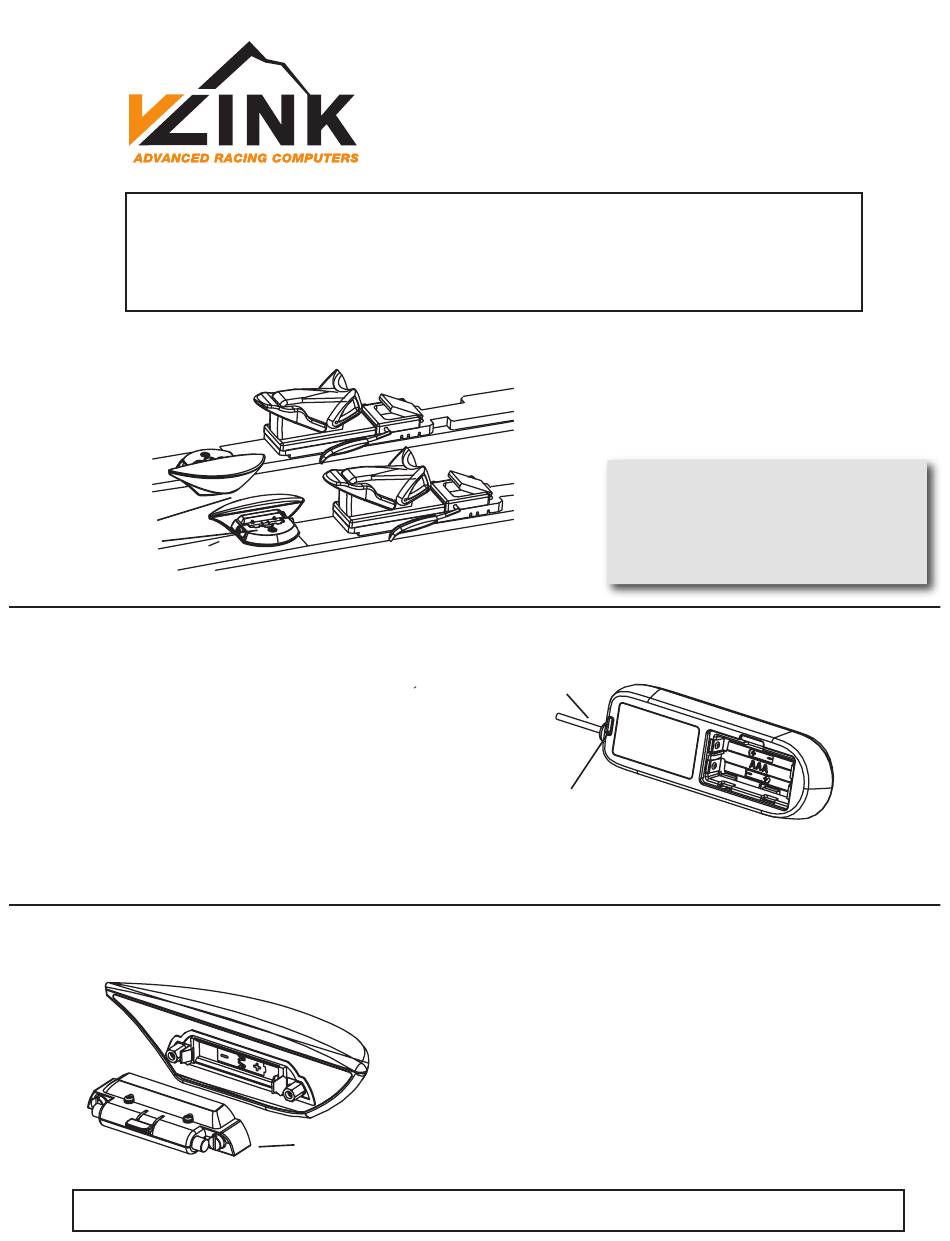

Parts and Assembly sheet for:
Left and right shuttle mounts
Left and right shuttles, w/battery compartments
Two AA batteries – one per shuttle
Diagram A
Final assembly onto skis
Completed
shuttle
assemblies
Step 1:
Install batteries in remote & attach earbuds
•
Remove remote battery cover by lifting thumb tab
and pulling up.
•
Install two AAA batteries, with +/- as indicated
inside battery compartment (Diagram B).
•
Replace remote battery cover, making sure it
closes securely.
•
Thread loop end of lanyard cord through opening;
pull cord end through loop to secure.
•
Press earbud plug securely into port.
Right shuttle and battery compartment
Important Reminder: Remove batteries from shuttles and remote if stored for an extended period of time.
In this package you will find:
Diagram C
Battery compartment
cover
This will avoid damage (from battery leakage) that is not covered under warranty.
The vLink Racing Computer
TM
Left ski and binding
Right ski and binding
Earbud
(audio) port
Lanyard opening
Step 2:
Install batteries in shuttles
•
Using a flat blade screwdriver, remove the two screws in
the shuttle battery compartment cover (Diagram C).
•
Install one AA battery, with +/- as indicated on shuttle
label.
•
Replace shuttle battery compartment cover and tighten
screws, being careful not to cross-thread screws.
•
Repeat with second shuttle.
1 remote unit
Two AAA batteries for remote
1 set earbuds with lanyard
2 alcohol wipes
Assembly Steps
1. Install batteries in remote
2. Install batteries in shuttles
3. Attach shuttle mounts to skis
4. Connect shuttles to shuttle mounts
Important Note:
Please follow instructions carefully. This is a
precision instrument and must be installed
properly to maximize performance.
Diagram B
Remote unit, bottom view
Insert two AAA
batteries as indicated
Advertisement
Table of Contents
Summary of Contents for Advanced Racing Computers vLink
- Page 1 Parts and Assembly sheet for: The vLink Racing Computer In this package you will find: 1 remote unit Left and right shuttle mounts Two AAA batteries for remote Left and right shuttles, w/battery compartments 1 set earbuds with lanyard Two AA batteries – one per shuttle 2 alcohol wipes Assembly Steps Left ski and binding Diagram A 1. Install batteries in remote Final assembly onto skis 2. Install batteries in shuttles 3. Attach shuttle mounts to skis 4. Connect shuttles to shuttle mounts Important Note: Please follow instructions carefully. This is a Completed shuttle precision instrument and must be installed assemblies properly to maximize performance.
- Page 2 Let stand for 24 hours at room temperature before inserting shuttles. Diagram E Step 4: Inserting shuttle into mount Connect shuttles to shuttle mounts Shuttle release • Align left shuttle (marked with an L) with the left ski and shuttle mount. buttons • Insert one connector end of shuttle into receiving end of mount; snap other end into place (Diagram E). To remove shuttles, squeeze end buttons to release. • Test shuttle movement by rotating upward 90 degrees. Note: When shuttle and mount are attached correctly onto ski, shuttle will not touch the ground. There should be approximately .12 inches (3 millimeters) of clearance between bottom surface of shuttle (camera optics) and ground or snow. Left shuttle mount • Repeat with right ski and right shuttle mount. Left boot binding Assembly is complete! Refer to your user’s guide for instructions on remote and use of the vLink racing computer.
