Summary of Contents for ATD Tools ATD-3056

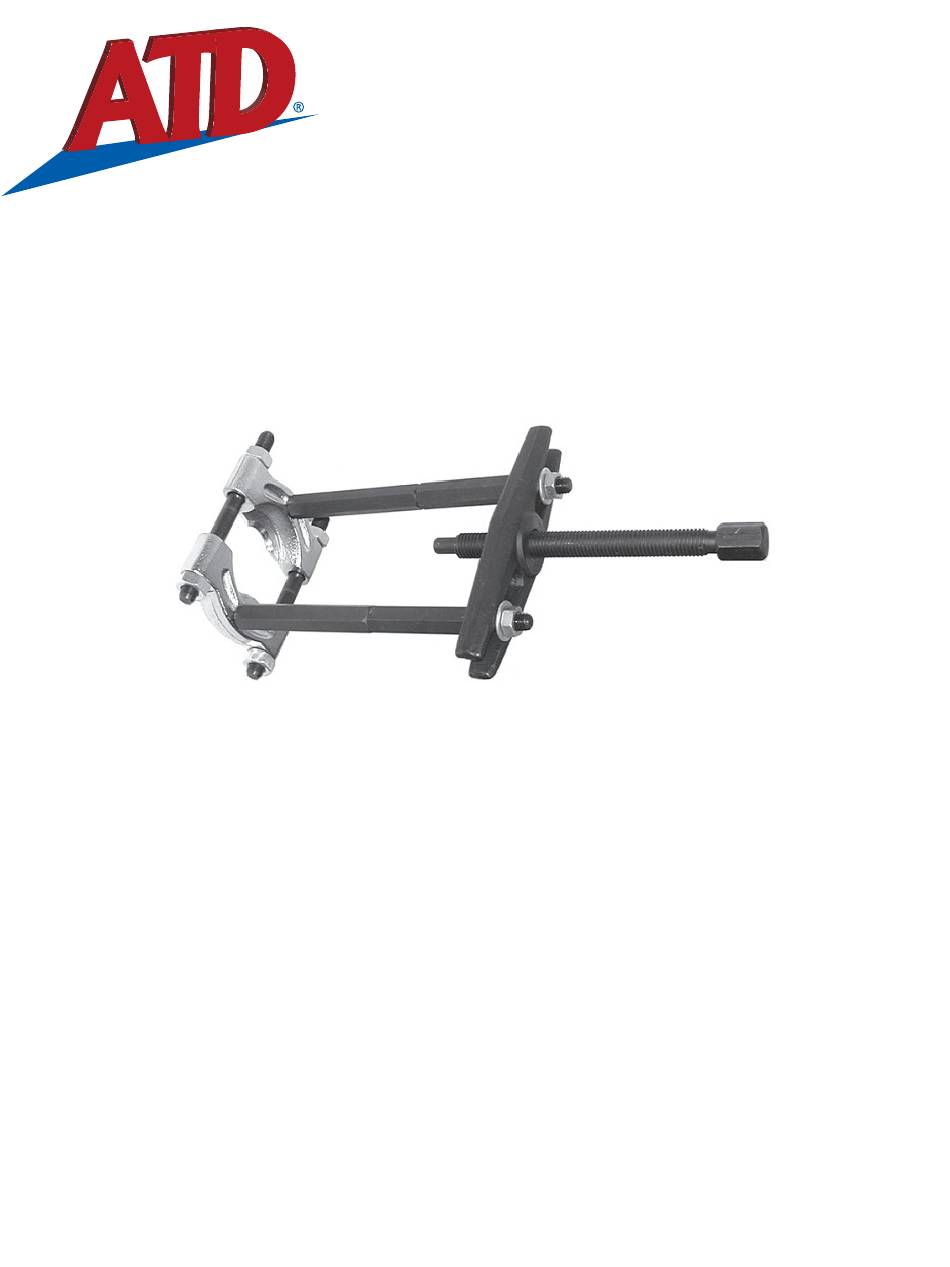

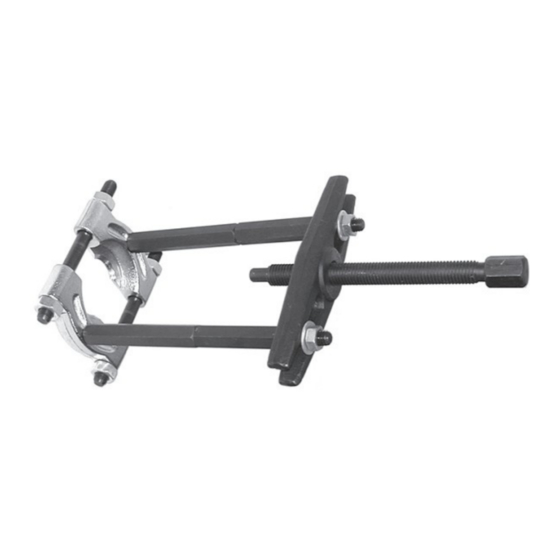

- Page 1 ATD-3056 5-TON BAR TYPE PULLER/BEARING SEPARATOR SET Made in China to ATD Inc. Specifications...
- Page 2 WARNING: When using this tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Read all instructions before operating. Safety Warning and Precautions • Keep work area clean. Cluttered areas invite injuries. •...
- Page 3 Product Safety Precautions • Be certain that the separator jaws are evenly set between bearing halves before attempting to separate. • Lead Screw (5) should be centered on the shaft where the bearings are being pulled to avoid damaging shaft or bearing housing.
- Page 4 Separating Bearing Housings • Select the proper size Bearing Separator Jaw (2.2"~3.0" #2 or 2" #14) for the bearing size being separated. Refer to Picture 2 below. • Loosen the Separator Jaw Nuts (3 or 15) sufficiently to allow the Jaws to catch between each bearing housing.
- Page 5 ITEM# ORDERING PART# PART DESCRIPTION PRT3056-01 SCREW, M12×1.25 MALE THREADS PRT3056-02 BEARING SEPATATOR JAW, 2.2" ~ 3.0 " CAPACITY (2 HALVES) PRT3056-03 NUT, M12×1.25 PRT3056-04 5 " EXTENSION SCREW, MALE AND FEMALE THREADS, 3/8"-16 PRT3056-05 LEAD SCREW PRT3056-06 4" EXTENSION SCREW, MALE AND FEMALE THREADS, 3/8"-16 PRT3056-07 WASHER PRT3056-08...
