Summary of Contents for Audiothingies DoubleDrummer
- Page 1 Audiothingies DoubleDrummer User manual firmware version 1.0.3...
-
Page 2: Overview
Overview Specifications The DoubleDrummer is a 12-voice drum sound generator. It is divided into 4 main sections: The synthesis section This section features 6 different instruments: bass drum, snare drum, tom tom, clap, cowbell and hi hat. Each of these 6 instruments has been fine tuned to provide a wide range of sounds within a limited set of 6 parameters per instrument for the best possible user experience. -
Page 3: The Mixer
2 “AUX SEND” effects are available: delay and reverb. Each one of the 12 instruments can be setup to use either one or the other. A multi FX containing samplerate reduction, bitrate reduction and a 2-pole lowpass filter is available on the master bus. Audiothingies DoubleDrummer user manual... -
Page 4: Signal Flow
INSTRUMENT MIXER & FX AUX FX SEND SELECT Drive, Bitcrusher, (Delay or Reverb) Pan, Level, FX Send Level FILTERED DELAY PLATE REVERB MASTER FX Drive, Samplerate reducer, Bitcrusher & Lowpass Filter MASTER BUS Stereo Audio Outputs Audiothingies DoubleDrummer user manual... -
Page 5: Front Panel

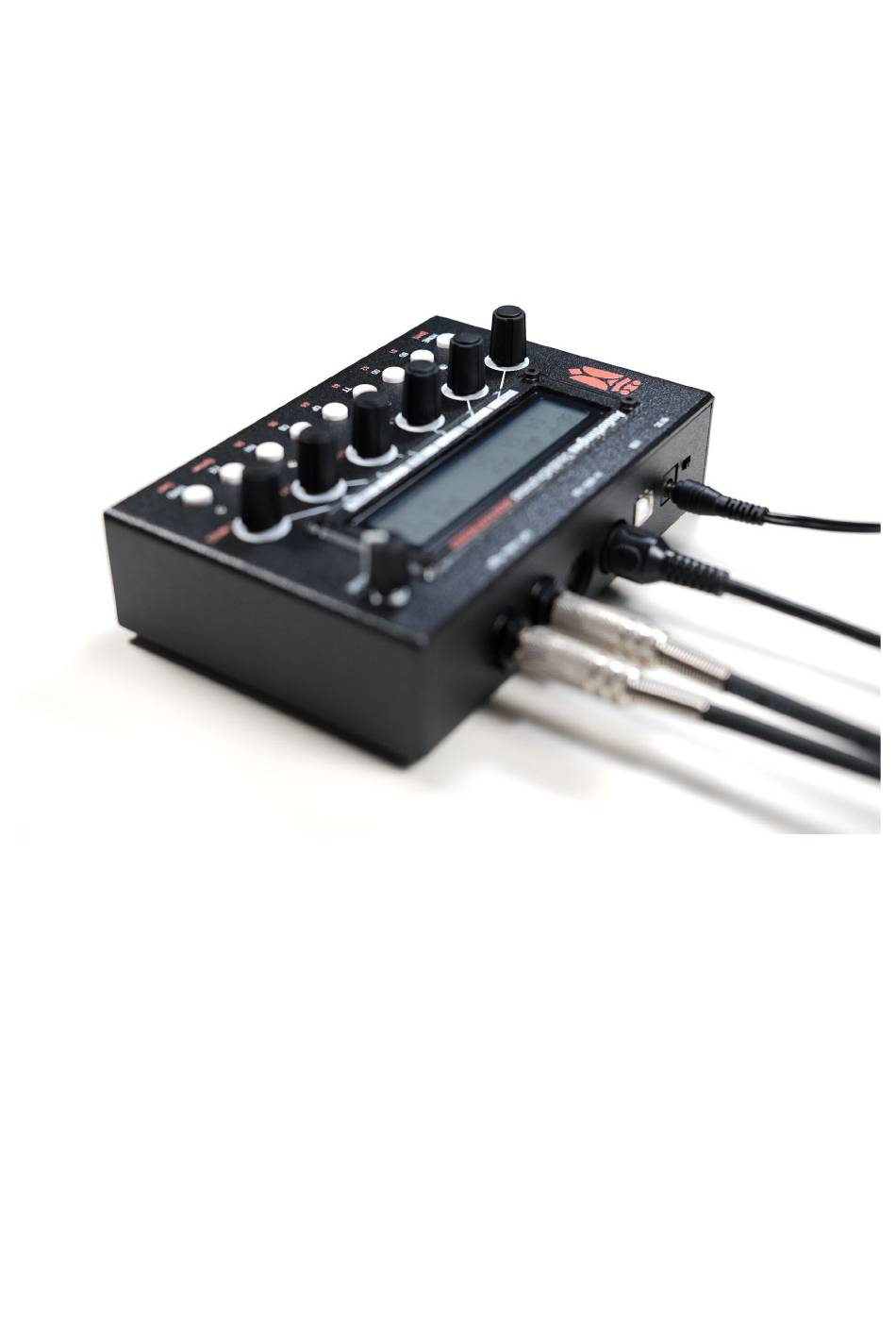

Front panel On the front panel you will find: 2 x 24 characters LCD screen – Black on white • 6 encoders with pushbuttons • 9 pushbuttons with their associated LEDs • 1 volume knob • Audiothingies DoubleDrummer user manual... -
Page 6: Rear Panel
USB port – used for USB MIDI communication with a USB host and firmware updates (a • SYSEX file sent over USB MIDI) 9V DC input socket (Center positive polarity, 2.1mm plug, 200mA minimum) • Power switch • Audiothingies DoubleDrummer user manual... -
Page 7: Quick Start
1. Connect audio outs to a mix table, turn the volume knob fully clockwise. 2. Connect a MIDI keyboard / sequencer into the DIN MIDI Input. 3. Power the DoubleDrummer with a 9V DC, center positive, 2.1mm plug PSU 1. Play C1 on MIDI channel 1, you should hear the bass drum playing... -
Page 8: Using The Doubledrummer
Using the DoubleDrummer Navigating pages How to navigate throughout the DoubleDrummer architecture? Parameters are mapped across different sections accessed by pressing a corresponding button on the front panel. When a section has several pages, you access them by successively pressing the same button several times. -
Page 9: Main Page | Home
Main page | HOME This is where you land when you power your DoubleDrummer P001 drv smp bit cut InUrFace 0 120 You get the program number and name as well as shortcuts to 4 different parameters. HOME page parameter shortcuts These 4 parameters can be set per preset, among the FX (delay, reverb and master fx) parameter set. -
Page 10: Instrument Parameters
This instrument is capable of generating snare drum sounds, and is very versatile especially thanks to its noise-related parameters. SD-P -decay- nze col emp 72 100 SD-P tone pitch • decay1 tone decay time • decay2 noise decay time • noise level • noise color • noise emphasis (filter resonance) • Audiothingies DoubleDrummer user manual... -
Page 11: Tom Tom | Tt
TT-P sample (tt1 to tt4) • sample tuning • sample decay time • low tom pitch (relative) • hi tom pitch (relative) • tom tom pan spread (relative to pan parameter set in mixer page) • Audiothingies DoubleDrummer user manual... -
Page 12: Clap | Cp
Generated with 2 detuned triangle waves with their harmonics being filtered with a bandpass filter. Can also generate claves or beep sounds. CB-P off bal dcy hrm emp CB-P tune • tuning offset • oscillator balance • decay time • harmonics frequency offset • emphasis (filter resonance) • Audiothingies DoubleDrummer user manual... -
Page 13: Hi Hats | Hh
(hh1 to hh4) • tuning offset (+- 1 octave) • closed hat sample decay time • opened hat sample decay time • negative value: lowpass filter cutoff frequency • positive value: hipass filter cutoff frequency filter resonance • Audiothingies DoubleDrummer user manual... -
Page 14: Sample 1 To Sample 6 | S1 To S6
(+- 1 octave) • sample decay (1 – 100%) • sample “compression” (source dependent - more effective on longer sounds) • negative value: lowpass filter cutoff frequency • positive value: hipass filter cutoff frequency filter resonance • Audiothingies DoubleDrummer user manual... -
Page 15: Instrument Mixer Page
BD-M drv bit pan lvl 0 100 BD-M instrument status (on, means mute is off) • drive level • bit reduction level • panoramic • level • effect send level (see instrument setup page to choose the send fx) • Audiothingies DoubleDrummer user manual... -
Page 16: Instrument Setup Page
64 dly BD-H Instrument type (sample / synthesis) – Synthesis instruments only • synthesis instruments can be turned into sample instruments velocity sensivity • adjusts how velocity sensitive the instrument will be fx send type (delay/reverb) • Audiothingies DoubleDrummer user manual... -
Page 17: Mixer Shortcuts
0 -58 +25 FX Send level Press encoder 2 to access the FX send level of all 6 synthesis instruments. Press encoder 5 to access the FX send level of all 6 sample instruments. F BD Audiothingies DoubleDrummer user manual... -
Page 18: Fx Send Type
Instrument status (Mutes) Press encoder 3 to access the on/off status of all 6 synthesis instruments. Press encoder 6 to access the on/off status of all 6 sample instruments. M BD on off off off Audiothingies DoubleDrummer user manual... -
Page 19: Effects | Fx
A classic mono-in / stereo out plate reverb REV pre tim dif cut dmp 90 100 115 pre-delay time (0-200ms) • reverb decay time • reverb diffusion • input cutoff frequency • hi frequency damping • Audiothingies DoubleDrummer user manual... -
Page 20: Master Fx Unit
A multi effect unit on the master stereo bus with drive, samplerate reduction, bitrate reduction and a 2-pole lowpass filter MFX drv smp bit cut res 0 100 drive level • samplerate reduction level • bitrate reduction level • filter cutoff frequency • filter resonance • Audiothingies DoubleDrummer user manual... -
Page 21: Loading / Saving A Patch
Loading / saving a patch Load menu | LOAD Press Load if you want to load a pre-programmed patch from your DoubleDrummer’s memory. Load program <<< >>> pgm InUrFace Turn encoder 6 to quickly navigate and load thru the patches. -
Page 22: System Settings | System
System settings | System These settings are global to the DoubleDrummer, and will be auto-saved when you turn it off Syetem settings - page 1 in mid lay str ctr out 1 k25 36 p+m thr MIDI data input (5-pin DIN | USB) •... -
Page 23: About The Trig Delay Time (Tdl Parameter)
AFTER the note data (such as Elektron Octatrack when parameter locking or automating note data and CC data on the same step). As the DoubleDrummer is waiting for parameter changes BEFORE the note data, this can be used to wait for eventual CC data before triggering the instrument. -
Page 24: Midi Note Map - Midi Note Input Layouts
Uses all the whites keys of a 25-note keyboard (now the default choice) CB HH Chromatic layout (chr) The name says it all. Great to get all triggers on a 16-note row like on the Elektron Octatrack. HT CP Audiothingies DoubleDrummer user manual... -
Page 25: Pad Layout
Beatstep Pro layout (bsp) Optimized for Beatstep Pro (GoTo Device Settings in Arturia MIDI Control Center and set Drum Map to Chromatic Mode). Str parameter in settings menu has to be set to 36 for this to work correctly. Audiothingies DoubleDrummer user manual... -
Page 26: Midi Cc Map
The MIDI CC mapping is available as a separate pdf file. Note that ss DoubleDrummer has more parameters than the available number of MIDI CC’s, 3 different CC maps are available for your convenience, depending on what you want to control (see System menu). -
Page 27: Cheat Codes Available At Startup
Performing a factory reset will erase all presets/settings with the provided factory ones, so don’t forget to save your custom patches before doing this. Firmware update / User samples upload The procedure to update the firmware and upload custom samples to the DoubleDrummer is documented and maintained on the website. Audiothingies DoubleDrummer user manual... -
Page 28: Table Of Contents
The FX’s............................3 Signal Flow............................4 Front panel............................5 Rear panel............................6 Quick start............................7 Using the DoubleDrummer........................8 Navigating pages..........................8 How to navigate throughout the DoubleDrummer architecture?..........8 Editing parameters...........................8 Main page | HOME..........................9 HOME page parameter shortcuts.....................9 Trigger activity Viewer........................9 Instrument parameters........................10 Bass drum | BD..........................10 Snare drum | SD..........................10... - Page 29 MIDI Note Map – MIDI note input layouts..................24 Standard layout..........................24 Alt layout............................24 K25 layout............................24 Chromatic layout (chr)........................24 Pad layout............................25 Beatstep Pro layout (bsp).......................25 MIDI CC map.............................26 Cheat codes available at startup......................27 Factory Reset..........................27 Firmware update / User samples upload.....................27 Table of contents..........................28 Audiothingies DoubleDrummer user manual...
