V7 / V12a / V14
Hearing Loop Drivers
Installation &
User Guide
May 2018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Contacta V Series

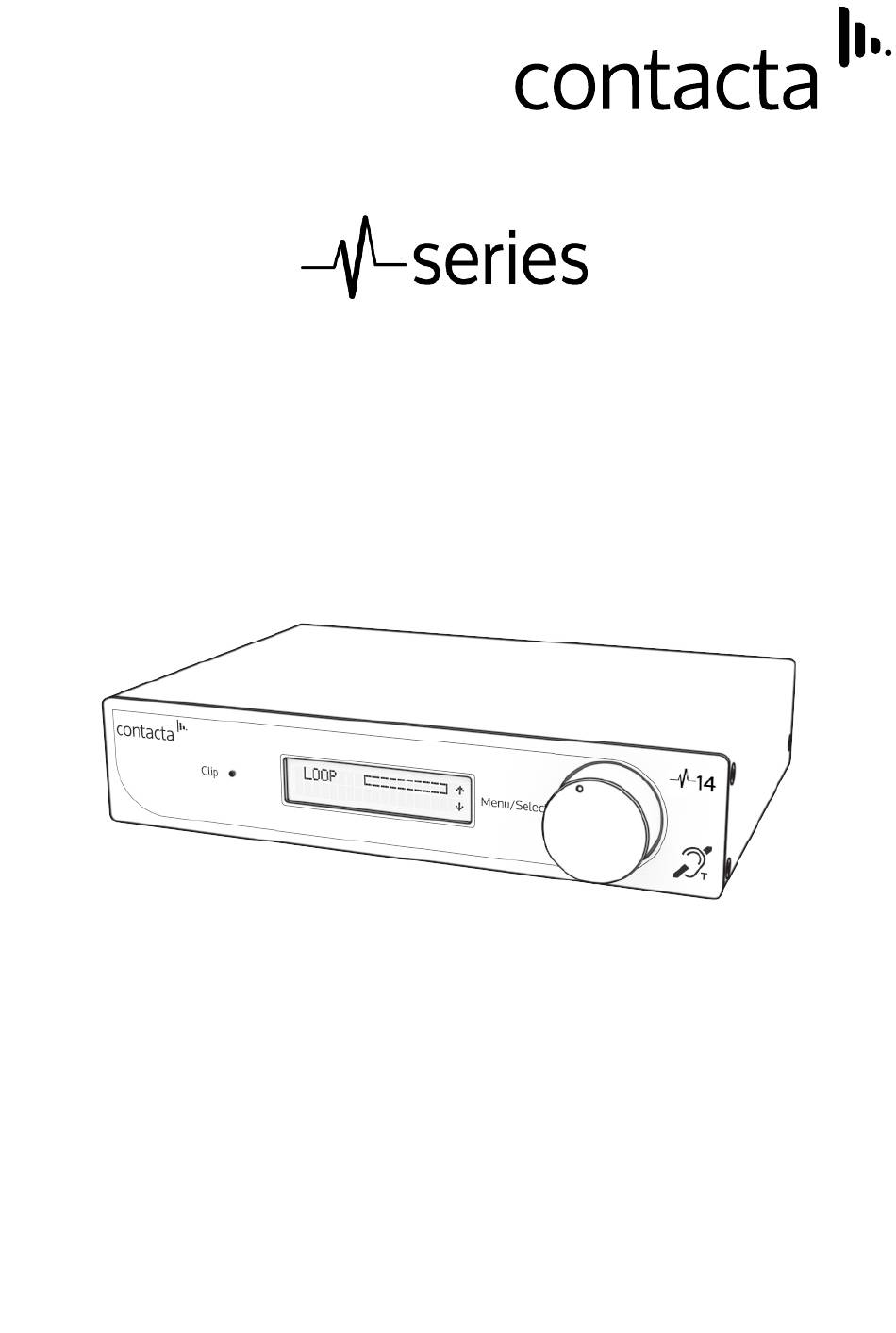

  • Page 1 V7 / V12a / V14 Hearing Loop Drivers Installation & User Guide May 2018...
  • Page 2: Table Of Contents

    Hearing Loop Setup 21-26 Troubleshooting Technical Specifications 28-30 Standards Contacta has a policy of continuous product development, therefore small specification changes may not be reflected in this manual. Images, labels, packaging, accessories and product colours are subject to change without notice.
  • Page 3: Product Overview

    Product Overview Our highly efficient and compact V7, V12a and V14 hearing loop drivers are suitable for smaller facilities and venues. The V7 and V14 are constant current hearing loop drivers which power hearing loops utilising a single output. The V12a is a constant current dual output hearing loop driver with integral phase shifter for phased array configuration.
  • Page 4: Components

    Components 1. Rubber Feet x4 5. V7 Hearing Loop Driver 2. 5.08mm Euro-Block Connector 6. Installation & User Guide 3. 3.81mm Euro-Block Connector x2 7. Power Supply [PS-55] 4. Signage 8. IEC Power Lead V12a 1. Rubber Feet x4 5. V12a Hearing Loop Driver 2.
  • Page 5 1. Rubber Feet x4 5. V14 Hearing Loop Driver 2. 5.08mm Euro-Block Connector 6. Installation & User Guide 3. 3.81mm Euro-Block Connector x2 7. Power Supply [PS-60] 4. Signage 8. IEC Power Lead Plug type varies by country. Cable & Equipment: A length of loop cable determined by the loop design is also required.
  • Page 6: Connections

    Connections Rear Panel Connections Microphone Input - 3.81mm Euro-block balanced microphone input (12V phantom power via 680Ω). 2. Line Input 1 - 3.81mm Euro-block balanced line input/feedthrough. 3. Line Input 2 - XLR balanced line input/feedthrough. Power Supply Input - *V7 DC Power Input, 2.1mm 14Vdc 2.14A **V12a DC Power Input, 2.1mm 24Vdc 4.17A ***V14 DC Power Input, 2.1mm 24Vdc 4.17A Caution: Use only the provided Power Supply.
  • Page 7 Connection Examples XLR to XLR (line) TRS to XLR (line) Unbalanced to XLR XLR to Euroblock (balanced) Unbalanced to Euroblock...
  • Page 8: Suitable Cable Lengths

    Suitable Cable Lengths The tables in this section show the approximate maximum cable lengths for differing maximum required currents. Loop impedance (at 1.6kHz) should be less than: Voltage capability of the driver (V7: 7.5Vrms, V12a: 12Vrms, V14: 14Vrms) divided by the required current. This achieves 400mA/m field strength at 1kHz.
  • Page 9 V12a (Metric) Current 2.0A 3.0A 4.0A 5.0A Cable Type Cable Length Maximum Round 0.5mm 136m Cable Cable Length (CSA) 214m 107m 107m 1.5mm 248m 124m 124m 2.5mm 277m 138m 138m 110m Flat Cable 10mm 163m (Width) 12.5mm 308m 154m 154m 123m 25mm 408m...
  • Page 10 V14 (Metric) Current 2.0A 3.0A 4.0A 5.0A Cable Type Cable Length Maximum Round 242m 161m 121m Cable Cable Length (CSA) 1.5mm 284m 189m 142m 114m 2.5mm 319m 213m 160m 128m Flat Cable 10mm 180m 120m (Width) 12.5mm 340m 226m 170m 136m 25mm 450m...
  • Page 11: Start-Up Tests

    Start-Up Tests V Series drivers perform a series of tests when powered on, causing a number of indications to appear on the display screen during start-up. The meanings of these indications are as follows: Indicator Meaning Remedy Hearing loop(s) is/are correctly None required.
  • Page 12: Controls

    Controls Front Panel Overview V7 and V14 Clip Status Light - When lit, this status LED indicates the signal on the hearing loop output is clipping (see Troubleshooting on page 27 for appropriate solutions). 2. Display Screen - Indicates the status of the Loop Output, displays menu and adjustment options.
  • Page 13 Locking/Unlocking the Hearing Loop Driver The hearing loop driver will power up in Output Current Display Mode and will be locked from entering Adjustment Mode. Unlock the Driver To unlock the hearing loop driver, press the control dial, and when prompted “Unlock driver?”...
  • Page 14 Modes Main Menu After being unlocked, the hearing loop driver will display the main menu. This is indicated by up and down arrows on the display screen. When in this mode, rotating the hearing loop driver’s control dial clockwise will move the screen to the next menu item and rotating the dial anti-clockwise will move it to the previous menu item.
  • Page 15 Loop Output V7 and V14 Loop Output V12a Loop Output The hearing loop driver’s Loop Output section displays the real-time output current in 0.5A steps. Adjustments V7 and V14 Loop Output: Adjustment Mode V12a Loop Output: Adjustment Mode In Adjustment Mode, the real-time output current is displayed on the top line in 0.5A steps.
  • Page 16 Line Input The hearing loop driver’s Line Input section displays the line input level within a range of 47dB. The text on the display indicates if the correct line level has been achieved: • “Low” indicates the line level is too low for the automatic gain control to operate.
  • Page 17 Phantom Power Phantom power for a connected microphone is set off as the default setting. Adjustments Rotating the control dial clockwise or anti-clockwise in Adjustment Mode will toggle the phantom power on or off. Press the control dial once to confirm the selection and return to the main menu.
  • Page 18 Microphone Input The hearing loop driver’s Microphone Input section displays the microphone input level within a range of 47dB. The top line of the display indicates if the correct microphone input level has been achieved: • “Low” indicates the microphone level is too low for the automatic gain control to operate.
  • Page 19 V12a Only: Loop Trim When using a V12a, the hearing loop driver’s Loop Trim function allows Loop B’s output to be adjusted relative to Loop A’s output. Please note: This section is only available on the V12a. The equivalent V7 and V14 menu displays Current Output, to which adjustments can be made using the Loop Output section (see page 15).
  • Page 20: Hearing Loop Setup

    High-Frequency Compensation There are 7 levels of high-frequency compensation available to adjust for metal loss. Your hearing loop driver will have high-frequency compensation turned to the lowest setting as its default. Adjustments To alter the high frequency compensation level, enter Adjustment Mode: •...
  • Page 21 Step 5: Final Output Level Adjustment (see page 25) Step 6: Input Signal Level Adjustment (see page 25) Required for Set-Up • TSG - Contacta Test Signal Generator (TSG1) • FSM - Contacta Field Strength Meter (IL-CONTACTA-FSM) • Tripod or similar for mounting the FSM is recommended •...
  • Page 22 Step 1: Background Noise Level This test should be performed prior to loop installation. Set up the FSM, ensuring that the two vertical arrows in the top-right corner of the device are placed at the correct height: • 1.2 metres (3’ 9”) for seated user. •...
  • Page 23 3. Set the TSG to the 1kHz setting. 4. Set the FSM to the Third Octave F= 1000Hz setting. 5. Adjust the line level until only the first orange LED is turned 6. Adjust the drive level to achieve 2 amps of output current, as indicated by the driver LEDs.
  • Page 24 loop design or more powerful driver is required. This is potentially due to metal loss. 5. Briefly alter the current to the desired level. For instance, the example in step 4 requires 4 amps of current. 6. The field strength will now be 0dB +/- 1dB. Quickly record the current required to achieve 0dB field strength.
  • Page 25 2. Reduce the loop output current to 2 amps. Set the FSM to the RMS/Peak A-Weighted mode and record the value measured by the FSM in the centre of the loop. Move the FSM to other user positions within the looped area and record the values measured by the FSM.
  • Page 26 Note 1: When adjusting the output current, if a level of 2.5 amps is reached and yet the field strength is still below -6dB, the correct field strength will not be achieved. This is caused by either an incorrect loop design or installation, more metal loss than expected or an incorrectly specified driver.
  • Page 27: Troubleshooting

    1) Reduce the length of the are lit. too long. loop. 2) Use a larger diameter cable. 3) Create a two-turn loop. 4) Use a higher voltage driver. Please contact your distributor (or Contacta if appropriate) if you are experiencing technical difficulties with the product.
  • Page 28: Technical Specifications

    Technical Specification Power 2.1mm 30W 14Vdc 2.14A via External PSU (PS-55) Class 6 External PSU (100V -240V AC 50Hz-60Hz) Inputs 1 X Line XLR or 3.81mm Euro-block [optimised for -10dBV to 0dBv] 1 X Microphone (12V phantom power via 680Ω) [optimised for levels above -45dBv] Output Characteristics see notes 1 and 2 Output Voltage:...
  • Page 29 Technical Specification V12a: Power 2.1mm 100W 24Vdc 4.17A via External PSU (PS-60) Class 6 External PSU (100V -240V AC 50Hz-60Hz) Inputs 1 X Line XLR or 3.81mm Euro-block [optimised for -10dBV to 0dBv] 1 X Microphone (12V phantom power via 680Ω) [optimised for levels above -45dBv] Output Characteristics see notes 1 and 2 Output Voltage:...
  • Page 30 Technical Specification V14: Power 2.1mm 100W 24Vdc 4.17A via External PSU (PS-60) Class 6 External PSU (100V -240V AC 50Hz-60Hz) Inputs 1 X Line XLR or 3.81mm Euro-block [optimised for -10dBV to 0dBv] 1 X Microphone (12V phantom power via 680Ω) [optimised for levels above -45dBv] Output Characteristics see notes 1 and 2 Output Voltage:...
  • Page 31: Standards

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by Contacta Systems LTD or an authorised partner could void the user’s authority to operate the equipment.
  • Page 32 Local dealer: UK & ROW US & Canada +44 (0) 1732 223900 +1 616 392 3400 sales@contacta.co.uk info@contactainc.com Contacta Systems Ltd. Office 13, Dana Trading Estate Transfesa Road Paddock Wood, Tonbridge TN12 6UT www.contacta.co.uk...
