Summary of Contents for Pixa WPS-510

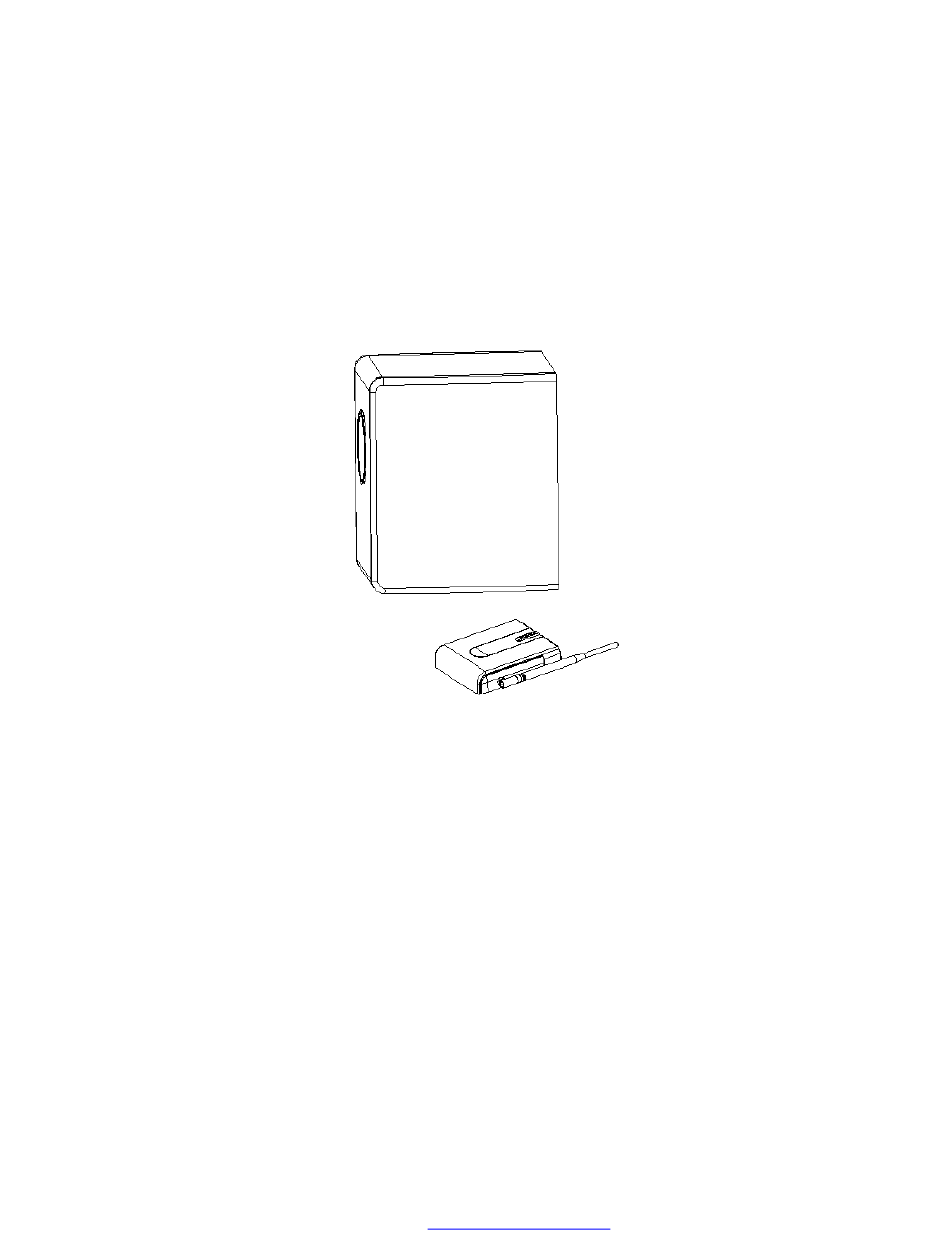

- Page 1 PiXA WSP-510 2.4G Wireless Subwoofer Operating Instruction PDF 檔案以 "FinePrint pdfFactory Pro" 試用版建立 http://www.fineprint.com...
- Page 2 PDF 檔案以 "FinePrint pdfFactory Pro" 試用版建立 轜 h t t p : / / w w w . f i n e p r i n t . c o m...
-
Page 3: Warnings
Warnings Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 4 No user serviceable parts inside. Refer servicing to qualified service personnel. Servicing If you have any question about this product, please email support@pixainc.com, or visit PiXA's website at www.pixainc.com. Before requesting service, check the troubleshooting section. Wireless Note **Warning: Wireless Limitation and Power Consumption This subwoofer operates at 2.4G radio wave frequencies, and the unit is intended for use...
- Page 5 Radio Wave Safety Do not use the system in proximity of electronic equipment that requires high accuracy control or handling of very low-level signals. The system may affect the electronic equipment, causing malfunction or accident. Example of such electronic equipment: Hearing aid, cardiac pacemaker, other electrical medical equipment, fire alarm, automatic door, and other automated control devices.
-
Page 6: Table Of Contents
Content Warnings ..........................3 Introduction......................... 7 Installation........................... 8 Functions and Controls ..................... 10 Care Taking ........................11 Troubleshooting ........................ 13 Specification ........................15 PDF 檔案以 "FinePrint pdfFactory Pro" 試用版建立 http://www.fineprint.com... -
Page 7: Introduction
Introduction Thank you for purchasing the PiXA WSP-510 Wireless Subwoofer. Before operating the unit, please read the manual thoroughly and retain it for future reference. This subwoofer provides solid bass sound that adds impact and richness to any movie, gaming and music experience. The subwoofer well compliments flat panel TVs or any home theaters. -
Page 8: Installation
Installation Caution: when connecting, make sure that all components are switched off and unplugged. Turn down the volume before connecting audio signals. AUDIO-IN Connect any audio source with a RCA stereo cord (not included) to the AUDIO-IN jacks l on the transmitter unit. If connecting from a mono signal such as a PREOUT or LFE of a pre-amp or receiver, connect to the red jack on the AUDIO-IN jacks. - Page 9 Subwoofer AC Power Connect the Subwoofer AC power cord from the subwoofer n to a power outlet. Leave the Power Switch q in the default AUTO position. Placing the Subwoofer Since low frequency sound is non-directional, the subwoofer unit could be placed anywhere in the room.
-
Page 10: Functions And Controls
automatically plays signal from wireless transmitter in priority. Adjust volume and control Always turn the VOLUME r to lowest level before powering up the subwoofer. Gently turn up the volume to desired level of sound output. Adjust PHASE p and crossover FREQUENCY s to match other speakers in the speaker system. -
Page 11: Care Taking
Care Taking Wireless Reception This product is limited to home use. Transmission distance may be reduced depending on environments. In the following locations, radio signal may be interrupted. In reinforced concrete buildings or homes made of metallic beams. In a location exposed to the magnetic field, static electricity or equipment that uses the same frequency band (2.4GHz), such as Bluetooth device, radio Wireless LAN device, cordless phones, or microwave oven. - Page 12 outlet. If the connection is incomplete, heat may generate which could lead to fire. Do not insert the AC adaptor or power cord into a power outlet where connections are loose. Heat may be generated which could lead to fire. Cleaning Clean the cabinet of the speaker system with a soft cloth slightly moistened with water.
-
Page 13: Troubleshooting
Troubleshooting Before requesting service, make the below checks. If you have any question about this product, please email support@pixainc.com, or visit PiXA's website at www.pixainc.com. Problem Probable Causes Remedy No Sound Is signal source connected to the Connect signal source to the AUDIO-IN transmitter? jack on the transmitter. - Page 14 Audio Interruption Distance too large Maximum operating range of the or Dropout wireless subwoofer is 30 to 100 feet depending on the environment. Use within proper range. Interference There may be radio communication equipment using the same frequency band (2.4 GHz) such as Bluetooth device, WiFi LAN, cordless phone, or microwave oven.
-
Page 15: Specification
Specification Audio Specification: Sensitivity: 99 dBA Frequency Response: 50Hz - 150Hz 8" Semi-Pressed Paper Cone Driver Single button on/off control 50 Watt RMS @ 1% THD Wireless Specification: Operating Frequency: ISM band 2.4-2.4835 GHz Auto scan for clear channel Transmit range: 30 to 100 feet Signal Input: Audio Stereo In Audio Stereo Out (by pass) - Page 16 Pixa Inc. Orange, CA support@pixainc.com www.pixainc.com PDF 檔案以 "FinePrint pdfFactory Pro" 試用版建立 http://www.fineprint.com...
