Ingrid GEC1000 Installation Instructions

Grid Extender Installation Instructions
Model GEC1000

InGrid Grid Extender Kit Contents

GEC1000 Grid Extender
IG180 Ni-MH Rechargeable Battery Pack
Phone Cord

Determine the Location

Place the Grid Extender in a location that is
spread a part from the Console and Base.
Having these devices spread throughout the
home will maximize system coverage.
Power and phone outlets are required to
operate the Grid Extender.

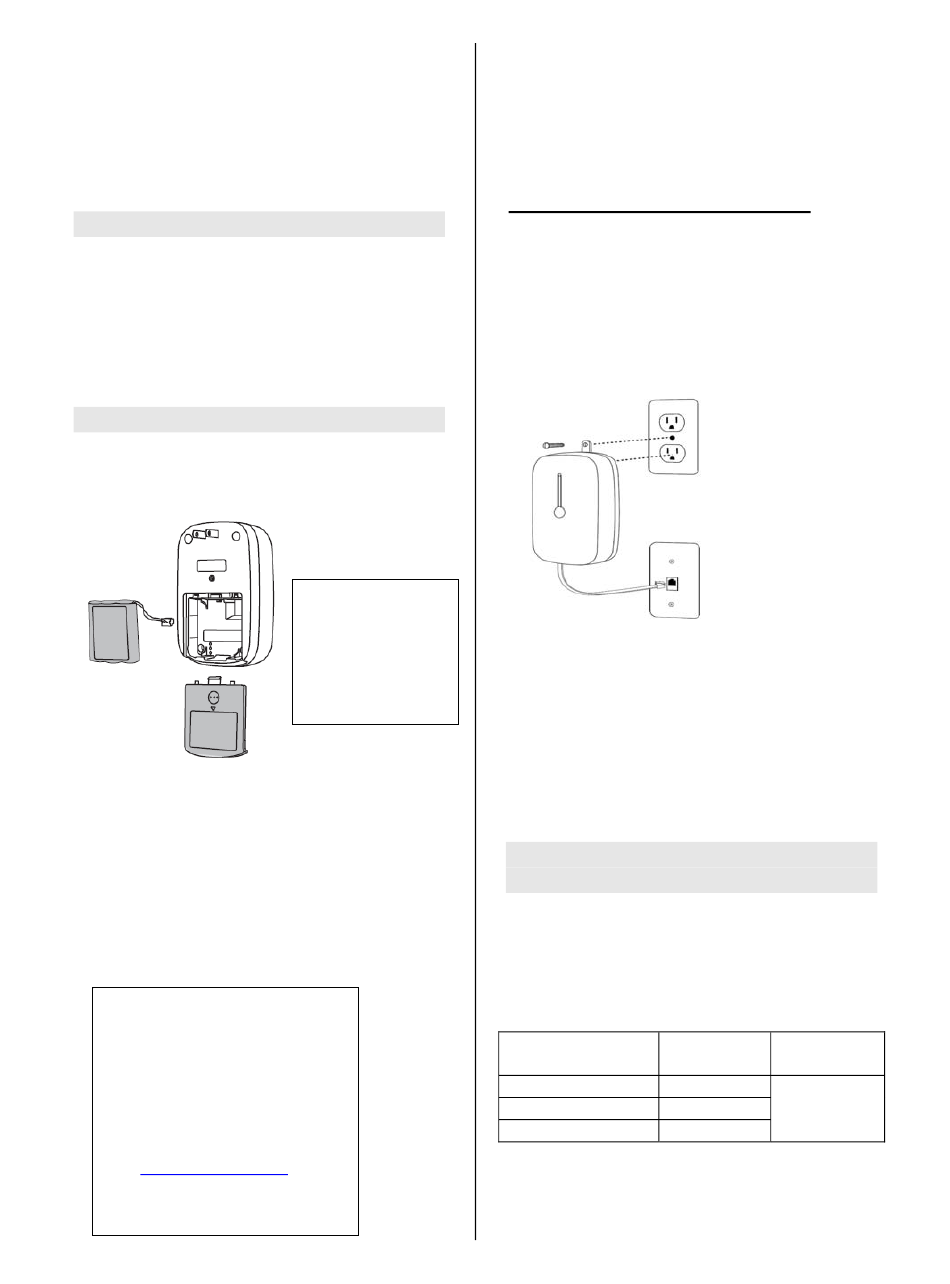

Install the Grid Extender

1) Install Battery Pack - The battery pack is
shipped inside the Grid Extender, but
not connected.
a. Open the battery compartment of
device and remove the battery
b. Insert the battery cable plug into the
two-pin jack, and insert the battery.
c. Replace the battery cover.
2) Plug the Grid extender into the electrical
wall outlet with the phone jack facing
down.
Note:
o
Use only InGrid IG180
rechargeable battery packs
supplied with your various
Home Protection components.
o
Replacement battery packs are
also available through the
InGrid's customer service at 1-
877-INGRID7 or on-line at
www.InGridHome.comUse
only the supplied AC power
adapter. Do not use any other
adapter.
CAUTION
RISK OF EXPLOSION
IF BATTERY IS
REPLACED BY AN
INCORRECT TYPE.
DISPOSE OF USED
BATTERIES
ACCORDING TO THE
INSTRUCTIONS
3) Plug one end of the phone cord into the
phone jack on the bottom of the Grid
Extender and the other into an active
phone wall jack.
Optional – Securing Grid Extender
1) Turn power to outlet off at circuit
breaker.
2) Mount Grid Extender to Wall Outlet –
Leave the wall plate on the outlet but
remove the center screw.
Plug the Grid Extender into the electrical
outlet with the phone jack facing down.
3) Replace the center screw by inserting it
through the tab on the Grid Extender.
4) Turn the power back on at the circuit
breaker.
Add The Grid Extender to your
InGrid System
After the initial installation of the InGrid
System, components may be added to
enhance access or performance.
These devices may be added to the InGrid
System up to the number shown in the table:
Device Device
Maximum
Handsets
Consoles
Grid Extenders
*The system will allow a maximum of 9
Handset/Console or Grid Extender combinations
After the hardware is hooked up, use a
Handset or Console that is currently
System
Maximum
6
4 9*
4
