Atlas IED MWRCVR Owner's Manual

Uhf 2-way sync wireless receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MWRCVR
Owner's Manual

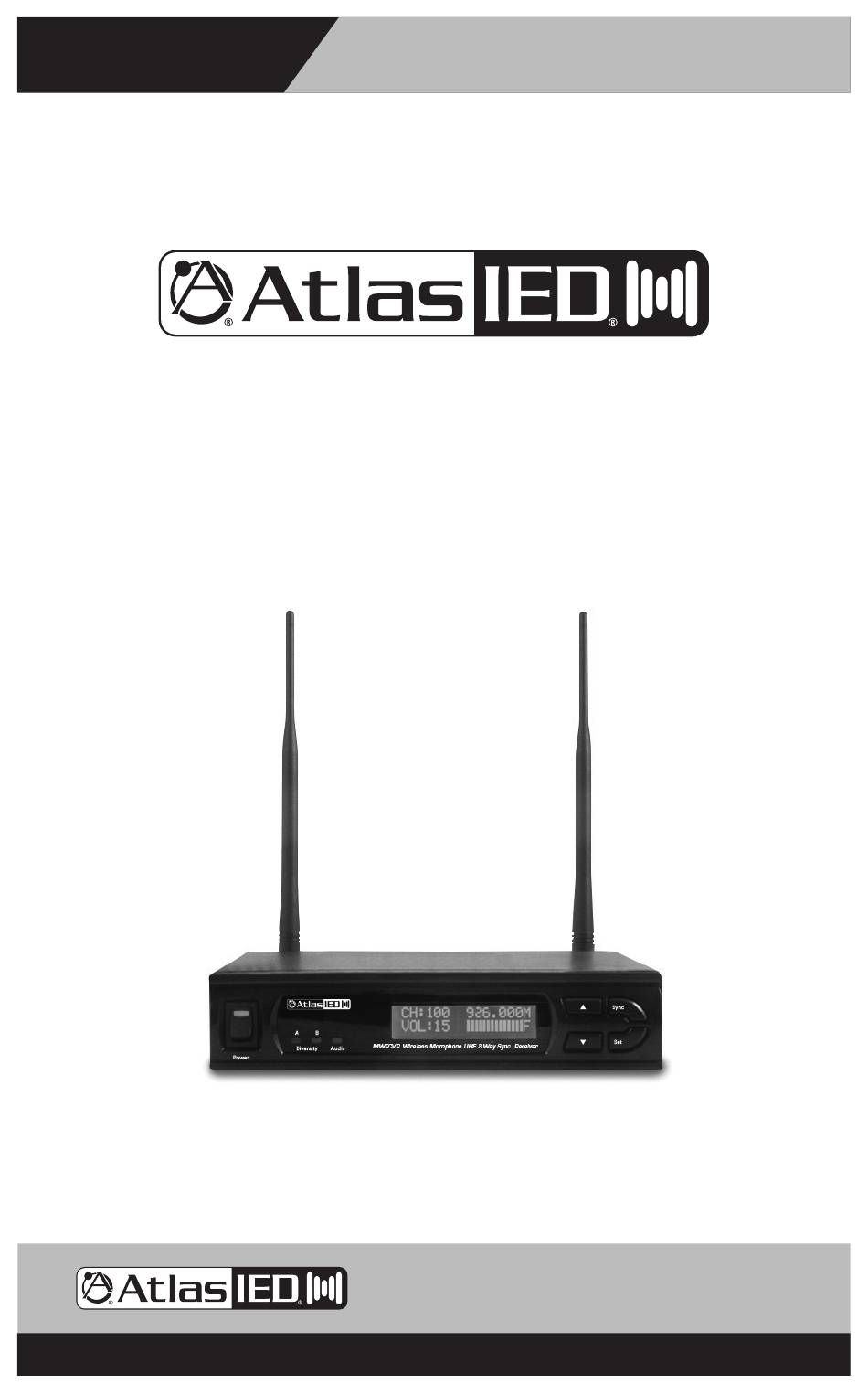

Wireless Receiver
MWRCVR
UHF 2-Way Sync
Wireless Receiver
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasIED.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWRCVR and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas IED MWRCVR

  • Page 1 MWRCVR Owner’s Manual Wireless Receiver MWRCVR UHF 2-Way Sync Wireless Receiver 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.
  • Page 2 With the ability to connect to a variety of devices via the included balanced XLR or unbalanced line output the MWRCVR can be used with a variety of amplifiers or mixers to address the needs of any installation. Multiple units can be used in a single installation since the unit receives transmission via the UHF frequency band and pairs to individual MWHHM or MWBTP on available channels.

  • Page 3: Parts And Functions

    MWRCVR Owner’s Manual Wireless Receiver Parts and Functions Sync Sync MWRCVR Wireless Microphone UHF 2-Way Sync. Receiver Diversity Audio MWRCVR Wireless Microphone UHF 2-Way Sync. Receiver Diversity Audio Power Power 1601 Jack McKay Blvd. • Ennis, TX 75119 1601 Jack McKay Blvd. • Ennis, TX 75119 800.876.3333 •...
  • Page 4 MWRCVR Owner’s Manual Wireless Receiver Changing Channel / Frequency 1. Press and release SET button until the CHANNEL | FREQUENCY page appears (Fig 1). 2. Press UP or DOWN button to select a new channel. As the channel changes, the frequency changes accordingly (Fig 2).

  • Page 5: Channel Scanning

    MWRCVR Owner’s Manual Wireless Receiver B. Changing the microphone’s channel 1. Press the synchronizing button on the receiver (Fig 7). 2. “IRDA DATA SEND” will appear on the receiver’s display (Fig 8). 3. “IRDA TX FINISH” will appear to denote data transferred (Fig 9).

  • Page 6: Adjusting Volume Level

    MWRCVR Owner’s Manual Wireless Receiver Adjusting Volume Level 1. Volume adjustment can be made from the home screen (Fig 12). 2. Press UP or DOWN button to choose a new level (Fig 13). 3. After the level is adjusted, wait 5 seconds to store the setting.

  • Page 7: Audio Output Connection

    MWRCVR Owner’s Manual Wireless Receiver Audio Output Connection Balanced Output: XLR connector provides balanced audio output signal from this jack to the mixer/amplifier. Use an audio output cable with “XLR” or “Cannon” connector, connect one end to the balanced output jack of the receiver, and the other end to the “LINE IN” or “MIC IN” jack of the mixer/amplifier.
  • Page 8 MWRCVR Owner’s Manual Wireless Receiver Audio Output Connection Unbalanced Output: ⁄ " line output connector provides unbalanced audio output signal from this jack to the mixer/amplifier. Use an audio output cable with ⁄ " PHONE PLUG connector. Connect one end from the unbalanced output jack of the receiver, and the other end to the “LINE IN”...

  • Page 9: Receiver Installation

    MWRCVR Owner’s Manual Wireless Receiver Receiver Installation 1. For best operation, the receiver should be at least 1m above the ground and 1m away from a wall or metal surface to minimize reflections. 2. The transmitter should also be at least 1m away from a wall or metal surface to minimize reflections.
  • Page 10 MWRCVR Owner’s Manual Wireless Receiver System Frequency Range UHF 566 - 585.8MHz Switching Bandwidth 25MHz Switchable Frequencies Channels Display Screen Operating Range 100m Direct Sight Output Impedance Mic / Line Oscillation Type PLL Synthesized Frequency Stability ±0.005% Receiving Method True Diversity...
  • Page 11 MWRCVR Owner’s Manual Wireless Receiver Notes 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 11 – AtlasIED.com Specifications are subject to change without notice.

  • Page 12: Limited Warranty

    Service Should your MWRCVR require service, please contact the AtlasIED warranty department at 1-877-689-8055, ext. 277 or www.atlasied.com/support to obtain an RA number. AtlasIED Tech Support can be reached at 1-800-876-3333 or www.atlasied.com/support Visit our website at www.AtlasIED.com to see other AtlasIED products.
