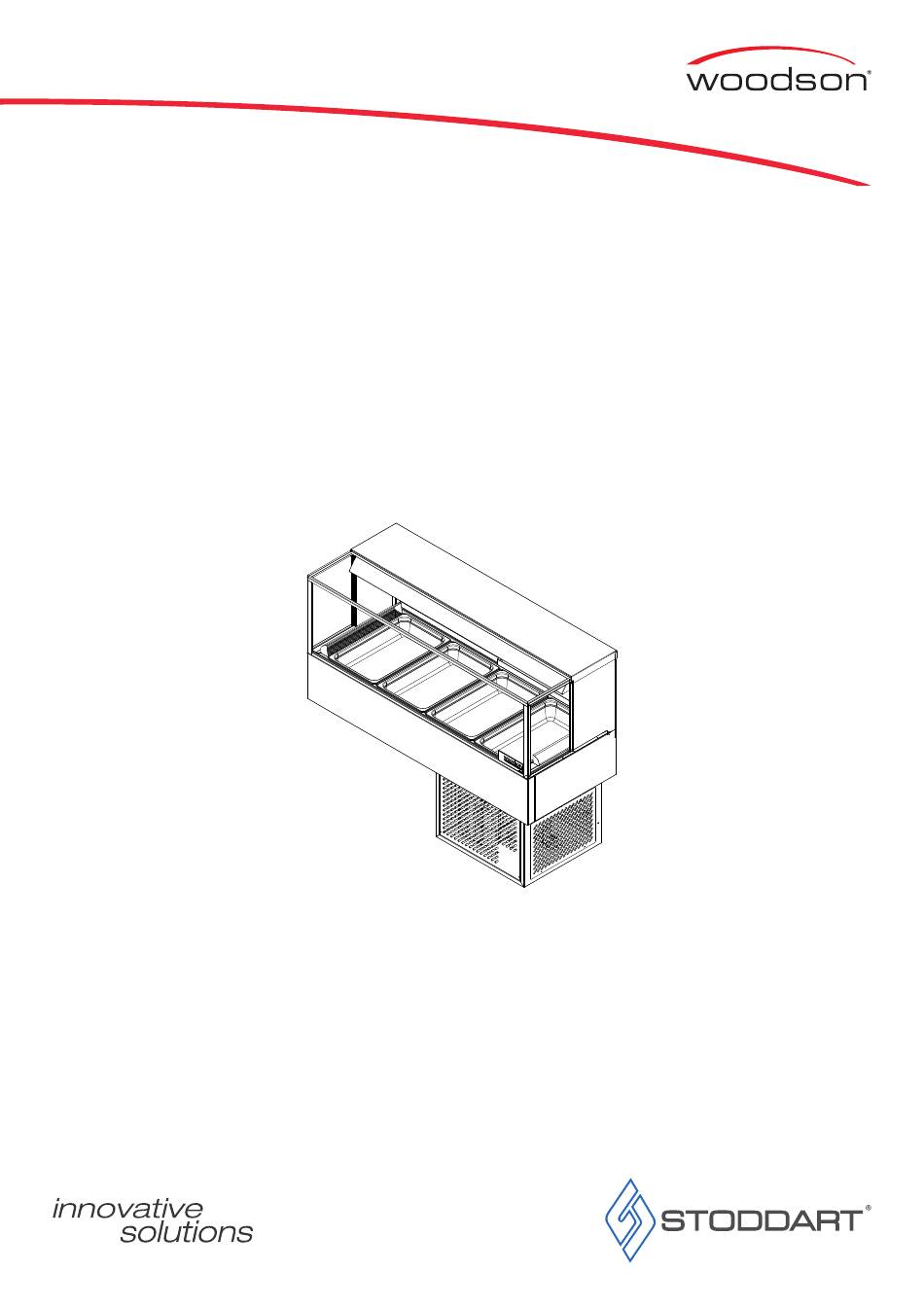

- Page 1 SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Cold Food Displays Self Serve Models: W.CFSQ23, W.CFSQ24 A guide on the use, care and maintenance of your quality Woodson product Revision Date: 25/02/2019...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
-
Page 3: Table Of Contents
Your New Woodson Product � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... -
Page 4: Introduction
Your New Woodson Product Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals� By using, caring for and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of reliable service�... -
Page 5: Attention
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on hand in a safe place for future reference by other operators or users� Disclaimer The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation�... -
Page 6: Installation
Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit: e�g� - For smaller items use two people - For large items a lift truck or fork pallet trucks (the forks should reach more completely beneath the unit)� Unpacking •... -
Page 7: Electrical Connection
Installation Electrical Connection WARNING This unit must be installed in accordance with AS/NZS 60335.1 Information Aggregate electrical ratings of the unit are expressed in kilowatts in this manual� Single Phase Units: Supplied with an appropriately rated plug and lead fi tted and be indicated as: •... -
Page 8: Refrigeration Connections
Installation Refrigeration Connections IMPORTANT This refrigeration system must be installed in accordance with local refrigeration standards Pre-Installation Pressure Test • All refrigeration lines are pressurised with nitrogen before leaving the factory� Exported units are de-pressurised before shipping to a country other than Australia •... -
Page 9: Specification
Specification Climate Classes Information Test room Climatic classes & classifi cations indicated on rating labels are specifi ed in ISO-23953-2 (& AS-1731) e�g� Climatic Class: • 3=25°C @ 60% humidity, • 4=30°C @ 55% humidity & • 5=40 °C @ 40% humidity� The cabinet classifi cation shall be given by the combination of climate class and M-package temperature class�... -
Page 10: Technical Specifications
Specification Technical Specifications W.CFSQ23 SPECIFICATIONS Width 1168mm Depth 607mm Height 1143mm Voltage / Frequency 240V / 50Hz Connection 960kW (10amp plug and lead) Gas Type R404a Refrigeration Systems Self contained Temperature Range 2-4°C 1168 TOP VIEW FRONT VIEW SIDE VIEW Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 11: W.cfsq24
Specification W.CFSQ24 SPECIFICATIONS Width 1502mm Depth 607mm Height 1143mm Voltage / Frequency 240V / 50Hz Connection 970kW (10amp plug and lead) Gas Type R404a Refrigeration Systems Self contained Temperature Range 2-4°C 1502 TOP VIEW FRONT VIEW SIDE VIEW Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 12: Initial Start-Up & Operation
Operation Initial Start-up & Operation Power ON/OFF Temperature IMPORTANT This unit is not designed to cool down products, it only maintains them at the regulated 2°C to 4°C serving temperature. Initial Start Up • Before switching ON the unit, ensure the unit is installed correctly •... -
Page 13: Temperature Adjustment
Operation Temperature Adjustment • The temperature can be set between 2°C and 4°C� How to set the temperature is shown below • Different modes require different temperatures • The temperature probe only measures the temperature of the water/air, NOT the food temperature KEY FUNCTIONS: To display target set point;... -
Page 14: Cleaning
Operation Cleaning General Information • Threaded fasteners can loosen in service� Regular inspection and tightening should be carried out as required • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •... -
Page 15: Cleaning Schedule
Operation Cleaning Schedule • Daily cleaning is required for Cold Food Displays and external surfaces� This will help to maintain and prolong the efficiency of your unit • The unit should be cleaned at the end of each work day Materials Required •... -
Page 16: Troubleshooting
Operation Troubleshooting • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. - Page 17 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 16...
- Page 18 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 17...
- Page 19 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 18...
- Page 20 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
