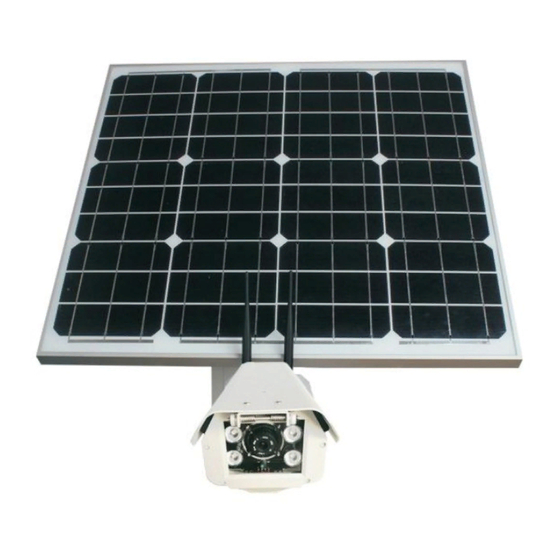

Summary of Contents for Sunwebcam Solar 4G Camera

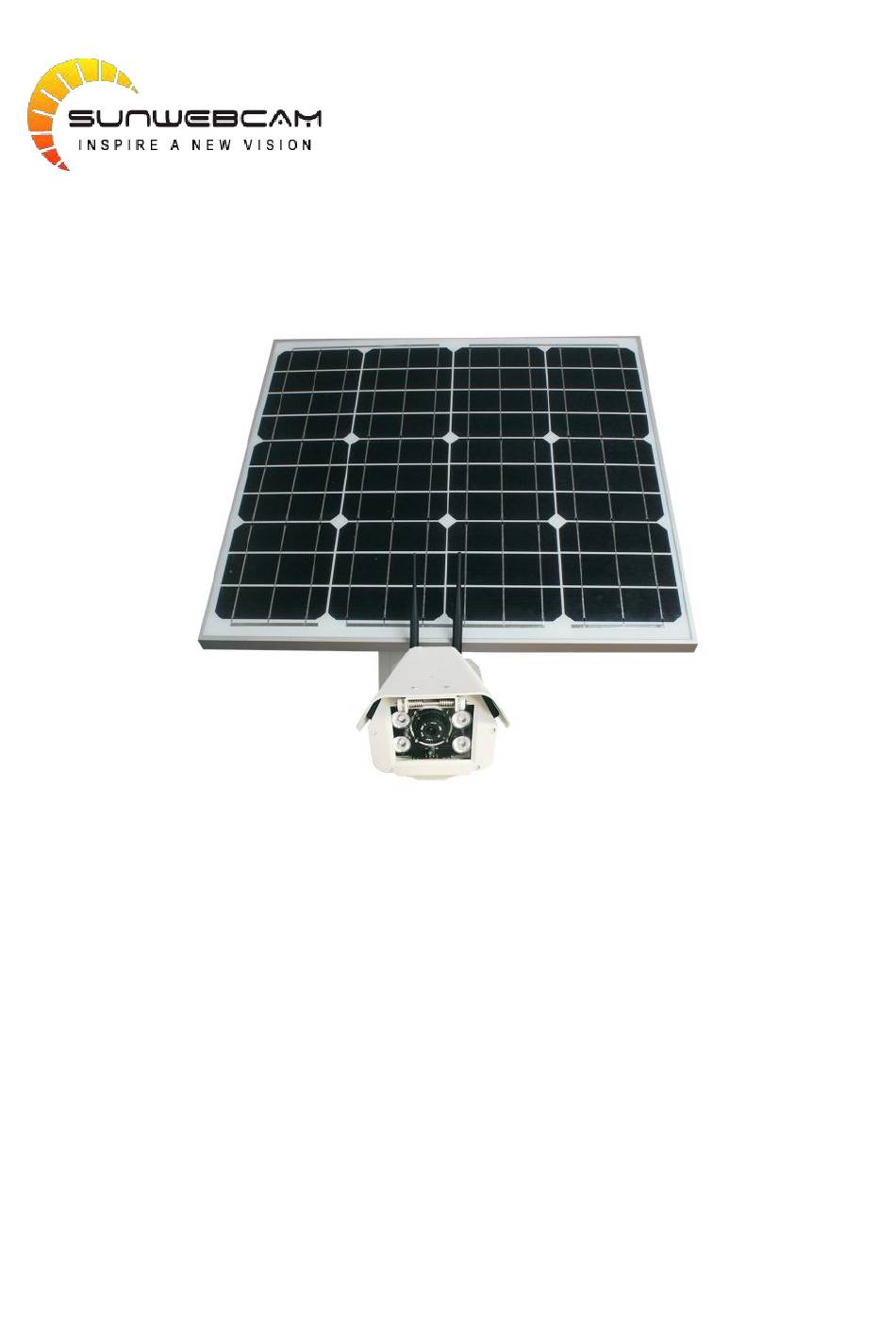

- Page 1 Sunwebcam Solar 4G Camera User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Package List................................. 1 2. The introduction of camera's whole structure......................2 2.1 The structure of the Camera..........................2 3. Notice..................................3 4. User Guide for Smart Phone App..........................4 4.1. Download and register.............................4 4.1.1. Download the app..........................4 4.1.2. - Page 3 TABLE OF CONTENTS 7.2. How to assemble camera..........................27 7.3. Mount the solar panel or camera on the pole....................28 7.4. Mount the solar panel or camera on the wall....................30...
-
Page 4: Package List
1. Package List Solar Panel x1 4G Camera x1 Bracket x2 Holder for Pole x2 Holder for angle x2 Stainless Ribbon x6 U Ring (89mm) x2 U Ring (140mm) x2 Accessories (screws, washers, nuts...) -
Page 5: The Introduction Of Camera's Whole Structure
Battery set is built inside. Protective foam is for transportation, please remove it before use. 2. The introduction of camera's whole structure 2.1 The structure of the Camera Front IR light Light... -
Page 6: Notice
Back Wi-Fi antenna 4G antenna install the antenna as the picture shown, the wifi antenna is on the left, the 4G antenna is on the right, they are made of different material, please don't replace each other! you mast install them in a right way! 3. -
Page 7: User Guide For Smart Phone App
3) The TF card's long side must be upwards, otherwise you will destroy the card slot. Direction is as the picture shown： 4. User Guide for Smart Phone App 4.1.Download and register 4.1.1. Download the app You can search 4GCMS on Google Play to download the app! You can search 4GCMS on App Store to download the app! 4.1.2. -
Page 8: Local Camera
4.2.2. Local Camera Open the 4GCMS app, click the local device, you will see the camera after you drop down to refresh the list. 4.2.3. Set the camera to connect to the router Set the camera connect the Wi-Fi. Click the button , you can see the device information, click the setting button, choose the wireless Network Parameters, open the Wi-Fi client. -
Page 9: Add Camera To Account
4.2.4. Add camera to account When you set Wi-Fi successfully, the Wi-Fi of camera will disappear, you should exit the app, open the Wi-Fi setting interface, connect the Wi-Fi which the camera connect, then you open the app, login to your account, choose ‘add devices by ID’, select the camera you want to bind, click button next (need about two or three minutes camera can be seen in the list, please be patient), Do not operate cell phone at this moment, until the camera add successfully.back to sliding menu, click “Remote device”, refresh the list, you can see the camera you... -
Page 10: Camera
4.3.4G camera Insert the card correctly, power on the camera, （about 3 minute, please wait）, then click ‘add camera’, choose ‘add devices by ID’, input the camera’s ID, click button next, Do not operate cell phone at this moment, until the camera add successfully. -
Page 11: Ethernet Camera
4.4.Ethernet camera Plug in cable, After waiting for the camera in full swing, （ about 1 minute, please wait） , you should find the camera in local device list, click , click ‘setting’, click ‘wired Network Parameters’, open the DHCP or input right IP, finally click save button , then click ‘add camera’, choose ‘add devices by ID’, select the camera you want to bind, click button next. -
Page 12: Rtmp Push Flow Settings
will enter the vision interface, you can view video in real time on the web. Screen direction switches automatically. Vertical screen mode Horizontal screen mode 4.5.2. RTMP push flow Settings There are two ways, one is through the alarm and video settings, open RTMP, but only supports a short address within 123 bytes. -
Page 13: Add Rf Devices
4.5.3. Add RF devices click the button , choose RF Devices, then add the IDs. 4.5.4. SD / Cloud Record Click ‘SD Record’ or ‘Cloud Record’, you can find alarm record divided in different hours. Click magnifying glass icon on top right corner, you can select record in different date (red icon means there is record on that date). -
Page 14: Locate Camera
4.5.5. Locate Camera Click ‘Locate’ on top right corner, you can update mobile’s location to camera. Then you can find cameras on map, and you can check the camera directly. 5. User Guide for PC Client 5.1.Preparations required before installation Accessing to the Internet is necessary to use the product, otherwise only PC local videos are available. - Page 15 WIFI Router ADSL Internet Wire WIFI or wire 1. Plug in the power adapter. 2. Connect the CAM and the router with the network cable as shown above. Note that PC and the camera need to be in the same router. Step 2: Set the 51See CAM process Run 51SEE cloud system setup.exe.
- Page 16 3) Fill out the registration information, and click ‘OK’. 4) After log in, click the ‘local device’ with right mouse button, click ‘local search’ or click the fourth button ‘device scan’ on the upper right. 5) After searching the camera, double click it or click the ‘Edit’ button.
- Page 17 6) Set the IP address and click ‘apply’ Note: The parameter settings of Wi-Fi version Select Wi-Fi items in the settings interface, input the SSID and password, and then click ‘apply’. If you want to use WPS to set Wi-Fi, press and hold the Reset button for more than 4 seconds, release within 10 seconds, press the router's WPS button after the camera system indicator light flashing and the camera will automatically connect to the router within about 3 to 5 minutes.
- Page 18 Note: If the camera fails to bind, please restore factory settings for resetting. Step 3: Watch the video Once the installation process is completed, the user can watch videos through PC or mobile phone.
-
Page 19: Installation Of Rfid Accessories (Optional)
You can watch video whenever and wherever with a computer or mobile phone as long as you log in the account through the clients. For the PC client, the function is more powerful. You should pay attention to the following two points 1. -
Page 20: Audio And Video Parameters Settings
In the setting interface, 3G options will automatically appear for the IP camera of 3G, 4G version. Input the operator's dialing parameters, and click on the application to adapt local operators. You can refer to the following link for foreign operators: http://wiki.apnchanger.org/Main_Page The default dialing number is mostly * 99 #. -
Page 21: Video Recording Parameters Settings
If you think the image is not clear enough, you can set the bit rate higher. For 51See clients, only AAC Audio Type format is supported. 5.4.3. Video recording parameters settings Above figure is to set the alarm trigger conditions. It can be achieved through motion detection or PIR or IO trigger. One key fortification is the main switch, and all alarm settings will be invalid once the parameter is canceled. -
Page 22: Motion Zone
Above figure is the action after setting the alarm. Note: For users who need to send video at regular intervals, fill in the email address on the above chart and set the time interval of timed photography to send email. 5.4.4. - Page 23 Note: FTP only works when there is no SD card. Fill in the FTP parameters in the above dialog box, and select the alarm FTP or scheduled video recording FTP in the alarm recording settings, and the videos will be automatically recorded to the ftp server. In order to make the application simpler, we don’t need the users to set ftp folder, and the camera will save the videos through the following rules: Ftp root directory \ camera ID \ yymmdd \ hh \ yymmddhhmmss.avi.
-
Page 24: Cloud Storage Settings
5.4.6. Cloud Storage Settings Description of cloud storage settings: 1) Select the SD card video recording, and then the SD card will be the only place for recording. If there is no SD card, storage space about 40MB inside the camera can be used for cycle video. 2) Cloud storage server provides each user with 500MB storage space in default, which will be automatically replaced when the recording space is full. -
Page 25: System Information
1) RS485 baud rate setting item RS485 baud rate setting item is significant to control the external machine pan-tilt through RS485 interface. The ball machine will not be able to operate if the baud rate is not right, so do not set it up casually. 5.4.8. -
Page 26: Advanced Function Introduction Of 51 See Pc Clients
6. Advanced function introduction of 51 See PC clients 6.1. Advanced setting Alarm blink. The window will automatically blink when an alarm occurs in the screen. Local only play I frame. If the user’s computer configuration is relatively low, only I frame for local play will ... -
Page 28: Alarming Push Notification And Remote Sd Card Video Recording Linkage
6.3.Alarming PUSH Notification and remote SD card video recording linkage Double click to check video In the setting item, conduct setting so that the alarm window automatically pop up or the alarm window will automatically pop up when the mouse is moved to the bottom. Double click on one of them can link to the alarm history browsing interface. - Page 29 Solar Panel Holder for Angle M6 Cross Screw M6 Pad Washer M6 Spring Washer Square Nut Put the Square Nut into the slot of Solar Panel ( the Square Nuts should be put at the middle of the Solar Panel). Then put the 'Holder of Angle' on the Solar Panel, aligning with the Square Nuts.
- Page 30 Lock screws to make the holder unmovable. Step 2. Assemble Solar Panel with Bracket Align the arc slot of Solar Panel with 4 holes of Bracket. You can adjust the angle before screw ( suggest the angle less than 45°). Put Spring Washer and Pad Washer into M6 Screw, then lock screw. 7.2.How to assemble camera Step 1.
- Page 31 Unscrew the screws on the bottom of camera, then lock the Holder for Angle on it. Step 2. Assemble Bracket on Camera Align the arc slot of Camera with 4 holes of Bracket. You can adjust the angle before screw. Put Spring Washer and Pad Washer into M6 Screw, then lock screw.
- Page 32 For the pole with bigger diameter, you should turn the holder at 90°. We design 3 slots for ribbon use. No matter using U Ring or Stainless Ribbon, we have designed holes with thread for Bracket. Put the Spring Washer and Pad Washer into the M8 Cross Screw. Align the holes on Bracket with the holes on holder, then lock the screws.
- Page 33 7.4.Mount the solar panel or camera on the wall Drill 6 holes on the wall, then put the blasting screws inside. Align the bracket holes with blasting screws, and lock it with the nuts.
