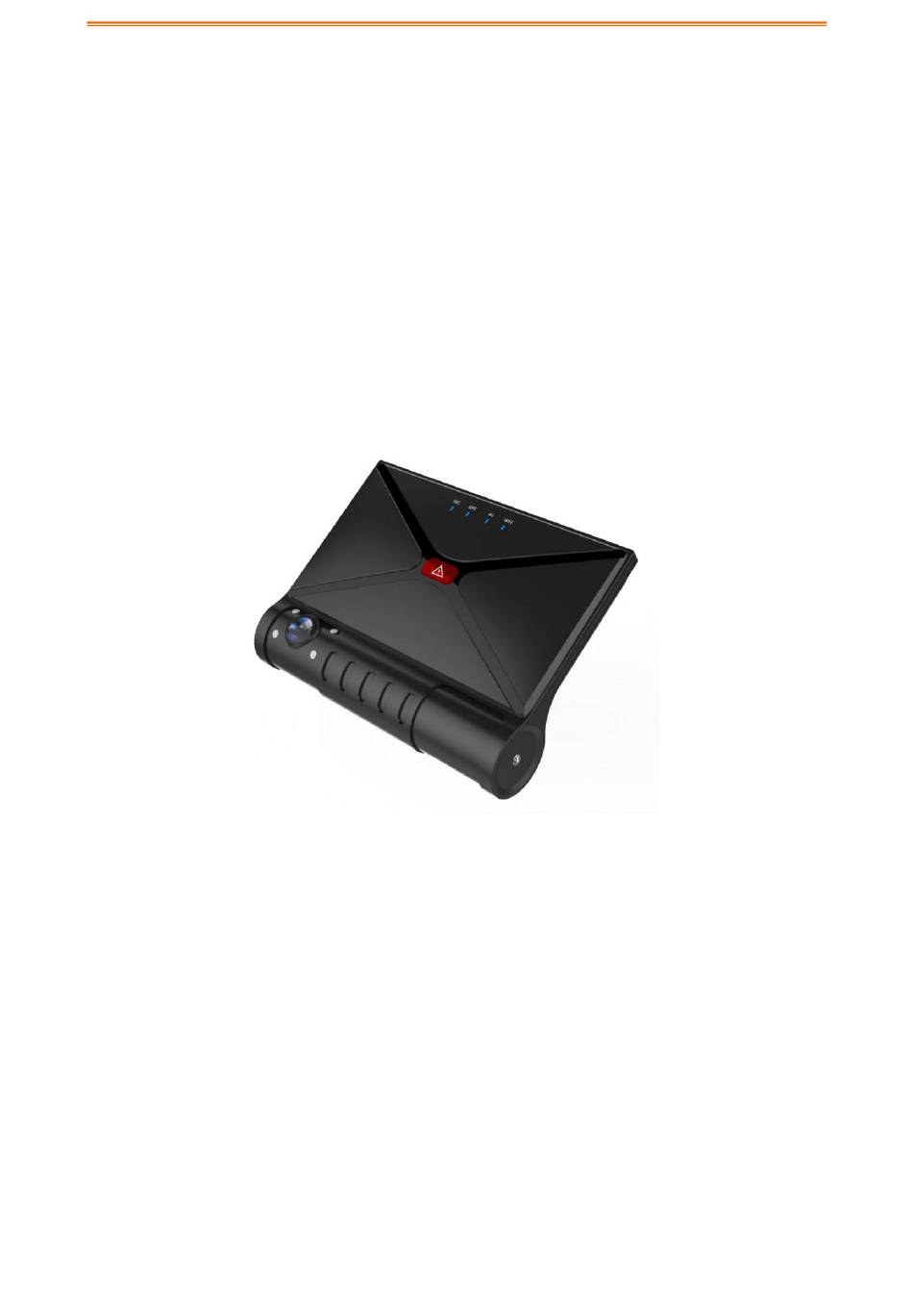

JS-DS-004 MDVR USER MANUAL
Black Box MDVR USER MANUAL
EN v1.0
COPYRIGHT
This manual is copyrighted with all domestic and international rights reserved. Contents of this
document cannot copied, excerpted, plagiarized or transmitted in any way without written
permission of the manufacturer.
*Specifications are subject to change without prior notice.
1 / 29
Advertisement
Table of Contents
Summary of Contents for JetStar JS-DS-004
- Page 1 JS-DS-004 MDVR USER MANUAL Black Box MDVR USER MANUAL EN v1.0 COPYRIGHT This manual is copyrighted with all domestic and international rights reserved. Contents of this document cannot copied, excerpted, plagiarized or transmitted in any way without written permission of the manufacturer.
- Page 2 JS-DS-004 MDVR USER MANUAL MPORTANT REMINDRE 1、Please use 12V/5A DC adapter for testing in office. 2 、 Please use TF card(range 16GB-256GB) which the speed is CLASS 10 or above. 3、 Please in strict accordance with the provisions that connect Power Cable and ACC Testing Cable when install the device.
-
Page 3: Table Of Contents
JS-DS-004 MDVR USER MANUAL TABLE OF CONTENTS 1. GUARANTEE & WARNINGS..........................5 2. PRODUCT OVERVIEW............................5 .................................5 EATURES ..............................6 UNCTIONS ................................. 6 PECIFICATIONS ............................. 7 ORKING ARAMETERS 3. PRODUCT OUTLOOK............................. 8 ................................8 IMENSION 4. OPERATION................................9 ..............................9 EMOTE ONTROL LOGIN.................................. - Page 4 JS-DS-004 MDVR USER MANUAL Serial..................................24 PTZ....................................24 INFO................................25 System Info................................25 5. INSTALLATION..............................26 ............................. 26 OWER ABLE ONNECTION ............................... 26 ERVER ONNECTION ................................26 ERIAL PTZ C ...........................27 ONNECTS TO A AMERA 6. FAQ..................................28 ............................28 ECORDING UESTIONS 1. Why MDVR doesn’t record after power on?....................28 2.
-
Page 5: Guarantee & Warnings
If there are any problems, please contact us as soon as possible. 2. PRODUCT OVERVIEW JS-DS-004 is a superior MDVR model specially designed for vehicle surveillance and remote monitoring, combined with high-speed processor and embedded operating system. The advanced H.264 video compression and decompression, wireless transmission, GPS location make it to be a very powerful and perfect solution for vehicles. -
Page 6: Main Functions
JS-DS-004 MDVR USER MANUAL ★ Export of video recordings directly via USB port. ★ CMS platform ability for big fleet and user management. ★ Simple easy to operate video playback software. Main Functions FUNCTIONS DESCRIPTIONS Through WIIF/3G/4G network, multi functions are achieved such as:... -
Page 7: Working Parameters
JS-DS-004 MDVR USER MANUAL 8 levels of image quality: class 1 the highest and class 8 the lowest. Audio Code Rate 40KB/s Data Storage Support 2x 256GB TF storage &1x 2TB HDD & Alarm input 6x Alarm input Alarm Alarm output... -
Page 8: Product Outlook
JS-DS-004 MDVR USER MANUAL 3. PRODUCT OUTLOOK Dimension 8/29... -
Page 9: Operation
JS-DS-004 MDVR USER MANUAL 4. OPERATION Remote Control Press LOGIN to enter password of MDVR. LOGIN Note: password cannot be reset or retrieved, make sure you remember the password. Power button Switch to single channel view by pressing 1-9. 0-9 number keys It’s also for volume and lightness setting. -
Page 10: Main Menu
JS-DS-004 MDVR USER MANUAL MAIN MENU Settings incl. “Search, System, Record, Network, Alarm, Info” SYSTEM Settings incl. Terminal, Password, Time, Power, Parameter, Format. Terminal Dev ID.: device number, factory appointed, cannot change Phone NO: an unique ID recognized by server ... -
Page 11: Password
JS-DS-004 MDVR USER MANUAL Server 1 Protocol: choose T-protocol Password Password: ON/OFF, to enable or disable password login. Note Only ADMIN can change password; USER can only view. The password must 6 digit numbers and cannot be same. Default password for admin is 111111, user is 000000 Time Date Type: incl. -
Page 12: Parameter Management
JS-DS-004 MDVR USER MANUAL Power Mode: incl. Acc/timed mode, press OK to show the options Acc: power on/off controlled by car key switch Timed mode: power on/off controlled by the set time. Delay off: only effected under ignition mode. After car key is closed, device will continue ... -
Page 13: Record
JS-DS-004 MDVR USER MANUAL DISK1 is TF card; DISK2 is hard disk. IMPORTANT: Pls do consider data backup before operation because all data will be wiped off after format. Auto disk format upon booting: Usually if the inserted disk is brand new, or it's not MDVR's recognized FAT32 type, MDVR will auto format the disk during power on process which may take up to 10min depending on hard disk size. -
Page 14: Main Rec
JS-DS-004 MDVR USER MANUAL TV System: incl. PAL/NTSC, press OK to choose Record Mode: incl. auto/time/alarm. Press OK to choose. In “auto mode”, recording will auto begins when device is power on. In “time mode”, recording only happens in set time. For “alarm mode”, recording only happens when alarm appears. -
Page 15: Timed Record
JS-DS-004 MDVR USER MANUAL RES: resolution incl. D1, HD1 and CIF. For example, in PAL system, D1 is 704*576, HD1 is 704*288; CIF is 352*288. FPS: the frames taken per second. PAL range 1-25fps, NTSC range 1-30fps QUA: image quality (grade 1-7). Grade 1 being the best quality ... -
Page 16: Storage
JS-DS-004 MDVR USER MANUAL Storage Alm Pre Rec: the time for recoding before alarm is triggered Alarm Delay: the time for recoding after alarm is aborted Alarm file protection: optional 3-45 days, files within protecting period won't be auto ... -
Page 17: Video Search
JS-DS-004 MDVR USER MANUAL Video Search Calendar: green means normal recording, red means alarm recording, blue means no recording on selected date. Date: date of recordings Start time: starting time of recordings End time: ending time of recordings ... -
Page 18: Log Search
JS-DS-004 MDVR USER MANUAL Each file includes 4 channels video. For video loss case, recordings are still generated but playback screen is black with only date/time info. Log Search To check running status from results based on parameters selected. Picture Search To check pictures which are saved into disk based on certain parameter setting. -
Page 19: Network
JS-DS-004 MDVR USER MANUAL Network Settings incl. "Center, LAN, 3G/4G, WIFI ". Center Center 1: parameters for connecting server Center 2: parameters for connecting certain server (*reserved) Port: port number for connecting server Upgrade: parameters for remote upgrading local device. -
Page 20: Wifi
JS-DS-004 MDVR USER MANUAL Type: way of connection incl. Local/WIFI/Peripheral(external way). Cabled: connection via RJ45 network port WIFI: connection via outer laid WIFI External: connection by using MDVR's internal net card as router, which depends on module capability. IP: IP address of MDVR. -
Page 21: Alarm
JS-DS-004 MDVR USER MANUAL Enable: ON/OFF means to enable or disable WIFI connection. AuthMode: the authority type, incl. Open/Share/WPA/WAP-PSK to choose accordingly. EncType: the encryption type incl. NONE/WEP/TKIP/AES to choose accordingly. IP: here the IP should not be in a same segment with the IP at “LAN set”. E.g., if LAN set IP is ... -
Page 22: Speed
JS-DS-004 MDVR USER MANUAL Enable: incl. “OFF, Emergency, Front Door, Middle Door, Back Door, Driver Door, Other Door, Near Beam, Distant Beam, Right Beam, Left Beam, Braking, Reverse, Fog Lamp, Position Light, Horn, Air Conditioner, Neutral Gear, Retarder, ABS, Heater, Clutch, Door Sensor, Smoke Sensor, Customize”... -
Page 23: G-Sensor
JS-DS-004 MDVR USER MANUAL Limit: the edge value for alarm trigger Hold: be treated as an alarm when alarm length surpassing the set period. Record: choose whether to activate alarm recording or not. Linkage: means ”alarm linkage”. OFF or user defined to an external device like alarm lamp ... -
Page 24: Voltage
JS-DS-004 MDVR USER MANUAL Sense: 3 levels to choose about sensitivity Record: whether to need recording when alarm appears Linkage: connection of external alarm device. Delay: if triggered event is longer than preset time, then it's considered as an alarm. -
Page 25: Info
JS-DS-004 MDVR USER MANUAL Protocols: optional PELCO-D, PELCO-P AddressNum: address code of PTZ Press F2 of remote controller for PTZ control. INFO System Info Press INFO key to show running status or performance. 25/29... -
Page 26: Installation
JS-DS-004 MDVR USER MANUAL 5. INSTALLATION Power Cable Connection For field installation, the anode (red) and cathode (black) should directly connect to car battery. For office testing, the anode (red) and ACC (yellow) can be combined as a anode wire. -
Page 27: Connects To Aptz Camera
JS-DS-004 MDVR USER MANUAL The standard current is 200mA. A relay will be needed if higher power consumption is used for operation. Connects to a PTZ Camera Step1, Select protocol according to PTZ camera Step2, Select baud rate according to PTZ camera. -
Page 28: Faq
JS-DS-004 MDVR USER MANUAL 6. FAQ Questions ecording 1. Why MDVR doesn’t record after power on? Check if TF card exist; if exist, check disk status. Types of disk status: nonexistence, unformatted, normal volume of under usage, normal volume of full usage. -
Page 29: Server Questions
JS-DS-004 MDVR USER MANUAL Check SIM card status, make sure network and talk/sms services to support with enough fee. Server Questions Why can't connect to servers when the MDVR is running? Make sure 3G/4G has dialed up successfully. ...
