Summary of Contents for AWOW MP16

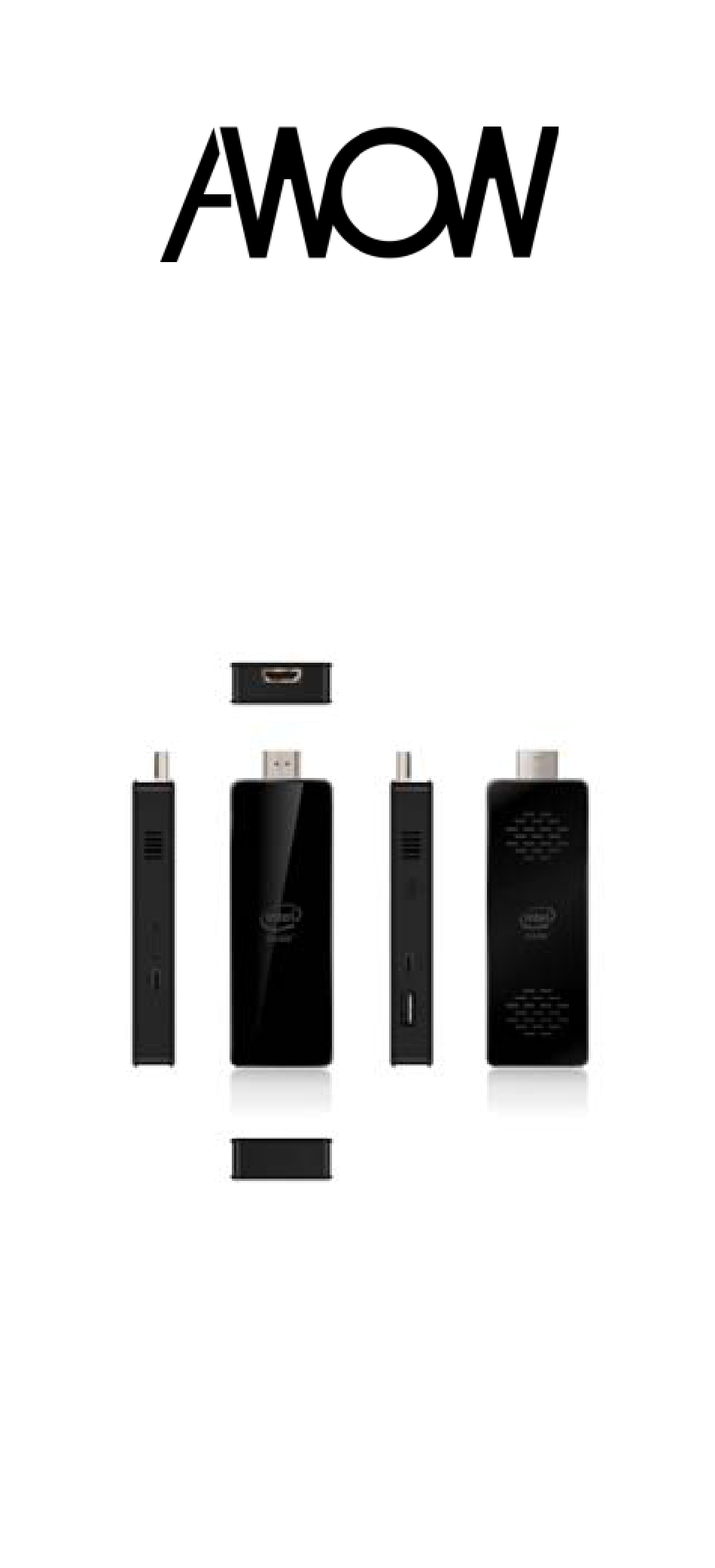

- Page 1 User Guide for Computer Stick www.awow-tech.com...
- Page 2 Service to ensure Thank you for purchasing this product, you can enjoy parts and labor warranty service providing by our company for one year . The following conditions led to the service from our company, the costs will be charged ： ·...
-
Page 3: Product Interface Description
Product Interface Description ①、Power Button ②、USB power supply connecting hole ③、USB3.0 ④、HDMI( Please connect to the display device ⑤、LED( The power indicator light ⑥、Micro USB2.0 ⑦、Micro SD （ ） Storage expansion interface... -
Page 4: Product Specifications
Product Specifications Processor Intel®Atom Z8350 Operating Support Windows 10 Memory 2GB DDR3 Storage 32GB eMMC Expansion Micro SD，Max 128GB Display HDMI Wireless WiFi 2.4GHZ, 802.11 b/g/n；Bluetooth USB interface USB3.0×1，Micro USB2.0×1 Power input Micro USB interface Power supply 5V/2.5A Remarks: Low-power radio motor for certified products, unlicensed, companies, businesses, or a People are not allowed to change the frequency, increase the power or change the features and functions of the original design... -
Page 5: Package Contents
Package Contents 1） 、Intelligent Computer stick 2） 、Adapter \ USB cable 3） 、OTG cable 4） 、HDMI cable 5） 、User Manual Instructions 1、 Connect Directly to a Display... - Page 6 Connect to a Display with the HDMI Extender Cable If space is limited around the HDMI port, use the flexible HDMI extender cable that came in the box. 1） 、 Plug the AWOW Compute Stick into the female end of the extender cable (A).
- Page 7 (B). For a list of tested televisions and monitors, go to the Tested Peripherals page on the support site. 3、 Powering the Device Using the AC Adapter Connect the power adapter to the AWOW Compute Stick as shown.
- Page 8 Note The Intel Compute Stick starts automatically when power is applied. Shut down the AWOW Compute Stick using the normal shutdown process for Windows* 10.1. Subsequent power-ups are done by pressing the power button on the side of the AWOW Compute Stick.
- Page 9 Using USB Port If a television or monitor has an HDMI port and a USB port, you can try using the USB port to power the Intel Compute Stick. The Intel Compute Stick is designed to use up to 10 W of power. If the television's USB port can supply enough power, you can use it to power the Intel Compute Stick.
- Page 10 It turns on and the operating system loads, but it performs very slowly, reboots, or locks up. 4、 Connect a Keyboard and Mouse The AWOW Compute Stick supports the following: • USB wireless keyboard and mouse, using a USB dongle. •...
- Page 11 Follow the instructions that came with the keyboard and mouse to pair them with the AWOW Compute Stick. • You might need to temporarily connect a wired mouse and keyboard to the Intel Compute Stick to pair Bluetooth devices. •...
- Page 12 Bluetooth keyboard and mouse connection example: Note Keyboard and mouse are not included. For a list of tested keyboards and mice, go to the Tested Peripherals page on the support site. 5、 Use the USB 2.0 Port Use the USB 2.0 port to: •...
- Page 13 Note USB flash drive and USB cable are not included. For a list of tested USB devices, go to the Tested Peripherals page on the Support site. 6、Connect a USB Hub to the USB 2.0 Port Connecting a USB hub to the Intel® Compute Stick provides more USB ports.
- Page 14 Support site. 7、Use the MicroSD Card port The AWOW Compute Stick supports MicroSD card sizes from 8 GB to 128 GB. Note MicroSD card is not included. For a list of tested Micro SD cards, go to the...
- Page 15 Security cable loop is not included. You can build one using a length of quality wire rope that is less than 3 mm. Insert the rope Note through the security opening and then crimp the ends together with a cable sleeve. Start the Device the First Time 9、...
- Page 16 Type the security key or passphrase. 11、 Operating System Recovery There is a Windows recovery partition on the AWOW Compute Stick. You can use this partition to refresh, reset, or restore Windows. Here is what each of these actions do:...
- Page 17 Refresh If your Compute stick isn't performing as well as it once did, and you don't know why, you can refresh your Compute stick. This action does not delete any of your personal files or change your settings. Refresh does the following: •...
- Page 18 called a restore point. System Restore doesn’t change your personal files, but it can remove recently installed apps and drivers. Before completing a reset or refresh: • Caution Make sure to back up all personal data to external storage. • Remove SD card from the card slot, if one is inserted.
- Page 19 • If Recovery does not automatically start, you can try to initiate it by pressing F8 during boot, when you see the prompt "F8 to Activate Windows 10.1 Recovery Mode." Follow the recovery steps. • The recovery can take 1½ hours or longer to complete.
