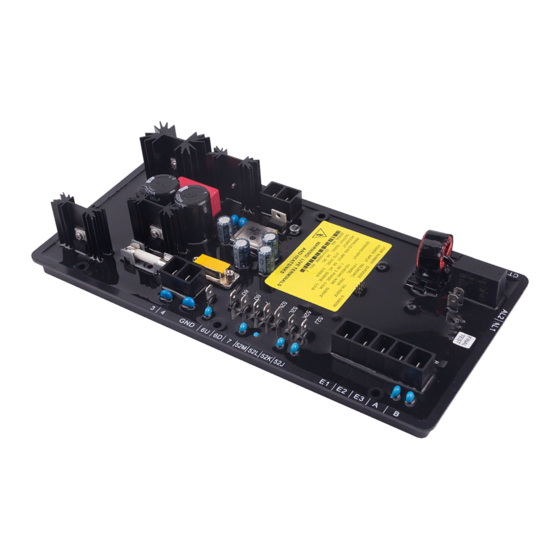

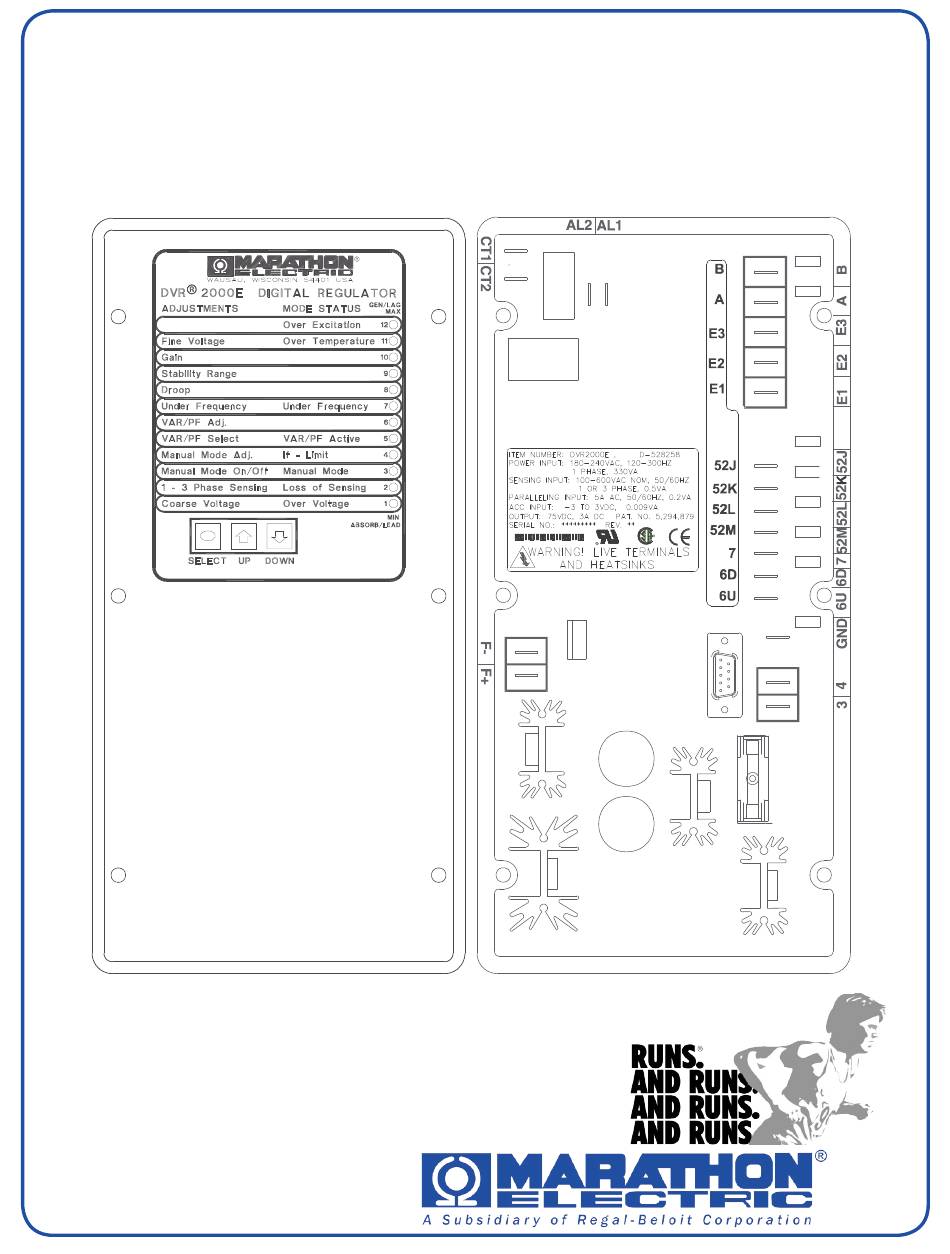

2000
DVR
E
®
Installation, Operation,
and Maintenance Manual
3
Main Index

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR 2000E and is the answer not in the manual?

Questions and answers

Summary of Contents for Marathon DVR 2000E

  • Page 1 2000 ® Installation, Operation, and Maintenance Manual Main Index...

  • Page 3: Main Index

    INTRODUCTION This manual provides information concerning the operation and installation of the DVR2000E, Digital Voltage Regulator. To accomplish this, the following is provided: • General Information and Specifications • Human-Machine Interface • Functional Description • Installation • Software for Windows Operating System •...

  • Page 4: S Ection

    General Information .......................3 Section 2 Human-Machine Interface......................7 Section 3 Functional Description ......................17 Section 4 Installation..........................25 Section 5 Marathon-DVR2000E-32 Software for Windows ............38 ® Section 6 Marathon-DVR2000E Software for the Palm OS Platform ..........68 ® Section 7 Maintenance and Troubleshooting ..................85...
  • Page 5 SECTION 1 • GENERAL INFORMATION TABLE OF CONTENTS ection SECTION 1 • GENERAL INFORMATION ....................4 GENERAL..............................4 FEATURES ............................4 SPECIFICATIONS ..........................4 Operating Power ..........................5 Generator Voltage Sensing......................5 Generator Current Sensing ......................5 Contact Input Circuits ........................5 Common Alarm Output........................5 Field Output .............................5 AVR Operating Mode........................5 FCR (Manual) Operating Mode .......................5 Var Operating Mode (Optional)......................5...

  • Page 6: General

    Front-panel human-machine interface (HMI) indicates system and DVR2000E status and gives the ability to make setting changes at the front panel. • Rear RS-232 communication port for personal computer communication using MARATHON-DVR2000E-32 Windows® based software for fast, user-friendly, setup and control. SPECIFICATIONS DVR2000E electrical and physical specifications are listed in the following paragraphs.

  • Page 7: Operating Power

    Operating Power Underfrequency (V/Hz) Characteristic: Slope from 1 to 3PU is adjustable in Single-Phase: 180 to 240 Vac 0.01 increments. Frequency Range: 200 to 360 Hz Range: 40 to 65 Hz Burden: 350 VA Increment: 0.01 Hz Terminals: 3, 4 ection FCR (Manual) Operating Mode Generator Voltage Sensing...

  • Page 8: Soft-Start Function

    Soft-Start Function Environment Operating Temp.: -40°C to +70°C (-40°F to Time Adjust Range: 1 to 120 seconds +158°F) Increment: 1 second Storage Temp.: -40°C to +85°C (-40°F to +185°F) Analog (Auxiliary) Input Voltage Range: -3 Vdc to +3 Vdc ection Type Tests Setpoint Range: -30% to +30% shift...

  • Page 9: Table Of Contents

    SECTION 2 • HUMAN-MACHINE INTERFACE TABLE OF CONTENTS SECTION 2 • HUMAN-MACHINE INTERFACE ..................8 GENERAL............................8 ection FRONT PANEL CONTROLS AND INDICATORS ................8 INITIAL ADJUSTMENTS ........................ 9 MAKING SETTINGS CHANGES ....................10 Front Panel Operation......................10 Setting Level Indication......................11 COMMUNICATION PORT ......................

  • Page 10: Section 2 • Human-Machine Interface

    SECTION 2 • HUMAN-MACHINE INTERFACE GENERAL The DVR2000E human-machine interface (HMI) consists of front panel controls and indicators and a rear panel communication port. FRONT PANEL CONTROLS AND INDICATORS ection DVR2000E front panel controls and indicators consist of 12 red LEDs and three pushbuttons. Figure 2-1 illustrates the front panel controls and indicators of the DVR2000E.

  • Page 11: Initial Adjustments

    Table 2-2. DVR2000E Front Panel Mode Status Indicator Descriptions Indicator Description This LED blinks rapidly when the Overexcitation Protection feature is enabled and the field voltage exceeds the setpoint (80 V default) for 15 seconds. The Over Excitation LED #12 DVR2000E will shut down when an overexcitation condition is detected.

  • Page 12: Making Settings Changes

    MAKING SETTINGS CHANGES The following paragraphs describe how the HMI is used to make setting changes. Front Panel Operation The LEDs indicate control mode and status conditions and are also used when adjusting settings at the front panel. Repeatedly pressing the “SELECT” button steps through the various adjustments, starting with the “Course Voltage”...

  • Page 13: Setting Level Indication

    1 - 3 Phase This LED blinks slowly when selecting single or three phase sensing via the front panel Sensing push buttons. When in this adjustment mode, LED #1 is on if single phase sensing is LED #2 selected, LED #3 is on if three phase sensing is selected. Coarse Voltage This LED blinks slowly when the “Coarse Voltage”...

  • Page 14: Table 2-6. Manual Mode (On/Off) Select

    Table 2-6. Manual Mode (On/Off) Select Manual Mode On/Off – LED 3 Blinking Slowly MODE ection Table 2-7. Manual Mode (If – Limit) Adjustment Ranges Manual Mode Adjust – LED 4 Blinking Slowly Adjustment Range: 0 to 3 Adc Increment: 0.01 Adc Minimum Value Maximum Value 2.75...

  • Page 15: Table 2-9. Var Control Adjustment Ranges

    * Var/PF control is available only on DVR2000EC. † Minimum and maximum values may differ from the Table 2-9 values if the value has been changed in MARATHON-DVR2000E-32 software. MARATHON-DVR2000E-32 software has 0.5 percent resolution compared to the 1.0 percent resolution of the HMI.

  • Page 16: Table 2-11. Underfrequency Adjustment Ranges

    1.75 0.75 * Minimum and maximum values may differ from the Table 2-12 values if the value has been changed in MARATHON-DVR2000E-32 software. MARATHON-DVR2000E-32 software has 0.01% resolution compared to the 0.25 percent resolution of the HMI. Section 2 Index...

  • Page 17: Table 2-13. Stability Range Selection Settings

    MARATHON-DVR2000E-32 software. † MARATHON-DVR2000E-32 software allows a maximum FCR kg setting of 1,000 kg. A kg setting of 12 or more entered in MARATHON-DVR2000E-32 software will be reduced to 12 with the first push of the HMI “DOWN” pushbutton when adjusting FCR kg via the front panel.

  • Page 18: Communication Port

    MARATHON-DVR2000E-32 is a Windows® 98/NT based communication software package that is supplied with the DVR2000E. A detailed description of MARATHON-DVR2000E-32 software is provided in Section 5, MARATHON-DVR2000E-32 Software. Figure 2-2. DVR2000E Communication Port Location Section 2 Index Main Index...

  • Page 19: Table Of Contents

    SECTION 3 • FUNCTIONAL DESCRIPTION TABLE OF CONTENTS SECTION • FUNCTIONAL DESCRIPTION ....................18 INTRODUCTION..........................18 DVR2000E FUNCTION BLOCKS ......................18 Analog Inputs..........................18 Generator Voltage ..........................19 Phase B Line Current ..........................19 Field Voltage (V )...........................19 FIELD Field Current (I ) ..........................19 FIELD Analog (Auxiliary) Input ........................19 Contact Input Circuits ........................19 ection Raise ..............................20...

  • Page 20: Section 3 • Functional Description

    SECTION 3 • FUNCTIONAL DESCRIPTION INTRODUCTION This section describes how the DVR2000E functions and explains its operating features. To ease understanding, DVR2000E functions are illustrated in the block diagram of Figure 3-1. A detailed description of each function block is provided in the paragraphs under the heading of DVR2000E Function Blocks. DVR2000E operating features include four operating modes, four protective functions, startup provisions, reactive droop compensation, underfrequency compensation, and an auxiliary analog input.

  • Page 21: Generator Voltage

    Generator Voltage Generator voltage is monitored at terminals E1 (A-phase), E2 (B-phase), and E3 (C-phase). Nominal voltages of up to 600Vac may be sensed at these terminals. Voltage applied to these inputs is scaled and conditioned before being applied to the input of the ADC. The voltage signal from phase C and A (V ) of the generator is used by the ADC to calculate the rms value of generator voltage across phases C and A.

  • Page 22: Section 2 • Human-Machine Interface

    Raise Closing a contact across terminals 6U and 7 causes the active operating setpoint to increase. This function is active as long as the contact is closed. Lower Closing a contact across terminals 6D and 7 causes the active operating setpoint to decrease. This function is active as long as the contact is closed.

  • Page 23: Front Panel Switches

    Front Panel Switches Changes to settings can be made at the front panel using the three pushbutton switches. These push-buttons are labeled Select, Up, and Down. Section 2, Human-Machine Interface provides more in-formation about the front panel switches. Relay Output A common alarm output contact is provided through terminals AL1 and AL2.

  • Page 24: Reactive Droop Compensation

    PU V/Hz curve, the Underfrequency Active indicator flashes on the front panel and in MARATHON-DVR2000E-32. The knee frequency is adjustable from 40 to 65 hertz and the PU V/Hz curve may be set to a slope from 1 to 3 in increments of 0.01 through the Windows® or Palm OS® communication software.

  • Page 25: Overexcitation Shutdown (Field Voltage)

    Overexcitation Shutdown (Field Voltage) This function is enabled or disabled through MARATHON-DVR2000E-32 software. When enabled, if field voltage exceeds the setpoint (80 Vdc default), the Overexcitation Shutdown indicator flashes on the front panel and in the Windows® or Palm OS® communication software, the relay output closes after 15 seconds and the DVR2000E shuts down.

  • Page 26: Crowbar Shutdown

    Crowbar Shutdown The Crowbar Shutdown Circuit protects the generator rotor from overcurrent damage resulting from a shorted DVR2000E power switch. During operation, if the field voltage exceeds the setpoint and the power stage receives no gating pulses for 1.5 seconds, the Crowbar Circuit activates and places a short-circuit across the DVR2000E input power terminals.
  • Page 27 SECTION 4 • INSTALLATION TABLE OF CONTENTS SECTION 4 • INSTALLATION........................26 GENERAL............................26 MOUNTING ............................26 CONNECTIONS ..........................29 DVR2000E Terminations........................29 Generator Voltage Sensing Inputs ....................30 Phase B Line Current Sensing Input .....................30 Raise and Lower Contact Inputs ....................30 Var/Power Factor Control Contact Input ..................30 Parallel Generator Compensation ....................30 Analog (Auxiliary) Adjust .......................30 Power Supply Inputs........................30...

  • Page 28: Section 4 • Installation

    The DVR2000E is delivered in a sturdy carton to prevent shipping damage. Upon receipt, check the part number against the requisition and packaging list for agreement. Inspect for damage, and if there is evidence of such, immediately file a claim with the carrier and notify your sales representative or a sales representative at Marathon Electric.
  • Page 29 ection Figure 4-1. DVR2000E Dimensions Main Index Section 4 Index...
  • Page 30 ection Figure 4-2. Cutout and Drilling Dimensions Section 4 Index Main Index...

  • Page 31: Connections

    CONNECTIONS DVR2000E connections are dependent on the application. Incorrect wiring may damage the unit. NOTE Be sure that the DVR2000E is hard-wired to earth ground with no smaller than 12 AWG copper wire attached to the ground terminal on the rear of the unit case. When the unit is configured in a system with other devices, it is recommended to use a separate lead to the ground bus from each device.

  • Page 32: Generator Voltage Sensing Inputs

    Generator Voltage Sensing Inputs The generator voltage sensing terminals are labeled E1, E2, and E3. A single-phase sensing connection is obtained by connecting the C-phase sensing input to terminals E2 and E3. Table 4-2 lists the terminal assignments for three-phase and single-phase generator voltage sensing. Table 4-1.

  • Page 33: Chassis Ground

    Chassis Ground The chassis ground terminal is labeled GND. Power (Field) Output The field output terminals for connection to the generator exciter field are labeled F+ and F-. Relay Output The common alarm relay output contact may be accessed at the terminals labeled AL1 and AL2. The relay output is normally open.

  • Page 34: Dvr2000E Connections For Typical Applications

    Figure 4-5. Personal Computer to DVR2000E Connections DVR2000E Connections for Typical Applications Figures 4-6 through 4-9 illustrate typical applications using the DVR2000E. Figure 4-6 shows an application where the DVR2000E is connected for three-phase voltage sensing. Figure 4-7 shows an application with single-phase voltage sensing while Figure 4-8 illustrates an application with a single-phase generator.
  • Page 35 ection Figure 4-6. Typical Connections with ABC Rotation and Three-Phase Sensing Main Index Section 4 Index...
  • Page 36 ection Figure 4-7. Typical Connections with ABC Rotation and Single-Phase Sensing Section 4 Index Main Index...
  • Page 37 ection Figure 4-8. Typical Connections to a Single-Phase Generator Main Index Section 4 Index...
  • Page 38 Figure 4-9. Cross-Current (Reactive Differential) Connections for Two Generators ection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �...

  • Page 39: Preliminary Setup

    ADJUSTMENTS All adjustments are made using external switching, the front panel HMI or with DVR2000E software via the rear panel communication port. See Section 5, MARATHON-DVR2000E-32 Software for Windows® OS for more information about making adjustments with DVR2000E software. Main Index...
  • Page 40 SECTION 5 • MARATHON-DVR2000E-32 SOFTWARE FOR WINDOWS ® TABLE OF CONTENTS SECTION 5 • MARATHON-DVR2000E-32 SOFTWARE FOR WINDOWS OS ........40 ® INTRODUCTION..........................40 INSTALLATION ............................40 Installing MARATHON-DVR2000E-32 ...................40 Connecting the DVR2000E and PC....................40 STARTING THE MARATHON-DVR2000E-32 APPLICATION..............40 Initial Adjustments .........................41 Establishing Communication ......................42 CHANGING SETTINGS........................43...

  • Page 41: Communication Port

    Figure 5-3. System Configuration Screen....................41 Figure 5-4. Communication Port Menu Selection ..................42 Figure 5-5. Password Dialog Box........................42 Figure 5-6. Communication Initialization Screen ..................43 Figure 5-7. Wait Dialog Box ........................43 Figure 5-8. System Configuration Screen....................45 Figure 5-9. Setting Adjustments Screen, Setpoint Tab ................46 Figure 5-10.

  • Page 42: Section 5 • Marathon-Dvr2000E-32 Software For Windows Os

    When the software is installed, a Marathon Electric folder is added to the Windows program menu. This folder ® is accessed by clicking the Start button and pointing to Programs. As illustrated in Figure 5-1, the Marathon Electric folder contains icons for the MARATHON-DVR2000E-32 program and a MARATHON-DVR2000E-32 uninstall utility.

  • Page 43: Initial Adjustments

    Figure 5-2. Marathon-DVR2000E - Title and Version ection Figure 5-3. System Configuration Screen Initial Adjustments CAUTION Read and understand the operation of the individual adjustments before attempting any initial adjustments. Before starting the generator, the procedures in the following paragraphs should be performed.

  • Page 44: Establishing Communication

    Establishing Communication Communication between MARATHON-DVR2000E-32 and the DVR2000E must be established before viewing metering values or reading or changing settings. MARATHON-DVR2000E-32 screen settings are updated only after communication is opened or the communication settings have been changed. Open the DVR2000E communication port by clicking on Communications on the menu bar, hovering the mouse pointer over Open Comm Port, and clicking RS-232 Port.

  • Page 45: Changing Settings

    Figure 5-6. Communication Initialization Screen NOTE MARATHON-DVR2000E-32 may display the dialog box of Figure 5-7 when initializing DVR2000E communication, obtaining DVR2000E configuration settings or performing other tasks. It’s important to wait until the box disappears before trying to execute communication commands. Issuing commands while the Wait dialog box is present may disrupt communication between MARATHON-DVR2000E-32 and the DVR2000E.

  • Page 46: Sending And Receiving Settings

    When communication is enabled, setting changes are saved to EEPROM by clicking the EEPROM button. The opportunity to save settings to EEPROM is also given through a dialog box when exiting MARATHON-DVR2000E- 32 or closing communication.

  • Page 47: Setting Adjustments

    Generator PT Ratio. The ratio of the generator sensing transformer is entered in this setting field. This ratio allows the voltage displayed through MARATHON-DVR2000E-32 to match the actual generator output voltage. A ratio of 1 to 150 may be entered in increments of 0.01.
  • Page 48 Figure 5-9. Setting Adjustments Screen, Setpoint Tab Automatic Voltage Regulator (AVR) - AVR Setpoint (V). This setting field is used to enter the desired generator ection output terminal voltage. The AVR setpoint value range depends on the regulator sensing voltage and band setting.
  • Page 49 Figure 5-10. Setting Adjustments Screen, Startup Tab Startup Control - Gen Soft Start Time (sec). This setting defines the time limit for the generator soft-start voltage offset. The soft-start time can be set from 1 to 120 seconds in 1 second increments. ection Underfrequency Setting - Corner Frequency (Hz).

  • Page 50: Control Gain

    Table 5-1. A setting of 21 enables the entry of custom stability settings through the MARATHON-DVR2000E-32 PID window. Information about the PID window is provided later under the heading of PID Window. When the Stability Range is set at 21, the PID button may be selected to access the PID window. A Stability Range setting of 1 through 7 disables the PID button and prevents access to the PID window.
  • Page 51 Figure 5-12. Control Gain Screen AVR/FCR - Integral Gain KI. This setting selects the integral constant (KI) stability parameter. The DVR2000E supplies a value that is equivalent to KI multiplied by the integral of the error between the voltage setpoint and the actual generator output voltage.

  • Page 52: Analysis

    Tab Enabled AVR, PF AVR, VAR Control mode and operating status selections are made at the Operation tab of the MARATHON-DVR2000E-32 Metering screen and are discussed later in this section. AVR Tab Figure 5-13 illustrates the settings, sensing values, and alarm signal indicators of the AVR tab. The settings of the AVR tab make it possible to increment and decrement the AVR setpoint of the DVR2000E.
  • Page 53 The setpoint value currently set in the unit by any of the above methods is displayed in the current setpoint textbox. To return to the nominal setting the button adjacent to AVR Setpoint (V) (Nominal) should be pressed. If the AVR analysis screen is left without returning to nominal setpoint, a message box (Figure 5-14) is shown which allows the user to return to nominal setpoint by pressing YES or remain at the current setpoint by pressing NO.
  • Page 54 Figure 5-15. Analysis Screen, FCR Tab ection Field Current Step Response - Increment of FCR Setpoint (A). These two fields indicate the increase that occurs to the FCR setpoint when the corresponding Increment button is clicked. The “% increase” field is used to set and indicate the percentage that the FCR setpoint is increased when the Increment button is clicked.
  • Page 55 Figure 5-16. Message Box to Return to FCR Nominal Setpoint PF Tab (Available on DVR2000EC only) Figure 5-17 illustrates the settings, sensing values, and alarm signal indicators of the PF tab. Each setting of the PF tab is described in the following paragraphs. ection Figure 5-17.
  • Page 56 Power Factor Step Response - Meter. The meter in the PF tab shows the value selected. If an PF setpoint value is sent by increase, decrease or setpoint button the meter shows the corresponding value and meter value text box also displays it.

  • Page 57: Protection And Relay Settings

    Figure 5-19. Analysis Screen, VAR Tab VAR Step Response - Meter. The meter in the VAR tab shows the value selected. If an VAR setpoint value is sent by increase, decrease or setpoint button the meter shows the corresponding value and meter value text box also displays it.

  • Page 58: Metering, Operation And Alarms

    Figure 5-21. Protection Settings Screen Remove OEL - Current Level (A). The value of current in this field determines the excitation level that will cause the DVR2000E to issue an overexcitation limit alarm. A current level of 0 to 7.5 A may be entered in 0.001 increments. When the level of field current increases above the value of this field, the OVEREXCITATION SHUTDOWN LED on the front panel lights and the OEL time delay starts timing down.
  • Page 59 Operation Tab Operation tab metering values, setpoint values and control functions are illustrated in Figure 5-22. Figure 5-22. Metering, Operation and Alarms - Operation Tab Gen Voltage (V). These metering values report the status of the V , and V generator voltages and are the products of the voltage sensed at terminals E1, E2, and E3 and the Generator PT ratio.
  • Page 60 Reactive Power (var). This value is the calculated product of the metered generator voltage (VAVG), metered generator current (I ) square root of 3 and the sine of the metered phase angle. See Equation 5-3. Equation 5- 3. Reactive Power Equation Power Factor.
  • Page 61 the Regulator Sensing Voltage setting plus/minus the Band setting. For example, a Regulator Sensing Voltage setting of 100 volts and a Band setting of 10 percent allows the Fine Adjustment function to increase the voltage setpoint to a maximum of 110 volts and decrease the voltage setpoint to a minimum of 90 volts. For VAR, PF or FCR modes, the Raise and Lower buttons allow fine adjustment over the entire adjustment range.

  • Page 62: Pid Data

    MARATHON-DVR2000E-32 automatically calculates PID values after the user selects the generator frequency, generator time constant (T’do), and exciter time constant (Texc). With MARATHON-DVR2000E-32, the user may generate new PID numbers, add to a PID list file, and update the AVR gain settings.

  • Page 63: Adding To The Pid List

    Saving DVR2000E settings to a file for uploading to other DVR2000E units saves setup time when configuring multiple units to the same configuration. A settings file can also be created in MARATHON-DVR2000E-32 without being connected to a DVR2000E. The settings of the desired screens can be changed and these settings can then be saved to a file.

  • Page 64: Uploading Settings Files

    DVR2000E settings files are automatically given a .de1 extension by MARATHON-DVR2000E-32. Uploading Settings Files A DVR2000E settings file downloaded from a DVR2000E or created within MARATHON-DVR2000E-32 can be uploaded to multiple DVR2000E units. Only a DVR2000E settings file with a .de1 extension can be uploaded to a DVR2000E unit.

  • Page 65: Password Protection

    DVR2000E settings. The DVR2000E is delivered with a default password of dvr. Changing the password provides security against unauthorized changes to settings. Once changed, the password should be stored in a secure location. If the user-defined password is lost or forgotten, MARATHON-DVR2000E-32 must be reloaded to restore the default password.

  • Page 66: Communication Port

    The process of updating the embedded firmware can be started by clicking DVR2000ELoad on the menu bar and clicking Uploading Embedded Software. A warning window, Figure 5-28, will be displayed. The DVR 2000E should be disconnected from the generator and bus before continuing with this procedure and the current settings file should be backed up since uploading may replace some settings with defaults.
  • Page 67 The DVR2000E Embedded Program Loader (Figure 5-31) will be displayed by clicking Yes. Figure 5-31. DVR2000E Embedded Program Loader Clicking the Get Device Information button displays the current device’s model number, style number, application program version and serial number in the lower left hand corner of Figure 5-31. CAUTION If power is lost or communication is interrupted during transfer, the unit will not recover and will no longer be operational.
  • Page 68 Select the location of the embedded firmware update file, select the file, and click Open. The embedded firmware will begin transferring from the PC to the DVR 2000E. A progress bar, as displayed in Figure 5-34 marks the progress of the transfer.

  • Page 69: Terminating Communication

    DVR2000E settings. When you execute the Close command (with a Yes or No to save settings to EEPROM), communication with the DVR2000E is terminated. If you choose to exit MARATHON-DVR2000E- 32 (by clicking File on the menu bar and then Exit) without first closing communication, you are still given the opportunity to save the settings to EEPROM.

  • Page 70: Platform

    SECTION 6 • MARATHON – DVR2000E SOFTWARE FOR THE PALM OS PLATFORM ® TABLE OF CONTENTS SECTION 6 • MARATHON – DVR2000E SOFTWARE FOR THE PALM OS PLATFORM .......70 ® INTRODUCTION..........................70 INSTALLATION ............................70 Installing The Software ........................70 Connecting the DVR2000E and Handheld ..................72 STARTING THE SOFTWARE ......................72...
  • Page 71 FIGURE 6-22. SYSTEM STATUS WITHOUT OPERATING MODE SCREEN..........80 FIGURE 6-23. SYSTEM STATUS WITH OPERATING MODE SCREEN ...........81 FIGURE 6-24. COMMAND NOT AVAILABLE SCREEN................81 FIGURE 6-25. ABOUT SCREEN........................82 FIGURE 6-26. CONTACT MARATHON SCREEN ..................82 FIGURE 6-27. NUMERIC SETTINGS SCREEN ..................83 Tables Table 6-1. Settings Group Summary..........................78...

  • Page 72: Section 6 • Marathon - Dvr2000E Software For The Palm Os ® Platform

    Installing The Software Marathon’s software for the Palm OS® platform is comprised of a series of files that run as a single application on the handheld. A setup utility automatically loads the files into the Palm Desktop application Install Tool on the PC.
  • Page 73 Figure 6-1. Welcome Screen Figure 6-2. Selection Destination Directory Screen 3. Accept the default installation location by clicking Next> or change the location to the desired folder and click Next>. The Modules Selection Screen (Figure 6-3) appears. ection Figure 6-3. Modules Selection Screen 4.

  • Page 74: Connecting The Dvr2000E And Handheld

    Figure 6-4. Select A User Screen 5. Click the check box next to the desired user or click the Select all button to make the software available to all users. Click the Next> button to complete the installation. The Installation Complete Screen (Figure 6-5) appears and confirms that the software was installed successfully.
  • Page 75 Figure 6-6. Main Menu Icons Screen Figure 6-7 Please Enter Password Screen ection Figure 6-8. Password Is Incorrect Screen If the password entered is correct, the Software Startup Screen (Figure 6-9) appears briefly followed by the Which Mode Screen (Figure 6-10) asking if you want to work on-line or off-line. NOTE Ensure that the handheld is connected to the DVR2000E with the correct cable before attempting to work in the On-Line mode.

  • Page 76: Initial Adjustments

    Figure 6-9. Software Startup Screen Figure 6-10. Which Mode Screen ection INITIAL ADJUSTMENTS CAUTION Read and understand the operation of the individual adjustments before attempting any initial adjustments. Before starting the generator, the procedures in the following paragraphs should be performed. Remove the 5 ampere fuse before starting the generator for the first time.

  • Page 77: Software Operating Modes

    SOFTWARE OPERATING MODES The software has two modes of operation: On-Line and Off-Line. On-Line mode enables direct com-munication with the DVR2000E. In On-Line mode, DVR2000E settings can be viewed and changed, and system alarms and status indicators can be verified. The Off-Line mode can be used to view and edit settings files when the handheld is not connected to the DVR2000E.

  • Page 78: Main Screen

    The software Main Screen of Figure 6-14 is the gateway to other software screens where settings changes can be made. The status of DVR2000E alarms, outputs and system parameters can be viewed, the software version level is stated, and contact information for Marathon Electric is provided. Section 6 Index...

  • Page 79: Change Password

    The password can be changed without having to re-enter the existing password. From the Main Screen, tap the Menu silk screen button or the title bar, “MARATHON DVR2000E.” The Change Password Dialog Box Screen (Figure 6-15) appears. Tapping “Change Password” displays the Enter NEW Password Screen (Figure 6-16).

  • Page 80: Navigating Through The Setting Groups

    Figure 6-17.New Password Is Screen Navigating Through the Setting Groups DVR2000E settings are divided into the seven groups/screens listed below. Each setting group/screen is accessed from the main screen. • Configuration • Settings • Control • Limiter • AVR/FCR Gain •...

  • Page 81: Changing Settings

    Changing Settings When a setting screen is selected and displayed, the description for each setting is listed in the Item column. The value for each setting is listed in the Value column. And the range for the highlighted setting is listed in the Settings Range box.

  • Page 82: System Status

    Figure 6-20 (Alarm/Contact Status Screen) shows how the screen appears after all polling is complete. The screen displays the status of the DVR2000E front panel LEDs. An alarm condition is indicated by a checked box (x). The screen also indicates the position of the DVR2000E 52 LM, and 52 JK contact inputs. To refresh the status of the Alarm/Contact Status indicators, tap the Update button.
  • Page 83 Operating Mode Buttons If the Var/PF option is installed, the Systems Status Screen may be different than that of Figure 6-22. This is illustrated in Figure 6-23, System Status With Operating Mode Screen.The Operating Mode segment of the System Status Screen (Figure 6-23) has three buttons labeled OFF, PF and VAR. A box around the Operating Mode’s OFF, PF and VAR buttons indicates which mode is selected.

  • Page 84: Software Version Information

    Tapping the Contact Marathon button on the About Screen (Figure 6-25) displays the Contact Marathon Screen (Figure 6-26). This screen lists the contact information for Marathon Electric. Tapping the Back icon returns you to the Main Screen shown in Figure 6-14.

  • Page 85: Software File Operations Screen

    Figure 6-27. Numeric Settings Screen SOFTWARE FILE OPERATIONS SCREEN The File Operations Screen (Figure 6-13) displays a list of 10 user-created settings files and one factory-default settings file. When less than 10 user-created settings files exist, placeholders labeled "– empty –" occupy unused locations in the list.

  • Page 86: Reading Settings From The Dvr2000E

    any of the software screens. 11. Tap OK to acknowledge that the settings were saved to DVR2000E memory. Reading Settings from the DVR2000E DVR2000E settings are read into the software on your handheld by performing the following steps. 1. On the software Main Screen, tap the down arrow ( ) on the Other Pages: line.
  • Page 87 SECTION 7 • MAINTENANCE AND TROUBLE- SHOOTING TABLE OF CONTENTS SECTION 7 • MAINTENANCE AND TROUBLE-SHOOTING..............86 PREVENTATIVE MAINTENANCE .......................86 TROUBLESHOOTING .........................86 Generator Voltage Does Not Build....................86 Low Generator Output Voltage ......................87 High Generator Output Voltage .....................87 Poor Voltage Regulation ........................88 Generator Output Unstable (Hunting)....................88 OVEREXCITATION SHUTDOWN Indicator Is Annunciating ............89 LOSS OF GENERATOR SENSING Indicator Is Annunciating ............89...

  • Page 88: Section 7 • Maintenance And Trouble-Shooting

    The only preventive maintenance required on the DVR2000E is to periodically check that the connections between the DVR2000E and the system are clean and tight. DVR2000E units are manufactured using state-of-the-art, surface-mount technology. As such, Marathon Electric recommends that no repair procedures be attempted by anyone other than Marathon Electric personnel.

  • Page 89: Low Generator Output Voltage

    If the soft start settings are incorrect, adjust the settings. If the soft start settings have no effect, proceed to Step 8. Step 8. Replace the DVR2000E unit. If replacing the DVR2000E unit does not correct the malfunction, then the generator is defective. Consult with the generator manufacturer.

  • Page 90: Poor Voltage Regulation

    If the turns ratio of the sensing potential transformer is incorrect, replace the sensing potential transformer with the correct one. If the sensing potential transformer is correct, proceed to Step 3. Step 3. High generator output voltage may occur when operating in droop mode with a capacitive load. If the high voltage condition is not caused by the droop function, proceed to Step 4.

  • Page 91: Overexcitation Shutdown Indicator Is Annunciating

    If the Stability Level is not properly set, reset the Stability Level. OVEREXCITATION SHUTDOWN Indicator Is Annunciating Step 1. Verify that the field overvoltage setpoint is adjusted properly. If not properly adjusted, readjust the field overvoltage setpoint. If properly adjusted, proceed to Step 2. Step 2.

  • Page 92: Underfrequency Active Indicator Is Annunciating

    If the generator exciter field is not shorted, proceed to Step 4. Step 4. Replace the DVR2000E. If replacing the DVR2000E does not correct the malfunction, proceed to Step 5. Step 5. Refer to the generator manual. Generator is defective. UNDERFREQUENCY ACTIVE Indicator Is Annunciating Step 1.
