Summary of Contents for Opencockpits IOCard Displays II
-

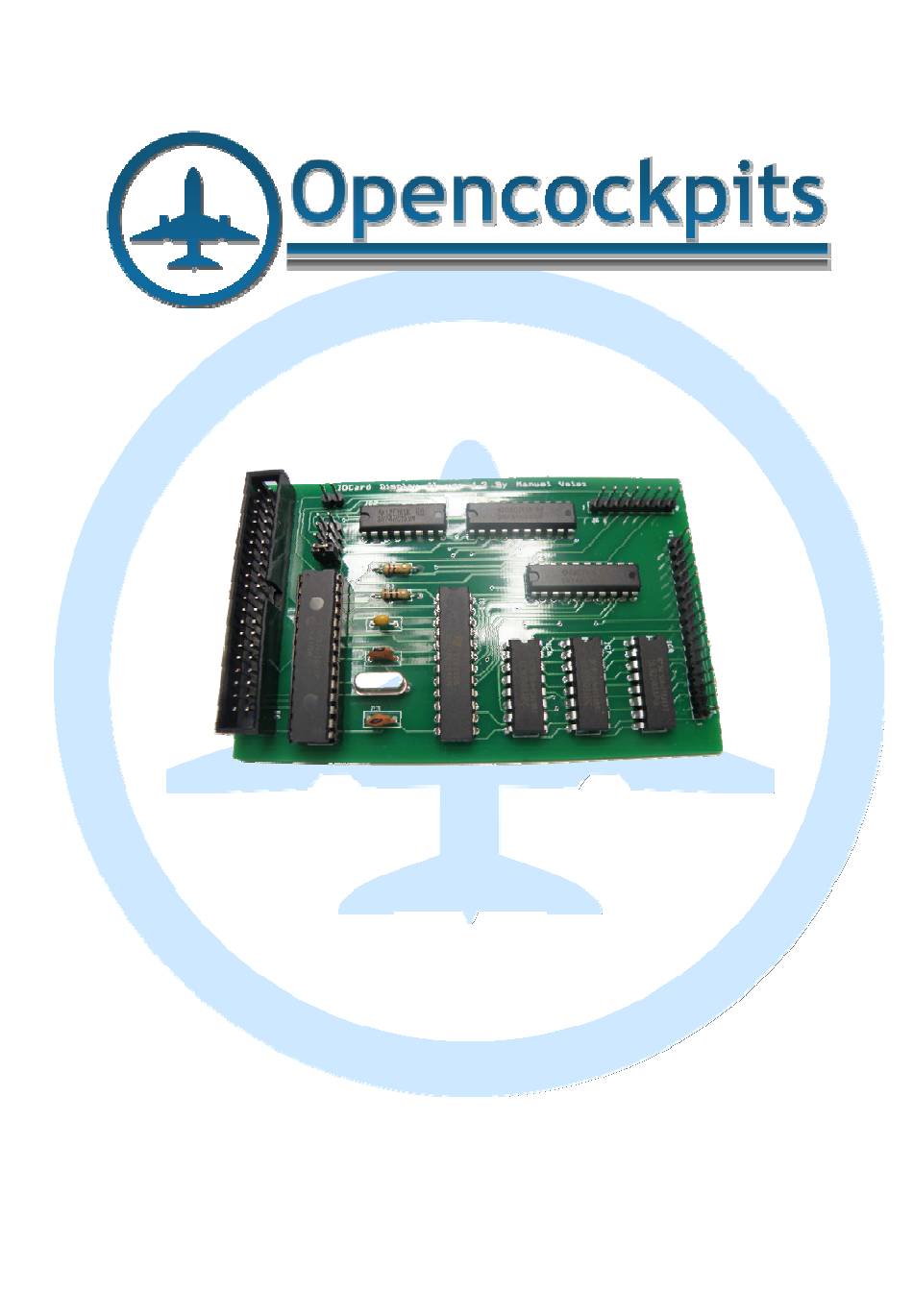

Page 1: Iocard Displays Ii Manual
Date:08/03/17 Rev.:2.3 IOCard Displays II Manual... -
Page 2: Table Of Contents
IOCard Displays II Manual Index: IOCARD DISPLAYS II MANUAL........................1 INDEX:................................2 INTRODUCTION: ............................3 II: ............................... 3 ISPLAYS Components and outline:........................3 Connector's description: ........................4 : ..............................4 NPUTS Displays direct to Displays II card: ....................... 5 Displays conected through Opencockpits PCB´s:................5 : ............................ -
Page 3: Introduction
IOCard Displays II Manual Introduction: The IOCard Displays II was specifically designed to use multi 7-segments displays at a time without having to use all Master's outputs and can facilitate the management, connections, configuration and expansion. Displays II: This card allows to connect 16 7-segment digits, how the Master's J1 connector manages up to 4 Displays II cards (64 digits), it is ideal to manage big panels that needs a lot of digits. -
Page 4: Connector's Description
IOCard Displays II Manual Connector's description: • J1 = INPUT DATA CONNECTOR FROM MASTER CARD. • J2, J3 ,J4, J5 = JUMPERS FOR DISPLAYS II IDENTIFICATION SELECTION. • SW1 = NOT USED. • J6 = 7-SEGMENTS OUTS. • J7 = COMMON CATHODE INPUTS. -
Page 5: Displays Direct To Displays Ii Card
IOCard Displays II Manual To connect the 7-segment displays we can solder it directly, either throug pre-drilled cards or home made cards or Opencockpits PCB's (references 0T7, 0T6 y 0T10) and for that we can follow the next schemes: Displays direct to Displays II card:... -
Page 6: Testing The Card
Testing the card: We already knows the IOCard Displays II, let's go to connect and test it, we will use a Opencockpits 5 digits pcb (reference 2TD2) as the above example. As it is not advisable to solder directly to the cards, we will use "tuned" jumpers as connectors, 8... - Page 7 IOCard Displays II Manual We will connect Displays II card to the Master card using J1 and will run Sioc to check our assembly. 1.- Run SIOC (last version as possible), push on Sioc Monitor button, we will see this screen and we will do double click on IOCardUSB+Master where our Displays II is connected: 2.- In this case we will use only the ""DISPLAY DIGITS"...
- Page 8 IOCard Displays II Manual We need test if all 7-segment displays works fine, we will push ALL ON button that will put on all USB Expansion outputs, including our displays. If the displays doesn´t light on something is wrong and we have to revise all connections pin to pin.
-
Page 9: Software Installation And Configuration
IOCard Displays II Manual Software installation and configuration: Already knows how to check Displays II cards and 7-segment displays, now we have to program it on SIOC, we will need following software: SIOC, Flight Simulator as FS2004, FS2009, FSX, Xplane, etc., Necessary plugins for simulator, Etc. -
Page 10: Special Characters And Brightness
IOCard Displays II Manual Special characters and brightness: To visualize special characters we can use specific codes on SIOC as shown: -999999 = digit off, -999998 = digit shows "-", -999997 = digit shows "6" (with upper segment on), -999996 = digit shows "t", -999995 = digit shows "d",... - Page 11 IOCard Displays II Manual -At the first IF condition we can see that switch connected to input "1", when is activated (value 1) sends to variable v0008 value 1 to activate the LED and send the desired values to the variable digits v0003, 4, 5, 6 &...
-
Page 12: Links Of Interest
"-" or others. With this gives end to this manual, we invite you to read the manuals of the others Opencockpits elements and of the SIOC software and give you the thanks for trusting in we. Links of interest: Support area for clients: http://www.opencockpits.com/catalog/info/...
