nbn™ Fixed
Wireless connection
For installations after July 1st 2013
Includes information about your
nbn
equipment
™
Please refer to this guide, and to the important safety
warnings on the back cover before attempting to
perform maintenance on your nbn™ equipment.
© 2015 nbn co limited | ABN 86 136 533 741
Advertisement
Summary of Contents for NBN ODU outdoor antenna
- Page 1 Includes information about your equipment ™ Please refer to this guide, and to the important safety warnings on the back cover before attempting to perform maintenance on your nbn™ equipment. © 2015 nbn co limited | ABN 86 136 533 741...
-
Page 2: Table Of Contents
Your new nbn™ equipment Connecting the nbn™ connection box to your own equipment Maintaining your nbn™ equipment Troubleshooting checklist nbn™ connection box indicator lights Frequently asked questions Back cover Important safety warnings © 2015 nbn co limited | ABN 86 136 533 741... - Page 3 This guide provides information on how to help ensure your nbn™ connection equipment stays in good working order. It also outlines what to do should your system not work properly. © 2015 nbn co limited | ABN 86 136 533 741...
-
Page 4: Your New Nbn™ Equipment

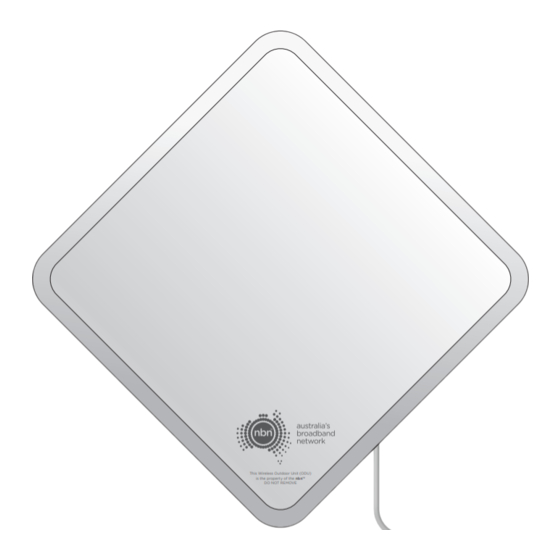

The nbn™ outdoor antenna and cable that connects the nbn™ outdoor antenna into your property, the wall outlet and the nbn™ connection box – which is the hand off point between the nbn™ network and your internal wiring and connected equipment. -
Page 5: Connecting The Nbn™ Connection Box To Your Own Equipment
Connecting the nbn connection ™ box to your own equipment The back of the nbn™ connection box has a row of ports like this; Data (UNI-D) Ports Power The four data (UNI-D) ports are to Port for connect data and in-band video services, the power using Ethernet RJ-45 cables. -
Page 6: Maintaining Your Nbn™ Equipment
Property of nbn™ of nbn™ DO NOT REMOVE DO NOT REMOVE Do not Do not use water to clean cover or paint any the equipment. part of the equipment. © 2015 nbn co limited | ABN 86 136 533 741... - Page 7 If any external construction work is carried out at your property, nbn recommends you contact your service provider after the work is completed to get a system check carried out to ensure the installation is still operating at peak performance for your premises.
-
Page 8: Troubleshooting Checklist
If any services provided through your nbn™ connection box stop working, please check the following: 1. Power Check Check the power indicator ( ) on the nbn™ connection box is » illuminated green and is not flashing. Is it plugged in to a power point and is it turned on? »... -
Page 9: Nbn™ Connection Box Indicator Lights
No action is required Amber Medium signal strength No action is required Green High signal strength No action is required STATUS SIGNAL STRENGTH WNTD Property of nbn™ DO NOT REMOVE © 2015 nbn co limited | ABN 86 136 533 741... -
Page 10: Frequently Asked Questions
If you connect one of your devices to an unused nbn™ connection box port it will not have access to a service. © 2015 nbn co limited | ABN 86 136 533 741... - Page 11 Yes, it is possible to run most services over a Wi-Fi network within premises but should you find Wi-Fi limiting for any reason there are other options. © 2015 nbn co limited | ABN 86 136 533 741...
- Page 12 For more information: 1800 687 626 | nbn.com.au | info@nbn.com.au © 2015 nbn co ltd. ‘nbn’, ‘bring it on’ and the Aurora device are trademarks of nbn co ltd, ABN 86 136 533 741. All rights reserved. Not for general distribution.
