Fantom FR-10 PRO ESC User Manual

Lcd program card
Hide thumbs

Advertisement

Quick Links

Download this manual
The Fantom FR-10 PRO LCD Program Card only applies to the FR-10 PRO 1:10 scale, 2S, 160A brushless ESC.
The LCD Program Card can be used in two ways as follows:
1. As an individual device, connected directly to your ESC, to set the parameters of your FR-10 PRO ESC.
2. As a USB adapter to update the firmware, of your LCD Card and/or your ESC, and set the parameters, of your
FR-10 PRO ESC, on a PC.
Specification:
Dimension: 91mm x 54mm x 18mm (L/W/H) Weight: 68g
Power supply: DC 5.0V~12.0V

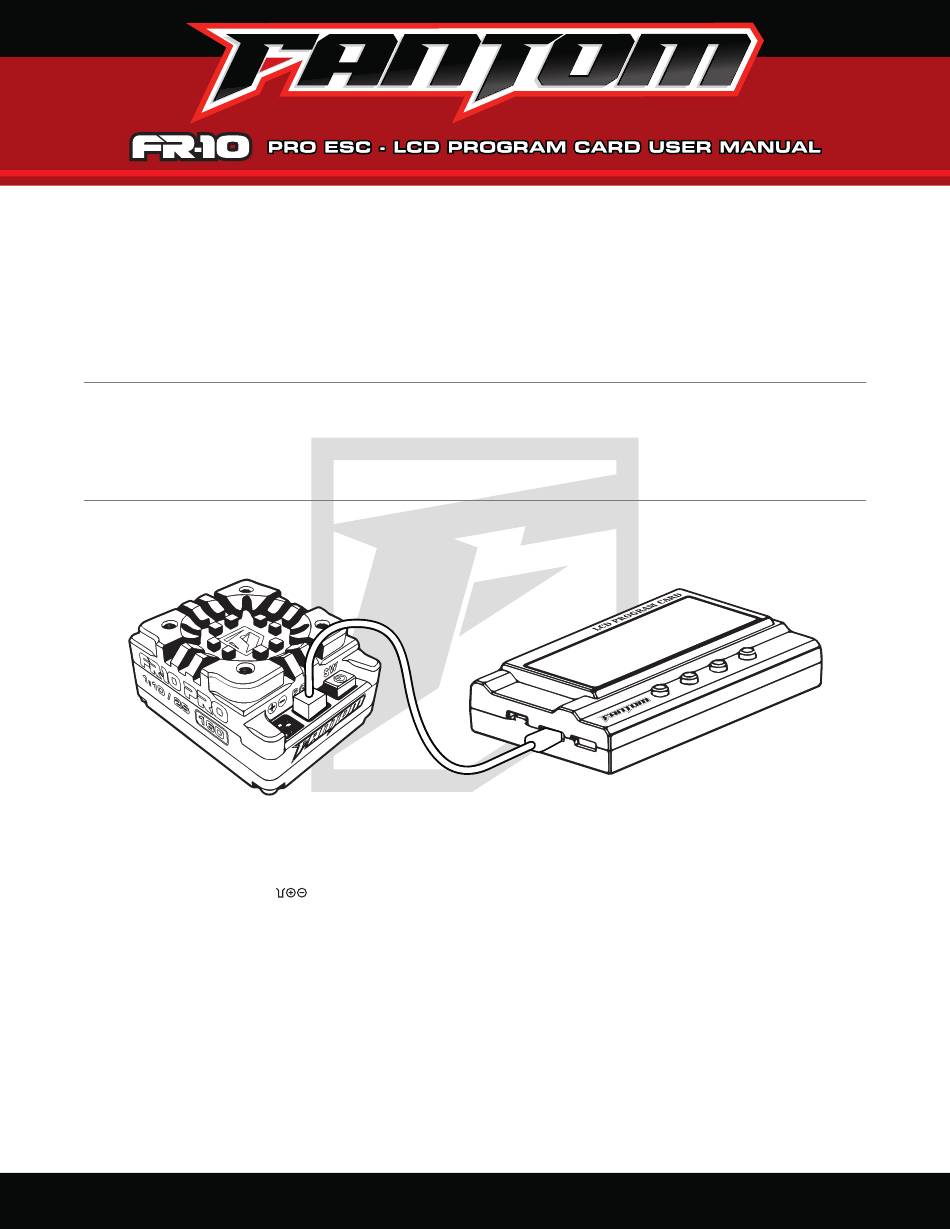

To use as an individual device, connected directly to your ESC:
1. Disconnect the battery from the ESC.

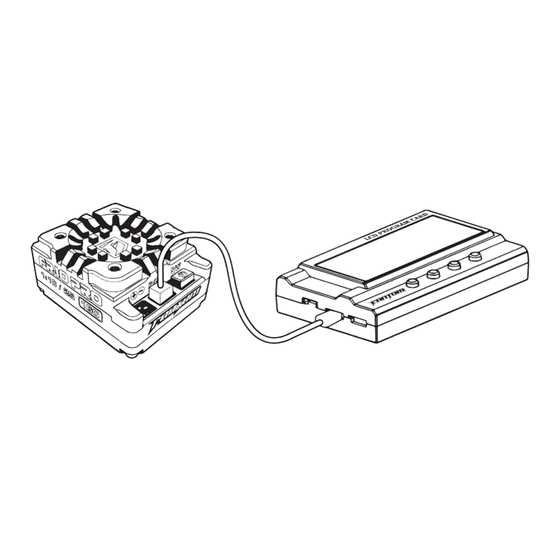

2. Plug the included signal wire into the PGM port of your ESC (white to the right side) and the other end into the socket of
your LCD Card marked with
3. Connect the battery to the ESC and turn on the ESC.
4. If the connection is correct, "Fantom Racing" will be displayed on the LCD screen. If the data connection between the LCD
and ESC fails, please check whether the signal wire is connected correctly and repeat steps 1, 2 and 3.
5. If the connection is established successfully, with "Fantom Racing" displayed on the LCD screen, press any button and the
first programmable item will be displayed on the LCD screen. It's ready to customize your ESC parameters now.
Working as an individual device to program the ESC, the function of the buttons are as follows:
"Menu": Use this button to scroll through all the available customizable parameters.
"Value": Use this button to scroll through all the available values, of each customizable parameter.
PRO ESC - LCD PROGRAM CARD USER MANUAL
(black to the right side).
WWW.FAN TOMRA C I N G .C O M

Advertisement

loading
Need help?

Need help?

Do you have a question about the FR-10 PRO ESC and is the answer not in the manual?

Questions and answers

Summary of Contents for Fantom FR-10 PRO ESC

  • Page 1 3. Connect the battery to the ESC and turn on the ESC. 4. If the connection is correct, “Fantom Racing” will be displayed on the LCD screen. If the data connection between the LCD and ESC fails, please check whether the signal wire is connected correctly and repeat steps 1, 2 and 3.
  • Page 2 Working as an individual device to program the ESC (continued) Note: Keeping the “Menu” or “Value” button held down will scroll through the parameters and values quickly. “Reset”: Use this button to return your ESC to all default settings. After pushing this button, follow immediately with pressing the “OK”...
  • Page 3 LCD PROGRAM CARD PARAMETER IDENTIFICATION, FUNCTIONS & DESCRIPTIONS (continued) G6: DEADBAND - 12 steps (1% increments – default = 4%) - Use this function to adjust the sensitivity of the neutral position, of the throttle trigger (throttle and braking). In other words, how much the throttle needs to be pulled or pushed before the ESC will receive input.
  • Page 4 LCD PROGRAM CARD PARAMETER IDENTIFICATION, FUNCTIONS & DESCRIPTIONS (continued) B3: BRAKE FORCE - 0% to 100% (12.5% increments – default = 75%) - Use this function to control the brake force applied to the motor. Increasing the value increases the brake force applied to the motor. The formula for the brake parameters is: y=ax+b, whereas "y"...
  • Page 5 LCD PROGRAM CARD PARAMETER IDENTIFICATION, FUNCTIONS & DESCRIPTIONS (continued) TURBO (T) NOTE: Turbo settings T4 through T10 are not accessible when “*Stock (Blinky)” mode is selected in “G5: RACE MODE” WARNING: Turbo is an advanced feature and should only be used by experienced racers. Improper boost settings can cause poor performance and/or permanent damage to your ESC and/or motor, which is not covered under warranty.
  • Page 6 • Once the Fantom PC Interface app is installed on your computer and the LCD Card firmware is downloaded on to your computer, follow the next 9 steps to check what version firmware is on your LCD Program Card and/or to update it to the latest firmware.
  • Page 7 8. This will bring up a new screen, showing device, hardware, software version, information, and the update option button. 9. Click on the “Update” button and find the “Fantom FR-10 PRO ESC” firmware that you saved to your computer in an earlier step.
  • Page 8 • Once the Fantom PC Interface app is installed on your computer, your LCD Card firmware is updated and the latest ESC firmware is installed on your ESC, follow the next 5 steps to customize your FR-10 PRO ESC, by changing any of the available parameters, using a PC.
  • Page 9 ESC FIRMWARE FLOW CHART (Fantom LCD Program Card required to edit) SECTION PROGRAMMABLE ITEM PROGRAMMABLE VALUE Running Mode Forward / Brake Forward / Brake / Reverse Forward / Reverse Low Voltage Cut-off Disable Auto(3.3V/Cell) Custom 3.0v to 11.1v (0.1v increments) ESC Over-heat 203˚F / 95˚C...

  • Page 10: Product Limited Warranty

    Product Limited Warranty Fantom products are manufactured to the highest quality standards. Due to the intended use of this product, this product is guaranteed against workmanship and manufacturing defects only. This warranty is in effect for a period of 90 days from the original date of purchase.

  • Page 11: Contact Info

    • Fantom will not reimburse any expenses incurred to return any Fantom product, whether for warranty claim or repair. • Fantom is NOT responsible for any lost or stolen items once they are in the possession of the shipping company. Fantom is not responsible for items delivered to the wrong address.
