Summary of Contents for Aeros ANT-70

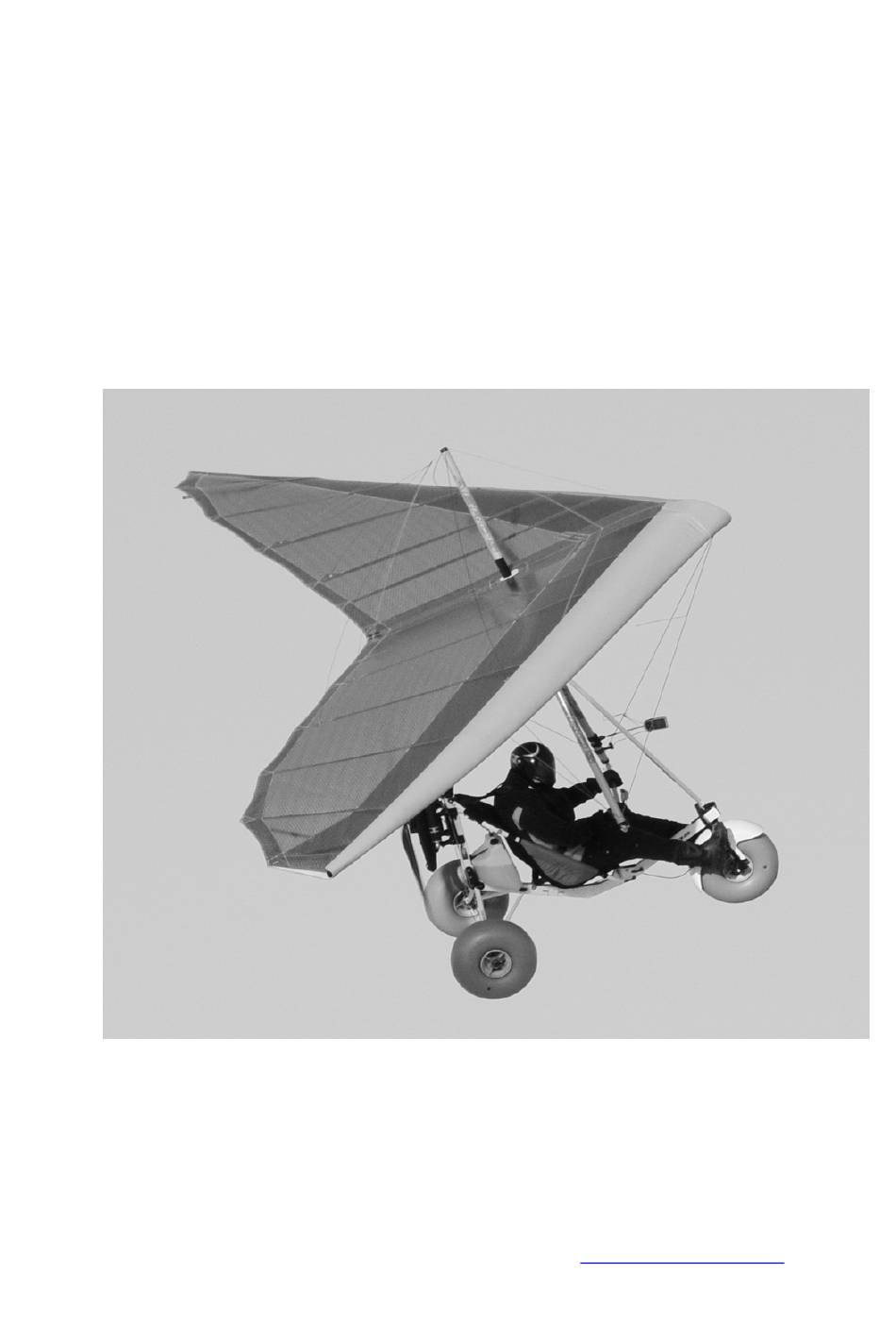

Page 1 AEROS NANOLIGHT TRIKE ANT-70 OWNER /SERVICE MANUAL Wing: Fox-T Engine: Octagon 190 Manufactured by: AEROS Ltd Tel: (380 44) 455 41 20 Post-Volynskaya St. 5 Fax: (380 44) 455 41 16 Kiev 03061 E-mail: info@aeros.com.ua UKRAINE http://www.aeros.com.ua February 2019...
Page 3: Table Of Contents
CONTENTS INTRODUCTION______________________________________________________________________4 1. GENERAL INFORMATION_____________________________________________________________5 2. LIMITATIONS______________________________________________________________________6 3. ULTRALIGHT & SYSTEMS DESCRIPTION_________________________________________________7 4. ULTRALIGHT ASSEMBLY PROCEDURES__________________________________________________8 5. PRE FLI GHT I NSPE CT I O N OF T HE WI NG__________________________________________12 6. ATTACHING THE WING TO THE TRIKE_________________________________________________12 7. FLIGHT PREPARATION______________________________________________________________14 8.
Page 4: Introduction
The operating procedures outlined in this Manual are the result of Aeros knowledge and experience gained since 1991. Aeros data packages will be revised from time to time. It is therefore important that you visit us regularly http://www.aeros.com.ua In case of any doubts or questions contact your local dealers or Aeros.
Page 5: General Information
1. GENERAL INFORMATION 1.1 Trike The ANT-70 trike is a one seat weight shift controlled nanolight trike. It is a light weight modification of the ANT trike and designed to comply with sub 70kg aviation regulations. The regulations allow hang glider pilots to fly sub 70kg aircraft on wheels with a simple powered endorsement, which means there is no need to do a full ultralight licence.
Page 6: Limitations
2.3 Power Plant Limitations 2.3.1 Engine The ANT-70 trike is equipped with Octagon 190 (2 stroke, 27 hp) air cooled engine with manually actuated starter. The trike may be equipped with other engines with similar characteristics.
Page 7: Ultralight & Systems Description
2.4.4 Flight Load Factor Limits Max positive maneuvering load factor: 4.0 G. Negative load factors prohibited. Load factors below 1.0 G to be avoided. 2.4.5 Operation Limits The ultralight is only to be flown under visual flight rules (VFR), and the minimum equipment required to operate under VFR conditions are an Air speed indicator, Altimeter and instruments that may be required by the engine manufacturer.
Page 8: Ultralight Assembly Procedures
3.3. Control Panel The control panel positioned on the left rest arm (fig. 1) and may consist of: -tachometer and hour meter (optional), -key, -ignition switch, -start button, -primer. Figure 1 3.4 Occupant restraint Harness The seat is fitted with a restraint harness system. 3.5 Engine The power unit is Octagon 190 (2 stroke, 27 hp).
Page 9 Figure 4 Figure 5 4.1.3 Detach the left landing gear axle-arm from the support and rotate it rearwards. Detach the left forward landing gear strut from the Velcro strap (fig. 6). Figure 6 Figure 7 4.1.4 Using quick-pins attach the left forward landing gear strut to the front bracket (fig. 7) and connect the left landing gear axle-arm with the left forward landing gear strut (fig.
Page 10 4.1.7 If your trike is equipped with “big foot” wheels attach them now as shown on the figures below. Install the wheel (fig. 10), screw the bolt in. Tighten the bolt with its eccentric arm (fig.11). Install the safety ring (fig. 12). If your trike has standard wheels simply skip this paragraph and proceed to the next one.
Page 11 Figure 15 Figure 16 4.1.10 Install the throttle rod. Feed the throttle rod end through the rod end stop and position it in place as shown on the figure 17. Figure 17 Figure 18 4.1.11 Connect the fuel line with the quick connector (fig.18). Figure 19 Figure 20 4.1.8 Install the main upper pylon and fix it temporarily with the lower bolt, so that the main upper pylon...
Page 12: Preflight Inspection Of The Wing
Figure 21 Figure 22 Figure 23 Figure 24 4.1.10 Attach the kickstarter handle to the main pylon as shown on the figures (fig. 22 and fig. 23). 4.1.11 Install the propeller making sure that the logo is facing rearward (fig. 24). Tighten the propeller bolts.
Page 13 Figure 25 Figure 26 6.2 Position the wing on its control frame, facing into the wind, with the nose on the ground. 6.3 Disconnect the lower part of the front brace tube from the bracket on the lower pylon. Hold down the main pylon of the trike and rest the lower end of the front brace tube on the pilot’s sit.
Page 14: Flight Preparation
Figure 30 Figure 31 6.9 Sit in the pilot’s seat. Undo straps around the base tube. Take a firm grip on the base tube and lift it all the way up until you will be able to attach the front brace tube back in position using the quick pin (fig.
Page 15 7.3 Before Starting Engine NOTE Your trike is carefully test flown at Aeros factory. However the brake-in procedure of the engine is rather continuous and has not been finished. It needs about 10 flying hours for the brake-in to be completed.
Page 16: Ultralight Flying
7.4 Fuelling Fuel flow is from a single fuel tank fitted with a self-venting tube. Never refuel if fuel could be spilled on hot engine components. Use only safety approved fuel containers. Never transport fuel in an unsafe manner. The fuel system has an in-line fuel filter. This filter can be easily disassembled for cleaning and inspection Fuel tank capacity is 12 liters.
Page 17 When taxiing in strong wind conditions the follow procedures apply: · Head Wind conditions require the nose of the wing to be lowered just below the trim position. · Down Wind conditions requires the nose of the wing to be raised just above the trim position. ·...
Page 18: Emergency Procedures
8.7 Descent, Approach and landing Landing should always be into wind with a long straight approach. Approach to the airstrip can be made with or without power, but in any case the airspeed should be maintained above the nominated approach speed. The ultralight should be flown on final approach at or above the nominated safety speed.
Page 19 technique is for safety reasons as engines are susceptible to stopping, no matter how reliably manufactured or maintained. Keep a good lookout for other ultralight, always be thoughtful and show your intentions. Remember that the manufacturer cannot foresee all conceivable circumstances. Particular circumstances such as multiple or unanticipated emergencies, adverse weather etc may require modification to these procedures.
Page 20 Maintain Control Ignition off Forced Landing After landing release seat belt Evacuate ultralight. 9.7 On Ground Engine Fire If fire occurring whilst on the ground proceed as follows: Maintain control and use remaining speed to clear people, others ultralights and buildings. Close the throttle.
Page 21: Ultralight De-Rigging Procedure
WARNING DO NOT ATTEMPT TO SPIN THE ULTRALIGHT. SPIRAL DIVES SHOULD NOT BE ATTEMPTED. DURING DESCENDING TURNS ULTRALIGHT ATTITUDE MUST BE KEPT WITHIN PLACARDED PITCH, ROLL AND AIRSPEED LIMITS. 10. ULTRALIGHT DE-RIGGING PROCEDURE Careful attention to the recommended rigging and de-rigging sequences will protect the ultralight from the risk of unnecessary damage.
Page 22 11.2 Identification Plate The trike identification plate positioned on the main pylon, right side (fig. 33). The Serial number should be quoted when corresponding with the factory. For the wing identification plate position please refer to the wing Manual. Figure 33 11.3 Fuel Sampling There is no drain cock on the fuel tank.
Page 23: Transportation And Storage
poor fuel quality. The easiest way to get rid of contaminations noticed during the check-up is to rinse it with petrol or with cleaning spray. NOTE Reducing the fuel flow through the filter could cause intermittent engine running, lack of power. In some cases, this could lead to leaning of the mixture, temperature growth and the engine seizure.
Page 24 If you fly at the costal area or your ultralight has been exposed to salt water dismount it and rinse with tap water thoroughly before storage. If you fly frequently at the costal area it is necessary to wash the ultralight with tap water at least once a month to prevent all aluminum parts from corrosion.
