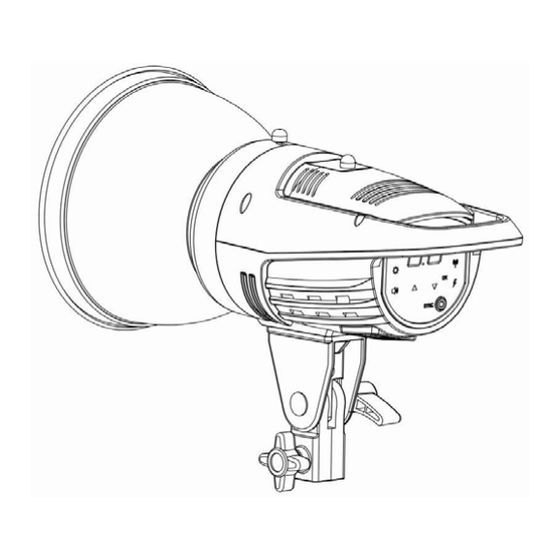

F121 Studio Light Instruction
Thank you for purchasing the Interfit F121 flash light with touch screen. It benefits
from several features including; a large power output and built-in regulating circuit,
which can ensure stepless dimming and accurate colour temperature. The output of
the modelling lamp can be adjusted independently or in line with the flash tube
power adjustment. It has fast recycling speed and accurate power adjustments. It
benefits from touch screen controls and can be triggered remotely using the Interfit
on-camera remote INT910 (Sold separately). Please read these instructions before
using the Interfit F121. Thank you.
Function instruction
A. sensor
B. beep indicator
C. modelling lamp indicator
D. modelling lamp mode button
E. flash tube power display
F. beep on/off button
G. increase power button
H. power socket
Operation Instructions
1. Please ensure the power switch is in the OFF position before connecting the
power lead. Once connected, change the power switch to ON and the unit will
power up.
2. Once the unit has finished charging, the OK indicator will be lit. Then press the
Test Button [L] to test the flash.
I. power switch
J. sync socket φ3.5
K. decrease power button
L. test button
M. recycling indicator
N. wireless channel/sensor
selection button
O. channel indicator
P. sensor indicator
Advertisement
Summary of Contents for Interfit F121 200WS
- Page 1 M. recycling indicator N. wireless channel/sensor F. beep on/off button Thank you for purchasing the Interfit F121 flash light with touch screen. It benefits selection button from several features including; a large power output and built-in regulating circuit, G. increase power button O.
- Page 2 Press the button [N] again, both the first and second light will be off, which Modelling lamp power means the fourth channel is on. 8. To utilize the wireless features the Interfit on-camera remote SKU: INT910 (Sold Colour temperature 5600˚K ± 200˚K separately) is required.
