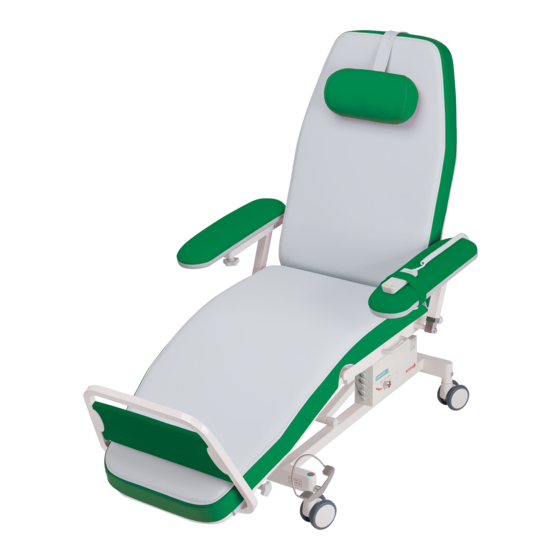

Summary of Contents for Digiterm COMFORT-4 ECO

  • Page 1 COMFORT-4 ECO Therapy chair User Manual V6.1 EN U.S. Distribution Partner for:...

  • Page 2: Table Of Contents

    COMFORT-4 ECO Contents 1. Symbols used in the User Manual and on the chair ..........2 2. Function of the chair....................3 3. Putting in operation ....................4 4. Operating the chair ..................... 8 4.1. Armrest adjustment ......................8 4.2. Use of the handset ......................8 4.3.

  • Page 3: Symbols Used In The User Manual And On The Chair

    COMFORT-4 ECO The characteristics and operation of the chair have to be known in order to benefit from its advantages. Therefore please read the User Manual, particularly the sections entitled Putting in operation and Safe operation of the chair before use.

  • Page 4: Function Of The Chair

    COMFORT-4 ECO Please do not sit to the legrest! Do not drive onto the mains cable! Do not drive onto the handset cable! Do not touch it! (*) depending on construction Function of the chair The chair has been designed and constructed primarily for patient medical treatment, for example hemodialysis, chemotherapy, pre and post-surgical, etc..

  • Page 5: Putting In Operation

    COMFORT-4 ECO Putting in operation ● Before commissioning the chair, remove the packaging and protective plastic wrap. ● The type of chair (and options) is marked on the packaging and the list of accessories is included in the documentation. Note!
  • Page 6 COMFORT-4 ECO  Attaching the upholstery: Using the handset, adjust the chair in such a way that the legrest is in line with the seat plate and the backrest is vertical (Figure 2). This is the easiest position in which to attach the upholstery.
  • Page 7 COMFORT-4 ECO  Attach the headrest pillow to the backrest with the velcro straps. Secure the armrest strap included in the accessories to the armrest. The armrest strap is used to position the remote control handset. ● Check whether the motors work properly with the help of the handset.
  • Page 8 COMFORT-4 ECO Handset connector Connection cable Handset connector (*) Connection cable (in case of optional between the main between the main and (in case of 5 motors) Trendelenburg foot- slave control unit (*) switch) slave control unit Connection cable Connection cable...

  • Page 9: Operating The Chair

    COMFORT-4 ECO 4. Operating the chair 4.1 Armrest adjustment The height of the armrest can be adjusted by pulling the indexing plunger on the telescoping rail, moving the armrest up or down and then pushing it back again. By loosening the knurled knob directly under the armrest, the armrest can be cantilevered and slipped up and down along its longitudinal axis.
  • Page 10 COMFORT-4 ECO Remote control handset ENTRY/LEAVE BED position ENTRY / LEAVE position LED indicates button pressing Backrest up Backrest down Seat tilt up Seat tilt down Legrest up Legrest down Seat height up Seat height down Head-down position Figure 8/a Version 6.1 EN...
  • Page 11 COMFORT-4 ECO Remote control handset (*) (if the chair is equipped with motorised footrest adjustment and Battery option) ENTRY/LEAVE BED position ENTRY / LEAVE position LED indicates Backrest up Backrest down button pressing Seat tilt down Seat tilt up Legrest up...

  • Page 12: Setting The Footrest Manually

    COMFORT-4 ECO 4.3 Setting the footrest manually (*) The position of the footrest can be modified in length. The footrest should be held to prevent it from slipping, then by loosening the knurled knob on the left side the footrest can be adjusted into the desired position and secured by tightening the knurled knob.

  • Page 13: Transparent Protecting Plastic Cover For Legrest And Footrest (*)

    COMFORT-4 ECO 4.8 Transparent protecting plastic cover for legrest and footrest (*) The plastic cover is attached by velcro straps onto upholstered legrest and footrest. Removable for easy disinfection and cleaning. (Figure 12;13) Figure 12 Figure 13 Transparent protecting plastic...

  • Page 14: Stainless Steel Armrest Protection

    COMFORT-4 ECO 4.11 Stainless steel armrest protection (*) To protect the upholstered armrest against damage. Note: Fits for TILT UP ARMREST WITH HEIGHT AND only. (Figure 16) LONGITUDINAL ADJUSTMENT Figure 16 Stainless steel armrest protection 4.12 Central brake (*) The central brake can be simply locked to fix the chair.

  • Page 15: Safe Operation Of The Chair

    COMFORT-4 ECO Note! In case of battery back-up operation depressing any button of the handset is signaled by a short sound! After 2 minutes of continuous battery operation the battery should be charged. Do not connect the battery onto external charge device.
  • Page 16 COMFORT-4 ECO For a long working life and in order to guarantee user safety, we recommend that the following points be observed: ● Position the chair in such a way that it is accessible from all sides and does not touch walls or other equipment objects when fully extended.

  • Page 17: Disinfections And Cleaning

    COMFORT-4 ECO - don’t leave the power cable near a source of heat, for example a heater, - when pulling it out of the outlet hold the plug not the cable. Do not open the cover of the control box, because the ingress...

  • Page 18: Maintenance And Troubleshooting

    COMFORT-4 ECO 6.2 Cleaning First clean on a daily basis the upholstery with warm water and mild soap using damp cloth. Regular and meticulous cleaning of the upholstery with water in addition to a mild soap can prevent hardening and embrittlement of the upholstered parts from such a materials like detergent, sweat, skin oils, hair spray, hand creams and similar things may affect the leather during treatment.

  • Page 19: Technical Data

    COMFORT-4 ECO If you change a fuse or do checking or repairing inside the electronic control box, the mains plug must be disconnected from the wall-socket and pull the plug of battery back-up unit out of the control box which provides total isolation of the chair from the main voltage.

  • Page 20: Transport And Storage Conditions

    Table 1 Guidance and manufacturer’s declaration – electromagnetic emissions The Comfort-4 Eco is intended for use in the electromagnetic environment specified below. The customer or the user of the Comfort-4 Eco should assure that it is used in such an environment.
  • Page 21 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Comfort-4 Eco is used exceeds the applicable RF compliance level above, the Comfort-4 Eco should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Comfort-4 Eco.

  • Page 22: Standards Applied

    Recommended separation distances between portable and mobile RF communications equipment and the Comfort-4 Eco The Comfort-4 Eco is intended for use in an electromagnetic environment in which the radiated RF disturbances are controlled. The customer or the user of Comfort-4 Eco can help prevent electromagnetic interference by...
  • Page 23 COMFORT-4 ECO We welcome your suggestions. Please inform Champion Customer Service (800-998-5018) if you have any special wishes or questions concerning our product. Our staff will be glad to advise you and provide further assistance. We hope that you enjoy using your chair and thank you for placing your confidence in us.

  • Page 24: Periodic Technical Safety Inspection

    For the machine: Serial No.: ........Type: COMFORT-4 Eco Electric schock protection : Class I. User:…………………………… Year of Purchase: ......Digiterm Ltd., H-3200 Gyöngyös, Ipar út 7. Manufacturer: Visual Inspection 1.1. Checking the intactness of the Mains cable. 1.2. Checking the intactness of the main and slave(*) control box.

  • Page 25: Protective Earth Conductor Resistance Measurement

    9 . 2 P r o t e c t i v e e a r t h c o n d u c t o r r e s i s t a n c e m e a s u r e m e n t Process: Step 1.

  • Page 26: Spare Parts List Order Form

    Champion Manufacturing Customer Name:_________________________________________ Customer Address:________________________________________ Tel:_________________ Fax:__________________ Ordering spare parts for chair with serial number:_____________ COMFORT-4 ECO Therapy Chair (Art.-Nr. 7130368E) Pieces Art.-Nr. Description ECO - 34545119 Central operating brake diam.: 10cm twin wheel castors ECO - 34545167 Detachable upholstery – 11 cm...

  • Page 27: Spare Parts List

    11. Spare Parts List Figure Art.-No. Description Figure Art.-No. Description Electronic parts Handset Foil of the 34545080 34545081 handset Electronic control Electronic control 34545406 box without 34545407 box with reading reading lamp lamp connector connector Battery unit Slave control box 34545362 34545329 Power cable...
  • Page 28 11. Spare Parts List Lower upholstery Headrest pillow 34545100 34545101 Armrest strap for Upholstered 34540300 handset 34545166 footrest for 11 cm foam Motors Backrest motor Seat tilt motor 34545008 34545141 Legrest motor Seat height motor 34545381 34545137 Footrest motor 34545192 Parts for tilt-up armrest version Upholstered armrest with...
  • Page 29 Champion Mfg., Inc.
