Perfect 10 Satellite Distributing DIGISAT II Manual

PERFECT 10 PERFECT 10

Specifications

Input Frequency:
Input Level:
Through Loss:
Input Impedance:
Output Impedance:
Measuring Method:
Power Supply:
Power Consumption:
Weight DIGISAT only: 3.1 oz
DIGISAT Plus: 9.5 oz (DIGISAT, Case, Ni-Cad pack)
Dimensions DIGISAT only: 5.75 x 2.15 x 0.84 inches
DIGISAT Plus: 5.75 x 2.30 x 2.10 inches
Options:
Setup
LNBF
Connect a short jumper
from the DIGISAT 2 to the
LNBF on the dish
Functions and meter
indications are discussed on
the back of this sheet.
Connect the lead wire
from the receiver to the
bottom of the DIGISAT
ds/manuals/perfect/digisat/digi04
Satellite Systems Inc. Satellite Systems Inc.
DIGISAT II
950-2150 MHz
20-100 dByV
3.5 db
75 Ohm - "F" connector
75 Ohm - "F" connector
Signal presentation with LED's
Pitch tone on audio speaker
From receiver through coaxial cable or
Optional external 12-18 vDC battery with
center pin positive (+)
10 mA utilizing LED's
25 mA utilizing audio speaker
DIGISAT Accessory Kit
Includes: Leather Carrying Case
Rechargeable Ni-Cads
AC wall charger
DC automotive charger
RG-6 jumper with quick connectors

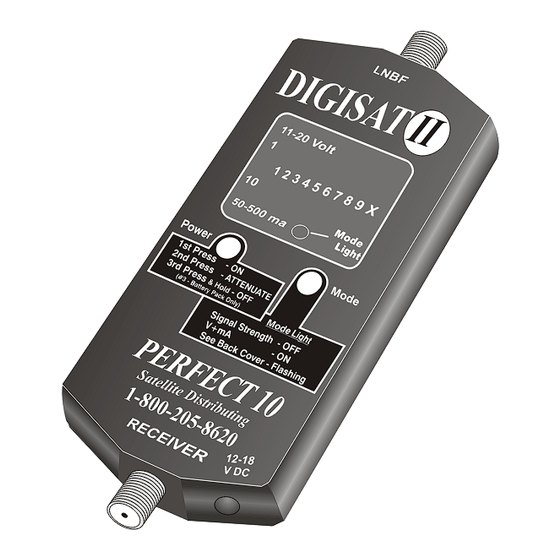

LNB
DIGISAT II
11-20 VOLT
1*
0 1 2 3 4 5 6 7 8 9
10*
Mode
50-500mA
Light
Power
Mod e
1st Press -
ON
2nd Press - ATTENUATE
3rd Press & Hold - OFF
(#3 - Battery Pack Only) Mod e Light
Signal Strength - OFF
V+mA - ON
See Back Cover - Flashing
PERFECT 10
Satellite Distributing
1-800-205-8620
RECEIVER
Connect the optional
battery pack
Six Foot Coax Cable
With Quick-connects
DC Charger
Connect the DIGISAT 2 to the LNBF on the dish with a short
coax jumper wire. This short jumper - (provided with the
DIGISAT 2 Plus and with the optional kit shown above) -
should be connected to the top of the DIGISAT.
The DIGISAT can be powered by your satellite receiver or by
connecting it to an optional battery. The battery can
remain plugged into the DIGISAT 2 (a new feature) while
powering from a satellite receiver. To utilize the battery
power when the satellite receiver is NOT connected,
simply push the "POWER" button. (See the back of this
sheet for all the button functions).
We offer an optional battery pack kit (above) or you can use
a 12 to 18 vDC battery pack like a cell phone uses as long
as the center pin of the input jack is positive (+).
*
A n o p t i o n a l b a t t e r y p a c k m a y b e
used to power the DIGISAT without
using the satellite receiver. The battery pack
can remain connected even when the DIGISAT
is not being used (Press and hold the "Power"
button for about 3 seconds to turn the battery
connection OFF)
Page 1
Optional Accessory Kit Includes:
Leather
Case
*
Rechargeable
Ni-Cad Battery
AC Charger
Ver 1.0
