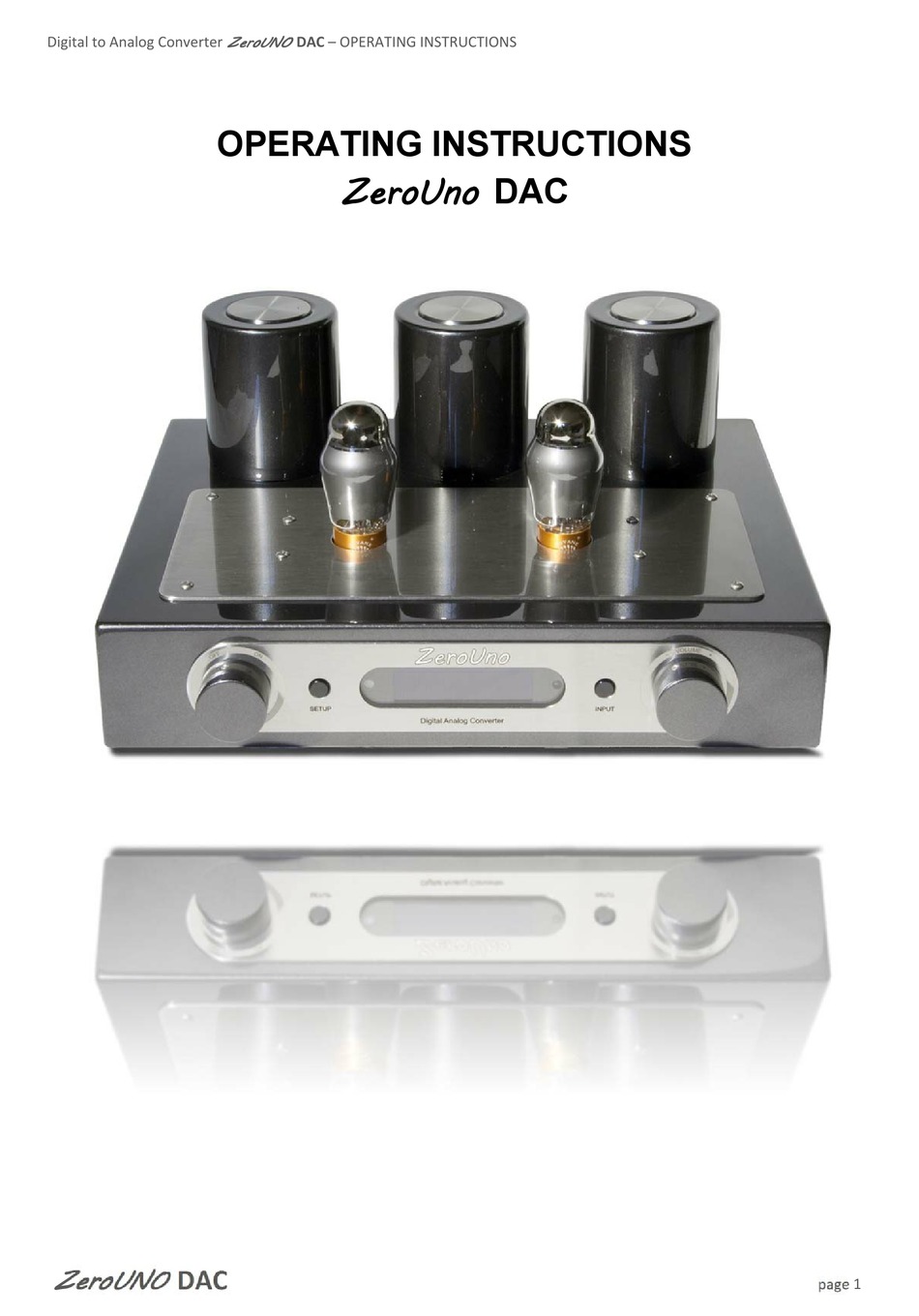

Page 1: Operating Instructions
ZeroUNO Digital to Analog Converter DAC – OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS ZeroUno DAC ZeroUNO DAC page 1 ... - Page 2 ZeroUNO Digital to Analog Converter DAC – OPERATING INSTRUCTIONS FRONT and REAR view ON/OFF switch SETUP / RESTORE button Factory use DISPLAY INFRARED RECEIVER - do not cover INPUT SELECTOR button VOLUME / PARAMETER knob VENT DOOR – do not cover ...
- Page 3 While rotating the volume knob the volume level is shown at the display. In PLAY mode the display reports the status of the ZeroUno DAC. The first row at the display shows the lock on the coming signal. The second row shows the volume, really the attenuation, in dB.
- Page 4 RESTORE the factory setup the SETUP button at the front panel of the ZeroUno DAC must hold for at least 10 seconds. The Restore command takes action when the SETUP button is released. The Restore regards only the selected INPUT. The parameters of the other INPUTs remain unchanged.
- Page 5 ZeroUNO Digital to Analog Converter DAC – OPERATING INSTRUCTIONS LCD DIMMER 9.sec.to.EXIT&STORE Turning the right knob (VOLUME) changes the display ON time. display dimmer timer 10s / 20s / 30s / 40s / 50s / always on SETUP:sec.LCD.ON DISPLAY >bbbbb30.sec After 10 seconds without interaction at the right knob the display turns back into normal operation and the parameter is stored.
- Page 6 In a second step the RC must be paired with the DAC again. To pair the RC, press the SETUP button at the front of the ZeroUno DAC for at least 2 seconds to enter in SETUP mode, release the button and finally press simultaneously the SETUP and the INPUT buttons.
- Page 7 MUTE key is ````````’```````’``` pressed again. ```````”"“`”`“``""`` LOCK.DSD.11.2.MHz When the MUTE key is pressed again ZeroUno DAC is un-muted the Volume.:.-20dB display turns back into normal operation and the parameter is stored. Balance:.R0.5.PHASE+ INPUT..:.USB When a MUTE appears at the display in standard size means there is NOLOCK.USBOOOOOOOOOO.
- Page 8 TheZeroUno DAC is completely configured by the factory for top performance. To give the user maximum flexibility, the SETUP mode is implemented. To RESTORE the factory values the SETUP button at the front panel of the ZeroUno DAC must be pressed for at least 10 seconds.
