Summary of Contents for Senna SkyBeast

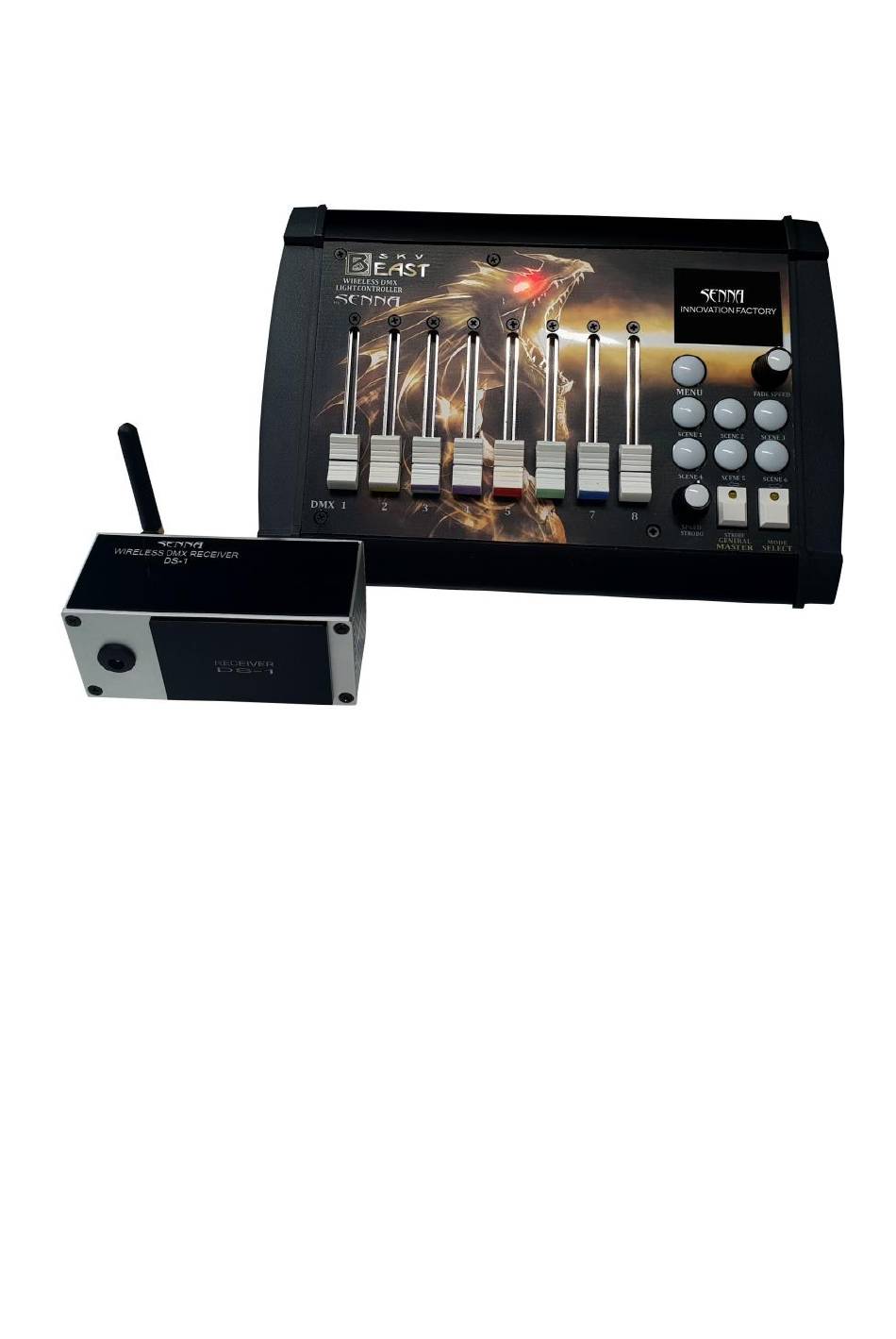

- Page 1 SkyBeast Console User Manuals...
-
Page 2: Table Of Contents
Console Scheme ..........................4 Getting Started ..........................5 3.1. Adjusting your DMX light panel(s) ................... 5 3.2. Getting SkyBeast console started: ................... 6 Setting the mode of DMX panel ...................... 6 4.1. Available modes ........................6 4.2. How to set DMX mode ......................6 Operational modes in P30 ....................... -
Page 3: Technical Specification
1. Technical specification Features: Wireless light control Controls up to 16 ARRI SkyPanels, or up to 128 DMX panels in standard mode Modes: for SkyPanel Firmware 4 – P30 for Firmware 3.1 – P1, P3, P16 (Rosco), P16 (Lee), P22 Standard mode ... -
Page 4: Console Scheme
2. Console Scheme 3. DMX Receiver scheme... -
Page 5: Getting Started
4.1. Adjusting your DMX light panel(s) In order to connect your DMX light panel(s) to the SkyBeast console, please follow these steps: 1. Attach the receiver(s) to your DMX light panel(s) and plug DMX cable and USB power cable. (See the picture on the right) 1. -
Page 6: Getting Skybeast Console Started
5.2. How to set DMX mode To set the mode of DMX panel you want to control on SkyBeast cosole, please follow the steps: 1. Press and hold Menu button until the display shows “DMX Menu” 2. Now press Menu button again shortly to enter DMX Menu. There are two options available in... -
Page 7: Operational Modes In P30
Master and Mode Select buttons together. 6. Operational modes in P30 SkyBeast console allows you to make adjustments of the following operational modes in P30: CCT, HIS, RGBW, GEL SELECT, XY COORDINATES, EFFECTS To choose operational mode you want to affect on, please follow the steps: 1. - Page 8 Channel potentiometer 1 – Volume Channel potentiometer 5 – RED 3. RGBW Channel potentiometer 6 – GREEN (colours can be mixed) Channel potentiometer 7 – BLUE Channel potentiometer 8 – WHITE LEE: Channel potentiometer 1 – Volume Channel potentiometer 2 – Colour temp. base (3200K or 5600K) Channel potentiometer 3 –...
- Page 9 Channel potentiometer 1 – Volume Channel potentiometer 2 – Colour combination Channel potentiometer 3 – Flash pattern FIRE: Channel potentiometer 1 – Volume Channel potentiometer 2 – CCT range Channel potentiometer 3 – Speed FIREWORKS: Channel potentiometer 1 – Volume Channel potentiometer 2 –...
-
Page 10: Memory Presets
Channel potentiometer 6 – Cross fade Channel potentiometer 7 – Hue Channel potentiometer 8 – Saturation FLUO EFFECT: Channel potentiometer 1 – Volume Channel potentiometer 2 – Speed Channel potentiometer 3 – Frequency Channel potentiometer 4 – Colour temperature Channel potentiometer 5 –... -
Page 11: Auto Memory Recall
5. To recall previously stored preset, press shortly the memory button on which you have stored the preset. Memory button will turn green. Channel potentiometers will automatically get into positions of recalled preset settings. 6. Fade speed between memory presets can be adjusted using Fade Speed knob except for Gel select mode and Effects. -
Page 12: Navigation From One Dmx Panel To Another
6. You can now choose and adjust different operational modes of other DMX panel, as described in Chapter 5., and make memory presets as described in Chapter 6. 9. General Master Settings General Master Settings affects all DMX panels you have connected to SkyBeast console. This option enables you to: ... -
Page 13: General Strobe
5. To exit General Master settings, press and hold General Master button until the LED bulb on the button turns OFF. 6. Now that you have set General volume, percentage of general volume will be shown on display all the time with red line.
