    FUSION Voice brings together Wi-Fi based VoIP communications with traditional UHF or VHF radio systems onto a single, vehicle mounted device. Built on proven Tait hardware, FUSION Voice can operate on any 2.4 GHz Wi-Fi network, and is optimized for roaming on the MST IMPACT.

  • Page 9: Hardware

    FUSION Voice User Guide Hardware What’s in the Box 1. Tait UnifyVehicle 25W (UHF or VHF, and Wi-Fi radio), included: • MST branded remote head with display • Standard Microphone • U-cradle installation kit 2. 7 AMP Switch mode voltage 3.

  • Page 10: Tait Unifyvehicle

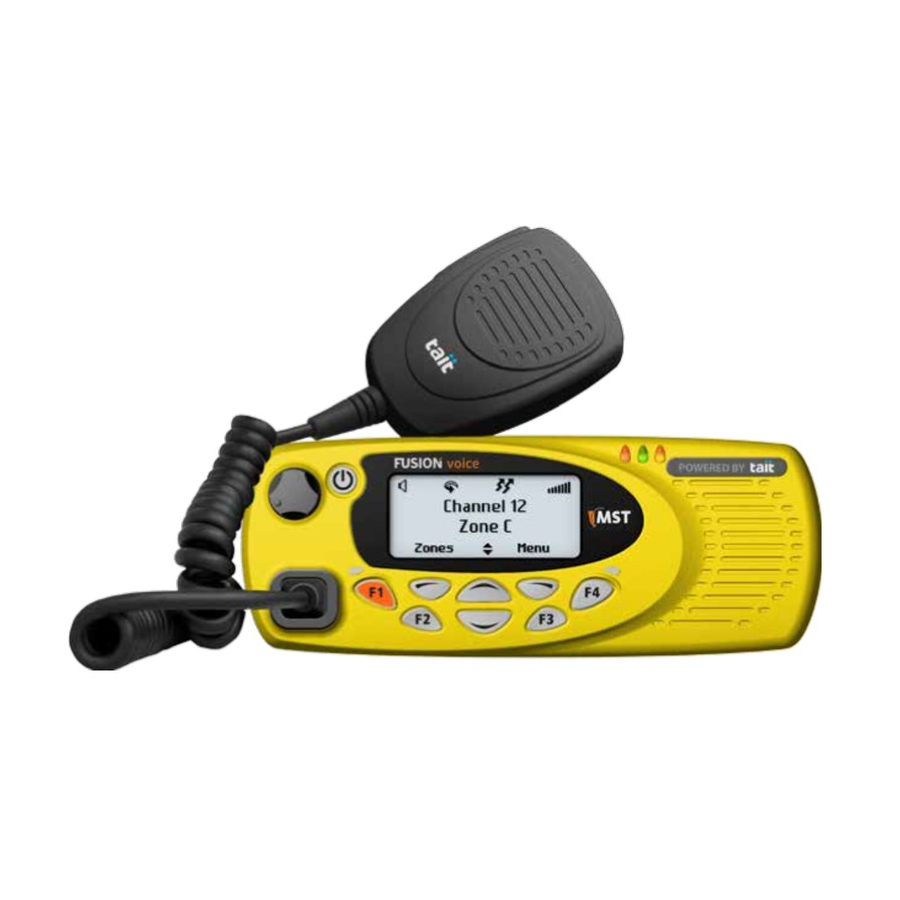

    Tait TM9355 mobiles with remote control head. On this platform MST delivers a proven PTT VoIP solution compatible with MST MinePhones. FUSION Voice showing Tait Radio, MST Control Head, and remote Speaker Microphone FUSION Voice built using UnifyVehicle fitted to a TM9355 chassis...
  • Page 11 2. Mount the U-Cradle 3. Install Antennas 4. Connect Power Cable to Power Source 5. Install Radio 6. Install Microphone 7. Check Installation 8. Check Vehicle Please refer to the associated documentation FUSION Voice - Installation Guide.pdf for complete details of each step.

  • Page 12: Using Fusion Voice

    Using FUSION Voice Powering on When FUSION Voice is connected to the vehicle power or accessories line, it will power up when the ignition is turned to On/Accessories. The FUSION Voice will startup in approximately 10 seconds, however it will take another 60 seconds before the Wi-Fi becomes available.

  • Page 13: Channel Selection

    Channel Selection Commissioning a FUSION Voice unit for site includes configuring talk channels. Each talk channel can be either standard LMR channel, or MST PTT. A device is not required to include both types of channels in its configuration. Radio channels use the UHF or VHF radio to communicate over traditional LMR infrastructure.

  • Page 14: Broadcast Ptt

    Transmit on Selected Channel Pressing and holding the microphone talk button will attempt to key the currently selected channel. If the FUSION Voice has connectivity and the channel is clear, the device will transmit audio on the selected channel. Release the talk button to stop transmitting audio.

  • Page 15: Configuration

    FUSION Voice firmware can be downloaded from: https://support.mstglobal.com/releases/firmware/ To push a firmware update to FUSION Voice, use the Admin Console to upload a file to the ICA and select type VMP_FIRMWARE.

  • Page 16: Service And Maintenance

    The firmware and hardware versions, and your radio’s frequency band is briefly displayed. Maintenance It is recommended that FUSION Voice hardware, cables, and connectors be inspected at regular intervals for wear and damage to ensure safe and reliable operation. A maintenance checklist...
