Summary of Contents for Seedburo 9000AG
-
Page 1: Cover Sheet

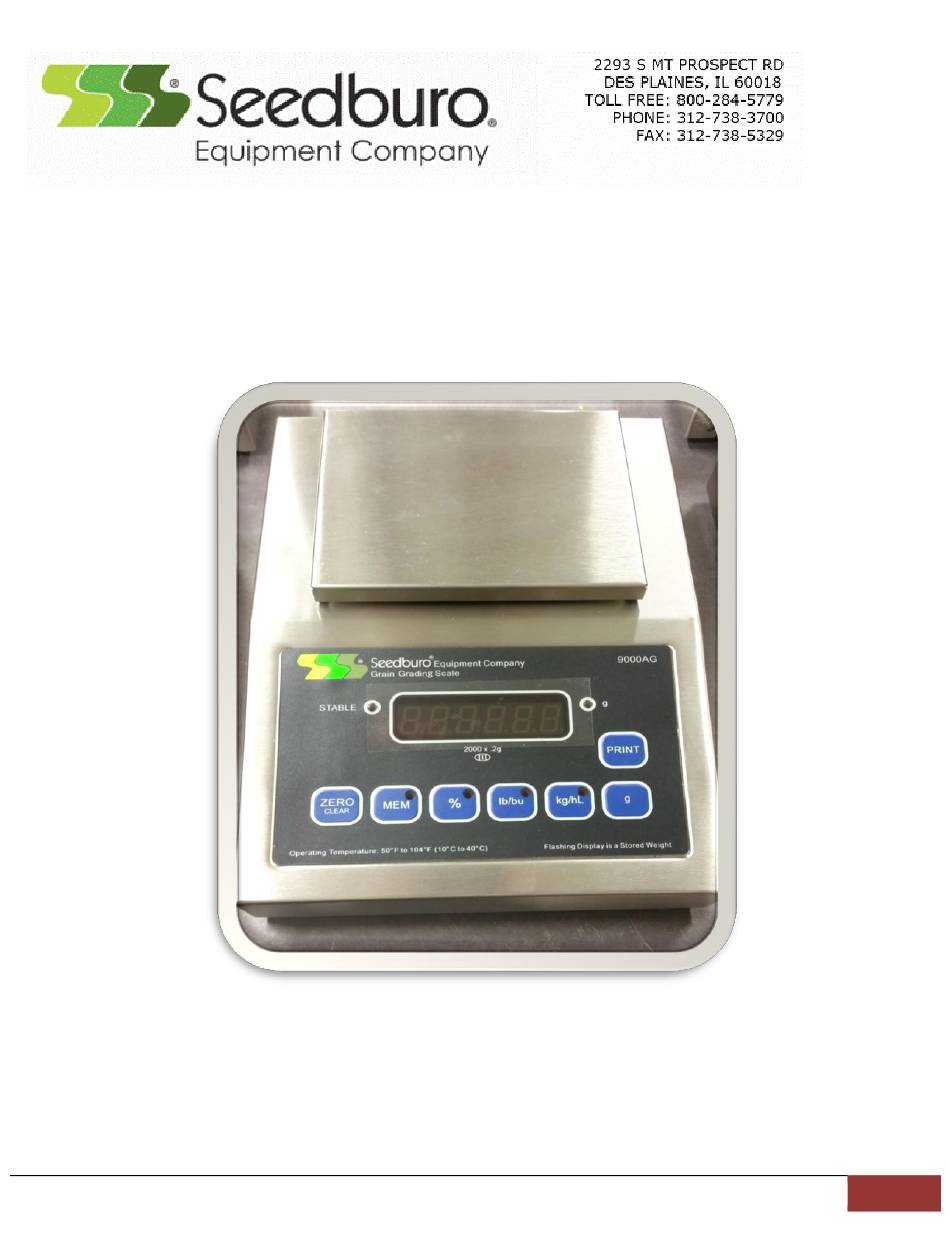

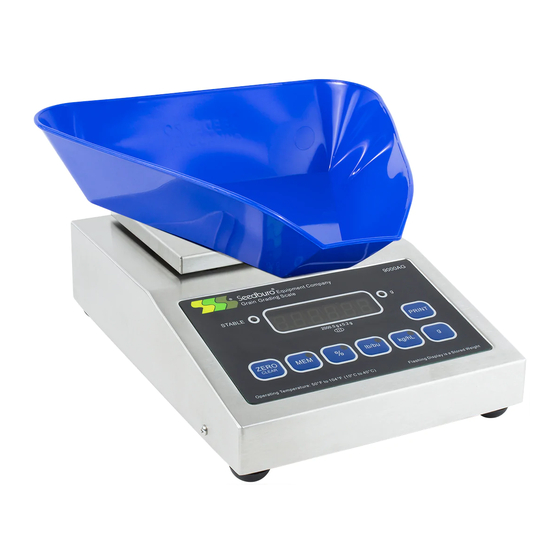

Seedburo Model 9000AG Computer Grain Scale Operating and Service Manual Seedburo Equipment Company | 9000AG Manual Revision 1.0... -
Page 2: Table Of Contents
Section 5 Calibrating the 9000AG ………………………………………………. 11 Section 6 Printer Modes… ……………………………………………………..… 12 Section 7 Error Messages …………………………………………………..…… 13 Section 8 Troubleshooting …………………………………………………….…. 14 Section 9 9000AG Technical Specifications ……………………………………. 15 Section 10 Seedburo Equipment Company | 9000AG Manual Revision 1.0... -
Page 3: Introduction & Unpacking And Setup
The model 9000AG is in being tested to National Type Evaluation Program standards. The certificate is pending. Therefore this scale can be used in Legal for Trade applications. - Page 4 Level the Scale using the adjustable feet. Bubble should be inside circle. Below picture of back panel connectors and power switch. Seedburo Equipment Company | 9000AG Manual Revision 1.0...
-
Page 5: Seedburo Model 9000Ag Operating And Service Manual
Lb/Bu: This switch will allow the user to measure weight in Lb/Bu (pounds/bushel). Kg/Hl: This switch will allow the user to measure weight in Kg/Hl (Kilo grams/Hectoliter). This switch will change the weight reading back to grams. Seedburo Equipment Company | 9000AG Manual Revision 1.0... -
Page 6: Scale Operation
See Sections 5 and 6. Theory of Operation: The 9000AG grain scale can weigh a maximum of 2,000 grams. The resolution is 10000 divisions which means the smallest increment is .2 grams. When calibrated the unit is accurate within +/- 2 divisions. -
Page 7: Programming The 9000Ag Parameters
Legal for trade mode: The 9000AG scale can be configured to operate in USA and CANADA Legal for Trade Modes. This is done by selecting the oP parameter and changing it from the default setting of STD to 44 or CAn. -
Page 8: User Setup Parameters
3 division change will cause the scale to enter into motion 5 division change will cause the scale to enter into motion *Note: The Legal for Trade modes(Op parameter equals 44 or CAn) will disable the * values. Seedburo Equipment Company | 9000AG Manual Revision 1.0... - Page 9 Type of Commodity Holder Determines size of Cup used when calculating Test Weight. Quart Cup Liter Cup Pint Cup *Note: The Legal for Trade modes(Op parameter equals 44 or CAn) will disable the * values. Seedburo Equipment Company | 9000AG Manual Revision 1.0...
- Page 10 Analog to Digital Counts: xxxxxx Displays Analog to Digital Data Press g to exit raw counts Load Cell mv output: xxxxxx Displays Internal Load Cell voltage Press g to exit voltage reading Seedburo Equipment Company | 9000AG Manual Revision 1.0...
-
Page 11: Calibrating The 9000Ag
CAL 0. CALIBRATING THE 9000AG: To calibrate your Seedburo Model 9000AG, you will need a set of precision test weights, Class "Q" or better. This set consists of 2-2000g weights. Seedburo has these weight sets available for purchase. -
Page 12: Printer Modes
In Auto Print 2, no further readings will be sent until the scale returns to displayed zero. The reading must be stable and must be a valid reading before it can be Seedburo Equipment Company | 9000AG Manual Revision 1.0... -
Page 13: Error Messages
Under load message will appear when the scale is 100 grams or less than the CAL zero point. Our Ld Over Load Overload message will appear when the scale weight is 103% over initial zero or displayed zero, whichever comes first. Seedburo Equipment Company | 9000AG Manual Revision 1.0... -
Page 14: Troubleshooting
Scale is Unstable digits constantly Try Increasing AVG parameter to AVG 16. Shield scale from wind currents. Place scale on solid table free from vibration. moving Make sure scale is level. Seedburo Equipment Company | 9000AG Manual Revision 1.0... -
Page 15: 9000Ag Technical Specifications
Pin 1 No Connection Pin 2 Transmit TXD Pin 3 Receive RXD Pin 4 No Connection Pin 5 Ground Pin 6 No Connection Pin 7 No Connection Pin 8 No Connection Pin 9 No Connection Seedburo Equipment Company | 9000AG Manual Revision 1.0...
