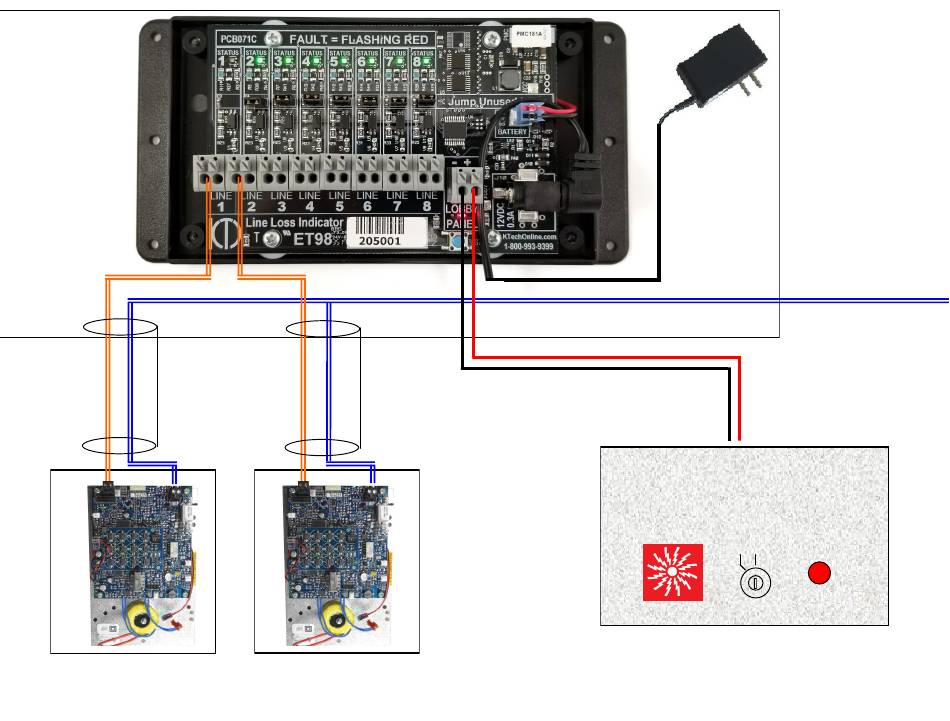

Machine Room
2 conductor wire
Min 18 ga.
Supplied by
Contractor
Traveling
cable
ET901A-OEMU-AM-3
Elevator #1
-
Traveling
cable
ET901A-OEMU-AM-3
Elevator #2—8
+
Wire to display (12VDC output)
Min 18 ga.
Supplied by Contractor
K-Tech ET98A Line Loss Indicator
115V AC Power
converter
Output 12V DC,
UL Listed
To Phone Company
(Twisted Shielded Wire)
Supplied by Contractor/
Phone Company
LED = 12VDC
Piezo = 12 VDC—
80DB minimum
-
+
ELEVATOR
COMMUNICATIONS
FAILURE
Off
On
Audible Alarm—shutoff—optional
FIRE PANEL—Elevators 1—8
Advertisement
Related Manuals for K-Tech ET98A
Summary of Contents for K-Tech ET98A
- Page 1 Wire to display (12VDC output) LED = 12VDC Min 18 ga. Piezo = 12 VDC— Supplied by Contractor 80DB minimum ELEVATOR COMMUNICATIONS FAILURE Audible Alarm—shutoff—optional FIRE PANEL—Elevators 1—8 ET901A-OEMU-AM-3 ET901A-OEMU-AM-3 K-Tech ET98A Line Loss Indicator Elevator #2—8 Elevator #1...
- Page 2 The ET98A Line Loss Indicator is an interface between the elevator phones and the lobby panel. Wiring: 1. Bring signal wires from elevator phone to left-hand side of ET98A. Wires must be 16 - 20 gauge and are not polarity specific. (Remove and save jumpers as needed.) 2.
