Summary of Contents for Domitech ZSC

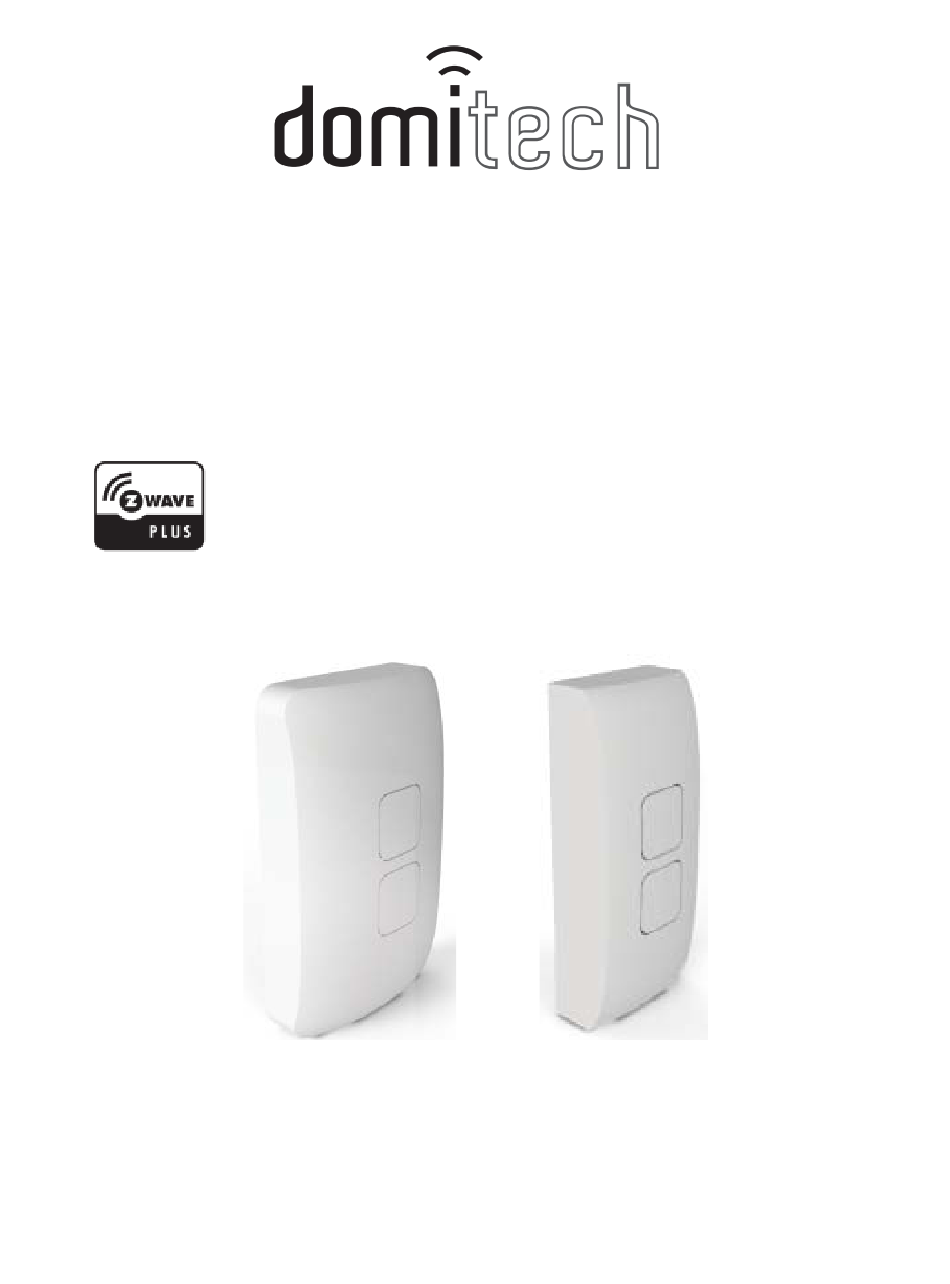

- Page 1 Model ZSC Wireless Control Device Z‐wave Switch Cover ZSC...
-
Page 2: Installation
Switch Cover ZSC is a member of the Z‐Wave® family and communicates with other Z‐Wave® certified devices in a control network. ZSC is designed to fit over the existing wall switch in the home, ensure that the smart LED bulb stays online all the time, and allow you to control the lights manually. The ZSC can control the Z‐wave Smart LED Bulb as well as other Z‐Wave light control devices. Different types and brands of Z‐Wave devices can be associated with domitech ZSC in your system and they will work together to optimize and enhance the comfort and convenience of your automated home lighting. FEATURES ... - Page 3 Step 1, place the double sided tapes in the 4 corners on the back side of ZSC main unit as shown. Step 2, stick the ZSC on top of your existing wall plate. Position the ZSC properly over the switch (the battery compartment should be on the bottom side and existing wall switch should be in ON position). Make sure the surface is clean and dry before securing. Step 3, secure the ZSC tightly by pressing firmly on the existing wall plate Installation by mounting screws If your existing light switch is a decorative type or toggle switch with screw holes that line up with ZSC, you may secure ZSC using screws. ...
- Page 4 (A) Install on a single gang switch Step 1, remove the mounting screws on the existing wall plate Step 2, remove the existing wall plate from the In‐wall Switch. Step 3, place the bottom case of ZSC to the In‐wall switch. Make sure the existing switch is in ON position. Step 4, tighten the mounting screws and secure the bottom case of ZSC ...
- Page 5 Step 5, place the wider faceplate on the ZSC main unit. (B) Install on a multi‐gang switch Step 1, remove the mounting screws on the existing wall plate that you wish to cover (do NOT remove the screws on other switch nor the wall plate). Step 2, place the bottom case of ZSC main unit on top of the existing faceplate. Make sure the existing switch is in ON position. Step 3, Secure the ZSC main unit to the existing wall plate using the included longer mounting screws. ...
- Page 6 Step 4, Snap‐in the narrower faceplate on the ZSC. Make sure the two buttons are flush with the surface of the faceplate. 2. INCLUSION Step 1, place your network controller into Inclusion mode by following the controller manufacturer’s instructions. Step 2, press any button on the ZSC. Step 3, a green LED will flash twice to indicate that ZSC Inclusion is successful. NOTE: If the inclusion was a fail, a red LED will flash on ZSC. Repeat the procedure. Before repeating the above steps, try moving the ZSC in the same room as your home gateway in case the preferred switch location is out of range initially. Repeat step 1‐3 until the ZSC is added to your network. Once the ZSC has been successfully added to your home network, you can move it to the preferred location in the home. Note: If Inclusion still fails after the 2 attempt, you need to first manually RESET the ZSC before repeating the above steps. Manual Reset – Press the Top button 3 times and then Bottom button 3 times very quickly within 2 seconds. LED will flash 7 times if RESET is successful. Repeat procedure until you see the LED flash 7 times. ...
- Page 7 … Button Top Bottom Bottom … Top Bottom Scene Number 1 2 … 199 4. ASSOCIATION (Turn ON/OFF and Dim UP/DOWN) The ZSC either control other devices or they issue various scene activation commands to a central controller. For direct device control are. Step 1, include your Smart Bulb into the network by following the controller and Smart Bulb instructions. Step 2, place your controller in ASSOCIATION mode with Group 2 or Group 3, and set the ZSC as DESTINATION. Depending on the Controller software, Association may be referred to as Smart Apps, “If, Then” type conditions, etc. Step 3, switch OFF and then ON the Smart Bulb for setting the Smart Bulb as a DESTINATION. Step 4, press any button for setting the ZSC as a SOURCE. Step 5, the LED will flash twice when it is successful. Turn ON Press and release the top button, Smart Bulbs in Group 2 will be turned ON. Press and release the top button twice (double click), Smart Bulbs in Group 3 will be turned ...
-
Page 8: Control Mode
Press the Top button 3 times and then Bottom button 3 times very quickly within 2 seconds. LED will flash 7 times if RESET is successful. Repeat procedure until the LED flashes 7 times. IMPORTANT NOTE: Please note that it is extremely important to follow the above procedure to have ZSC operate properly with your home gateway. Installation of ZSC ensures that the power to the smart light bulb always remains ON. Without the electrical power to the Smart Bulb, the Smart Bulb cannot be turned ON remotely nor function as a signal repeater to maintain proper Z‐ Wave network. About the Z‐Wave 500 Series Module with Z‐Wave Plus features: You can use a Z‐Wave certified portable or static controller to communicate with your Z‐ Wave devices. Depending on the capability of your controller or gateway software, the ... - Page 9 Normal operating temperature: 77°F (25°C) FOR INDOOR USE ONLY Interoperability with Z‐Wave® devices A Z‐Wave® network can integrate devices from various classes of products, and these devices can be made by different manufacturers. The domitech® product introduced in this instructions manual has a Z‐Wave Plus certification which guarantees such an interoperability. FCC ID: xxxxxxxxxxxx The Federal Communication Commission Radio Frequency Interference Statement includes ...
-
Page 10: Warranty
Warranty claims must be made by customer in writing within 30 days of the manifestation of a problem. Domitech’s sole obligation under the foregoing warranty is to repair, replace or correct any such defect that was present at the time of delivery, or to ...
