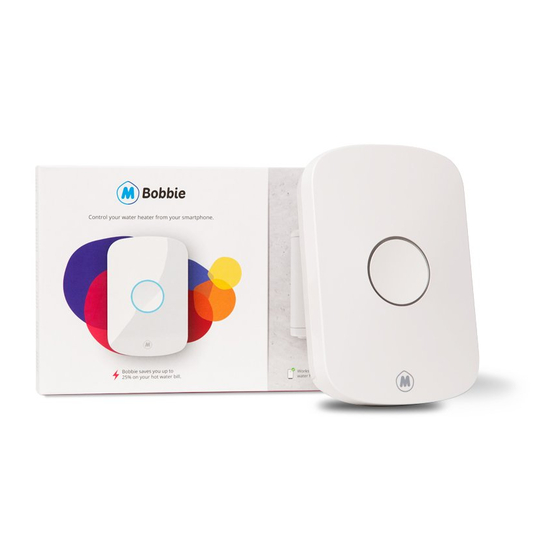

Summary of Contents for MClimate Bobbie B-05
- Page 1 Installation manual...
-
Page 2: Package Included
Package Included Bobbie Temperature sensors 1m cable 3x2,5m Fasteners Installation 2x brackets Installation template stickers... - Page 3 Compatibility Bobbie connects to your home Wi-Fi network so you can communicate with it through the internet from your smartphone. There’s a wired connection between Bobbie and your water heater so the device works as a switch. Bobbie connects to the 100-240V ~ mains supply. This makes it applicable to all brands and models of boilers in the market consuming up to 32A.
-
Page 4: Storage And Transport Conditions
Environmental conditions in which the device is intended to operate: - Indoor using; - for altitude up to 2000m; - for an ambient temperature: 0°С to +50°С; - for maximum relative humidity of 80% for temperature up to 31°С, decreasing linearly to 25% relative humidity at temperature 50°С;... -
Page 5: Safety Instructions
Safety instructions Please read the safety instructions before installing the device! Failure to follow the recommended instructions in this manual may be dangerous or be in violation of the law. The manufacturer Melissa Climate Plc., Is not respon- sible for any loss or damage caused by failure to follow the instructions in the operating instructions. - Page 6 Safety instructions 8. All connections to the controller must be carried out with cables with an insula- tion resistance not less than those with PVC insulation T90 ° C when it is intended to operate at ambient temperatures under 30 ° C and reaching 40 ° C, and with cables with an insulation resistance not lower than those with PVC insulation T105 °...
- Page 7 Safety instructions 16. Please check in every six months: - condition of the terminals - the reliability of connecting the external cables - the reliability of cable fixation - the integrity of the outer envelope - the outer shells and insulation integrity of the connecting cable - If necessary, tighten terminal screws and cable clamps.
- Page 8 Safety instructions Regarding to the application and service groups for HVES / SAS, the device is used in automation and HVAC, such as the management of accumulating water heaters for the purpose of energy management and user comfort. Regarding classification related to the safety of the output and all applicable restrictions, the device falls into the following groups: - overvoltage protection class →...
-
Page 9: Legal Notices
The MClimate and MClimate logo are trademarks of Melissa Climate Jsc. All other brands and product names mentioned herein are trademarks of their respective... -
Page 10: Installation
Installation 1. Shut off power supply through the main automatic switch. Be sure to disconnect the boiler power, using & a mains tester. bipolar switch to shut switchboard off the water heater power supply. 2. Remove the bottom cover of the water heater. - Page 11 Installation 3. Disconnect the power wires. Use a mains tester to make sure that there is no voltage in the supply wires. Use the stickers provided in the kit to indicate the purpose of each of the water heater power lines. Labels are labeled with L, N and symbols.
- Page 12 Installation 5. Mount Bobbie on the wall. Use the fasteners and make sure the device is stably attached to the wall. Lout 6. Mount the wires you have marked in step 3. Connect wire L to the terminal Lin, wire N to terminal N and ware marked with terminal G.
- Page 13 Installation 7. Connect the additional wire. The additional wire is provided in the kit for connecting your boiler to Bobbie. Mount the brown wire to the Lout terminal, blue wire to terminal N and Lout yellow-green to terminal G. Make sure that the wires are stable tight to the terminals! Only wires with the same cross section must be using! Check the maximum water heater current consumption: Current consumption up to 16A - wire cross section: 1,5mm2...
- Page 14 Installation 9. Install the water heater protective cover. Use the water heater installation manual to reattach the protective cover. 10. Connect the Bobbie sensors. The sensor cable ends with a connector (type RJ). Put it in position 5.
- Page 15 Installation 11. Fix all cables in the box. Insert the cables into the provided grooves in the box and tighten them with the bracket. 12. Place the plastic terminal cover over the terminal block. Mount the plastic terminal cover with the bolts provided in the set, with the symbol on the top.
- Page 16 Installation 13. Put Bobbie's top cover. Put Bobbie top cover to assemble the device. 14. Attach the sensors to the water heater pipes. Install the sensors to the hot and cold water pipes. The sensors must be attached to a heat conducting/metallic part.
- Page 17 Installation 15. Turn on the mains power. Turn on the mains power from automatic switch in switchboard. & switchboard Bipolar switch to shut off the water heater power supply.
- Page 18 16. Download the Bobbie mobile App You can download the Bobbie mobile app for iOS and Android from: www.mclimate.eu/bobbie/app Questions? For more information about the product and questions related to it, visit: www.mclimate.eu Проектирано и създадено от MClimate в България.
- Page 19 Colors Before making a connection Loading Waiting for SmartConfig Connecting to the router Connecting to the server Bobbie's button is surrounded by a lighted ring that suggests Bobbie's condition. After several flashes in pink, the condition switches to constant yellow. At this point, Bobbie expects a Wi-Fi configuration over the mobile application.
- Page 20 Once established connection Heating Save energy Maximum energy After successfully connecting to the MClimate server, Bobbie starts to pulse, suggesting that it is ready for use. Pulse in red: Water is heating Pulse in Green: Bobbie turns off water heater...
-
Page 21: Functions Of The Button
Functions of the button Reset Press and hold for 5s (the glowing ring lights up in pink). Hard Reset To reset the WiFi settings, hold down the button for 10s or until the glow ring is off. Toggle Short press, without holding the button, switches the state of the relay. -
Page 22: Eu Declaration Of Conformity
ID0123456789 IP 23 Bulgaria Manufactured by MClimate in Bulgaria Compliance with the WEEE Directive The appliance marked with this symbol should not be disposed of with other house- hold waste. It must be handed over to the relevant collection point for the recycling of waste electrical and electronic equipment. - Page 23 Thank you...
- Page 24 Designed by MClimate in Bulgaria.
