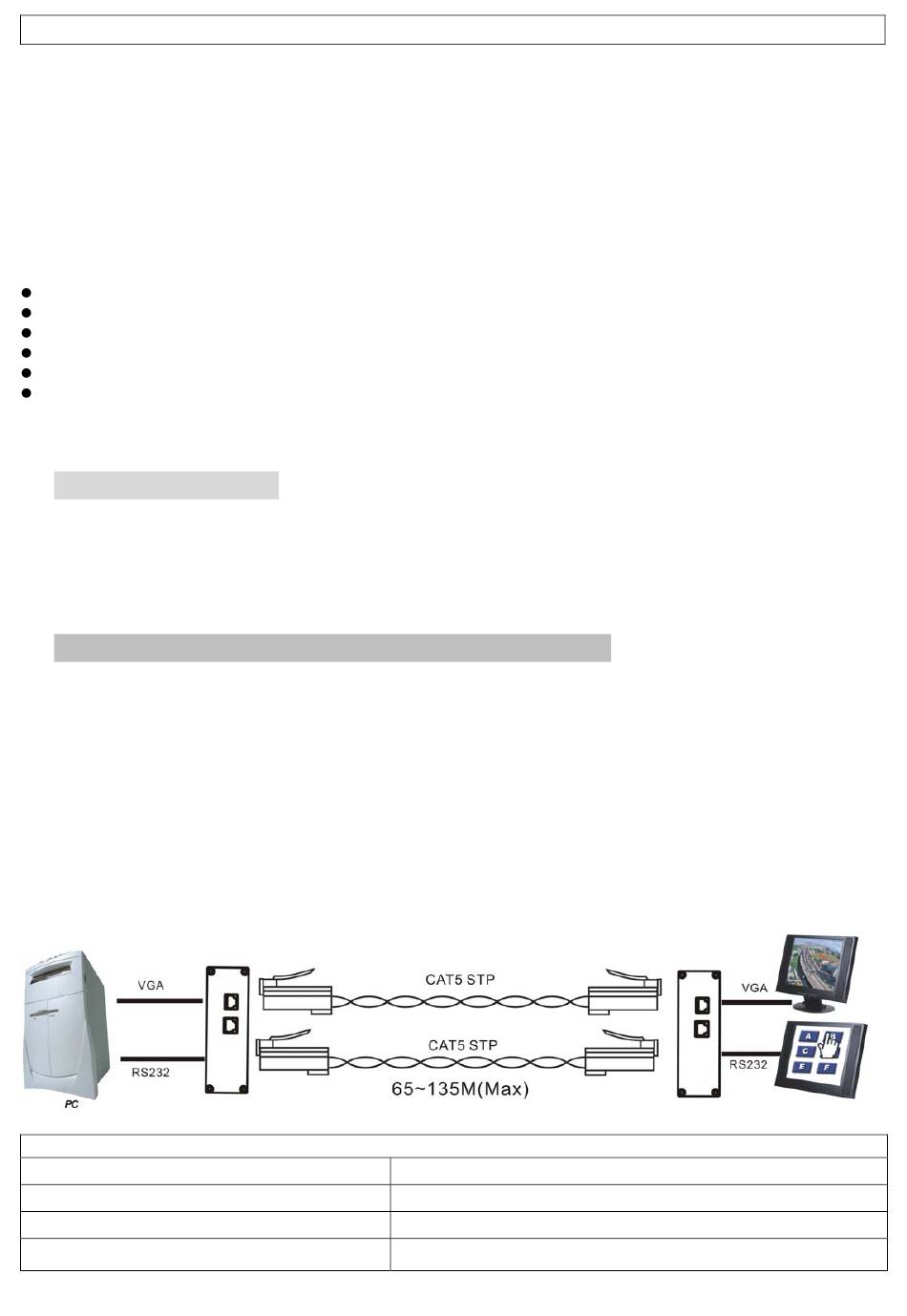

FORESIGHT VD01 Manual

ITEM NO.: VD01
VD01 is designed for VGA +RS232 data signal over cost effective CAT5 cable to instead
of VGA and Data cable. Used in pairs, the VGA & Data Extender is used in home or commercial
applications as a smart, fast and cost-effective, eliminates costly and bulky VGA and DATA cable,
allowing users can broadcast their video image or control a projector or any other RS-232 device
at a remote location. Ideal for sending video images to a projector and controlling it from you
desk. Perfect for touch screen or auto control equipment application.
VD01 CAT5 VGA & Data Extender
Features:
Send VGA and RS232 Data over 2 CAT5 cable instead of VGA cable and data cable.
Each set including transmitter and receiver.
Up to 135 meters via 4 pairs CAT5 STP cable instead of VGA cable.
Supports up to 1280x1024 pixels.
Application for sending Video images to a projector and controlling it from your desk
Perfect for touch screen and auto control equipment application.
Installation:
Recommend Cable:
1. CAT5e UTP/STP or Cat6 UTP cable.
2. There are some certain models or brands of monitors with very high demand at
sync-sensitive, recommend use STP (shielding twisted pair) cable to instead of UTP
(unshielded twisted pair) cable.
RJ45 Pin Configuration: TIA/EIA 568B Wiring standard
1. Orange-white
2. Orange
3. Green-white
4. Blue
5. Blue-white
6. Green
7. Brown-white
8. Brown
VD01
640x480 pixels (15MHz)
800x600 pixels (30MHz)
1024x768 pixels (60MHz)
1280x1024 pixels (100MHz)
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
CAT5 VGA & Data Extender
Red +
Red -
H-Sync
Green +
Green -
V-Sync
Blue +
Blue -
Max. Distance via CAT 5 Cable
135M
105M
75M
60M
