Elta ADT 406 AP User Handbook Manual
  1. Manuals
  2. Brands
  3. Elta Manuals
  4. Transmitter
  5. ADT 406 AP
  6. User handbook manual

Elta ADT 406 AP User Handbook Manual

Emergency locator transmitter in the cospas/sarsat system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Documentation P/N: 03E61013 Rev B
Initial issue: Feb 15/03
86(5¶6 +$1'%22.
86(5¶6 +$1'%22.
,1&/8',1* ,167$//$7,21 0$18$/
$1' /2* %22.
SERIAL NUMBER LABEL

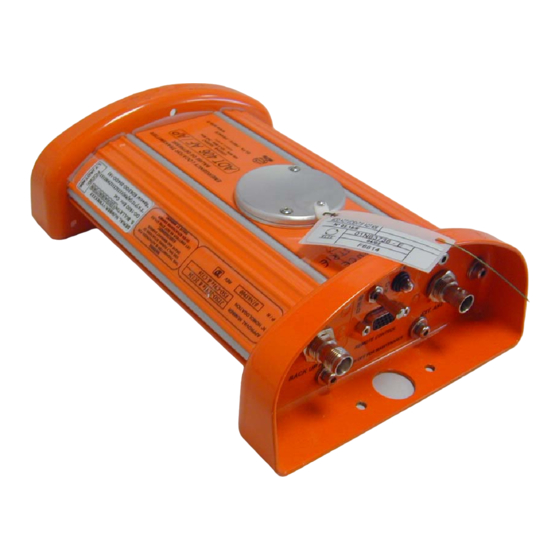

(0(5*(1&< /2&$725 75$160,77(5
02'(/ $'7  $3
,1 7+( &263$6  6$56$7 6<67(0
Issued by
)
14 Place Marcel Dassault
31702 BLAGNAC
www.elta.fr
(/7$
France
Title Page
Apr 17/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADT 406 AP and is the answer not in the manual?

Questions and answers

Related Manuals for Elta ADT 406 AP

Summary of Contents for Elta ADT 406 AP

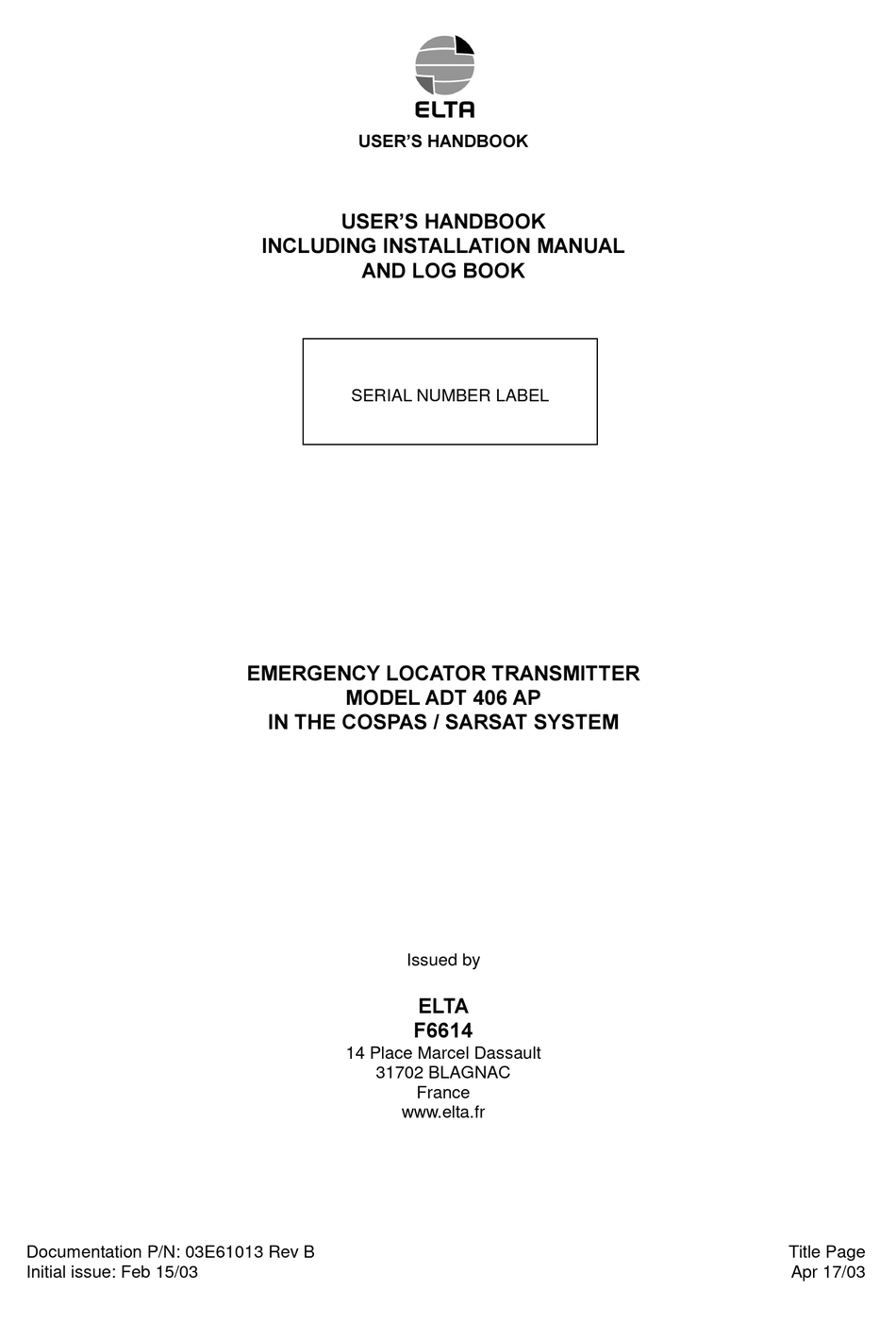

  • Page 1 SERIAL NUMBER LABEL (0(5*(1&< /2&$725 75$160,77(5 02'(/ $'7  $3 ,1 7+( &263$6  6$56$7 6<67(0 Issued by (/7$ ) 14 Place Marcel Dassault 31702 BLAGNAC France www.elta.fr Documentation P/N: 03E61013 Rev B Title Page Initial issue: Feb 15/03 Apr 17/03...
  • Page 2 86(5¶6 +$1'%22. LIST OF UPDATES INSERTION INSERTION UPDATE UPDATE ISSUE ISSUE DATE DATE INITIAL Feb 15/03 E.LABRIFFE Apr 17/03 E.LABRIFFE Page 1 Apr 17/03...
  • Page 3 86(5¶6 +$1'%22. PAGE INTENTIONALLY LEFT BLANK Page 2 BLANK...
  • Page 4 86(5¶6 +$1'%22. LIST OF EFFECTIVE PAGES CHAPTER/ CHAPTER/ DATE DATE PAGE PAGE SECTION SECTION TITLE PAGE Apr 17/03 Appendix A Feb 15/03 Feb 15/03 LISTE OF UPDATES Apr 17/03 Feb 15/03 BLANK Feb 15/03 Feb 15/03 LIST OF EFFECTIVE PAGE Apr 17/03 Appendix B BLANK...
  • Page 5 86(5¶6 +$1'%22. PAGE INTENTIONALLY LEFT BLANK Page 4 BLANK...
  • Page 6 Figure 3 : ELT ADT 406 AP – Dimensions (Basic Configuration) Figure 4 : Tolerances on the Axis for Installation of the ELT ADT 406 AP Figure 5 : Installation of the ELT ADT 406 AP - Drilling Pattern Dimensions...
  • Page 7 86(5¶6 +$1'%22. PAGE INTENTIONALLY LEFT BLANK Page 6 BLANK...
  • Page 8 86(5¶6 +$1'%22. LEADING PARTICULARS &$87,21   7+,6 75$160,77(5 ,6 $87+25,=(' )25 86( 21/< '85,1* 6,78$7,216 2) *5$9( $1' ,00,1(17 '$1*(5 &$87,21   ,7 ,6 ,03(5$7,9( 7+$7 ($&+ %($&21 2:1(5 5(*,67(56 7+(,5 %($&21 &217$&7 (/7$ 25 $33529(' $*(17 72 2%7$,1 7+( ,1)250$7,21 5(/$7,9( 72 7+,6 5(*,675$7,21 &$87,21   7+( %($&21 0867 ,03(5$7,9(/<...
  • Page 9 86(5¶6 +$1'%22. PAGE INTENTIONALLY LEFT BLANK Page 8 BLANK...

  • Page 10: Table Of Contents

    2. GENERAL DETAILS OF THE ELT ADT 406 AP A. Purpose of the ELT ADT 406 AP B. Characteristics 3. DESCRIPTION OF THE ELT ADT 406 AP AND OF THE AIRCRAFT COMPONENTS A. General description B. Detailed description 4. INSTALLATION OF THE ELT ADT 406 AP A.
  • Page 11 86(5¶6 +$1'%22. PAGE INTENTIONALLY LEFT BLANK Page 10 BLANK...

  • Page 12: Introduction To The Cospas-Sarsat System

    Since the first results were obtained several countries have joined the program. Several other countries have shown an interest and will soon be joining the COSPAS-SARSAT system partners. ELTA in relation with CNES (French National Space Agency) has developed the complete range of products required for COSPAS-SARSAT system operation.
  • Page 13 86(5¶6 +$1'%22. Legend : ELT : (mergency /ocator 7ransmitter EPIRB : (mergency 3osition ,ndicating 5adio %eacon PLB : 3ersonal /ocator %eacon RCC : 5escue &oordination &enters : 0ission &ontrol &enters LUT : /ocal 8ser 7erminals COSPAS/SARSAT – System Principle Figure 1 Page 12 Feb 15/03...

  • Page 14: The Distress Frequencies

    – Unique identification: each beacon has it’s own identification information. D. ELTA and the COSPAS-SARSAT system (1)406 MHz distress beacons: These beacons transmit to the satellites a digital message which identifies them and gives their position, as well as a signal that facilitates the final approach of the rescue teams.

  • Page 15: General Details Of The Elt Adt 406 Ap

    A. Purpose of the ELT ADT 406 AP (Ref. Fig. 2) The ELT ADT 406 AP consists of a beacon that incorporates means of attachment. The ELT ADT 406 AP is designed to transmit a digital distress signal to satellites that are part of the COSPAS/SARSAT SYSTEM.
  • Page 16 86(5¶6 +$1'%22. ELT ADT 406 AP - Overall Dimensions (Without optional protecting cover) Figure 3 Page 15 Apr 17/03...

  • Page 17: Characteristics

    ADT 406 AP is COSPAS/SARSAT approved (TAC 131, dated July 2002) ADT 406 AP meets EUROCAE ED62 standard ADT 406 AP is JTSO 2C91a and JTSO 2C126 (JTSO N° F.O. 0112 dated April 29, 2003) ADT 406 AP is TSO C91a and TSO C126 (TSO letter dated June 12, 2003)
  • Page 18 86(5¶6 +$1'%22. (c)Radio-electrical characteristics 1 406 MHz satellite transmitter – Frequency : 406.028 MHz, – transmitter power : 5 W, – modulation : "L" two-phase, – transmission recurrence : 50 s, – transmission duration : 440 or 520 ms. 2 Associated homing transmitter –...

  • Page 19: Description Of The Elt Adt 406 Ap And Of The Aircraft Components

    86(5¶6 +$1'%22. 3. DESCRIPTION OF THE ELT ADT 406 AP AND OF THE AIRCRAFT COMPONENTS A. General description (1)Introduction This beacon from the ADT406 family derives from the ADT 406 AF/AP model. Consequently, this beacon features the functional capabilities of the AF/AP besides its flotation gear, the attachment interface and its flexible antenna entirely compatible with Cospat/Sarsat.
  • Page 20 86(5¶6 +$1'%22. (2)The labels (a)Identification label This label indicates : – beacon name, manufacturer details, – the condition in which the beacon may be used (warning), – approval number, identification, part number, service bulletin, serial number and conditions on the use of the beacon.
  • Page 21 This label indicates the location of the connectors on the front face of the electronic assy. (d)Identification label This label indicates the axis according to which the ELT ADT 406 AP must be installed on the aircraft (see paragraph. 4.B.) for automatic activation (G-switch).
  • Page 22 86(5¶6 +$1'%22. ELT ADT 406 AP aircraft components (f)Remote control unit The remote control unit integrated in the aircraft cockpit consists of : – a RESET/TEST pushbutton, – an ELT ON indicator light, – a two-position ON/ARMED switch with safety cover (flip guard). The safety cover forces the switch to ARMED position.

  • Page 23: Installation Of The Elt Adt 406 Ap

    8° from the aircraft flight axis could be allowed. An angle of up to 3° from the aircraft horizontal axis could be allowed. Tolerances on the Axis for Installation of the ELT ADT 406 AP Figure 4 Page 22 Feb 15/03...
  • Page 24 86(5¶6 +$1'%22. The beacon can be installed in any position (normal, upside down, right side, left side) with respect with the G-Switch activation direction stated on figure 4. The activation / identification assy of the beacon can be installed in four positions. Three alignment pins on the beacon board allow to set it in the required position.
  • Page 25 The figure 5 shows the drilling pattern dimensions and determine the required area to access to the beacon controls and connectors. ELTA Recommendation Optional for Other Beacon Retrofit Installation of the ELT ADT 406 AP - Drilling Pattern Dimensions Figure 5 Page 24 Feb 15/03...

  • Page 26: External Antenna Installation

    Radio Frequency losses and/or cable destruction in case of crash. D. Remote control unit installation The ELT ADT 406 AP can be remotely controlled by using a remote control panel installed in the cockpit of the aircraft. The maximum length of this link is 200 meters and requires no grounded cable. The link requires 4 wires.
  • Page 27 86(5¶6 +$1'%22. The following simplified diagram shows the wiring between the ELT ADT 406 AP and its peripherals : – The Remote Control Panel (in cockpit) identified as "RCP", – the external antenna noted as "EA", – the whip antenna noted as "BA".

  • Page 28: Installation And Configuration Of The Beacon

    86(5¶6 +$1'%22. E. Installation and configuration of the beacon (Ref. Fig. 5) (1)Installation in automatic mode &$87,21  72 %( 23(5$7,21$/ 7+( %($&21 6+$// %( ,1 $50(' 326,7,21 21&( ,7 +$6 %((1 &255(&7/< ,167$//(' Connect the antenna cable to the EXT. ANT. connector. Switch the Remote Control ON/ARMED lockable toggle switch to "ARMED"...

  • Page 29: Utilization Of The Elt Adt 406 Ap

    86(5¶6 +$1'%22. 5. UTILIZATION OF THE ELT ADT 406 AP (Ref. Fig. 7) &$87,21  ,1 7+( (9(17 2) 817,0(/< %($&21 $&7,9$7,21 6+87'2:1 7+( %($&21 $1' ,1)250 7+( &/26(67 6($5&+ $1' 5(6&8( 6$5 25 $,53257 &21752/ 72:(5 ,00(',$7(/< The ELT ADT 406 can be activated in two modes : –...
  • Page 30 86(5¶6 +$1'%22. If the aircraft has to be evacuated, Follow the instructions : - unfasten the strap (and the cable if relevant), - remove the beacon from its bracket, pull firmly to brake the retaining metallic strap (14, Ref. Fig. 7). - extend the antenna and take the beacon with you.

  • Page 31: Beacon Shutdown

    %(&$86( 7+( (/7 ,6 6(1',1*  0+= 6,*1$/ )25  6 '85,1* 7+,6 352&(66 /,0,7$7,21 2) )$/6( $/(57  The ELT ADT 406 AP is designed to perform a self-test, from the remote control unit, or as soon as the beacon is started up manually.
  • Page 32 86(5¶6 +$1'%22. Then the beacon enter in a waiting condition for 30 s (rate : 1.75s ON; 0.25s OFF). During this state return the switch (12) to ARMED position. &$87,21  23(5$725 6+$// 6:,7&+ 2)) 25 $50(' 7+( (/7 :,7+,1  6 $)7(5 6(/)7(67 5(3257 72 $92,' 5($/ ',675(66 75$160,66,21 (2)Self-test by means of the remote control unit The beacon’s ARMED/OFF/ON toggle switch (12) must be in ARMED position.

  • Page 33: Maintenance Of The Elt Adt 406 Ap

    &$87,21  7+( %$77(5,(6 86(' &$1127 %( 5(&+$5*(' '2 127 75< 72 23(1 25 5(&+$5*( 7+(0 Next battery servicing date is indicated on a label stuck on the back face of ADT 406 AP. The old batteries must be replaced with new batteries of a model approved by ELTA P/N 02N60052 (battery servicing for one ELT) or 02N60053 (battery servicing for ten ELTs).

  • Page 34: Battery Discarding

    Perfoms the following tests described in CMM 25-60-10 : – visual check, – test of acceleration sensor automatic triggering, – functional test of ADT 406 AP beacon, – RF test on the operational frequencies 121.5 – 243 – 406 MHz. Page 33...
  • Page 35 10 – REMOTE CONTROL CONNECTOR(FEMALE HD 15 PINS) 11 – TX LED 12 – ARMED/OFF/ON TOGGLE AND GUARDED SWITCH 13 – BACK UP ANT. TNC CONNECTOR (FEMALE) 14 – METALIC STRAP. ELT ADT 406 AP – Detailed Description Figure 7 Page 34 Apr 17/03...
  • Page 36 COSPAS-SARSAT TYPE APPROVAL CERTIFICATE Appendix A page 1 Feb 15/03...
  • Page 37 JTSO 2C91a AND JTSO 2C126 APPROVAL Appendix A page 2 Feb 15/03...
  • Page 38 TSO C91a AND TSO C126 APPROVAL Appendix A page 3 Feb 15/03...
  • Page 39 Appendix A page 4 Feb 15/03...
  • Page 40 Crash Sensor Response Curve Appendix A page 5 Feb 15/03...
  • Page 41 /2* %22. FACTORY SETTING NEXT BATTERY SERVICING ……../……………. (MM/YYYY) Appendix B page 1 Feb 15/03...
  • Page 42 /2* %22. FACTORY SETTING Appendix B page 2 Feb 15/03...
  • Page 43 CONTACT (PHONE, email… ): ISSUED BY: DATE: … … /… … /… … … … (MM/DD/YYYY) SIGNATURE AND STAMP: NOTE : Attach the encoding update sheet issued from the ELTA encoding tool. REGISTRATION COUNTRY: ELT SERIAL NUMBER: PROTOCOL: ELT S/N...
  • Page 44 CONTACT (PHONE, email… ): ISSUED BY: DATE: … … /… … /… … … … (MM/DD/YYYY) SIGNATURE AND STAMP: NOTE : Attach the encoding update sheet issued from the ELTA encoding tool. REGISTRATION COUNTRY: ELT SERIAL NUMBER: PROTOCOL: ELT S/N...
  • Page 45 CONTACT (PHONE, email… ): ISSUED BY: DATE: … … /… … /… … … … (MM/DD/YYYY) SIGNATURE AND STAMP: NOTE : Attach the encoding update sheet issued from the ELTA encoding tool. REGISTRATION COUNTRY: ELT SERIAL NUMBER: PROTOCOL: ELT S/N...
  • Page 46 CONTACT (PHONE, email… ): ISSUED BY: DATE: … … /… … /… … … … (MM/DD/YYYY) SIGNATURE AND STAMP: NOTE : Attach the encoding update sheet issued from the ELTA encoding tool. REGISTRATION COUNTRY: ELT SERIAL NUMBER: PROTOCOL: ELT S/N...
  • Page 47 CONTACT (PHONE, email… ): ISSUED BY: DATE: … … /… … /… … … … (MM/DD/YYYY) SIGNATURE AND STAMP: NOTE : Attach the encoding update sheet issued from the ELTA encoding tool. REGISTRATION COUNTRY: ELT SERIAL NUMBER: PROTOCOL: ELT S/N...
  • Page 48 CONTACT (PHONE, email… ): ISSUED BY: DATE: … … /… … /… … … … (MM/DD/YYYY) SIGNATURE AND STAMP: NOTE : Attach the encoding update sheet issued from the ELTA encoding tool. REGISTRATION COUNTRY: ELT SERIAL NUMBER: PROTOCOL: ELT S/N...
  • Page 49 NEXT BATTERY SERVICING: … … /… … … … (MM/YYYY) DATE: … … /… … /… … … … (MM/DD/YYYY) REPAIR STATION: SIGNATURE AND STAMP: NOTE : Attach the RF test sheet issued from the ELTA test tool. FINAL OPERATOR: TYPE OF MAINTENANCE: BATTERY SERVICING INSPECTION REPAIR...
  • Page 50 NEXT BATTERY SERVICING: … … /… … … … (MM/YYYY) DATE: … … /… … /… … … … (MM/DD/YYYY) REPAIR STATION: SIGNATURE AND STAMP: NOTE : Attach the RF test sheet issued from the ELTA test tool. FINAL OPERATOR: TYPE OF MAINTENANCE: BATTERY SERVICING INSPECTION REPAIR...
  • Page 51 NEXT BATTERY SERVICING: … … /… … … … (MM/YYYY) DATE: … … /… … /… … … … (MM/DD/YYYY) REPAIR STATION: SIGNATURE AND STAMP: NOTE : Attach the RF test sheet issued from the ELTA test tool. FINAL OPERATOR: TYPE OF MAINTENANCE: BATTERY SERVICING INSPECTION REPAIR...
  • Page 52 NEXT BATTERY SERVICING: … … /… … … … (MM/YYYY) DATE: … … /… … /… … … … (MM/DD/YYYY) REPAIR STATION: SIGNATURE AND STAMP: NOTE : Attach the RF test sheet issued from the ELTA test tool. FINAL OPERATOR: TYPE OF MAINTENANCE: BATTERY SERVICING INSPECTION REPAIR...
  • Page 53 NEXT BATTERY SERVICING: … … /… … … … (MM/YYYY) DATE: … … /… … /… … … … (MM/DD/YYYY) REPAIR STATION: SIGNATURE AND STAMP: NOTE : Attach the RF test sheet issued from the ELTA test tool. FINAL OPERATOR: TYPE OF MAINTENANCE: BATTERY SERVICING INSPECTION REPAIR...
  • Page 54 NEXT BATTERY SERVICING: … … /… … … … (MM/YYYY) DATE: … … /… … /… … … … (MM/DD/YYYY) REPAIR STATION: SIGNATURE AND STAMP: NOTE : Attach the RF test sheet issued from the ELTA test tool. FINAL OPERATOR: TYPE OF MAINTENANCE: BATTERY SERVICING INSPECTION REPAIR...

This manual is also suitable for:

Adt 406 af
