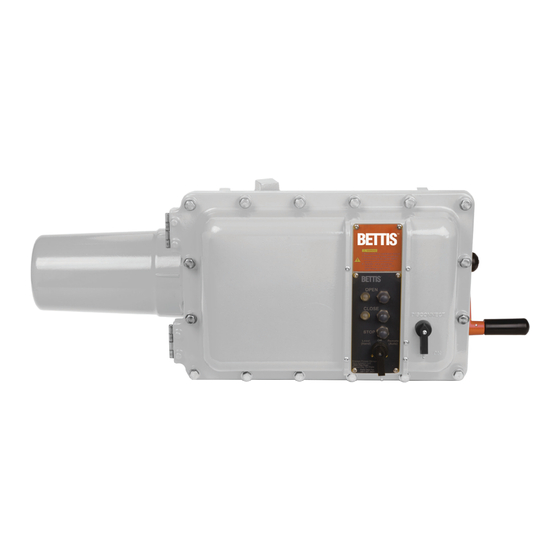

Summary of Contents for EIM 2000 Series
- Page 2 The control module uses EIM’s M2CP TBM01 termination panel for interface of all analog control types. The Digital Futronic module converts 4-20mA analog input to digital for processing and from digital to 4-20mA analog output for position feedback.
- Page 3 IGURE MPORTANT OTICE Jumper J8 located on the bottom of TBM01 must be in the 24V position before the Digital Futronic card will operate. EIM Company, Inc 13840 Pike Road Missouri City, TX 77489 (281) 499-1561 Page 2...
- Page 4 After the 4-second delay, LED1 will then flash at the normal rate defined under Indicator Lights above. If unable to correctly count the number of flashes to properly determine the firmware version number, then cycle power to the actuator and the display process will repeat. EIM Company, Inc 13840 Pike Road Missouri City, TX 77489...
- Page 5 S5 OFF and S6 ON Select Futronic IV mode (Triac solid-state (SSR) motor starter) S5 ON and S6 ON Select Futronic VII mode (MOSFET solid-state (SSR) motor starter) EIM Company, Inc 13840 Pike Road Missouri City, TX 77489 (281) 499-1561...
- Page 6 When setup is complete, place selector switch in “Local” mode and stroke valve from limit to limit for two full strokes. This allows the controller to calibrate the analog position feedback to the position limits before operation in remote control mode. EIM Company, Inc 13840 Pike Road Missouri City, TX 77489...
- Page 7 AC motor is used, then the delay is 12 seconds or 300 starts per hour. The delay between motor control pulses while the valve is being jogged to position is automatically reduced to one second. EIM Company, Inc 13840 Pike Road Missouri City, TX 77489...
- Page 8 SCR motor control module. The Digital Futronic module regulates full speed of the motor, maintaining accurate speed/valve travel time regardless of high or low power line conditions and varying load conditions. Valid only for Futronic III. EIM Company, Inc 13840 Pike Road Missouri City, TX 77489...
