SYSTEM OVERVIEW

®
The Telesis TMP4500E marking system permanently prints
messages into a variety of materials such as steel, aluminum, and
plastic. A hardened pin is accelerated to indent dot matrix
characters into the item being marked at depths up to .45 mm
(.018 in.) in mild steel. Character shape, size, density, and location
are determined by the user through the marking system software.
The Marking Head is an electromechanical marker. A metal-
formed cover houses the internal, mechanical components that
position the pin cartridge. An electric solenoid fires the marking
pin and an internal spring returns the pin to its idle position within
the cartridge. The marking head moves the pin cartridge through
X- and Y-axis rectilinear motions to reach the correct position for
each dot of the characters to be marked. The system software
automatically controls pin extension to mark the message.
The marker uses two stepper-motor drives to rapidly and
accurately position the pin at coordinate-defined locations in the
marking window within .006 mm (.00024 in.). The marker
accommodates the rigorous dynamics of impacting, rebounding,
and rapid positioning of the marking pin through a linear
rail/ball bearing saddle assembly, ceramic-coated guide
shaft/linear bushing assemblies, and drive motors with
concentric, linear drive screws.
The lightweight and portable TMP4500E is designed for remote
operation. The hand-held marker incorporates a pistol grip
handle with a Start Print pushbutton switch. A rear-mounted
handle provides additional stability during marking. It can be
used in virtually any orientation.
The integral standoff with its padded front surface is held
against the marking surface while marking. The standoff can be
adjusted forward and aft to change the pin stroke..
The integral standoff with its padded front surface is held
against the marking surface while marking. The standoff can be
adjusted forward and aft to change the pin stroke.

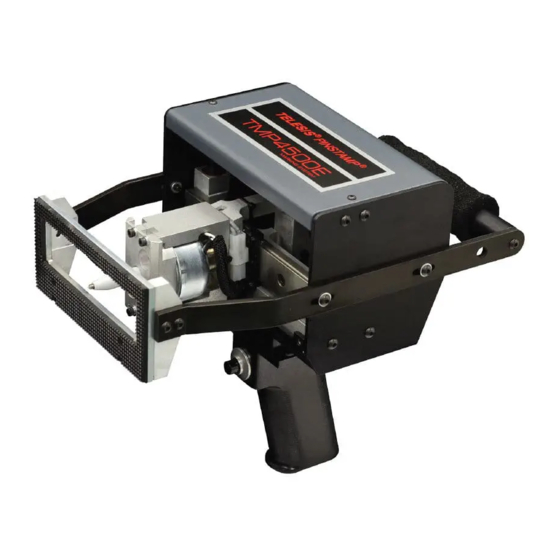

78811A

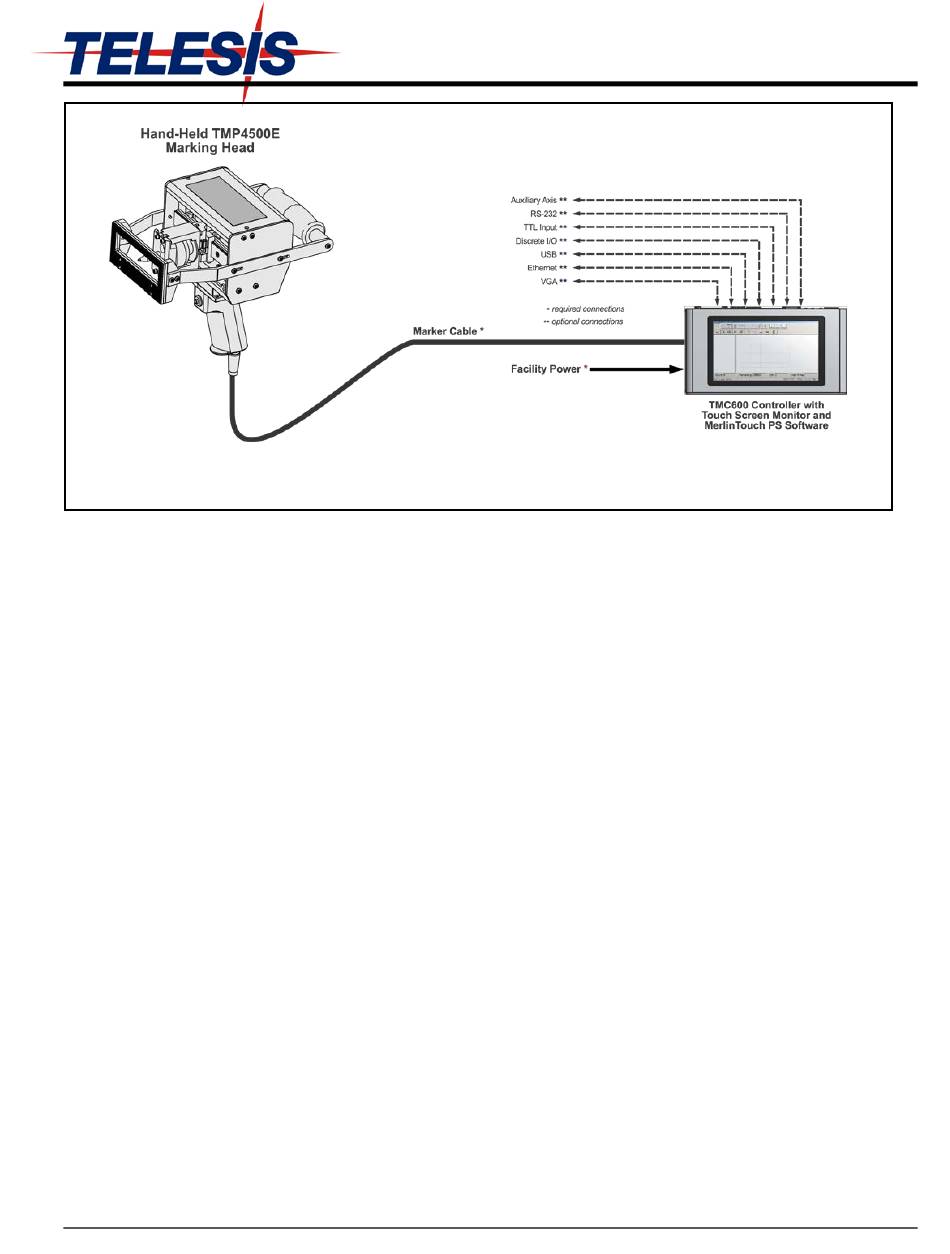

TMP4500E/600 Marking System – General Arrangement
© 2014 Telesis Technologies, Inc. – All Rights Reserved
TMP4500E/TMC600 Marking System
A tapped hole is provided in the top of the marking head
(beneath the label) to allow for installation of an eye bolt. The
eyebolt allows the marker to be suspended from a mechanical-
assist device such as a cable or cable balancer.
The Pin Cartridge, machined from engineered plastic
materials, offers long life with little maintenance. Screws attach
the pin cartridge to the marking head for easy removal, cleaning,
and pin replacement. The cartridge/solenoid assembly can be
configured for Long Throw or Short Throw operation. Long
Throw configuration allows for deeper marks while Short
Throw configuration allows for faster marking.
The Marking Pins are made of carbide and are available in 30°
and 45° cone angles.
The Marker Cable connects the marker to the controller. The
cable is 4 m (13 ft.) long and is pre-wired to the marking head.
TMC600 Controller runs the MerlinTouch PS software and
provides the user interface for operating the marking system. The
controller features an integrated, 10-in., high-resolution, touch
screen monitor in the top panel. The back panel of the controller
provides the electrical interface for connecting to optional, remote
I/O sources. See TMC600 Controller Specifications for details.

SYSTEM OPTIONS

•
Bar Code Scanner
•
Bar Code Wand
•
Logo/Font Generator Software
•
Marking Head Extension Cables
•
TMC600 Controller Wall-mounting Bracket Kit
•
USB mouse and Keyboard
•
Tool Stand (for fixed-mounting applications)
