Lat-Lon Solar Tracking Unit (STU)
With Sensor Options
User's Guide and Installation Instructions
Version 1.1 (A)
X13000
May 28, 2009
LAT-LON, LLC
4251 S. Natches Court, Unit C
Sheridan, CO 80110
877-300-6566 Phone 303-531-5754 Fax
www.lat-lon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solar Tracking Unit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lat-Lon Solar Tracking Unit

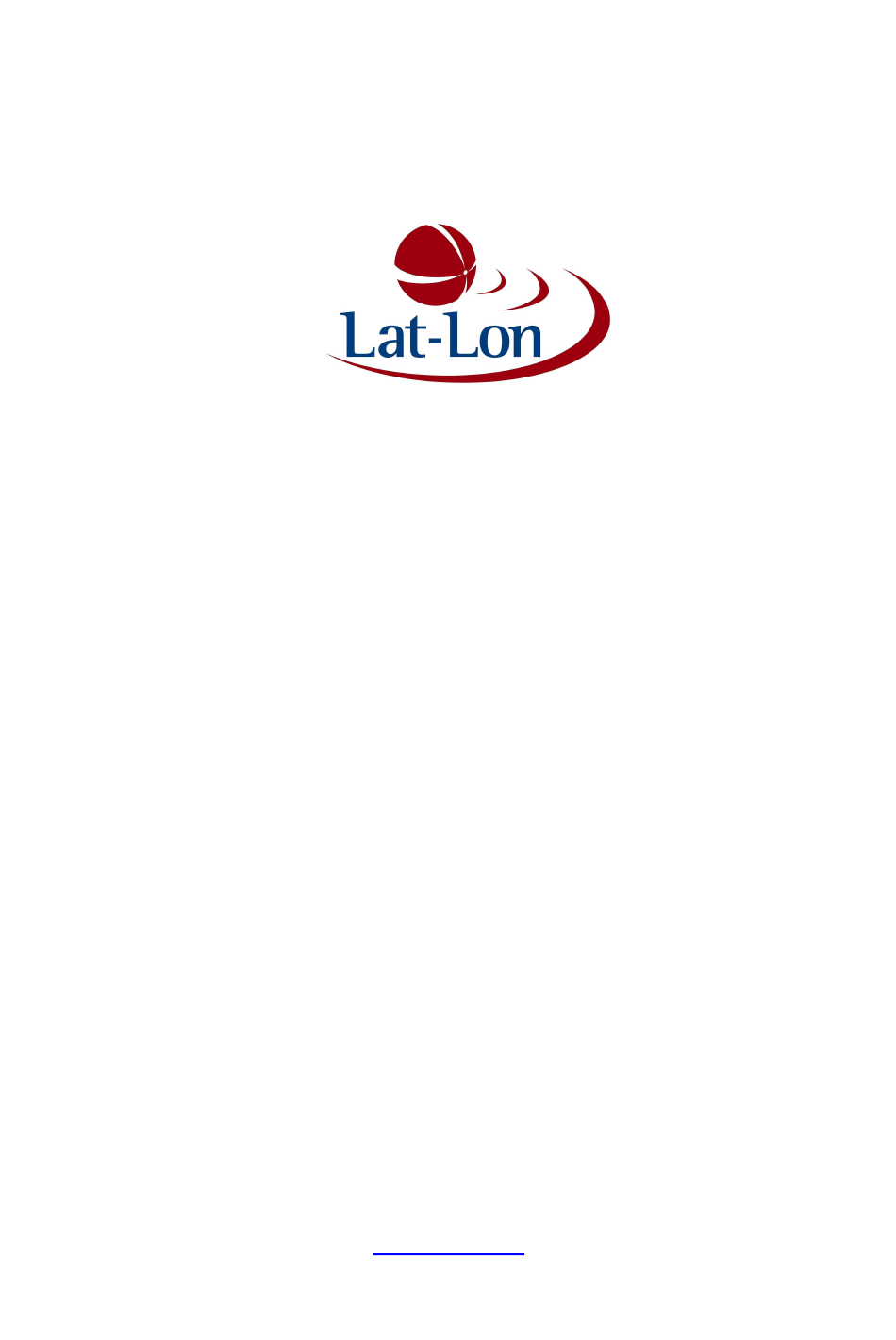

  • Page 1 Lat-Lon Solar Tracking Unit (STU) With Sensor Options User’s Guide and Installation Instructions Version 1.1 (A) X13000 May 28, 2009 LAT-LON, LLC 4251 S. Natches Court, Unit C Sheridan, CO 80110 877-300-6566 Phone 303-531-5754 Fax www.lat-lon.com...
  • Page 2 © 1999-2008. Lat-Lon, LLC. All rights reserved. The information in this users guide was written for the X12000 TTU. Lat-Lon operates a policy of ongoing development. Lat-Lon reserves the right to make changes and improvements to any of the products described in this document without prior notice.
  • Page 3 equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment.
  • Page 4: Table Of Contents

    Contents STU BASIC INFORMATION ......................5 SYSTEM OVERVIEW ..........................5 HARDWARE .............................. 6 BACKGROUND INFORMATION ........................7 STU MOUNTING INSTRUCTIONS ....................... 9 STU ELECTRICAL SPECIFICATIONS: ......................10 MECHANICAL SPECIFICATIONS: ......................10 STU FUNCTIONAL SPECIFICATIONS: ......................10 OPTIONAL SENSORS: ........................11 STU IMPACT DETECTION ........................
  • Page 5: Stu Basic Information

    STU BASIC INFORMATION SYSTEM OVERVIEW The Lat-Lon Solar Tracking Unit (STU) is a wireless data system that monitors several parameters on a trailer, railcar, locomotive or any other equipment including GPS data, and sends that data from most any location world wide to Lat-Lon’s database and website. The radio communicates via the GSM digital cellular network.
  • Page 6: Hardware

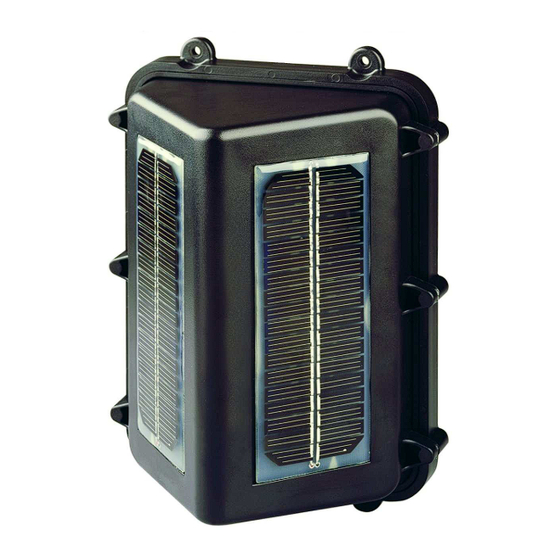

    HARDWARE Included Hardware The STU unit (triangular box 9.75” x 7.25” x 4.25”) is a self contained unit that includes everything that is required to track an asset. The unit contains an internal GPS and data communication antenna, a GPS receiver, a data communications radio, a rechargeable hybrid battery, and a processor board.
  • Page 7: Background Information

    2. The power of the unit has dropped below its normal operation threshold Communication requires sufficient proximity to a cell tower for adequate signal strength and the ability of the unit to reach the Lat-Lon web-site (via the internet) for validation that the message was received.
  • Page 8 The STU can achieve different qualities of location fix. It reports this quality level by reporting how many satellites were used in the solution. The more satellites used, the better the location precision. If six or more satellites are used in the solution, then it will be accurate to 10 meters 95% of the time.
  • Page 9: Stu Mounting Instructions

    STU LED Blink Codes (LED only installed on units with magnetic mount) 1 blink per 10 seconds = normal 1 blink per minute = low power (not able to create message) 1 blink per second = excess power Steady on for 5 – 10 seconds = packet transmitting STU (no sensors, no impact detection) MOUNTING INSTRUCTIONS Items Provided STU unit (triangular box 9”...
  • Page 10: Stu Electrical Specifications

    STU ELECTRICAL SPECIFICATIONS: GSM quad band 850/1900 MHz and 900/1800 MHz GPRS Class 10 GPS receiver sensitivity: -160 dBm 600 mA-hour NiMH rechargeable battery 2F super-capacitor rapid charge energy storage Dual 0.9 Watt 24-cell solar panels MECHANICAL SPECIFICATIONS: Size: 9.2” x 6.8” x 4.25” Weight: 2 lbs.
  • Page 11: Optional Sensors

    5G 100Hz 5DV (delta velocity) These thresholds can be changed over the air via the Lat-Lon website (see the Website Manual for more information) Below is a chart of a high G force, short interval impact. The force measured at 100Hz was 18.0G’s and the force measured at 10Hz was 1.5G’s.
  • Page 12 Time (sec) Alarm Event An impact ALARM can be sent to your email address, or text message cell phone (contact your Lat-Lon representative to have this set up). The ALARM event will give you the following information: Time of the event...
  • Page 13: Stu/I Mounting Instructions

    STU/I MOUNTING INSTRUCTIONS Items Provided STU unit (triangular box 9” x 7.25” x 4.25”) Items Needed Lift, ramp or other approved system able to reach mounting location Installation Procedure 5. Remove STU from its delivery box 6. We HIGHLY RECOMMEND putting the STU outside in direct sun as soon as received to allow for solar charging of the batteries (even if you are not installing right away).
  • Page 14: Stu Rf Wireless Sensors

    Measures an analog value of the tilt reading and also a digital that the tilt changed by more than X (X is programmed here at Lat-Lon when we make the unit). The tilt also creates a digital value of 1 when it’s at the high-end of its range and 0 when it’s at the low end of its analog range.
  • Page 15: Rf Wireless Sensor Installation

    Silicone to back side of the sensor and press on. Then wire tie sensor to keep it in place while silicone dries. Installation for the RF Wireless Sensor depends on the application you will be using it on. (Please call Lat-Lon, LLC at 1-877-300-6566 for additional installation information)
  • Page 16: Stu Camera

    STU CAMERA Camera resolutions available: 640x480 320x240 160x128 The picture is a JPG color image. The user can select the resolution (via our website) and also the time to white-balance prior to capturing the picture. Triggers for pictures are: 1. Paging the unit 2.
  • Page 17: Stu Camera Installation

    STU CAMERA INSTALLATION Items Provided STU unit (triangular box 9” x 7.25” x 4.25”) Mounting Options Magnetic Mount Saddle Mount (pictured to right) Bolt-on Mounting Plate Items Needed Lift, ramp or other approved system able to reach mounting location Installation Procedure 9.
  • Page 18 P. Due to transmission of RF signal we suggest installing the STU with a clear view in front of it. However, we understand this is not always possible therefore, a good rule of thumb would be to have at least 6 feet of clearance in front of the STU in order to avoid reception problems.
