TPMS USER MANUAL

Table of Contents

Need help?

Do you have a question about the TPMAI1DIC1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Foryou TPMAI1DIC1

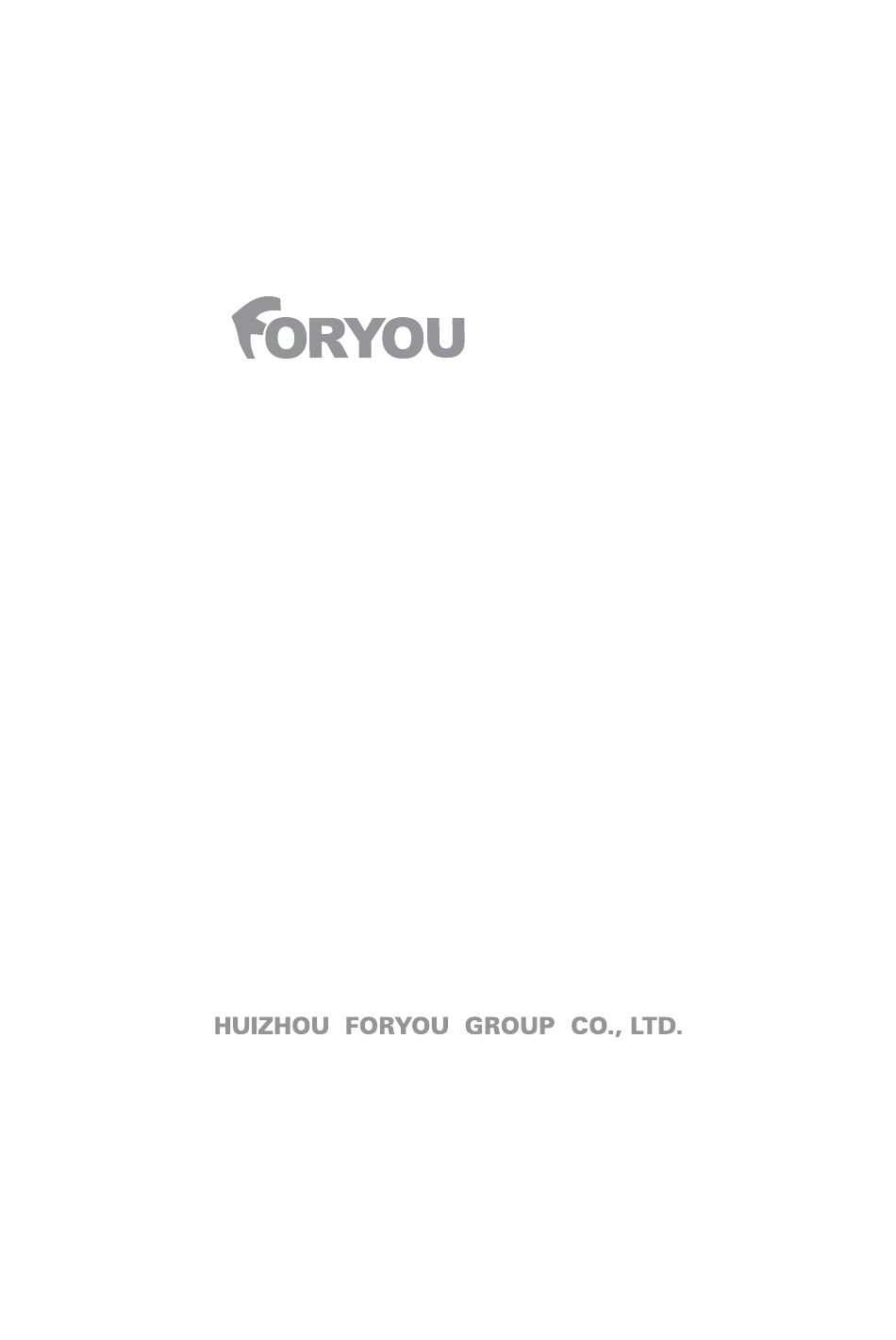

Page 1 TPMS USER MANUAL TPMS USER MANUAL...
Page 3 Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation...
Page 4 TPMAI1DIC1 USER MANUAL Thank you for choosing products. Please carefully read the manual, you will learn to use all the functions of the new tire pressure monitoring system This product is applicable to passenger cars...
Page 5: Table Of Contents
Precautions Product description Installation Transmitter installation steps Receiver installation steps Operation System introduction System settings Backlight settings Common alerting mode Troubleshooting Disclaimer Equipment connection Contents...
Page 6 Before using this product, please be sure to have read the <User Manual> This product is applicable to 12V cathode grounding battery system car, please do not install the product in 24V truck or bus. Do not install the product in the field of impacting driver's vision or driving operation.
Page 7 Composing component Tire Pressure Monitoring System includes the following components: Name Icon Amount Receiver Transimitter Paste board Product technical specifications Transimitter ℃ ℃ Operating temperature ~ 105 ≤95%RH Operating humidity 73×67×20mm Product Size Product life Normal use>6 years Pressure measuring range 0kPa~800kPa Transimitter frequency 433 92MHz...
Page 8: Installation
Transmitter installation steps: remove tires from the car, remove the rubber tire after the tires were deflated clean the rim Screw the protective cap, jacket nut, flat washer from the transmitter to be installed. sensor rubber washer flat washer jacket nut protective cap Insert sensor into the corresponding location of the tire valve, and then be fixed by jacket nut.
Page 9: Receiver Installation Steps
Receiver installation steps: Take out receiver, receiver paste board from the box. Tear up the adhesive protective film on paste board, stick the receiver on the selected position, adjust the position of the receiver in order to help the driver read the display information on the LCD screen.
Page 10: System Introduction
System Introduction After the receiver power wiring is connected, the vehicle ignition switch turns on, the system start self-checking. LCD screen light up all the display information ,at the same time buzzer starts buzzing. Pressure Units:kPa Tire (Tyre) key Pressure Units:psi Backlight (Light) key Pressure Units:bar Menu key...
Page 11 After self-checking passed, the system enter into tire checking status display, (below) normal work interface, if the self-checking does not pass, buzzer start buzzing and LED light lights up. ： Note The system will displays the data it stored last time when turning on the ignition switch after the automobile being parked a period of time, and will refresh in one minute when the speed of the vehicle arrive 20 km/h.
Page 12: System Settings
System Settings In normal working mode,press key for 3 seconds to enter into the menu settings interface,press key can switch between and then press key can enter into corresponding function settingmode or press for 3 seconds to exit from the interface: Tire information display setting 。...
Page 13 Units display settings Press key to select function display mode Press key to enter into unit display setting mode,press key to select pressure unit Press key to complete the pressure unit setting,and enter into temperature unit setting. Press key to select temperature unit Press Key To Save Settings Or Press Key Not...
Page 14 (Pressure and temperature limits setting) Press key to select function display mode Press key to enter into pressure, temperature alerting limit setting mode, press key to select (the factory default settings / user-settings). After selected ,press key to display factory default high-pressure limit, and then press key to display the factory default low-pressure limit, press...
Page 15 After select ,press key to operate self-setting limit (defaulting select the first number of high-pressure limit), press key to select setting position, the selected position will keep flashing until the next position is selected by pressing key. Press key to adjust the size of flashing bit values until the last high-temperature limit is set up,.Press key to save settings or press...
Page 16 (Tire ID exchange setting) Press key to select function display mode Press key to enter into the tire ID exchange mode, press key to select the tire, selected tires keep in flashing state. Press key, the No. on corresponding location of selected tire starts flashing, press key to adjust( ) to the No.
Page 17 (Tire ID No. read setting) Before system work properly, the tires ID No. need to be read, then the transmitter can send data to the receiver real-time. Press key to select function display mode Press key to enter into the tire ID No. read mode, press key to select the tire, selected tires keep in flashing state.
Page 18: Backlight Settings
Finish learning of other tires according above steps Note ] ID No. studying has been completed before leave factory, please follow the transmitter ＞ stickers to install. Tire ID No. studying, relative atmospheric pressure is / = to 60kPa, the deflation is 30kPa in 1 minute.
Page 19: Common Alerting Mode
Common Alerting Mode Fast leaking alerting, buzzer buzzing, pressure warning light flashing. High pressure alerting, buzzer buzzing, pressure warning light flashing. High temperature alerting, buzzer buzzing, pressure warning light flashing. Low pressure alerting, buzzer buzzing, pressure warning light flashing. Operation...
Page 20 Transmitter failure alerting, buzzer buzzing Low voltage alerting, buzzer buzzing No signal alerting, buzzer buzzing Alerting default limits ≤190 Low pressure alerting ≥330 High pressure alerting ≥ ℃ High temperature alerting ① [Notice] If the alerting state displays, please solve the problem in time, which could save transmitter power consumption.
Page 21: Troubleshooting
Failure phenomenon Solution Possible reasons Be ensure that cathode and anode No power power supply connection and grounding are correct. No LCD display Fault display Contact suppliers for replacement No receiving signal Transmitter does not Ensure tire pressure is≥ 60kPa work from transmitter Tire ID read mode...
Page 22 Except the installation methods mentioned in user's manual, any changes in product installation and product structure are not allowed. In order to avoid damage to the system, please do not open the product , all the relevant technical services staff should be professionally trained, if the tires have to be disassembled, please note that do not damage the transmitter.
Page 23 Receiver Paste board Left front wheel transmitter Right front wheel transmitter Left rear wheel transmitter Right rear wheel transmitter ， The first edition (April 2009) We do not notice when there is an upgrade ， FOUYOU Group CO Ltd has the power of final interpretation. Equipment Connection...
Page 24 24rd floor, Foryou Tower, Yanda yi road, Huizhou, Guangdong Province,China http: www.foryougroup.com E-mail: AEsales@foryougroup.com EL 0752-2556569 Fax 0752-2556567...
